Reimers JR06 Instruction Manual

Instruction Manual for JR06 Steam Generator, JG- and JJ- Models
READ THIS FIRST:
•
The safeguards and instructions appearing on these pages
are not meant to cover all possible situations that may occur.
•
Understand that common sense, caution, and care are
factors which cannot be built into any product. The person
operating the unit must supply these factors.
•
Read all instructions before installation and operation.
•
Ensure that the blowdown valve is properly and safely piped.
•
Do not position your face or body over the fill funnel.
•
Stand clear of safety valve and scalding steam.
•
Never open the fill valve when unit is under pressure.
•
Valves and pipes are hot when under pressure or heating
up. Do not touch!
IF A LEAK IS EVIDENT:
Steam fittings can become loose during
shipment and subsequently leak. It is easy to
resolve these leaks if you are careful:
1.
2.
3.
4.

1. General

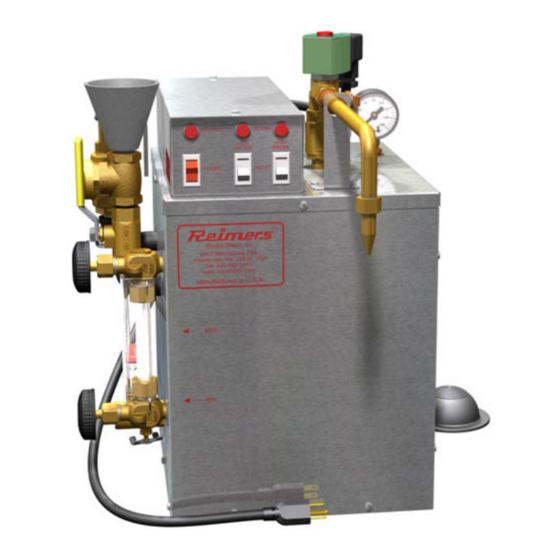

The Reimers JR-series boiler is a portable, hand-filled steam
generator with a total of 2 gallon capacity, for operation at pressures
from 5 to 85 psi. Designed to the ASME/CSD-1 Boiler Code and
registered with the National Board of Boiler Inspectors, it is safe
when installed, maintained, and used properly.
Standard JG-Model equipment includes: Steam pressure gauge (1),
steam valve (2), blowdown valve (3), water-fill funnel (4), check valve
(5), water fill valve (6) safety valve (7), water level gauge (8),
electronic boiler control (9) and power cord (10).
JJ-Model equipment includes in addition to standard model
equipment: Steam jet with electric solenoid valve (11) and foot switch
(12).
Adjustments: All controls have been set at the factory and should
require no adjustments (Open gauge glass
Modification/Misuse: Any modification or misuse of this unit could
result in a dangerous situation. Reimers Electra Steam, Inc. is not
liable for any product that has been modified or improperly used.
Registration: Most states
registration/inspection. Check with local government authorities.
Repair: Only experienced personnel must attempt repair of this unit.
For repair instructions see chapter 5 of this instruction manual.
Electra Steam, Inc.
Electra Steam, Inc.
RETAIN THIS OPERATING MANUAL WITH BOILER. DO NOT DISCARD
Ensure that the boiler is cold,
drained and has no pressure or
electricity.
Tighten leaking packing nut gently a
quarter of a turn. Do not over tighten,
as this will result in gauge glass
breakage or in valve stem freezing
and valve failure.
Fill boiler and operate normally.
Observe for more leaks and repeat
steps 1 and 2 as required.
valves).
and cities require
4407 Martinsburg Pike
Clear Brook, VA 22624
USA
Steam Jet
Pipe Front
Orientation
9
10
JJ-Model shown
7
boiler
Phone: 540-662-3811
Fax: 540-665-8101
Email:
Web:
ASME
CSD-1
CRN
Steam Jet
Pipe Side
11
Orientation
1
2
ASME
Plate behind
this panel
4
5
6
8
3
Sales@reimersinc.com
www.reimersinc.com
12
