Summary of Contents for MHT 3D Progress

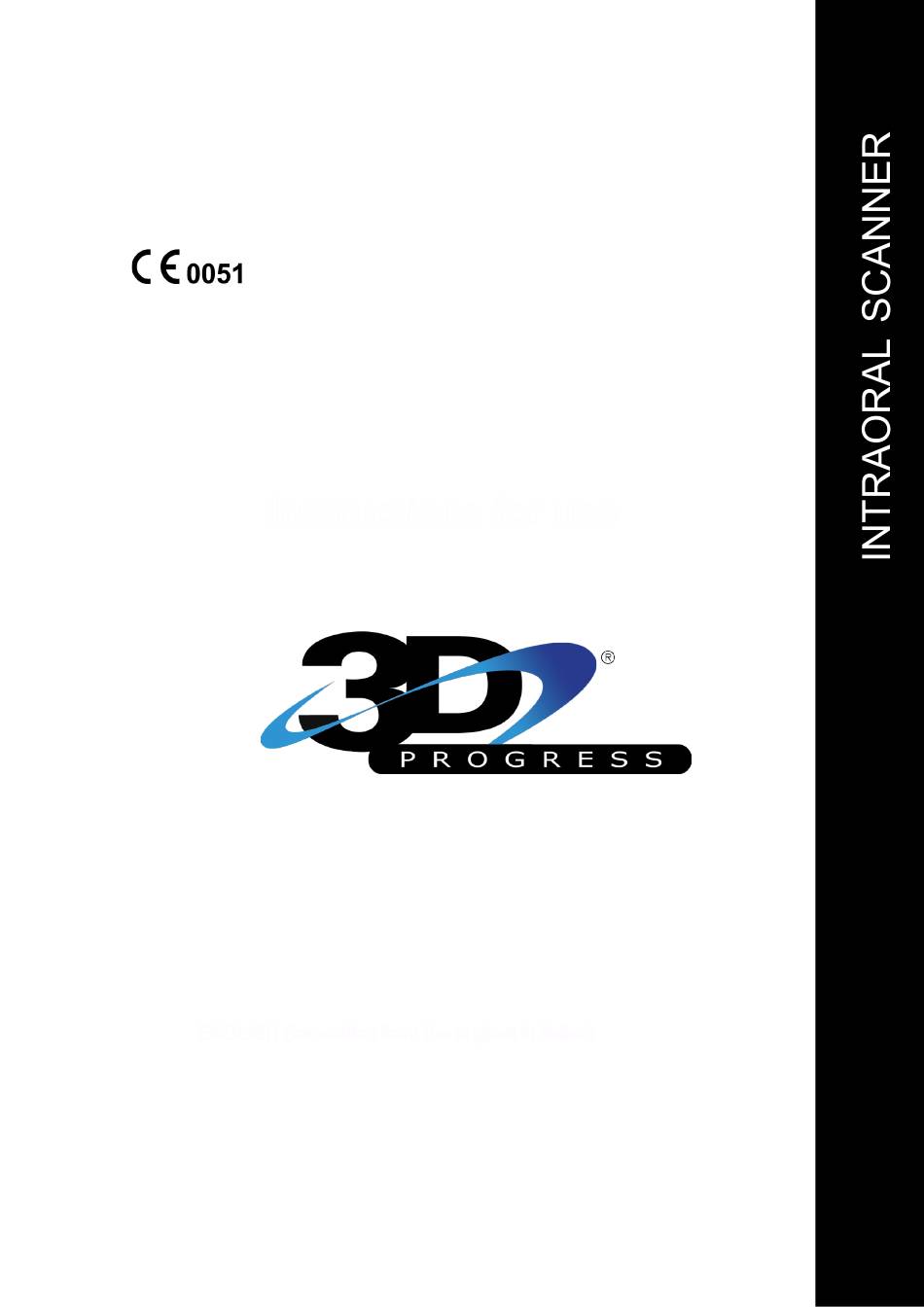

- Page 1 9 7 0 5 0 2 6 3 rev. 0 2 / 2 0 1 3 Instructions for use ENGLISH (translation from the original in italian)
- Page 2 Blank page...
-
Page 3: Table Of Contents
Indice Table of Contents Introduction Conventions used in this manual ...............6 General warnings ....................6 Warning for use ....................7 Safety and hygiene ....................8 Maintenance and disposal .................9 Warranty ......................10 Limited responsibility ..................10 Standards and classifications ................10 Package contents and product parts ...............11 Product identification Intraoral Scanner .....................14 Power supply ....................15... - Page 4 Blank page...
-
Page 5: Introduction
INTRAORAL SCANNER - Instructions for use Introduction • Conventions used in this manual • General warnings • Warnings for use • Safety and hygiene • Maintenance and disposal • Warranty • Limited responsibility • Standards and classifications • Package contents and product parts... - Page 6 PC: Personal Computer 3D-Progress: technical product name, also referred to as scanner MHT: Medical High Technologies S.p.A. a socio unico, Verona (VR), Italy – also referred to as the manufacturer USB: Universal Serial Bus (data transfer system from devices to PC)
- Page 7 INTRAORAL SCANNER - Instructions for use Warnings for use Electronic equipment may cause and suffer from interferences when used in proximity of other electroma- gnetic equipment, in particular mobile phones, personal computers equipped with W-LAN cards, micro- wave ovens. Avoid keeping the scanner and the PC intended for acquisition and storage of the scans in proximity of RF sources, such as W-LAN cards, other radio devices, home RF devices, microwave ovens;...
- Page 8 INTRAORAL SCANNER - Instructions for use Safety and hygene Warning! The scanner is a medical device for digital acquisition of dental imprints. It may only be used by qualified odontological staff. Do not use the system for purposes other than acqui- sition of endoral scans, and do not use it if you do not have the necessary knowledge in the odon- tological field.
- Page 9 INTRAORAL SCANNER - Instructions for use Indice Some parts (USB cable, parts of the packaging, power cable) might cause suffocation if ingested or used improperly. Do not use improperly and keep away from children. Not suitable for use in the presence of flammable anaesthetic gas mixed with air, oxygen or nitrous oxide. Exclusively use the power supply provided with the device in compliance with the IEC 60601-1 standards.
- Page 10 INTRAORAL SCANNER - Instructions for use Warranty The manufacturer guarantees the safety, reliability and performance of the devices. The warranty is conditional on compliance with the following rules: - Observance of the conditions stated on the warranty certificate. The device must be used exclusively in accordance with the instructions given in this instruction manual. Installation, repairs, calibration and in general all the operations that require opening the device covers must be carried out exclusively by technicians authorised by the manufacturer.
- Page 11 INTRAORAL SCANNER - Instructions for use emissions generated during operation of other devices. Package contents and product parts WARNING: The package is made up in stacked layers. Check that you have taken out all the components before disposing of the packaging. Intraoral scanner.
- Page 12 INTRAORAL SCANNER - Instructions for use Component parts of the medical device: - Scanner handpiece; - Power supply interface; - Reconstruction software. Accessories supplied with the product that do not form part of the medical device: - Power connection cable; - USB cable;...
- Page 13 INTRAORAL SCANNER - Instructions for use Product i dentification • Intraoral scanner • Power supply...
-
Page 14: Product Identification
INTRAORAL SCANNER - Instructions for use Intraoral scanner The light radiation (laser) output window is indicated on the front of the handpiece (marking as an alternative). The product identification symbols are indicated on the lower part of the scanner: xxxx xxxx Product identification serial number. -
Page 15: Power Supply
Exclusively use the power supply provided with the product. The product identification symbols are indicated on the lower part of the scanner power supply interface: MHT SPA a socio unico, Via E. Fermi Name of the manufacturer and place of manufacture. - Page 16 INTRAORAL SCANNER - Instructions for use Identification of the connector for the USB cable to be connected to the PC. Warning: read the instruction manual. Key switch open. Key switch closed. Label with safety indications relating to the radiation emitted by the handpie- ce in compliance with IEC 60825-1.
-
Page 17: Scanner System Characteristics
INTRAORAL SCANNER - Instructions for use Scanner system characteristics • Environmental characteristics • Scanner characteristics • Power supply characteristics • Optical characteristics • Scanner holder • USB • Personal computer (optional) - Page 18 INTRAORAL SCANNER - Instructions for use The scanner has been designed to operate in the climatic conditions typically found in closed working envi- ronments in compliance with the IEC 60601-1 standards. Environmental characteristics Operation: temperature +10°C ÷ +35°C; RH humidity between 20% and 90%; Atmospheric pressure 500 ÷...
-
Page 19: Usb
INTRAORAL SCANNER - Instructions for use Standard USB cable type “B” - “A”. In compliance with the standard: USB 2.0 HIGH SPEED. Maximum length (without line amplifier hub): 4.5 metres. Personal computer (optional) For the minimum requirements of the PC and the relative operating system, refer to the software manual code 97050264. - Page 20 Blank page...
-
Page 21: Cleaning And Disinfection
INTRAORAL SCANNER - Instructions for use Cleaning and disinfection • Applying the disposable hygienic protections • Warnings for disposal... - Page 22 INTRAORAL SCANNER - Instructions for use Cleaning is the first step necessary in any disinfection process. The physical action of rubbing a surface with detergents and surface-active agents and rinsing with water re- moves a large number of microorganisms. If a surface is not cleaned first, the disinfection process cannot be successful.
- Page 23 INTRAORAL SCANNER - Instructions for use WARNING! To clean devices connected to the mains power supply, turn off the devices and disconnect the power supply before carrying out the cleaning and disinfection operations of the outer parts. Everything used for cleaning and disinfection must be thrown away after use. Dispose of the materials in accordance with the regulations in force.
- Page 24 INTRAORAL SCANNER - Instructions for use The operation is now complete. When finished discard the disposable protections in “special” waste bins. Warning: For proper functioning of the device, the protection must perfectly adhere to the surface of the optical window and may not have any wrinkles. Warnings for disposal For disposal of intact containers of the disinfectant used, follow the manufacturer’s instructions.
-
Page 25: Preparing For Use
INTRAORAL SCANNER - Instructions for use Preparing for use... - Page 26 INTRAORAL SCANNER - Instructions for use WARNING! Before using the intraoral scanner for the first time, you need to install the software provided and the relative USB drivers. For no reason whatsoever connect the instrument to the PC before having installed the USB drivers. The scanner is equipped with a dual-function cable: power supply and USB transfer.
- Page 27 INTRAORAL SCANNER - Instructions for use The power supply also has a USB port: connect the USB cable to the power supply and the PC as shown in the photo.
- Page 28 Blank page...
-
Page 29: Using The Scanner
INTRAORAL SCANNER - Instructions for use Using the scanner... - Page 30 INTRAORAL SCANNER - Instructions for use Use of the scanner is closely tied to the 3D image acquisition software. 1) Check that the power supply is connected to the mains with the dedicated cable and that it is connected to the USB port of the PC with the USB cable provided;...
-
Page 31: Troubleshooting
INTRAORAL SCANNER - Instructions for use Troubleshooting... - Page 32 INTRAORAL SCANNER - Instructions for use Problem found Possible causes Solutions Doubt about sensor functio- Dropping, knocking, general Do not use the sensor ning. doubt. on a patient but try 3D acquisition using inanimate object. The USB connection does not Defective cable, USB port on PC Replace cable,...
- Page 33 INTRAORAL SCANNER - Instructions for use The blue LED on the power USB cable too long, use of exten- Take out the extensions supply does not come on. sions The maximum length of and use a good quali- a USB connection should not ty and not excessively exceed 4.5m.
- Page 34 INTRAORAL SCANNER - Instructions for use Starting scanning, the yellow Optical acquisition problems, Do not look into the LED on the scanner keypad the demisting heater of the opti- optical window of the comes on and the scan starts cal window might not be working scanner.
- Page 35 8, 14 Limited responsability 10 Maintenance and disposal 3, 5, 9 MHT 6, 15, 35, 36 Optical characteristics 3, 17, 18 Package contents and product parts 3, 5, 11 PC 6, 7, 8, 9, 10, 11, 14, 15, 16, 18, 19, 23, 24, 26,...
- Page 36 For any further information or technical problems contact the local distributor or the maker directly at: MHT SPA a socio unico - Registered office Via Milano 12, 37024 Arbizzano di Negrar, Verona - ITALIA MHT SPA a socio unico - Factory and offices Via E. Fermi 22, 37135 Verona - ITALIA Tel.(+39)0456020842 (+39)0456020843 Fax (+39)0456020196 For information write to: info@mht.it...
