4-IN-1 INSTANT BOILING WATER SYSTEM
EN
Installation and user manual
DE
Installations- und Gebrauchsanweisung
FR
Manuel d'installation et mode d'emploi
NL
Installatie- en gebruikershandleiding
IT
Manuale per l'installazione e l'uso
ES
Manual de instalación y servicio
PT
Manual de instalação e de assistência
EL
Εγκατάσταση και εγχειρίδιο συντήρησης
DA
Installations- og servicevejledning
NO
Installasjons- og servicemanual
SV
Installations- och servicehandbok
FI
Asennus- ja huolto-ohje
4-in-1 Instant boiling water system
4-in-1-Direktsystem für kochendes Wasser
Système d'eau bouillante instantanée 4 en 1
4-in-1 kokend water watersysteem
Sistema istantaneo di bollitura acqua 4-in-1
Sistema instantáneo de hervido de agua 4 en 1
Sistema instantâneo para ferver água 4 em 1
Σύστημα άμεσου βρασμού νερού 4-σε-1
4-i-1 system til hurtig kogning af vand
4-i-1-instantsystem for kokende vann
4-i-1-system för snabbkokvatten
Nelitoiminen kuumavesijärjestelmä

Advertisement

Table of Contents
loading

Related Manuals for Franke Minerva 4-in-1 Electronic

Summary of Contents for Franke Minerva 4-in-1 Electronic

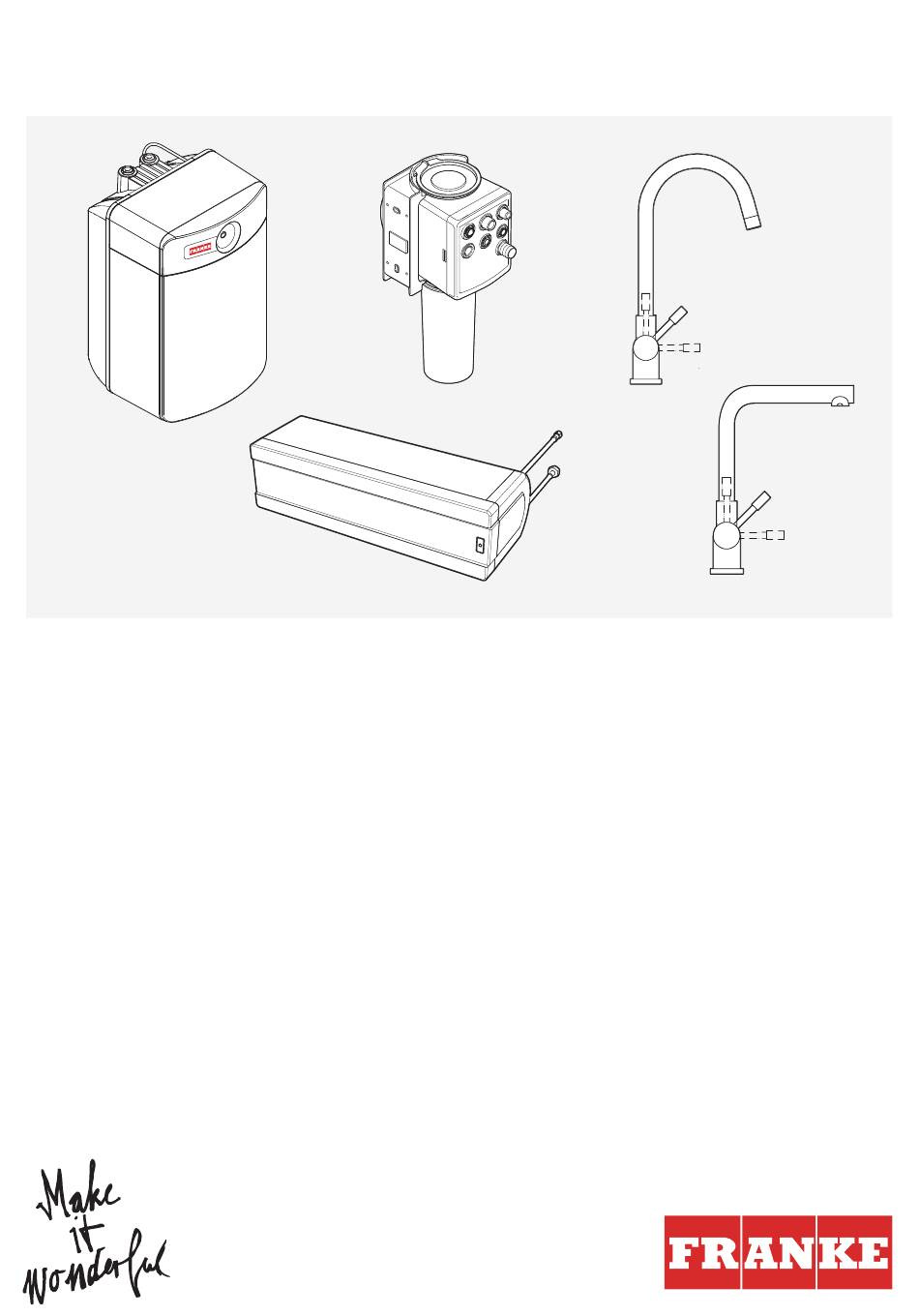

  • Page 1 4-IN-1 INSTANT BOILING WATER SYSTEM Installation and user manual 4-in-1 Instant boiling water system Installations- und Gebrauchsanweisung 4-in-1-Direktsystem für kochendes Wasser Manuel d‘installation et mode d‘emploi Système d‘eau bouillante instantanée 4 en 1 Installatie- en gebruikershandleiding 4-in-1 kokend water watersysteem Manuale per l‘installazione e l‘uso Sistema istantaneo di bollitura acqua 4-in-1 Manual de instalación y servicio...
  • Page 3 – 3 –...
  • Page 4 Stainless Steel Chrome min 40 mm min 60 mm ∅ 35 mm ∅ 35 mm min 30 mm min 30 mm > 10 mm < 10 mm – 4 –...
  • Page 5 > 2 cm > 2 cm > 2 cm > 2 cm > 5 cm > 5 cm > 10 cm > 10 cm > 2 cm > 2 cm > 5cm > 5cm > 5cm > 5cm > 5cm >...
  • Page 6 >  2   c m >  6   c m – 6 –...
  • Page 7 TYPE- & SERIENUMMER – 7 –...
  • Page 8 Ø 60 mm - & S E R IE N - & S E R - & IE N S E R IE N - & S E R IE N TYPE- & SERIAL NUMBER > 150 mm - & S E R IE N - &...
  • Page 9 FIRST FILL THE WATER HEATER WITH WATER! REMPLIR D’ABORD LE BOILER AVEC L’EAU! FIRST FILL THE WATER HEATER WITH WATER! DEZE ZIJDE BOVEN REMPLIR D’ABORD LE BOILER AVEC L’EAU! DEZE ZIJDE BOVEN THIS SIDE UP THIS SIDE UP DIESE SEITE NACH OBEN DIESE SEITE NACH OBEN CE CÔTÉ...

  • Page 10: Standard Installation

    – 10 –...
  • Page 11 Option – 11 –...
  • Page 12 – 12 –...

  • Page 13: Hot Water Supply Installation

    – 13 –...

  • Page 14: Optional Bypass Installation

    Option – 14 –...
  • Page 15 >12 cm >12 cm – 15 –...
  • Page 16 – 16 –...
  • Page 17 120.0305.558 – 17 –...
  • Page 18 – 18 –...

  • Page 19: Table Of Contents

    TABLE OF CONTENTS About this manual Safety information General 4-in-1 tap Boiler M Box Filter cartridge Water quality requirements Installation instructions Product Information System 4-in-1 tap M-Box Boiler Installation instructions for push fitting Icon legend Installation General starting points for installation Installation video Installation steps Standard installation...
  • Page 20 Setting filter alert Messages and Malfunctions Resetting boiler faults Boiler messages 5l Boiler malfunction LED 10l Boiler malfunction LED Tap messages Troubleshooting Maintenance General maintenance Replacing filter cartridge in electronic 4-in-1 Descaling tap sieve M-Box Disposal Declaration of Conformity – 20 –...

  • Page 21: About This Manual

    Warning symbol. Warning against risks of the product. injury. FRANKE reserves the right to make modifications Actions in safety and warning notes to to the product without prior notice. All information avoid injury or damage.

  • Page 22: 4-In-1 Tap

    4-in-1 tap Water quality requirements Avoid burns and scalding and pay attention when pH value 7 – 9.5 using hot water. The temperature of the hot water Waterhardness 3 - 20 / 14 - 21 ˚dH ˚F / 15 - 25˚E/Clark may be higher than 55°C.

  • Page 23: Product Information

    55°C * Ø25 Temperature of boiling water 100°C Maximum water pressure 400 kPa  /  58 psi /  4 bar Filter system Franke Pro M filter Ø32 Filter cartridge dimensions [HxW] 245 x 95 mm Ambient temperature 4 - 30°C Ø45 * Depending on the cold water temperature Pollux 4-in-1 –...

  • Page 24: Boiler

    Boiler 5 litre boiler 10 litre boiler Boiler 5 litre 10 litre Dimensions [H x W x D] 145 x 522 x 200 mm 452 x 300 x 285 mm Contents 4.7 l 10 l Voltage 230 VAC 230 VAC Power 1500 W 2200 W...

  • Page 25: Installation Instructions For Push Fitting

    Installation instructions for push fitting Screw Installing the push fitting Push the hose into the push fitting (fig. 2A). Spanner Pull the hose carefully up and down and check whether it is fitted securely (fig. 2B). Tighten finger-tight Check push fitting Remove the push fitting Warning Sign / Caution / Hazard Push in the ring on the push fitting (fig.

  • Page 26: Installation

    INSTALLATION General starting points for installation Perform the following steps before starting installation. Stop valves must already be installed. Close the stop valves. In existing installations, remove the tap, hoses and boiler if still in place. Mark the existing cold and hot water connection. Do not connect the M-Box to a hot water pipe.

  • Page 27: Operation

    OPERATION Operation of boiler Boiler ECO mode Briefly pressing the ON/STANDBY button As long as the boiler is switched on, the temperature switches between the boiler modes ON and of the water is automatically held constant. Boiling STANDBY (fig. 4A). water is therefore available at any time of the day.

  • Page 28: Frost Protection

    Setting the boiler fiter Deactivating ECO: The ECO function can only be deactivated if it has CAUTION: The filter timer is activated as been previously activated. standard (colour setting green). The ECO function is deactivated by holding the CAUTION: If the filter timer of the boiler is ON/STANDBY button pressed for approx.

  • Page 29: Switching On The Boiler

    Switching on the boiler Decommissioning boiler 9 Remove the plug of the boiler from the wall plug CAUTION: The boiler must be completely socket. filled with water. 9 Turn on the boiling water tap. Insert the plug into an earthed wall plug socket. 9 Wait until cold water runs out.

  • Page 30: Taking Boiler Out Of Service

    Taking boiler out of service Operation of selector knob Activate tap: Press briefly 1x (fig. 4G). If you do not expect to need any boiling water for a prolonged period, such as during holidays, you can switch off the boiler (temporarily): Use the boiler STANDBY mode, or remove the plug from the wall plug socket to prevent heating of the boiler.

  • Page 31: Selector Knob Status Indicator Led

    Filling mode short Sleep mode/stand-by, light out: Hold depressed for 3 seconds (fig. 4L). Press 2x briefly for Pan or Carafe refill short. Pan filling: Boiling water (red) = 30 sec. flow. Carafe filling: Filtered water = 15 sec. flow. Filling mode long 3 sec Press 3x briefly for Pan or Carafe refill long.

  • Page 32: Setting Filter Alert

    SETTING FILTER ALERT Check the hardness of your tap water on your Confirm selection: Hold depressed for 5 seconds water supply company‘s website. until the selector knob sounds and the LED Activate tap: Press briefly 1x (fig. 5A). flashes (fig. 5D) 5 sec.

  • Page 33: Messages And Malfunctions

    CAUTION: If you cannot remedy a fault or 9 The FAULT RESET function is activated by defect yourself, please contact Franke or your pressing the ON/STANDBY button for approx. installer. Switch off the boiler by removing the plug 3 seconds while the fault is displayed.

  • Page 34: Boiler Malfunction Led

    Maximum protection has tripped - boiler too hot (*) Red/green 1 second red / 1 second green Boiler is upside down or installed upright *) Switch off the boiler and contact Franke. Boiler malfunction LED LED colour LED action Description...

  • Page 35: Troubleshooting

    Tap leaking Shut off the water supply. Contact Franke. Remove the plug of the M-Box and the boiler from the wall plug M-Box leaking socket. Shut off the water supply. Contact Franke. Tap supplies no water Cause Remedy Hose(s) kinked...
  • Page 36 Reset the boiler. The boiler is defective Contact Franke. Pressure relief valve in the M-Box is Remove the plug of the M-Box and the boiler from the wall plug socket. defective. Shut off the water supply. Contact Franke. – 36 –...

  • Page 37: Maintenance

    Note: If the selector knob is not in the filter position, inlet combination is (still) working correctly. activate the filter setting by pressing and holding the Always use original Franke parts for maintenance selector knob for 10 seconds until the colour (last or repair. This guarantees the safety and proper filter setting) is displayed (fig.

  • Page 38: Descaling Tap Sieve

    In this case, the tap will signal that the filter needs to be changed. A new filter can be easily ordered at www.franke.shop Over the course of time, lime scale deposits will appear on and alongside the tap sieve (aerator).

  • Page 39: Disposal

    DECLARATION OF CONFORMITY Franke declares that the following product: Boiler 5 litres and Boiler 10 litres are in conformity with the following specifications:...
  • Page 40 Phone 1800 209 3484 930 47 Byske Italy Brazil Phone +46 912 405 00 Franke S.p.A. Franke Sistemas de Cozinhas do Brasil Ltda. Switzerland 37019 Peschiera del Garda 89219-512 Joinville, SC Franke Küchentechnik AG Numero Verde 800 359 359 Phone +55 47 3431 0501...

Table of Contents
