Summary of Contents for Franke Minerva 3-in-1

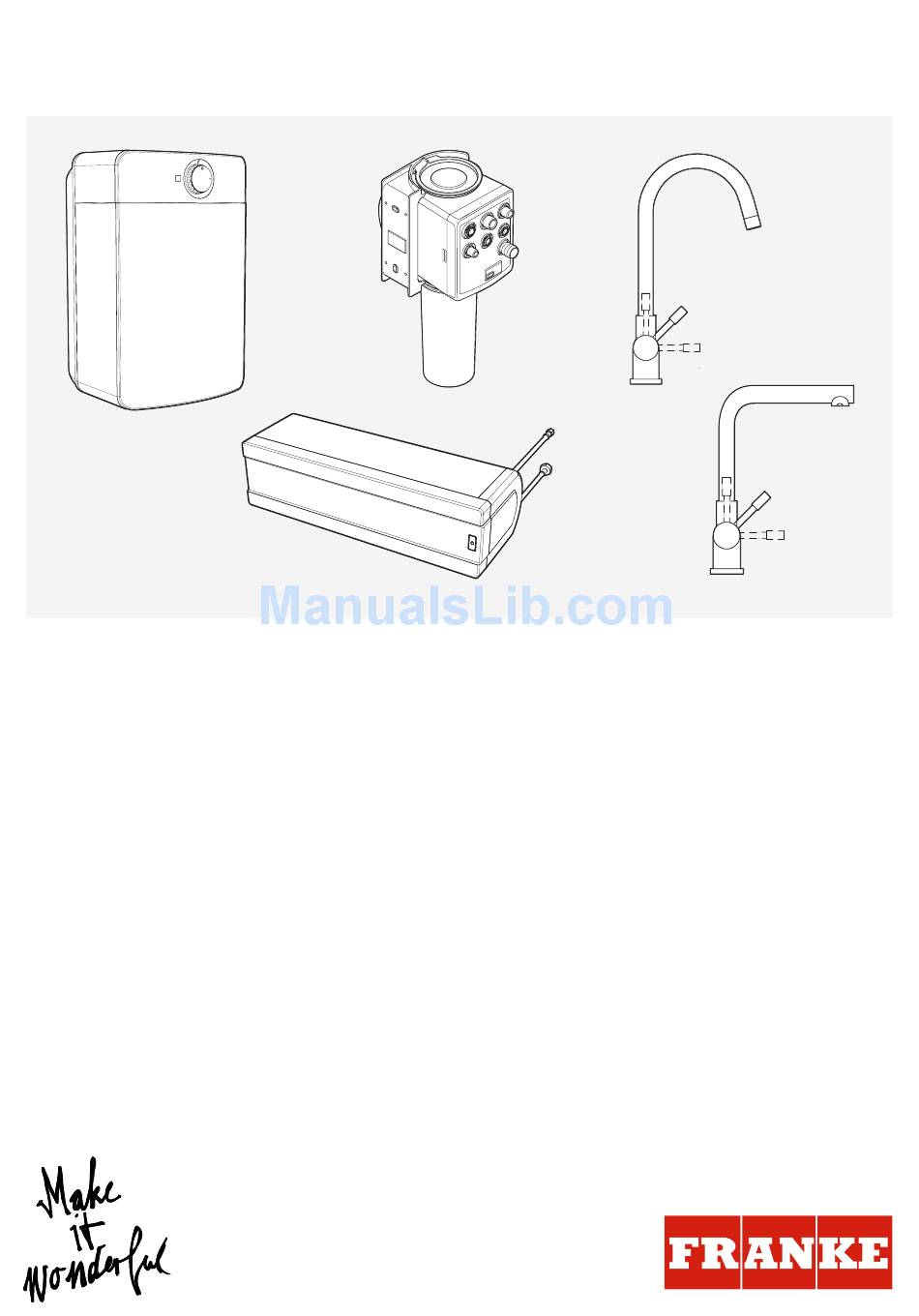

- Page 1 3-IN-1 INSTANT BOILING WATER SYSTEM Installation and user manual 3-in-1 Instant boiling water system...
- Page 3 Chroom min 40 mm min 60 mm Chrome Ø 35 mm Ø 35 mm min 40 mm min 60 mm min 30 mm min 30 mm ∅ 35 m m ∅ 35 mm min 30 m m min 30 mm > 10 mm < 10 mm...
- Page 4 > 2 cm > 2 cm >10 cm >10 cm > 10 cm > 10 cm > 2 cm > 2 cm...
- Page 5 > 2 c m > 6 c m...
- Page 6 TYPE- & SERIENUMMER...
- Page 7 Ø 60 mm - & S E R IE N - & - & - & S E R S E R S E R IE N IE N IE N - & S E R - & IE N S E R IE N > 150 mm...
- Page 8 - & S E R IE N - & - & S E R S E R IE N IE N TYPE- & SERIAL NUMBER FIRST FILL THE WATER HEATER WITH WATER! REMPLIR D’ABORD LE BOILER AVEC L’EAU! FIRST FILL THE WATER HEATER WITH WATER! DEZE ZIJDE BOVEN REMPLIR D’ABORD LE BOILER AVEC L’EAU! DEZE ZIJDE BOVEN...
- Page 10 Option...
- Page 11 Option...
- Page 13 > 12 cm...
- Page 15 120.0305.558...
-
Page 17: Table Of Contents
TABLE OF CONTENTS About this manual Safety information General 3-in-1 tap Boiler M Box Filter cartridge Water quality requirements Installation instructions Product Information System 3-in-1 tap Boiler M-Box Installation instructions for push fitting Icon legend Installation General starting points for installation Installation video Installation steps Switching on for the first time... - Page 18 Troubleshooting Maintenance General maintenance Replacing filter cartridge Descaling tap sieve M-Box Disposal Declaration of Conformity...
-
Page 19: About This Manual
Warning symbol. Warning against risks of the product. injury. FRANKE reserves the right to make modifications Actions in safety and warning notes to to the product without prior notice. All information avoid injury or damage. -
Page 20: 3-In-1 Tap
3-in-1 tap Water quality requirements Avoid burns and scalding and pay attention when pH value 7 – 9.5 using hot water. The temperature of the hot water Iron content (Fe) < 0.2 mg/l may be higher than 55°C. Avoid burns and scalding and pay attention when Chlorine content (Cl) <... -
Page 21: Product Information
5 - 9 l/min * * The flow rate varies, depending on the water supply pressure and the type of tap. 3-in-1 tap ø 25 ∅35 34min 34min Irena 3-in-1 Helix 3-in-1 ø 25 ø25 ∅35 ∅35 34min Minerva 3-in-1 Mondial 3-in-1... -

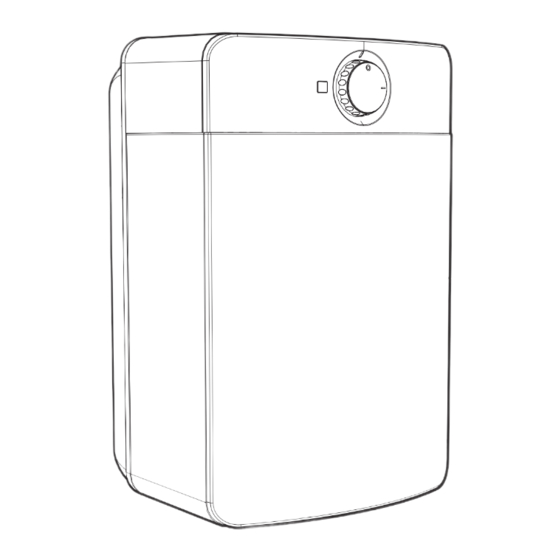

Page 22: Boiler
M-box Temperature of mixed water 55°C Maximum water pressure 400 kPa / 58 psi / 4 bar ø 25 Filter system Franke Pro M filter ø2 Filter cartridge dimensions [h x w] 245 x 95 mm Ambient temperature 4 - 30°C ∅35 Please note that some parts may not be available in your country. -
Page 23: Installation Instructions For Push Fitting
Installation instructions for push fitting Drill Installing the push fitting Push the hose into the push fitting (fig. 2A). Screw Pull the hose carefully up and down and check whether it is fitted securely (fig. 2B). Spanner Tighten finger-tight Remove the push fitting Check push fitting Push in the ring on the push fitting (fig. -
Page 24: Installation
INSTALLATION General starting points for installation Perform the following steps before starting installation. Stop valves must already be installed. See Option at page 9/10, if stop valves have not been installed. Close the stop valves. In existing installations, remove the tap, hoses and boiler if still in place. Mark the existing cold and hot water connection. -
Page 25: Switching On For The First Time
SWITCHING ON FOR THE FIRST TIME Flushing 9 Ensure that the boiler is filled with water! 10 litre boiler 5 litre boiler Operate the mixer tap and flush with warm water Operate the mixer tap and flush with warm water for 1 minute (fig. 3A). -
Page 26: Operation
OPERATION Operation of mixer lever Operation of selector knob Select cold water (fig. 4A). Select hot water (fig. 4B). Hold the object to be filled close to the tap so that the object surrounds the delivery opening Turn on mixer tap (fig. 4C). of the tap. -
Page 27: Boiler Eco Mode
Boiler ECO mode Note: Before commissioning the boiler, see "Flushing". Switch on ECO mode: Switching off the boiler - Hold depressed for 4 seconds, LED is green. Switch off ECO mode: 5 litre boiler: - Hold depressed for 10 seconds, LED is not Press the ON/OFF knob;... -
Page 28: Messages And Malfunctions
9 If the boiler was switched on while it was not filled with water, you must not reset the boiler. In this case the thermostat and the maximum protection device must be replaced. Contact Franke or your installation company. 9 Switch the boiler OFF. -
Page 29: Troubleshooting
Remove the plug of the boiler from the wall plug socket. Shut off the Boiler leaking water supply. Contact Franke. Tap leaking Shut off the water supply. Contact Franke. Remove the plug of the M-Box and the boiler from the wall plug socket. M-Box leaking Shut off the water supply. Contact Franke. - Page 30 The boiler has a fault. Reset the boiler. The boiler is defective Contact Franke. Remove the plug of the M-Box and the boiler from the wall plug socket. Pressure relief valve in the M-Box is defective. Shut off the water supply. Contact Franke.
-
Page 31: Maintenance
This dripping is a sign that the screw on the sleeve finger-tight (fig. 7E). inlet combination is (still) working correctly. Always use original Franke parts for maintenance or repair. This guarantees the safety and proper function of the product and safeguards any warranty claims. -
Page 32: Disposal
2002/96/EC regarding the reduction of the hazardous substances used in in electrical and DECLARATION OF CONFORMITY Franke declares that the following products: Boiler 5 litres and Boiler 10 litres are in conformity with the following specifications: EN 60335-1:2002 incl. A1:2004, A11:2004... - Page 36 Phone 1800 209 3484 930 47 Byske Italy Brazil Phone +46 912 405 00 Franke S.p.A. Franke Sistemas de Cozinhas do Brasil Ltda. Switzerland 37019 Peschiera del Garda 89219-512 Joinville, SC Franke Küchentechnik AG Numero Verde 800 359 359 Phone +55 47 3431 0501...
