Cotek SN-1 PLUS User Manual

Snmp module for sr series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SN-1 PLUS
SNMP Module for COTEK SR Series

1. Introduction

1-1. Main features

 SNMP : SN-1 PLUS's version is V2C. It can be connected to system with NMS, to set
up and monitor SR-Host parameters.
 Web-Server : Using the browser to set up and monitor SR-Host parameters.

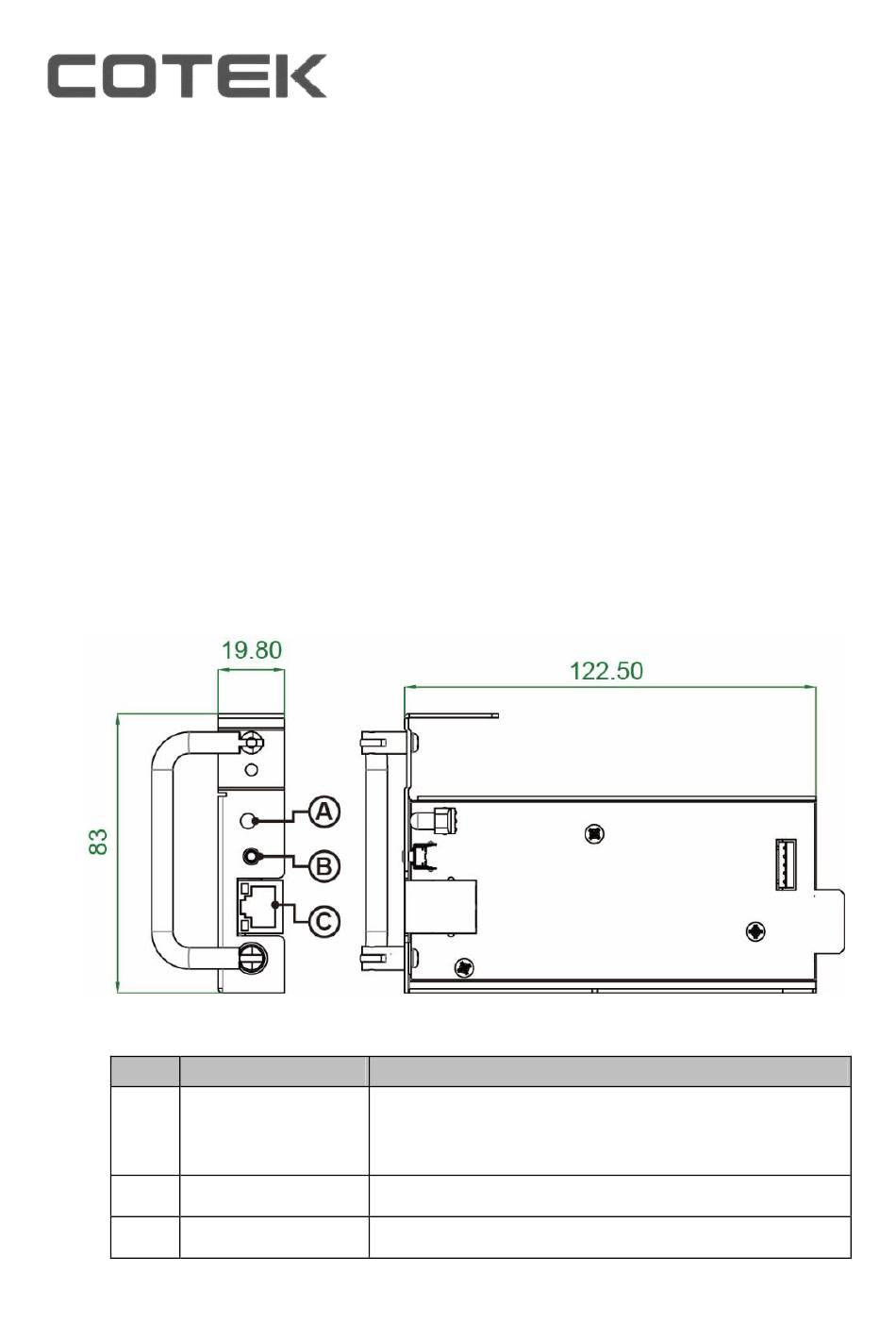

1-2. Hardware introduction

Description
A
LED light
B
Reset Button
C
RJ45
User's Manual
Function
To display below operation status:
Green : Communicate with SR-Host successfully
Red : Fail to communicate with SR-Host
Go back to SN-1 PLUS default settings
Connect to PC locally
1
