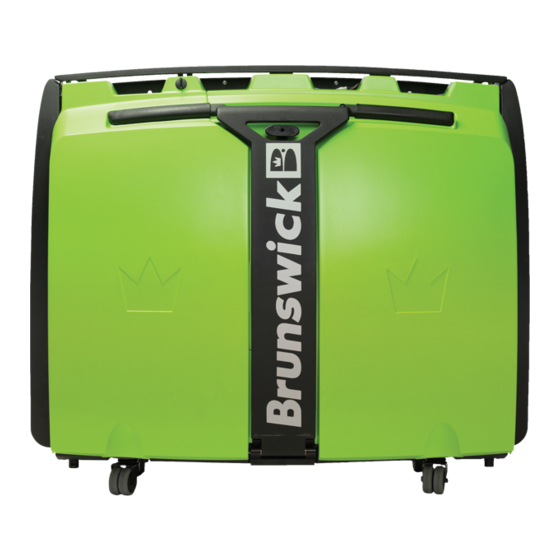

Page 1 Operation & Service Manual Lane Machine July 2019 / 14-900107-000...
Page 2 MAX Lane Machine Operation & Service Manual © July 2019 by the Brunswick Bowling Products. All rights reserved. MAX is a registered trademark of the Brunswick Bowling Products. Manual Part No. 14-900107-000 Notice: If available, updates to this manual can be found on-line at www.brunswickbowling.com.
Page 3: Table Of Contents
Notes & Warnings ..........................6 Safety Notice to Users of this Manual ....................6 General Safety Precautions .......................7 Grounding ............................9 Machine Decals ..........................10 Section 2: Getting to Know the MAX ..................13 Machine Specifications ........................14 Dimensions ...........................14 Weights ............................14 Capacities .............................14 Transport/Storage Position ......................15 Operating Position ........................16...
Page 4 Preparing for Operation Off Approach ..................150 Preparing for Operation On Approach ..................151 The Cleaning System .........................154 The Conditioning System ......................157 The Buffing Operation ......................158 The Traction Drive System ......................159 Troubleshooting Using the Tablet ....................161 Sensors ............................162 MAX Operation & Service Manual...
Page 5 Electrical System Schematic - Left Side View ................213 Electrical System Schematic - Right Side View ................214 Electrical System Schematic - Rear View ..................215 Electronics Control Enclosure - 24VDC ..................216 Overall Tablet Schematic ......................217 Tablet & Handle Keypad Schematic ..................218 MAX Operation & Service Manual...
Page 6: Section 1: Safety
Will designate grounding alerts. SAFETY NOTICE TO USERS OF THIS MANUAL This manual has been written and published by the Service Department of Brunswick Bowling Products to aid the reader when servicing or installing the products described. It is assumed that these personnel are familiar with, and have been trained in, the servicing or installation procedures of these products, which includes the use of common mechanic’s hand tools and...
Page 7: General Safety Precautions
WARNING! Never use any batteries, other than the type supplied with the machine or other options authorized by Brunswick. Mixing battery types or using batteries that are different from what is supplied with the machine may damage the machine and cause serious injury or death to the operator.
Page 8 1. This product is intended only for use in commercial bowling centers and by a trained operator. 2. Do not attempt to undertake any maintenance or service for which you are not qualified. 3. Contact your Brunswick Sales or Service Representative if you are interested in receiving training.
Page 9: Grounding
A 16 Amp, 230-Volt nominal AC input grounding Schuko type plug is supplied on the power cord for international MAX shipments as shown in Figure 1-2. If you need to replace this plug or use an adapter, make sure that the black wire is connected to the “line” terminal, the white wire is connected to the “neutral”...
Page 10: Machine Decals
If you need assistance or replacement decals, please contact your authorized Distributor or the Brunswick Technical Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966. For non emergency support, e-mail techsupport@brunswickbowling.com.
Page 11 11/18 14-100450-000 Figure 1-4. Caution & Support Decal Locations (1) CAUTION DECAL (REORDER PART (2) BTS/WARRANTY CONTACT DECAL (3) CAUTION DECAL - FRENCH NUMBER 14-100146-000) (REORDER PART NUMBER (REORDER PART NUMBER 14-100425-000) 14-100552-000) MAX Operation & Service Manual MAX Operation & Service Manual Section 1: Safety...
Page 12 Refer to the Troubleshooting section of this manual for details regarding these messages and warnings. If you need assistance, please contact your authorized Distributor or the Brunswick Technical Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966.
Page 13: Section 2: Getting To Know The Max
Section 2: Getting to Know the MAX Before you get started you should understand the basic parts and processes of the machine. This section gives you a general introduction to the machine, its design, and how it works. Illustrations identify important parts and systems and provide references to better understand the machine.
Page 14: Machine Specifications
1.6 qt.. = 51 fl. oz. (1.51 l = 1508 ml) up to 60 lanes Waste Tank Capacity: 2.5 gal. = 320 fl. oz. (9.46 l = 9464 ml) up to 40 lanes Section 2: Getting to Know the MAX MAX Operation & Service Manual MAX Operation & Service Manual...
Page 15: Transport/Storage Position
Note: It is OK to connect DC power from battery charger in transport position. WARNING! Brunswick recommends using a partner whenever possible to help with lifting or lowering the machine from the operating position. Take care when lowering this machine into the operating position.
Page 16: Operating Position
Most maintenance operations are made with the machine in “operating position” with the covers open. Refer to Figure 2-4. WARNING! Brunswick recommends using a partner whenever possible to help with lifting or lowering the machine from the operating position. Take care when lowering this machine into the operating position.
Page 17: Machine Features
MACHINE FEATURES The MAX is designed to make lane care easy, reliable, and customized for the needs of individual bowling centers. 1. Direct + injector technology. We have leveraged the technology of Mercury Marine to develop a patented injection system with unprecedented precision. Thirty-nine injectors (one for each board) are independently controlled to deliver precise amounts of conditioner directly to the lane surface.
Page 18: New Features
8. Cleaner pressure sensor. A pressure sensor in the cleaner manifold will monitor cleaner spray pressure and will generate an error message if the spray pressure is outside of tolerances. 9. Strong and fast duster motor. The MAX uses a robust motor that has steel gears resulting in more cycles of the motor.
Page 19: Max Tablet Interface
Refer to Figure 2-5. NOTE: For detailed information on using the Tablet, see Section 4: “Understanding the Tablet Interface”. Figure 2-5. Tablet Interface (1) TABLET INTERFACE (2) USB CONNECTION MAX Operation & Service Manual MAX Operation & Service Manual Section 2: Getting to Know the MAX...
Page 20: Handle Controls
Refer to Figure 2-6. Figure 2-6. Handle Controls (1) OPERATOR HANDLE (2) START BUTTON Section 2: Getting to Know the MAX MAX Operation & Service Manual MAX Operation & Service Manual...
Page 21: Section 3: Max Power System
28.6 vdc. Call Brunswick Technical Service or your installing distributor if your charger is not set to these proper settings for the type of battery in your MAX. It is best to install the charger onto a wall within 8’ (2.438 m) of a power outlet that is not being used to power other equipment.
Page 22: Charging System
CHARGING SYSTEM The MAX Lithium battery is intended to have the power remain ON at all times in order to monitor the performance and charging of the batteries. However, the battery will charge if the machine is powered OFF. A power switch and two indicator lights are located on the left hand side cover to display proper operation.
Page 23: Ac/Dc Power Supply
AC/DC POWER SUPPLY All versions of the MAX utilize an AC/DC power supply which is designed to be operated with an AC power cable. It also provides a level of back up protection if the batteries fail to recharged after use or hold a charge as they end their life cycle.
Page 24 The 125’ power cord should only be connected to the AC/DC Twist-Lock connector on the rear cover when the MAX is in the operating position. This cord should be disconnected before the machine is lifted into the transport position. If the batteries are not fully charged, the AC/DC Power Supply cable should be disconnected from the electrical enclosure after running the lanes and the battery power cable should be reconnected to the electrical enclosure.
Page 25: Section 4: Understanding The Tablet Interface
The Tablet monitors the machine’s operation, tells you when you need to replace or repair parts, and lets you customize just about every aspect of operation to the needs of your bowling center or the preferences of your bowlers. NOTE: “Oil” is used interchangeably with “conditioner” on the Tablet display screen. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 26: The Basic Elements Of Tablet Screens
(1) MENU BAR (5) DATE AND TIME (9) OIL PRESSURE (6) BATTERY VOLTAGE (10) OIL TEMPERATURE (2) STATUS BAR CLEANER PRESSURE (3) MENU OPTIONS (4) MACHINE STATUS (8) TEMPERATURE CYCLE STATUS Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 27: How To Navigate
A “GO” or “OK” button is located on the right side of the handle. It is used to prepare and run the lane machine. In some instances, it can be used to confirm error messages. Refer to Figure 4-2. Figure 4-2. Handle Controls (1) OPERATOR HANDLE (2) OK BUTTON MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 28 To wake the tablet, press anywhere on the tablet screen. Removable Tablet The Max is supplied with an external power supply so you can remove the tablet from the machine to change information, check counters, or design/edit patterns. This can be performed at a desk or work station.
Page 29: The Operator Screen
(9) LAST LANE RUNTIME (2) END LANE (6) TRAVEL SPEED/OVERRIDE (10) LOGIN/LOGOUT USER (3) CURRENT LANE (7) OIL TEMPERATURE OVERRIDE (11) PREPARE MACHINE TO RUN (8) LAST CHARGE STATUS (4) PATTERN NAME/NUMBER/OVERRIDE MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 30: Changing The Start Lane
(the end lane). 1. Touch the number wheel for the “End Lane”, with your finger. 2. Swipe your finger up or down to change the “End Lane”. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 31: Pattern Override
Allows you to override a previously scheduled conditioner pattern for the session. Press the Pattern Number Option to select the conditioner pattern. Select the conditioner pattern you wish to override. Refer to Figure 4-4. Figure 4-4. Pattern Override MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 32: Mode Override
Allows you to see the mode in which the machine is operating. There are three modes to select from. Clean & Oil, Clean (only), and Oil (only). To override the “default” mode for this session select the Mode Option. Refer to Figure 4-5. Figure 4-5. Mode Override Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 33: Forward Travel Speed Override
Allows you to see the “default” forward travel speed of the current conditioner pattern. There are three speeds to choose from. Fast, Medium, and Slow. To override the default speed, touch the Speed Option and select the travel speed for this session. Refer to Figure 4-6. Figure 4-6. Speed Override MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 34: Temperature Cycle Override
Last Charged Box The date/time that the battery was last fully charged. This is intended to assure that the previous operator properly charged the battery when expected. The MAX keeps detailed log files of the battery voltage every five minutes while charging.
Page 35: The Pattern Menu
THE PATTERN MENU The pattern screen lets you schedule, select, create, edit, or save conditioning patterns. The MAX comes with UNLIMITED patterns. You may use these pattern as your own or use them as a template to create more customized patterns. You may also save machine data locally or to a USB drive.
Page 36 Select the desired pattern for this lane range. Start lane is “21”. End lane is “40” Select the desired pattern for this lane range. NOTE: If any day or time period is left without a scheduled pattern, all lanes will run on the default pattern (pattern 1). Please check to make sure that you have not allowed time gaps between any of the 3 allowable time periods or lane ranges. These gaps could result in an unexpected pattern selection if the lane machine is in operation during that time gap. 5. Leave the Pattern Menu to save changes. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 37: Pattern Library
(1) PATTERN NAME AND LENGTH (4) CREATE PATTERN (7) IMPORT PATTERNS (5) DELETE PATTERN (8) EXPORT PATTERNS (2) CATEGORY (DIFFICULTY LEVEL) (3) PATTERN OIL VOLUME (MILLILITERS) (6) EDIT PATTERN MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 38 (9) ENTER ZONE CONFIGURATION (6) START SQUEEGEE (10) LAST PATTERN UPDATE (2) PATTERN NAME (3) MODE OF OPERATION (7) START OILING FROM FOUL LINE (4) FORWARD TRAVEL SPEED (8) SPLIT PATTERN FUNCTION Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 39: Mode
2. Select from 3 modes of operation, Clean & Oil, Oil, or Clean. Forward Speed The MAX offers you three choices of travel speeds: “Fast”, “Medium” and “Slow”. In most instances the machine will operate in the “Medium” speed (~24 inches per second). The “Fast” speed (~27 inches per second) will reduce the cleaning time and battery drain for centers using lighter volumes of conditioner.
Page 40: Start Squeegee
This proves helpful when trying to troubleshoot the pattern or if the pattern was suspect to an unauthorized modification. The “Pattern change log” stores each time the pattern or its parameters are modified. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 41: Zone Configuration
(1) PATTERN NAME/DISTANCE (4) ZONE LENGTH UP/DOWN (7) PATTERN ZONES (2) PATTERN RATIOS/VOLUME (5) REMOVE ZONE BUTTON (8) EXIT BUTTON (3) ADD ZONE BUTTON (6) END CLEANER SPRAY CONTROLS MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 42 The cleaner can be turned off earlier, allowing the surplus cleaner in the scrubbing vacuum head assembly to clean the back ends of the lane. The MAX will always spray the pin deck with cleaner.
Page 43: Oil Level Screen
This screen is accessed through the Zone Configuration screen in the Pattern menu. Refer to Figure 4-12. NOTE: Changes made in the Oil Levels screen will require a new download of the pattern to the machine control board. Figure 4-12. Oil Levels NOTE: The Oil Levels screen lets you adjust the amount of oil applied to each of the 39 boards in each zone of your pattern. Oil levels are measured in “units of oil”, the USBC standard, and are adjustable in 1-unit increments. The USBC minimum oil volume of 3 units is shown as a red line on the oil levels graph. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 44: Pattern Download
The download message will appear when you “Exit” the “Zone Configuration” screen or if you are in the operator screen and a pattern has not been downloaded since it was last modified. Refer to Figure 4-13. Figure 4-13. Pattern Download Message Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 45 If necessary the download may be aborted by pressing “Cancel” on the screen. Refer to Figure 4-14. NOTE: Any new or revised pattern must be downloaded from the tablet to the machine control board to perform a conditioning run using that pattern. When the pattern is downloaded from the Operator screen the machine will prepare to run when the download is completed. The machine will instruct the operator to place the machine on the lane. Figure 4-14. Download Progress Bar NOTE: All patterns must be downloaded after changing to a different conditioner selection. To avoid unnecessary downloads, select your desired conditioner from the System menu before downloading patterns. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 46: Managing Patterns
Managing Patterns It is important to define the different ways to manage the conditioner pattern data. There are 2 ways to transfer patterns. The “USB” drive and the “Brunswick Cloud”. Using a USB to Import and Export Patterns Patterns can be transferred using a USB memory stick or thumb drive for the purposes of saving them to the Pattern Manager PC software or to share them with others.
Page 47 The bottom left corner “lane machine status” icon will change when the USB connects to the tablet. 2. Touch the lighted “Import” button on the tablet. 3. A directory of file folders on the USB will open. Refer to Figure 4-16. Figure 4-16. USB Directory MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 48 5. Select the pattern you would like to Import into the tablet. You may select multiple patterns at the same time. Refer to Figure 4-18. Figure 4-18. Select Patterns 6. When you have finished selecting patterns, press the “OK” button on the screen to transfer them to the tablet. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 49 2. Select patterns to Export by touching the check box located to the left of the pattern name and the “Export” icon will highlight. Refer to Figure 4-19. Figure 4-19. Pattern Export Selection MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 50 3. Touch the “Export” button to open the USB file directory window and select the folder you want to save your patterns in (Figure 4-20). Press “OK” to Export the patterns to the USB. Figure 4-20. USB Export Directory and File Folder Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 51 Using the Brunswick Cloud to Import and Export Patterns You can use the Brunswick Cloud to export patterns to your own “Private” pattern library. This gives you a single storage location that you can modify at any time. You can use the Cloud to import patterns for your spare tablet so both tablets have all the same patterns.
Page 52 Select the patterns you wish to import into your tablet and press”OK”. b. “Brunswick” to find new patterns from the Brunswick Shared Library. Refer to Figure 4-24. Select from the list of new patterns to import into your tablet and press “OK”.
Page 53: Managing Machine Data
“USB Backup” to store on a computer. You may also restore the data as a “Local Restore” or a “USB Restore. A “Factory Reset” can be performed if you want all your settings back to the factory default values. Refer to Figure 4-25. Figure 4-25. Backup and Restore Machine Data MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 54 4. Select the backup folder you wish to restore and you will receive a message asking if you wish to continue. Press “OK” and the machine data will revert to the data on the selected backup. NOTE: It is good practice to create a backup prior to restoring. The Log Files will not over write existing Logs on a tablet. Log files can not be edited or deleted. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 55: The System Screen
The system menu provides basic information about the bowling center and the machine, and provides a security function to control access to different machine functions. Refer to Figure 4-26. Figure 4-26. System Screen MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 56 Entering the Number of Lanes 1. Select the number of lanes by swiping the scroll wheel up or down. IMPORTANT!: If you change the number of lanes after initial setup, you may have to update your pattern scheduler (the pattern scheduler uses the number of lanes entered here in establishing schedules). 2. Exit to another menu to save changes. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 57: System Security
Maintenance menu for troubleshooting purposes. Level 2 users have full access to every menu and every screen. This person is typically the mechanic or center manager. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 58: To Set Up Security
4. Select the “User Name” and allow the user to enter in his or her name. 5. Select the “PIN” field for the user to enter in their Personal Identification Number. 6. Select the level of access for that user then press OK. Figure 4-28. Security Add/Edit User Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 59: System Global Settings
1. Go to the System menu and select Global Settings. 2. Select the Language button and a list of available languages will appear. a. Select the appropriate language. 3. Exit to another menu to save your selection. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 60: System Machine Settings
Distances are in 6 inch increments with 6 inches being the minimum (12, 18, 24 are additional options). 3. Exit to another menu to save changes. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 61 If the value is decreased (0.5 increments) the machine speed will decrease and the machine will complete its run in a slower time. 3. Exit to another menu to save your changes. NOTE: Consult Brunswick Technical Support for changing this setting as other adjustments may cause the machine to travel slower. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 62 Select “Custom” from the list of conditioners and the conditioner values will highlight in white font. b. Swipe the scroll wheels up or down to set each of the five values. 3. Exit to another menu to save your changes. NOTE: Contact Brunswick Technical Support for a list of values of competitive conditioners. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 63: System Temperature Cycle Scheduler
4. Swipe the scroll wheel up or down to set the Stop time. 5. Repeat steps 2-4 if you wish to also use the Second Temperature Cycle option. NOTE: The conditioner Temperature Cycle can be run while the MAX is in the transport position. This feature was added to allow the conditioner heat cycle to be used while the battery charger is still connected to the machine. NOTE: The conditioner Temperature Cycle can also be manually changed between ON and OFF from the Operators Screen. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 64: The Maintenance Screen
Logs keeps and displays records of pattern changes, patterns run, maintenance, error messages, lane length, runtimes, battery charging, and voltage run. WIFI Setup allows you to connect to WIFI for software updates, accessing the Brunswick Shared Library, Private cloud account and sharing Log files with Brunswick Technical Support.
Page 65 Maintenance Counters The MAX monitors the life of consumable items that will need periodic replacing or cleaning. Life expectancy of most items are based on the number of lanes they will perform. Motors are monitored in the number of hours they are used. After you replace a part, you must reset the counter for that part to start the counter for the new part (the duster cloth counter will reset automatically if the duster cloth is changed during a running session via the “change duster cloth”...
Page 66 This menu allows you to operate the pumps and motors and test the operation of sensors and switches. Diagnostics is an invaluable function for troubleshooting machine problems. Refer to Section 6 - Troubleshooting for more information. Refer to Figure 4-34. Figure 4-34. Maintenance Diagnostics Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 67 Sensors This menu lets you view the current status of all sensors or switches for diagnostic purposes. Refer to Figure 4-35. Figure 4-35. Maintenance Diagnostics Sensors MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 68 1. Go to the Maintenance menu and select Diagnostics, then select Cleaning. 2. Select the Component Function you wish to test by pressing that button. 3. If there are corresponding sensors, you will see the Sensor Status change. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 69 1. Go to the Maintenance menu and select Diagnostics, then select Conditioning. 2. Select the Component Function you wish to test by pressing that button. 3. If there are corresponding sensors, you will see the Sensor Status change. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 70 To view a cleaning system sensor position or test a motor function: 1. Go to the Maintenance menu and select Diagnostics, then select Drive. 2. Select either Drive: Forward or Drive: Reverse to turn on drive motor. NOTE: The front distance sensor is on the main traction drive shaft and can be seen operate with the covers open. The sensor will flash and the screen will refresh at a slower rate than the actual sensor. The rear sensor must be turned by hand to see the function on the tablet screen. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 71 2. Press “PREPARE for Lane” and the machine will prepare itself to run. 3. Push the machine on the lane surface when message appears. 4. Press OK a second time to begin the test. MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 72 5. Press OK a second time when the message is displayed. a. The machine will travel down the lane only spraying the cleaner so you can see the spray coverage. Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 73 Logs screen to make troubleshooting faster and more reliable. Users with Level 1 or 2 security access can view all logs. Logs cannot be edited or deleted by the user. Refer to Figure 4-41. Figure 4-41. Maintenance Logs MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 74 1. Go to the Maintenance screen and select Logs, then select the Pattern Change Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-42. Pattern Change Log Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 75 1. Go to the Maintenance screen and select Logs, then select the Pattern Run Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-43. Pattern Run Log MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 76 1. Go to the Maintenance screen and select Logs, then select the Maintenance Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-44. Maintenance Log Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 77 1. Go to the Maintenance screen and select Logs, then select the Messages Log. 2. Swipe your finger up or down on the screen to view log file. NOTE: Maintenance logs can be backed up to a USB flash drive as explained earlier in Section 4, “Backing Up and Importing Data”. These logs may contain information that is helpful to Brunswick Technical Support when troubleshooting issues. They can explain how to attach backup files to an e-mail or ship the USB flash drive with your center maintenance logs. The maintenance logs, counters and critical center data cannot be imported back to your Tablet. Figure 4-45. Message Logs MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 78 1. Go to the Maintenance screen and select Logs, then select the Lane Length Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-46. Lane Length Logs Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 79 1. Go to the Maintenance screen and select Logs, then select the Run Time Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-47 Run Time Logs MAX Operation & Service Manual MAX Operation & Service Manual Section 4: Understanding The Tablet Interface...
Page 80 1. Go to the Maintenance screen and select Logs, then select the Voltage Run Log. 2. Swipe your finger up or down on the screen to view log file. Figure 4-48 Voltage Run Logs Section 4: Understanding The Tablet Interface MAX Operation & Service Manual MAX Operation & Service Manual...
Page 81 The battery charge log will record the battery voltage during the charging cycle. It will take a “snapshot” of this voltage every two minutes. Similar to the Voltage Log, this log will give you the ability to track and troubleshoot the charging operation of the MAX batteries and charging unit. Refer to Figure 4-49.
Page 82 Upload Log Files Log files can be loaded up to the Brunswick Cloud in the event you have issues that require technical support. This feature makes it faster and easier for our technical staff to help resolve potential issues. A Message box allows you to write a short explanation for the upload.
Page 83 Maintenance WIFI Setup The tablet is WIFI compatible allowing you to connect to the Brunswick Cloud to upload and download log files, machine data and patterns. The WIFI should be turned on to upload and download, but may be turned off if the tablet or machine is out of range. It is preferred that the WIFI connection is secured and requires a security password.
Page 84 Intentionally Blank Section 5: Operating The Machine MAX Operation & Service Manual MAX Operation & Service Manual...
Page 85: Section 5: Operating The Machine
Make sure there is enough cloth on the duster cloth supply roll to complete the number of lanes desired. CAUTION! Fill and empty tanks with the machine in operating position (See “Finding Your Way Around the MAX”) and away from lanes and approaches. Use the no-spill container and the oil fill nozzle to avoid spilling. Clean all spills and drips immediately.
Page 86: Start-Up Procedure
Place power cord ring into the cord kill assembly. NOTE: The cord should follow the machine from lane to lane to avoid interference. e. The status window displays “READY” in the lower, left box on the screen. Section 5: Operating The Machine MAX Operation & Service Manual MAX Operation & Service Manual...
Page 87 Position the larger front wheels so they align with the gutter just in front of the foul line of the next lane. d. Press “OK” to begin operation on the lane. e. Continue same procedure on subsequent lanes. MAX Operation & Service Manual MAX Operation & Service Manual Section 5: Operating The Machine...
Page 88: Emergency Stop
The operators choices after this are: • Press “OK” to continue operations. • Press “Return to the Foul Line”. • Press “Stop Running” to stop all functions. Section 5: Operating The Machine MAX Operation & Service Manual MAX Operation & Service Manual...
Page 89 Press “Stop Running” to stop all functions. Refer to Figure 5-1. Figure 5-1. Remote Stop (1) ELECTRONIC ENCLOSURE (3) GREEN (NO2) (5) RED (12 VDC) (2) REMOTE STOP RECEIVER (4) WHITE (C2) (6) BLACK (GROUND) MAX Operation & Service Manual MAX Operation & Service Manual Section 5: Operating The Machine...
Page 90: Shutting Down
3. Wrap power cord in large loops for storage, DO NOT store on lane machine. 4. Perform all daily maintenance task. Refer to Section 6: Maintaining the Max for more information.
Page 91: Section 6: Maintenance & Service
Section 6: Maintenance & Service All machines need regular maintenance to stay in good working condition. The MAX was designed to make routine maintenance easy—parts are located where you can get to them and maintenance procedures are logical and simple to follow.
Page 92: Daily Maintenance In Operating Position
(1) WASTE RECOVERY TANK (6) SIDE COVERS (10) REAR COVER (2) FRAME DIVISION WALL (3) DUSTER CLOTH SUPPLY ROLL (7) FILTERS (4) CLEANER SUPPLY TANK (8) PUMPS Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 93 6. Wipe conditioning compartment, including any areas that shows oil residue, with a dry cloth. WARNING! Take care when working around electrical connections to avoid damaging wire connections. 7. Wipe top, rear and side covers. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 94: Daily Maintenance In Transport Position
(19) DAILY MAINTENANCE DECAL (6) CONTACT ROLLER PIVOT ARMS To keep your MAX looking and performing in like new condition, be diligent with the daily maintenance. Wipe any areas that may become dirty and address any maintenance issues, immediately. 1. Wipe cleaner spray nozzles.
Page 95 Verify the charge output voltage and current display correctly. WARNING! Always inspect approach areas and clean spills or drips immediately. Replace any loose foam. NOTE: The Daily Maintenance Decal on the bottom of the machine (refer to Figure 6-2) contains helpful reminders for each step explained above. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 96: Scheduled Maintenance
Adjusting the Duster Clutch procedure detailed later in this section. 2. Rinse waste recovery tank with hot water. 3. Inspect all electrical connections for loose or damaged wires. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 97: Scheduled Maintenance In Transport Position
4. Clean the oil injector tips with white vinegar and cotton swabs. 5. Clean the traction drive wheels rear counter wheels with IPA99. WARNING! Brunswick recommends using a partner whenever possible to help with lifting or lowering the machine from the operating position. Take care when lowering this machine into the operating position.
Page 98: Annual Maintenance
In addition to the daily and scheduled maintenance, these items should be done once a year, depending on use. The MAX uses high-quality parts to ensure long life. Yet with the demands of daily use, you’ll want to replace parts that wear and check the adjustment of other components to keep your machine in peak working order.
Page 99 WARNING! Before performing maintenance, be sure the charger cord is disconnected from the machine and the machine is off. WARNING! Brunswick recommends using a partner whenever possible to help with lifting or lowering the machine from the operating position. Take care when lowering this machine into the operating position.
Page 100: Annual Maintenance In Transport Position
12 months). You may need to replace them sooner depending on the usage of the machine. 5. Inspect buffer brush and replace if needed. 6. Inspect duster clutch assembly and hardware and replace if needed. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 101 WARNING! Wear safety glasses when using compressed air. Place a cloth under the spray tip assembly to absorb residual fluid that may drip when removing tips. 11. Inspect traction drive chain alignment and tension and adjust if needed. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 102: Tablet Maintenance Messages
500 hours Lithium Battery 1,600 cycles (approximately 4 years in a 40 lane center Lane Length and Runtime As Needed Lanes Per Stop As Needed Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 103: How To Replace, Adjust, Or Lubricate Parts
The Buffing and Squeegee Systems Using the Buffer Brush Adjustment Tool The MAX is equipped with its own adjustment tool for measuring the height of the buffer brush. The adjustment tool is mounted inside the lane machine between the electronic enclosure and the center compartment wall separating the cleaning section from the center compartment.
Page 104 Using the Squeegee Adjustment Tool The MAX is equipped with its own adjustment tool for measuring the height of the squeegee. The adjustment tool is located in the spare parts kit that accompanies the machine. The tool is used to measure the distance between the lane surface and the squeegee extrusion.
Page 105 Cloth: Wind” button. Repeat until the Duster Up switch highlights. 14. Reset the Duster Cloth counter in the Maintenance Counters screen. 15. Close the covers and resume operation of the machine. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 106 1/8 turn (45 degrees). Then retighten the collar bolt with the 3/16” Allen wrench to hold this setting. 8. Repeat steps 1-7 to verify the proper duster clutch adjustment. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 107 The stop bolt should be located in the center of the adjustment slot on both the 7 and 10-pin sides. MAX Operation & Service Manual MAX Operation & Service Manual...
Page 108 Refer to Figure 6-11. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 109 NOTE: The duster down switch should indicate the down position in the cleaner diagnostics when the duster cloth motor is lowered with the lane machine in the operating position on the approach, when it is resting against the down stop for the contact roller pivot arm. When the lane machine is pushed on the front of the lane, the lane should push the contact roller up slightly so the duster down switch is no longer engaged. b. Loosen the screw and adjust the position of the switch until it is correct. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 110 11. Replace the duster cloth. 12. Replace the side cover. Adjusting the Squeegee Blade Height Tools needed: Squeegee adjustment tool, ½” wrench, 7/16” socket with long extension. Adjustment: 7/16” to ½” (min/max on adjustment tool) Refer to Figure 6-12. Figure 6-12. Adjusting Squeegee Blade Height (1) WASTE RECOVERY TANK...
Page 111 6. Slide the adjustment tool underneath the front of the squeegee assembly. If the tool does not fit at the “max” dimension then rotate it to the “min” adjustment and repeat. If the tool still does not fit, an adjustment is required.
Page 112 5. Raise the machine into the transport position. 6. Loosen, but do not remove, the two mounting bolts for each the squeegee adjustment guide blocks on the 7 and 10-pin sides. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 113 10. Visually check the squeegee for even deflection away from the vacuum head. NOTE: It may be necessary to perform the squeegee height adjustment after making the pitch adjustment. 11. Replace the waste tank. 12. Restore power to the machine and test clean the lane. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 114 Replace the hose and reinstall the squeegee head in the lift arms using the two shoulder type bolts. 11. Verify correct adjustment of the squeegee blade height per this manual. NOTE: The absorbent wiper has an expected life is 3-5 months per side for a 40 lane bowling center; however, the wear is dependent on use and the condition of the lane surface NOTE: The squeegee blade is two sided and after one side has reached the end of its useful life, rotate the squeegee blade to place the opposite edge in use. Expected life is 3 – 6 months per side for a 40 lane bowling center; however, the wear is dependent on use and the condition of the lane surface.. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 115 Loosen and remove 4 bolts that secure electronic enclosure to mounting brackets. c. Remove and set aside. CAUTION! Do not use emergency stop button as a handle to lift enclosure MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 116 Expected life is 3 – 6 months per side for a 40 lane bowling center; however, the wear is dependent on use and the condition of the lane surface. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 117 7. Continue to run pump until cleaner has been completely drained. 8. Remove the drain tubing and reconnect the supply line to the manifold. IMPORTANT!: It is very important to make sure the tubing is not damaged and that it is inserted completely into the fitting. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 118 8. Reconnect sensor cable. 9. Fill the cleaner supply tank to verify that there is no leaking from around the new cleaner level float sensor. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 119 14. Test clean one or more lanes (as needed) to verify that all air has been purged from the cleaning system. NOTE: To test the cleaning performance set the pattern to a “Clean” mode in the “Design”, “Pattern Parameters” in the “Pattern” menu. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 120 6. Turn the pressure control valve knob on the cleaner manifold assembly, counter-clockwise to decrease the system pressure. 7. Secure the pressure valve setting knob by tightening the top set screw. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 121 6. Inspect the 14-100378-000 Absorbent Foam Vacuum exhaust /deflector felt and 14-100104-000, 14-100105-000 and 14-100106-000 vacuum exhaust/deflector felt and replace as needed with 14-860222-000 adhesive. 7. Replace waste recovery tank. NOTE: Make sure that the vacuum motor assembly mounting bracket is positioned in the slots to provide even pressure between the vacuum housing and the waste recovery tank. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 122: The Conditioning System
(10) ACCUMULATOR (3) DISCONNECT TO USE DRAIN TUBE SENSOR (11) OIL CONTAMINATION SENSOR (4) CONDITIONER PRESSURE CONTROL (7) ACCUMULATOR RAIL (8) CONDITIONER PRESSURE GAUGE VALVE Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 123 8. Repeat step 7 until air is exiting the drain tubing. 9. Remove the drain tubing and reconnect the tubing to the “ Oil Pressure” valve. NOTE: It is very important to make sure the tubing is not damaged and that it is inserted completely into the fitting. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 124 12. Reconnect sensor cable. Reconnect tubing at tank. 14. Fill the conditioner supply tank to verify that there is no leaking from around the new level sensor. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 125 Drain the Conditioning System. Refer to “Draining the Conditioner Supply Tank” instructions. 2. Remove the Pump and Filter Assembly a. Turn off power to the MAX by the main power switch located on the 7-pin side cover. Disconnect the “Oil Pump” and “Oil Pressure” valve cable assemblies.
Page 126 2. In the Operator screen, turn on the Temperature Cycle Override. Air will be purged from the system during the process. 3. Check the tubing for the Oil Pump and Filter assembly for leaks. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 127 9. Remove the bicycle pump from the accumulator and replace valve cap. 10. Remount the accumulator assembly to the center frame. 11. Connect the Oil pressure sensor and Oil temperature sensor. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 128: The Buffing System
4. Loosen the three (3) bolts that mount the brush lifting motor assembly, to the 7-pin side of the machine, using a 3/8” socket wrench. Figure 6-18. Adjusting the Buffer Brush (1) THREE MOUNTING BOLTS Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 129 10. Verify adjustment on 7-pin side of machine, then check the adjustment across the rear and drive wheels on the 10-pin side of the machine. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 130 16. Tighten (but do not over tighten) the four mounting bolts making sure not to deform the adjustment slots. Refer to Figure 6-17. 17. Replace the 7-pin side cover and fasten to the machine. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 131 4. Remove socket-head cap screw inside the buffer drive pulley using 1/4” T-wrench. This will allow the buffer brush shaft to separate from the buffer drive pulley, which will remain in the machine. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 132 14. Check adjustment on both the 7-pin and the 10-pin sides of the machine. 15. Adjust if necessary. (For additional information see Adjusting the Buffer Brush.) Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 133 6. Disconnect power from machine. 7. Place adjustable wrench on the hex-mount inside the machine and place the 1/2” wrench on the bolt on the outside of the machine. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 134 11. Secure the assembly position by tightening the nut (place adjustable wrench on spacer nut inside machine, and tighten bolt on the outside of machine using 1/2” wrench). NOTE: Make sure that the belt tension is not too tight or too loose. Poor adjustment can cause damage to belt and/or motor. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 135 16. Connect cables to new switch at fast-on cable connectors. 17. Position switches on mounting bracket as close to the motor shaft as possible and tighten screws that secure switches to the bracket. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 136 Lubricating the Buffer Brush Lifting Assembly Refer to Figure 6-22. 1. Apply one drop of oil to the bearings in the buffer brush lifting linkages on 7 and 10-pin sides. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 137 Tools needed: 5/32” Allen wrench. Refer to Figure 6-23. Figure 6-23. Replacing and Lubricating Dispersion Roller (1) DISPERSION ROLLER MOUNTING (2) DISPERSION ROLLER (4) GREASEABLE END OF DISPERSION BOLTS (3) DISPERSION ROLLER CHAIN ROLLER MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 138 5. Attach grease gun with standard bearing grease and pump 2 to 3 times. 6. Remove grease fitting and insert bolt. 7. Check adjustment to buffer brush and tighten. For more information see Adjusting the Buffer Brush. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 139: The Drive System
1. Place machine in transport position with the cover open and power supply disconnected. 2. Loosen and remove nut at base of sensor. 3. Remove black O-ring from base of sensor. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 140 8. Insert and tighten nuts at base of sensor until the end of the sensor is just even with the bottom edge of the lower nut. NOTE: DO NOT over tighten nuts. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 141 3. Disconnect the battery cable from the electronic enclosure and remove the battery from the machine. 4. Remove the 4 screws that fasten the battery tray to the rear and center frame using the 1/8” Allen wrench. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 142 Check the distance between the encoder and the encoder wheel sprocket, using the set of feeler gauges, and verify that it is 1.5 mm +/- 0.5 mm (.06” +/- .02”). Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 143 13. Check the distance between the encoder and the encoder wheel sprocket. It should be 1.5 mm +/- 0.5 mm (.06” +/- .02”). 14. Adjust encoder as needed. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 144 6. To tighten chain, slide traction drive motor assembly away from the traction drive wheels to tighten up slack. 7. To loosen chain, slide traction drive motor assembly toward the traction drive wheels to provide more slack. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 145 1. Apply one drop of oil to each side of the rear-wheel bearing blocks where the shaft and bearing meet. 2. Repeat the procedure for the traction drive bearing blocks. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 146: General Machine Maintenance
6. Remove fuse using fuse puller found in the spare parts kit.. 7. Install new fuse. WARNING! Always use the correct size and amperage fuse. 8. Replace cover and reinstall cover screws and Tablet. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 147 4. Remove the screws that secure the switch to the bracket using a 1/16” Allen wrench & 1/4” open-end wrench. 5. Remove faulty switch. MAX Operation & Service Manual MAX Operation & Service Manual Section 6: Maintenance & Service...
Page 148 9. Check to ensure there is a 1/32” to 1/16” gap between the cord-kill stud and the switch body to provide the proper contact between the plunger on the lanyard and the switch. Section 6: Maintenance & Service MAX Operation & Service Manual MAX Operation & Service Manual...
Page 149: Section 7: Troubleshooting
Section 7: Troubleshooting The MAX’s User Interface (Tablet) will alert you to most operational or maintenance problems by displaying an alert, warning or error message. It is also a powerful tool for troubleshooting. This section teaches you to properly use the Tablet to effectively troubleshoot, lists all the messages you might encounter and provides guidance for correcting problems.
Page 150: Sequence Of Operation
The operator screen displays the temperature of the conditioner. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 151: Preparing For Operation On Approach
20 psi. e. Starts the vacuum motor. f. The operator screen displays “PUT THE MACHINE ON THE LANE” when the machine is ready to begin operation. Refer to Figure 7-1. Figure 7-1. Put the Lane Machine on the Lane MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 152 Normal Clean and Condition Operation on Lane 1. As the MAX is placed on the lane, the system sprays a 5 second pulse of cleaner as the duster contact roller assembly is lifted off the “down” switch (only if the start cleaner distance and the start squeegee distance are set at “0”...
Page 153 Opens the conditioner pressure control valve and conditioner vent valve to allow conditioner to flow back to the conditioner supply tank until the system has reached target pressure required for the next lane. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 154: The Cleaning System
(1) DUSTER CLUTCH (4) DUSTER DOWN SWITCH (7) DUSTER CONTACT ROLLER (2) DUSTER UP SWITCH (5) DUSTER CLOTH SUPPLY ROLL (3) DUSTER CLOTH MOTOR (6) DUSTER CLOTH TAKE UP ROLL Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 155 (2) CLEANER VENT VALVE (6) CLEANER MANIFOLD (10) PRESSURE CONTROL VALVE (3) CLEANER LEVEL FLOAT SENSOR (7) CLEANER PUMP (11) CLEANER PRESSURE SENSOR (4) CLEANER SCREEN FILTER (8) CLEANER SHUT OFF VALVE MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 156 A baffle system in the waste recovery tank directs waste liquids and solids to the bottom of the tank. This isolates the waste material away from the vacuum motor. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 157: The Conditioning System
“Preparing for Operation”. The pressure of the conditioning system is then reset as soon as the lane machine returns to the foul line so it is ready for the next lane. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 158: The Buffing Operation
“Clean and Oil” mode. Figure 7-6. Buffing System (3) BRUSH LIFTING MOTOR (5) BRUSH ROTATION MOTOR (1) BUFFER BRUSH (2) DISPERSION ROLLER (4) DISPERSION MOTOR Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 159: The Traction Drive System
(1) TRACTION WHEEL DRIVE SHAFT (4) TRACTION DRIVE MOTOR (7) DISTANCE SENSOR (REAR) (2) TRACTION MOTOR CHAIN (5) END OF LANE SENSOR (8) DISTANCE SENSOR (FRONT) (3) TRACTION DRIVE WHEELS (6) REAR SHAFT MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 160 As a safety precaution, the machine is designed to decelerate as it reaches the foul line. d. Once the machine reaches the foul line, the conditioner system prepares the pressure and the Tablet displays the number of the next lane to be maintained. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 161: Troubleshooting Using The Tablet
2. Go to the “Maintenance” menu. 3. Go to the Diagnostics sub menu. The screen will now display your “Diagnostics” options that are broken into each system of the lane machine. Refer to Figure 7-8. Figure 7-8. Diagnostics MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 162: Sensors
Sensors, such as the fluid level sensors, can only be checked by draining and filling the tank. However, if the Warning message appears and the tank is full, there may be a failure of the sensor. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 163: Cleaning
Any timed function can be turned off in less than the remaining 20 seconds by pressing that button again. Sensors will highlight when a motor function related to the sensor is activated. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 164: Conditioning
Any timed function can be turned off in less than the remaining 20 seconds by pressing the button again. Sensors will highlight when a motor function related to the sensor is activated. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 165: Drive
2. Select the “Drive: Forward” or “Drive: Reverse by pressing the button and the motor will run for 20 seconds. Any timed function can be turned off in less than the remaining 20 seconds by pressing the button again. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 166: Oil Injector And Cleaner Spray Tests
25 feet of the bowling lane and inject at the same time while performing this test. Perform a clean only or a clean and condition after completion of the Oil Injector test. NOTE: After test is completed it will be necessary to clean and recondition the lane with the appropriate conditioner pattern. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 167 4. Press the handle button again to start the cleaning operation of the “Cleaner Spray” test. 5. Press the handle button when the machine returns to the foul line, this will start the cleaner spray coverage test. NOTE: DO NOT allow cleaner to completely dry on lane surface. After test is completed it will be necessary to clean and recondition the lane with the appropriate conditioner pattern. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 168: Predictive Analytics
PREDICTIVE ANALYTICS The MAX software utilizes Predictive Analytics that monitors operations of the lane machine. The monitoring of systems and functions allow the machine to notify you if something is changing. Alerts messages are low level warnings informing you what to look for and what adjustments you can make.
Page 169 The images in Figure 7-16 are examples of possible error messages the Tablet may display during operation. Figure 7-16. Error Messages - Operation MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 170: Oil Contamination Error
Oil Contamination Error The MAX is equipped with a patented “Oil Contamination” sensor that can detect the presence of cleaner and water, in the conditioner supply tank. The “Oil Contamination” sensor is your protection for the critical system components such as the Oil Injector Rail and Accumulator Rail assemblies.
Page 171 If the contamination is still present the system will generate the Oil Contamination message. 8. Turn on the Temperature Cycle Override to circulate the oil until air is purged from the system. MAX Operation & Service Manual MAX Operation & Service Manual...
Page 172: List Of Error Messages
Tables 7-1 through 7-13 provide a list of error messages with potential problems and remedies. If using the MAX’s Diagnostics menu does not resolve your problem, please contact your Brunswick Distributor or Brunswick Technical Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966.
Page 173: Error Messages That Appear During Preparation (On Approach)
2. Broken wire or loose connection at motor or 2. Repair connection at the electronic enclosure 3. Verify motor function using Tablet 3. Duster motor failure diagnostics and replace if necessary MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 174 5. AD Converter failure on machine control 5. Call BTS Board 6. Conditioner tank vent valve failure 6. Verify vent function using tablet diagnos- tics and replace if necessary Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 175 2. Damaged PCB or other electrical prob- 2. Call BTS lem inside electronics enclosure or Tablet. MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 176: Error Messages That Appear During Operation (On The Lane)
Potential problem Action 1. Machine does not move (trac- 1. Machine not seated properly onto lane 1. Reposition MAX onto lane surface tion drive wheels slipping) 2. High gutters, bumpers or wide lanes 2. Option 1: Lower gutters Option 2: Replace or repair bumpers...
Page 177 2. Broken wire or loose connection at motor 2. Repair connection or at the electronic enclosure 3. Verify motor function using Tablet diag- 3. Buffer brush lifting motor failure nostics and replace if necessary MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 178 2. Broken wire or loose connection at motor 2. Repair connection or at the electronic enclosure 3. Squeegee lifting motor failure 3. Verify motor function using Tablet diag- nostics and replace if necessary Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 179 5. Pushing the machine too far from the 5. Reset counter and start the machine as foul line close to the foul line as possible MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 180 1. The lane machine cannot operate with 1. Download the pattern again were sent to the controller or the current pattern parameters 2. Contact the BTS or your Brunswick installer the pattern parameter data of the lane machine is bad Flash packet write error 1.
Page 181: Warning And Alert Messages
It is recommended to address alerts to maintain proper operation of the lane machine. Refer to Figure 7-18. Figure 7-18. Alert Messages MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 182 (error messages), requiring immediate attention and ensuring that the machine is functioning properly for your customers. Refer to Figure 7-19. Figure 7-19. Warning Messages NOTE: Maintenance logs can be backed up to the Brunswick Cloud or a USB flash drive as explained earlier in Section 4. These logs may contain information that is helpful to Brunswick Technical Support when troubleshooting issues. They can explain how to upload to the Cloud, attach backup files to an e-mail or ship the USB flash drive with your center maintenance logs. The maintenance logs, counters and critical center data cannot be imported back to your Tablet. Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 183 Table 7-14 provides a list of warning messages with potential remedies. If you’re unable to resolve a problem, please contact your Brunswick Distributor or Brunswick Technical Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966. For non emergency support, e-mail techsupport@brunwickbowling.com...
Page 184: Maintenance Messages
5,000 hours Vacuum Motor Hours 500 hours Lithium Battery 1,600 cycles (approximately 4 years in a 40 lane center Lane Length and Runtime As Needed Lanes Per Stop As Needed Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 185 In addition to the other high wear items, the MAX will also monitor the “Lanes Per Stop” to identify if the machine is not performing to our productions standards. Lanes Per Stop records the errors that happen while the machine is processing a lane.
Page 186: Mechanical Failures
Tables 7-16 through 7-21 provide a list of possible mechanical failures and the steps to correct them. If you need assistance, please contact your Brunswick Distributor or Brunswick Technical Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966. For non emergency support, e-mail techsupport@brunswickbowling.com.
Page 187 5. Adjust low fluid sensor by turning to allow for clean vertical drop, or replace 6. Low cleaner spray system pressure 6. Option 1: Adjust max pressure to 18 psi Option 2: Verify cleaner screen filter is not clogged Option 3: Replace cleaner pump 7.
Page 188 Option 2: Vacuum exhaust diffuser foam is not in proper position or needs to be cleaned or replaced. Option 3: Cleaner pressure is too high Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 189 5. Refer to Buffer Brush Adjustment for more information 6. Lane monitor not working properly 6. Contact the Brunswick BTS 7. Accumulator lost precharge 7. See section 6 for instructions to recharge the accumulator MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 190 2. Option 1: Verify fuse condition, and replace if necessary Option 2: Verify motor function using Tablet diagnostics and replace if necessary Option 3: Contact BTS for additional support Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 191 4. Main switch on the side cover is turned 4. Turn on main switch on side cover. 5. Battery is not charged 5. Connect charger to machine MAX Operation & Service Manual MAX Operation & Service Manual Section 7: Troubleshooting...
Page 192 Intentionally Blank Page Section 7: Troubleshooting MAX Operation & Service Manual MAX Operation & Service Manual...
Page 193: Section 8: Lane Maintenance And Pattern Design Theory
Three times per day Spot cleaning approaches Daily Three times per day Deep cleaning approaches Monthly Weekly Washing gutters and flat gutters Yearly Monthly Inspect panel seams and lane plugs Yearly Monthly MAX Operation & Service Manual MAX Operation & Service Manual Section 8: Lane Maintenance and Pattern Design Theory...
Page 194: Pattern Development
Using the bowling center environment, bowler types, and lane surface information will help you make a decision on the type of conditioner and cleaner you choose to use. Your Brunswick distributor or Product Specialist can help you make this decision much faster and help you with developing the best pattern to fit your needs.
Page 195 Competitive patterns fit between Sport and Recreational patterns and are used for tournaments that are for a medium level of difficulty. Pattern ratio: Above 3 to 1 and up to 6 to 1. MAX Operation & Service Manual MAX Operation & Service Manual...
Page 196 Figure 8-1. Pattern Ratios Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 197 This forces more bowler types to play the same or similar part of the bowling lane. This is more common for recreational and competitive patterns. Figure 8-2. Lengthwise Ratios MAX Operation & Service Manual MAX Operation & Service Manual Section 8: Lane Maintenance and Pattern Design Theory...
Page 198 High volume patterns are more common in sport focused centers. These volumes help protect the lanes from the high-performance bowling balls as well as a larger number of games played between lane maintenance. Pattern volume: Greater than 25 milliliters. Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 199: Design A Conditioner Pattern
Design a Conditioner Pattern Pattern design with the MAX has become a lot easier. 1. Zone configuration The zone configuration allows you to design patterns with a minimum of one zone to a maximum of eight zones. Zone lengths can range from 3 feet to 57 feet. Recreational patterns can vary from 3 zones to 5 zones with zone lengths from 8 feet to 12 feet.
Page 200 Set all boards for zero (0) and the machine will buff the last zone in the forward direction of travel only. This increases the lengthwise taper even more. Refer to Figure 8-4. Figure 8-4. Oil Levels Buff Zone Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 201: Verifying The Conditioner Pattern
Verification of the conditioner pattern is a step used to qualify the pattern you are using. It allows you to see that the MAX is consistently producing a conditioner pattern based on what is programmed in the Pattern Design screens. It also allows you to identify wear components such as, the absorbent wiper, squeegee, or buffer brush.
Page 202: Brunswick Pattern Library
All of these patterns can be accessed on the Brunswick Cloud to your MAX tablet. Select the patterns you wish to download to your machine. The patterns can also be stored in your private Cloud account you receive when you purchased the machine.
Page 203 2. Select the Import button to access the Cloud. This will generate a message asking you to choose between Private or Brunswick. Refer to Figure 8-6. Figure 8-6. Pattern Library Cloud Message MAX Operation & Service Manual MAX Operation & Service Manual Section 8: Lane Maintenance and Pattern Design Theory...
Page 204 3. Select Brunswick to access the shared library. Refer to Figure 8-7. Figure 8-7. Brunswick Cloud Shared Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 205 4. Select the pattern(s) you wish to download to your tablet and press OK. You will see a pattern download progress bar followed by a message that the pattern was successfully imported. Refer to Figure 8-8. Figure 8-8. Import Successful Message MAX Operation & Service Manual MAX Operation & Service Manual Section 8: Lane Maintenance and Pattern Design Theory...
Page 206: Exporting Patterns To Your Private Cloud Account
1. Go to your Pattern menu and select “Library” to access your patterns. Refer to Figure 8-5. 2. Select the patterns you wish to export to your Private cloud account by checking the boxes to the left of the pattern name. Refer to Figure 8-9. Figure 8-9. Selecting Patterns For Cloud Export Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 207 3. Press the Export button on the lower right of the screen. You will see the pattern upload progress bar followed by a message that the pattern(s) were successfully exported. Refer to Figure 8-10. Figure 8-10. Export Successful Message MAX Operation & Service Manual MAX Operation & Service Manual Section 8: Lane Maintenance and Pattern Design Theory...
Page 208: Importing Patterns From Your Private Cloud Account
3. Select the pattern(s) you wish to import by checking the box to the left of the pattern name. When all patterns are selected, press OK. Refer to Figure 8-11. Figure 8-11. Import From Private Library Section 8: Lane Maintenance and Pattern Design Theory MAX Operation & Service Manual MAX Operation & Service Manual...
Page 209: Section 9: Appendix
2. A set of electrical schematics and diagrams PRE-INSTALLATION PACKING LIST These items should be shipped with the MAX Lane Machine. Please call us if you are missing any items on this packing list. Lane Machine Complete with Covers and Tablet 1.
Page 210 POWER CORD, 2.5M, 3 COND., 220V, LANE SERVER 1.00 68-100143-000 CORD - POWER, 115V. 7.5 FT. 1.00 14-900106-000 MANUAL - MAX SPARE PARTS 1.00 14-900107-000 MANUAL - MAX OPERATION AND SERVICE Page 1 of 1 Section 9: Appendix MAX Operation & Service Manual MAX Operation & Service Manual...
Page 211: Electrical Schematics & Diagrams
14-860214-000 Pkg. of 5 Fuses - 4.0A, 250V, 5 x 20 mm, Slow Blow Conditioner Pump 14-860218-000 Pkg. of 5 Fuses - 6.3A, 250V, 5 x 20 mm, Slow Blow Buffer Drive Motor Fuse Specification chart MAX Operation & Service Manual MAX Operation & Service Manual Section 9: Appendix...
Page 212 Duster Cloth Motor Traction Drive Motor Duster Cloth Motor (up) Reverse Beeper Cleaner Pump Traction Drive Motor Reverse Buffer Drive Motor Traction Drive Motor Brake Conditioner (Oil) Pump LED Applications Chart Section 9: Appendix MAX Operation & Service Manual MAX Operation & Service Manual...
Page 213: Electrical System Schematic - Left Side View
(16) WHITE (TOP) (4) DRIVE MOTOR (11) BUFFER BRUSH MOTOR (17) GREEN (BOTTOM) (5) RACEWAY (INSIDE U-CHANNEL) (12) CHARGING PORT (6) RACEWAY (ABOVE INJECTOR RAIL) (13) POWER SWITCH (7) INJECTOR RAIL MAX Operation & Service Manual MAX Operation & Service Manual Section 9: Appendix...
Page 214: Electrical System Schematic - Right Side View
(8) CONDITIONER VENT VALVE (18) REAR SPEED SENSOR (28) BLUE (COM) (9) CONDITIONER PRESSURE VALVE (19) RACEWAY (ABOVE INJECTOR RAIL) (29) GREEN (NO) (10) CONDITIONER TANK (20) CLEANER TANK (30) WHITE (COM) Section 9: Appendix MAX Operation & Service Manual MAX Operation & Service Manual...
Page 215: Electrical System Schematic - Rear View
Electrical System Schematic - Rear View Figure 9-4. Electrical System - Rear (1) ELECTRICAL ENCLOSURE RACEWAY (ABOVE INJECTOR RAIL) MAX Operation & Service Manual MAX Operation & Service Manual Section 9: Appendix...
Page 216: Electronics Control Enclosure - 24Vdc
Electronics Control Enclosure - 24VDC Figure 9-5. Electronic Control Enclosure Schematic Section 9: Appendix MAX Operation & Service Manual MAX Operation & Service Manual...
Page 217: Overall Tablet Schematic
Overall Tablet Schematic Figure 9-6. Overall Tablet Schematic MAX Operation & Service Manual MAX Operation & Service Manual Section 9: Appendix...
Page 218: Tablet & Handle Keypad Schematic
Tablet & Handle Keypad Schematic Figure 9-7. Tablet and Handle Button Schematic (1) TABLET RACEWAY (ABOVE ELECTRICAL ENCLOSURE INJECTOR RAIL) Section 9: Appendix MAX Operation & Service Manual MAX Operation & Service Manual...

Brunswick MAX Operation & Service Manual

Section 1: SAFETY

Section 2: Getting to Know the MAX

Section 3: MAX Power System

Section 4: Understanding the Tablet Interface

Section 5: Operating the Machine

Section 6: Maintenance & Service

Section 7: Troubleshooting

Section 8: Lane Maintenance and Pattern Design Theory

Section 9: Appendix

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Brunswick MAX

Summary of Contents for Brunswick MAX

Table of Contents
