Summary of Contents for Aqua One AquaReef 525

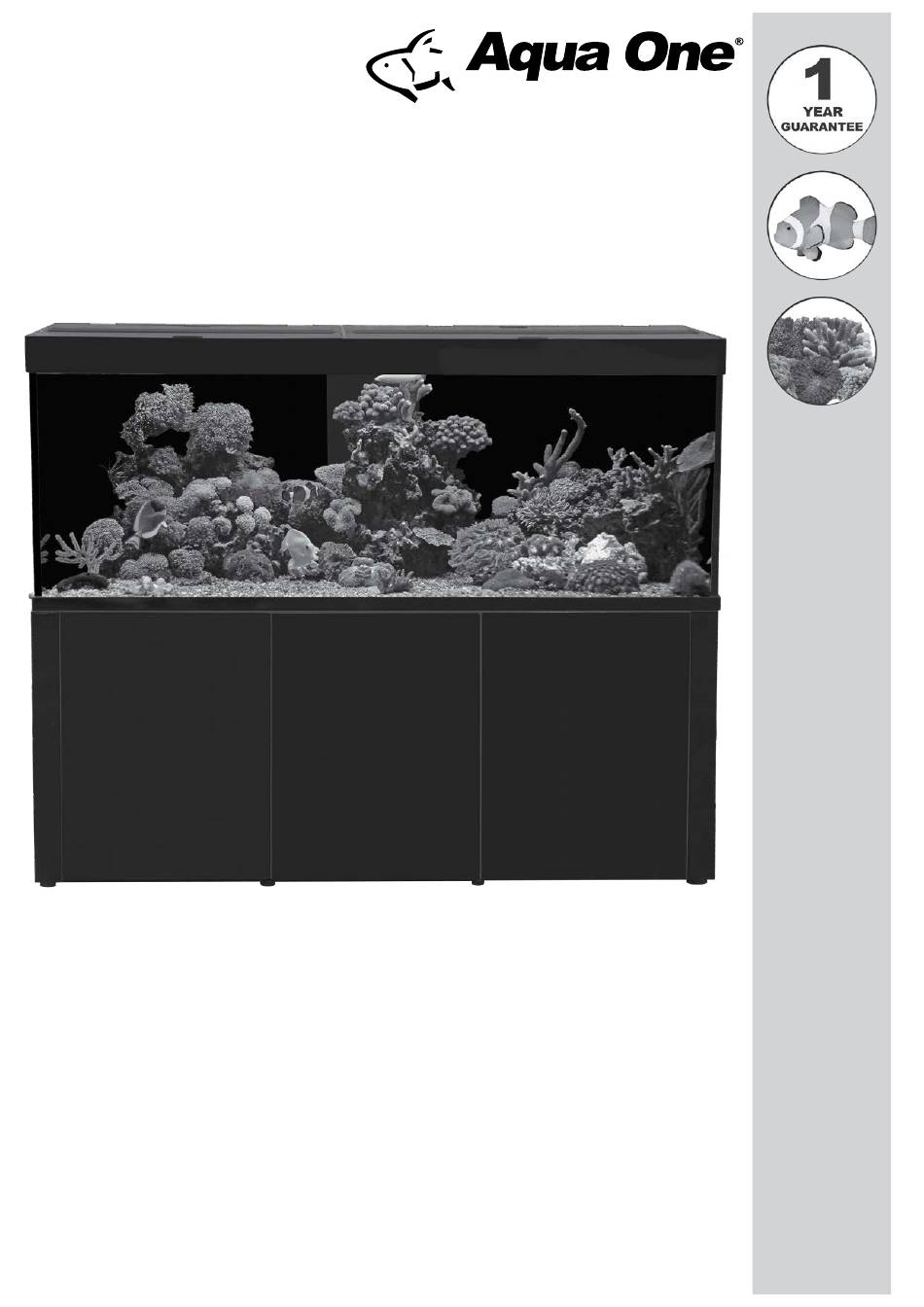

- Page 1 AquaReef Inspiring Excellence in Fish Keeping! Instruction version: 14/11/2017 www.aquaone.com.au...
- Page 2 This page has been intentionally left blank...
-
Page 3: Before First Use / Preparation
Replacement Parts & Filter Media for inspection. Use Aqua One Genuine Spare Parts Only. See your local Aqua One Dealer and look for the number listed below for the spare part you require. Alternatively you will find these numbers on the silver label located on the product. -
Page 4: Important Safeguards
Important Safeguards To guard against injury, basic safety precautions 8. Do not install or store the appliance where it will be should be observed, including the following: exposed to weather or temperatures below freezing. 1. Read and follow all safety instructions and important 9. -
Page 5: Light Unit
Know Your Aquarium Note that this aquarium set Light Unit has two complete light units Switch Transformer Glass Lids Light Unit Lid Flaps Top Frame Tank Body Bottom Frame Cabinet... - Page 6 Know Your Aquarium Plumbing Components 1. Duckbill Outlet (x2) 2. Stand Pipe 3. Return Pipe 4. Breather pipe 5. Drain O-Rings (x2) 6. Return O-Rings (x2) 7. Drain Bulkhead 8. Return Bulkhead 9. Upper Return Hose 10. Return Barrel Union 11.
- Page 7 Weir 15. Weir 16. Inlet Holes 17. Air Intake 18. Glass Brace Sump Tank 19. Filter Sock 20. Heaters 21. Protein Skimmer 22. Return Pump 23. Top-up Reservoir...
-
Page 8: Setup Instructions
Setup Instructions Please check that all parts and equipment are 4. Using a clean, damp cloth, wipe the inside of present and not damaged before setting up your the aquarium to remove any dust. aquarium. DO NOT USE ANY CHEMICALS OR All equipment and accessories should only be DETERGENTS used for the aquarium and should be purchased... - Page 9 Setup Instructions 7. Attach the other end of the Upper Return Hose (9) to the Return Bulkhead (8) and secure with another Hose Clamp (14). 12. Attach the Duckbill Outlets (1) to the return pipe. The connection should pass through the holes in the weir 8.
- Page 10 Setup Instructions 15. Unpack the Heaters and mount them in the Heater Chamber. DO NOT PLUG THE HEATERS IN UNTIL THEY ARE FULLY SUBMERGED IN WATER. 18. Join the two sections of return pipe by reassembling the Return Hose Barrel Union (10) 19.
- Page 11 Setup Instructions Top Frame Glass Braces Centre Brace 21. Unpack the lids and place them on the glass 23. Place the light units on the Top Frame and braces as shown the centre brace as shown. At rear as cable access At front as feeding point Note that each lid has a corner cut out.
- Page 12 25. Slot Lid Flaps into the channels on the light 26. Plug the power cables on the lights to the units and lower flaps as shown in the steps transformers. Match the colours of the plugs - below. blue plugs into the blue sockets and white plugs into white sockets.
-
Page 13: Maintenance
Replace if necessary. WEEKLY: 10. Perform any maintenance required on the Return Pump and the Protein Skimmer. Test water parameters including pH, ammonia, nitrite, nitrate and specific gravity. Aqua One test remove return pump, disconnect kits (sold separately) will allow you to easily and Return Barrel Union (10) so that accurately monitor your water quality. - Page 14 Removing front supports To facilitate access and to allow for the removal of the sump tank if required, the aquarium stand features two removable front supports. This should rarely be required and is not intended that they are removed regularly on a running aquarium. Removable Supports 3.
-
Page 15: Troubleshooting
Results TREATMENT OF PLUMBING Note: We recommend an auto top up unit such as an Aqua One AquaFill to automatically top up from the built in reservoir. Both of the Barrel Unions included in this aquarium system have silicone o-rings. It is recommended 2. - Page 16 1. all express and implied warranties and conditions under statute or general law, are expressly excluded and Aqua One, where permitted, will limit liability as follows and at Aqua One’s option to: in regard to goods either a) the replacement of goods or supply of equivalent goods b) the repair of goods or the cost of replacing the goods or of acquiring equivalent goods OR in regard to services either c) the re-supply of services d) the cost to re-supply services.
