Page 1: Table Of Contents
Chicago, Illinois, USA www.allevawave.com Table of Contents ..............User Assistance Information ..............Warnings and Precautions ............Purpose of the Alleva-Wave P2 System ........... Description of the Alleva-Wave P2 System ............ Environmental Conditions that Affect Use ..................System Setup ................Operating Instructions ................
Page 2: User Assistance Information
Purpose of the Alleva-Wave P2 System The Micro-Pulse Alleva-Wave system is intended to safely assist in recovery from injury or damage in hard and soft tissue, and to reduce or eliminate swelling and pain in most tissues. This includes bones, tendons, ligaments, muscles, and cartilage. The Alleva- Wave system operates by applying a precisely controlled pulsed electro-magnetic field (PEMF).
Page 3: Description Of The Alleva-Wave P2 System
(from sports, daily activities, work, etc.), and reduce chronic swelling in tissues. An important application is the reduction of joint pain, whether chronic or from injury. Description of the Alleva-Wave P2 System System Components The P2 system has the following major components: Pulse generator Creates precisely controlled electrical pulses that power the coils.
Page 4: Environmental Conditions That Affect Use
Lower red LED is flashing = system has a malfunction, requiring you to contact the supplier Each time the Alleva-Wave P2 is powered on; the center yellow LED will flash three times. This is normal and indicates the device is performing a self-diagnostic.
Page 5: System Setup
Do not charge Alkaline and other types of non-rechargeable batteries. They can explode and cause injury. Check the System Before using the Alleva-Wave P2 system you should: 1) Ensure the connector for the coils is completely inserted into the pulse generator.
Page 6 Understand Coil Configurations and Stimulation Zones The Alleva-Wave system has two specially- designed coils. The two coils allow you to control how the pulsed magnetic field is shaped into different stimulation zones so that you can better focus the magnetic field on the injury site. This maximizes the stimulation to the injured tissue while minimizing unnecessary stimulation to surrounding tissues.
Page 7 Note Follow the three coil placement guidelines to make sure you are receiving the full benefit from the magnetic fields. Visualizing the magnetic field can be helpful when considering how to place the coils. When the coils are placed in an Opposite-Side configuration, they will generate a magnetic field that fills the space between them.
Page 8: Coil Placement Examples
position during stimulation, for example, using an old t-shirt and iron-on pockets or stitched-on pouches. This works well because each individual case is different. Select the Desired Cycle Profile Select one of three previously described cycle profiles with the cycle profile switch, as follows: Switch Magnetic Mode for...
Page 9 The illustrations below show the coils in their "flat" geometry. However, you are encouraged to flex and conform the coils to your body contours for both comfort and greater stimulation effectiveness. Neck Shoulder Elbow Lower back www.allevawave.com 9 of 12 P2 User Instruction Manual...
Page 10: Frequency And Duration Of Use
Rest periods are as important as stimulation periods, to allow tissues to recover. You can provide rest periods in two ways. One is by selecting a Alleva-Wave P2 cycle profile in which a rest period is automatically included. The other is by simply not using the device for certain periods of time.
Page 11: Faq
Q: How do I know if my device is working properly? First, plug in your coils and make sure they are plugged in all the way. Then insert a fresh, fully charged 9-volt battery. Then move the cycle profile switch to either position 1, 2 or 3. You should see the center yellow LED flash three times, and then see the upper green LED flash as the device operates.
Page 12: Expected Battery Life
Alkaline Energizer MAX Alkaline DuraCell Alkaline Generic + Rechargeable batteries. Can be used many times. * Non-rechargeable batteries. Can be used only once. Alleva-Wave ™ is designed and assembled in USA by Micro-Pulse www.micro-pulse.com www.allevawave.com 12 of 12 P2 User Instruction Manual...

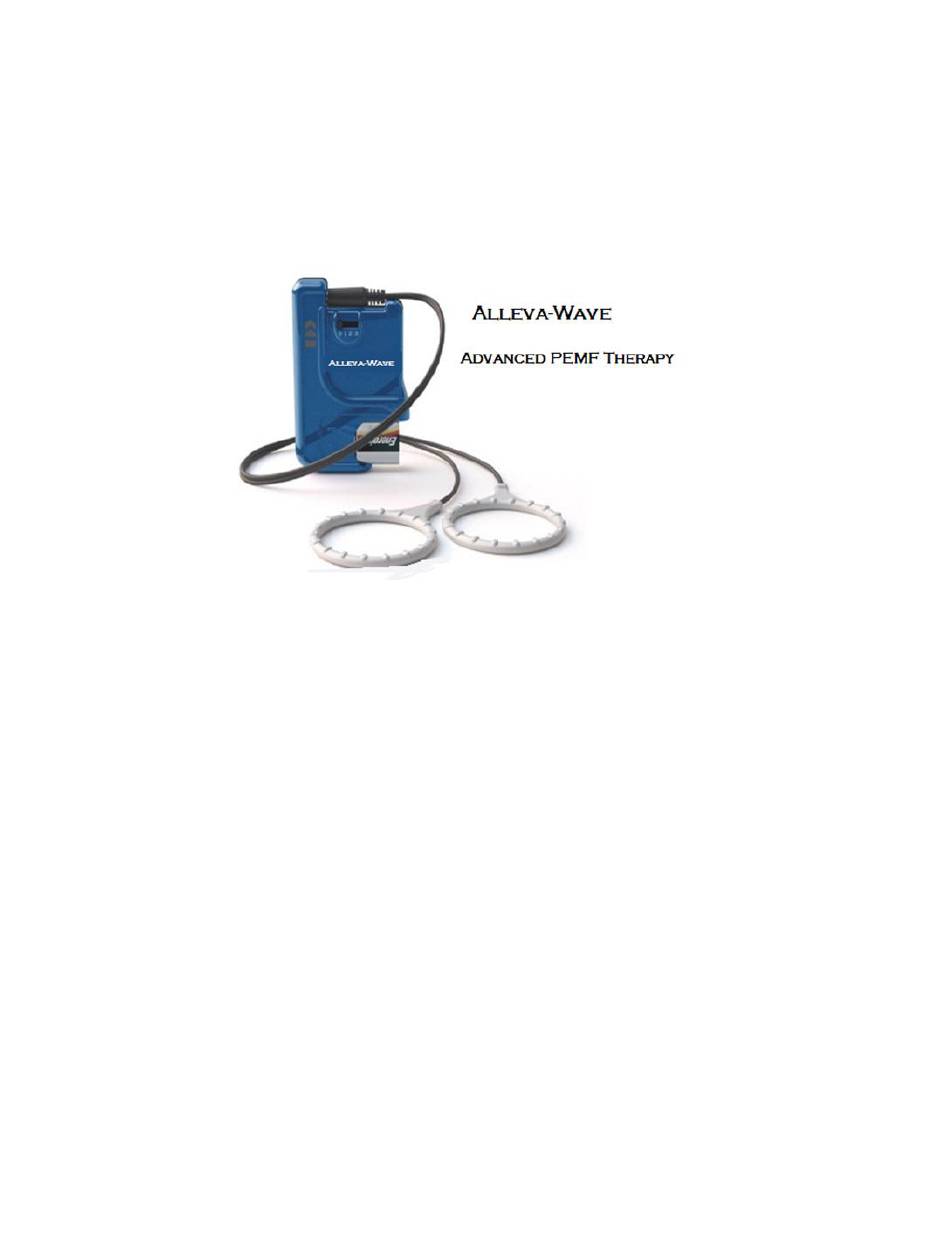

Micro-Pulse Alleva-Wave P2 User Instruction Manual
