Micro-Pulse I.C.E.S. M1 User Manual

Hide thumbs Also See for I.C.E.S. M1:

Advertisement

Quick Links

Download this manual
Micro-Pulse

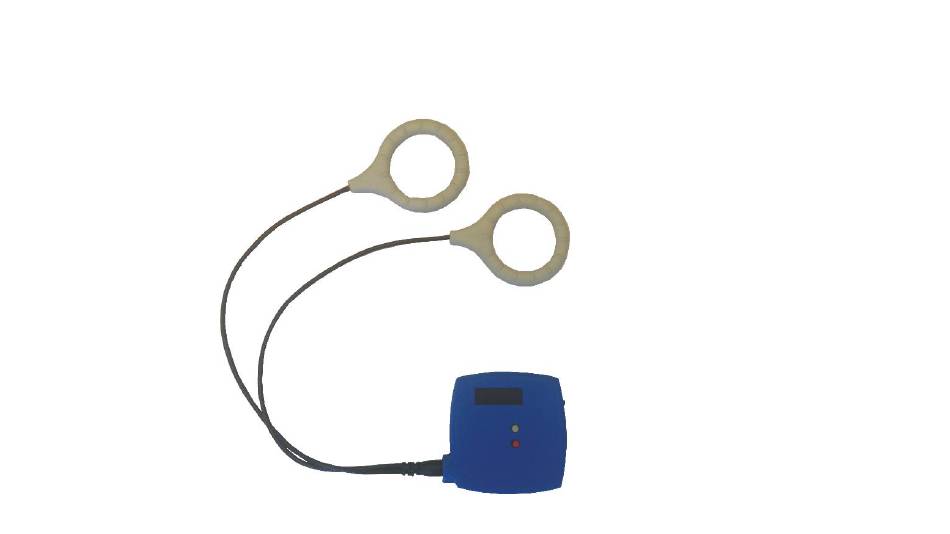

User Manual for I.C.E.S. Model M1
COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide

Advertisement

loading
Need help?

Need help?

Do you have a question about the I.C.E.S. M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Micro-Pulse I.C.E.S. M1

Summary of Contents for Micro-Pulse I.C.E.S. M1

  • Page 1 Micro-Pulse User Manual for I.C.E.S. Model M1 COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 2 Institutional Review Board (IRB), or a recognized animal use and care authority. 9 - You will not give, loan, or otherwise assign Micro-Pulse LLC products to any person who intends to use any Micro-Pulse LLC product in a manner contrary to these terms or contrary to law.

  • Page 3: Getting Started

    Getting Started • The best way to get started with the M1 is just to use it on the default settings. If this is what you want to do, follow the directions on the next page (Quick Start Guide). • The model M will remember your most recent settings from the last time you used the device.
  • Page 4 Model M Quick Start Guide Insert freshly charged battery (DLI88) Insert coils fully When GREEN LED is flashing, unit is operating correctly Set switch to “battery” position (down) Wait 2 seconds for screen to clear It will sweep all white then black Press RED button 3 times firmly...
  • Page 5 LEDs: green, red, yellow Power Switch Functions: switch Screen power from USB power from battery USB mini-B White button Power port Red button Coil output port COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 6 Connecting Coils • Any single pair Micro-Pulse coil can be used • May use 2x2 coil arrays • Do NOT use an audio cable splitter to attach multiple coils COPYRIGHT © 2017 Micro-Pulse LLC...
  • Page 7 For the most recent advice on coil placement, please visit YouTube and search the following terms: “ICES PEMF tutorial” (optionally refine the search with the term “coil”) Optionally, you can jump straight to the following links: https://www.youtube.com/watch?v=FGMyCZVQM5E https://www.youtube.com/watch?v=Ew1H4nglT0A&t=8s https://www.youtube.com/watch?v=_WtdIF0OmJ0&t=275s https://www.youtube.com/watch?v=Fy_p2ZtW03M&t=46s COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 8 M products include a battery & charger. 2- Use a USB mini-B cable NOTE: The power switch selects the power source: USB or battery. The opposite position is equivalent to OFF. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...

  • Page 9: Inserting A New Battery

    INSERTING A NEW BATTERY • Insert a fully-charged battery as shown, making sure to line up the gold spring pins on the device with the gold contact pads on the battery. The battery will snap into place. Push leftward and pull up on the back of the battery (green arrow) to snap it out again when it needs to be recharged.

  • Page 10: Battery Life

    Battery Life • The battery life depends mainly upon two factors: • The intensity setting. The higher the intensity, the shorter the battery life. • The age of the battery: Brand new batteries can be recharged hundreds of times, but each time they lose a small amount of capacity. As soon as your batteries start to bulge out a bit from the sides or do not last as long as they once did, it’s time to start thinking about ordering a new set of batteries.
  • Page 11 USB power at any time without damaging the device. • If the device loses power, when power is restored it will begin with the last setting for intensity and protocol that was set by the user. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...

  • Page 12: Led Indicators

    OFF and allow to cool. YELLOW – flashes only during REST periods (available in selected protocols). No pulses are sent to the coils when flashing. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...

  • Page 13: Power-Up Sequence

    You must shut the power OFF, then back ON to make changes to settings. - - - - - - ] 9 This is to prevent settings from being accidentally changed during operation. - to reset: power OFF - COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 14 This is the running screen. The green LED will flash every time a pulse is sent to the - - - - - - ] 9 coils. To reset the device or change the settings, turn the power OFF, then ON. - to reset: power OFF - COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...

  • Page 15: System Diagnostic Screens

    Note that this screen also reminds you that when running, you must power OFF to reset the device and change the settings. This feature - to reset: power OFF- prevents settings from accidentally changing while the device is running. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 16 Decide what settings you want BEFORE starting up the device, then scroll to your settings quickly. You’ll be up and running in about 15 seconds. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 17 • We suggest you start with a power/intensity setting of 8 or 9. • Higher power DOES NOT result in faster or better results. • Most people respond best to a medium intensity setting. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 18 General Guidelines: Selecting a Protocol The Micro-Pulse Model M1 allows self experimentation by responsible adults. It is not a marketing gimmick. We do not provide pre-programmed protocols to: Enhance sleep Amplify your brain power Connect you with the Earth Mother Goddess...
  • Page 19 List of Available Protocols on the model M1 Standard ICES Protocols: Constant Frequency (continuous): -- B5 – C5 -- 1 pps -- A9 original -- 2 pps -- P2 (SomaPulse, AllevaWave, …) -- 3 pps -- Omni 8 (same as Omni 1, but not adjustable) -- 4 pps all of the above also have an optional 5 minute rest -- 5 pps...
  • Page 20 -- B5 – C5 -- Protocol Menu -- A9 -- -- P2 -- (SomaPulse, AllevaWave, …) -- Omni 8 -- on the model M1 -- Schumann 1 -- (7.83 pps) -- Schumann 2 -- (7.83, 14.3 pps) -- Schumann 3 -- (7.83, 14.3, 20.8 pps) -- Schumann 4 -- (7.83, 14.3, 20.8, 27.3 pps)
  • Page 21 A few comments on the history of ICES protocols… • This is not clinical advice, it is intended only for informational purposes. • The original NASA research was done using the following protocols: • (1996 – 2001) 5 pps and 10 pps continuous (along with other waveforms determined to have no biological effect, and therefore not included in the ICES technology beyond gen 1.0) •...
  • Page 22 History of ICES protocols, continued… • This is not clinical advice, it is intended only for informational purposes. • The Schumann protocols were developed in 2016 for the models B5, C5, and M1, at the request of numerous bio-hackers. Though many people find these protocols useful, I remain skeptical.
  • Page 23 History of ICES protocols, continued… • This is not clinical advice, it is intended only for informational purposes. • The continuous pulse protocols (1, 2, 3, 4, 5, and 10 pps) have been used from the very beginning of ICES research, and continue to be used in controlled scientific studies, such as the 2017 Cortical Metrics –...
  • Page 24 History of ICES protocols, continued… • This is not clinical advice, it is intended only for informational purposes. • The scTMS protocols are included at the request of many people. • These protocols have never been evaluated using ICES technology, but some users report that they find them useful.
  • Page 25 Micro-Pulse devices, self-hackers, and others. • There is no scientific evidence to demonstrate conclusively that any given protocol is better than any other protocol for any specific application. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 26 • If you are completely lost and cannot decide, consider starting with the B5-C5, the OMNI-8 or either of these with 5 minute REST option. COPYRIGHT © 2017 Micro-Pulse LLC All Rights Reserved Worldwide...
  • Page 27 Schumann Resonance Protocols • Many people want to experiment with Schumann Resonances. While I do agree that these frequencies are within a biologically beneficial range for tissues, I do not think it is because they are exactly in resonance with the earth-ionosphere resonant cavity.
  • Page 28 Constant Frequency Protocols • The model M1 can generate a several constant output pulse frequencies. For most applications I recommend the use of one of the four standard protocols (B5-C5, P2, A9, Omni-8) to avoid tissue accommodation which can reduce the tissue response over time if a stimulus signal is monotonic and unchanging.
  • Page 29 Stimulation. TMS was approved by the FDA for the treatment of depression in 2008, but this was only for approved TMS devices using a specific high-intensity protocol: rTMS. No Micro-Pulse device is approved for this purpose. • If you have, or believe you have, depression, you must seek professional clinical advice. This is no substitute for professional clinical advice.
  • Page 30 CNS/cortex “Brain Wave” Protocols • These Wave protocols all gently ramp between two frequencies over a specified ramp time. • The gentle frequency sweep is intended to be similar to natural brain wave patterns. • The use of these wave patterns is totally experimental, we do not know the effects, it is not proven safe, and is intended for adult self-hackers only.
  • Page 31 CNS/cortex “Brain Wave” Protocols Pattern Name High Ramp time (low-to-high or high to low) cycle time (minutes) Alpha 10 Hz 13 Hz 5 minutes 10 minutes Beta1 (low) 12.5 Hz 16 Hz 2 minutes 4 minutes Beta2 (med) 16.5 Hz 20 Hz 2 minutes 4 minutes Beta3 (high)
  • Page 32 (2) Schumann frequencies vary slightly with changes in the earth-ionosphere cavity geometry, so even a precise non- phase-locked open-loop pulse generator will result in beat frequencies, where: = ( f ) / 2 beat system earth thus generating an amplitude modulation of much lower frequency. https://en.wikipedia.org/wiki/Beat_(acoustics) COPYRIGHT © 2017 Micro-Pulse LLC...
  • Page 33 Micro-Pulse Model M1 User Manual Bob Dennis COPYRIGHT © 2017 Micro-Pulse LLC...
