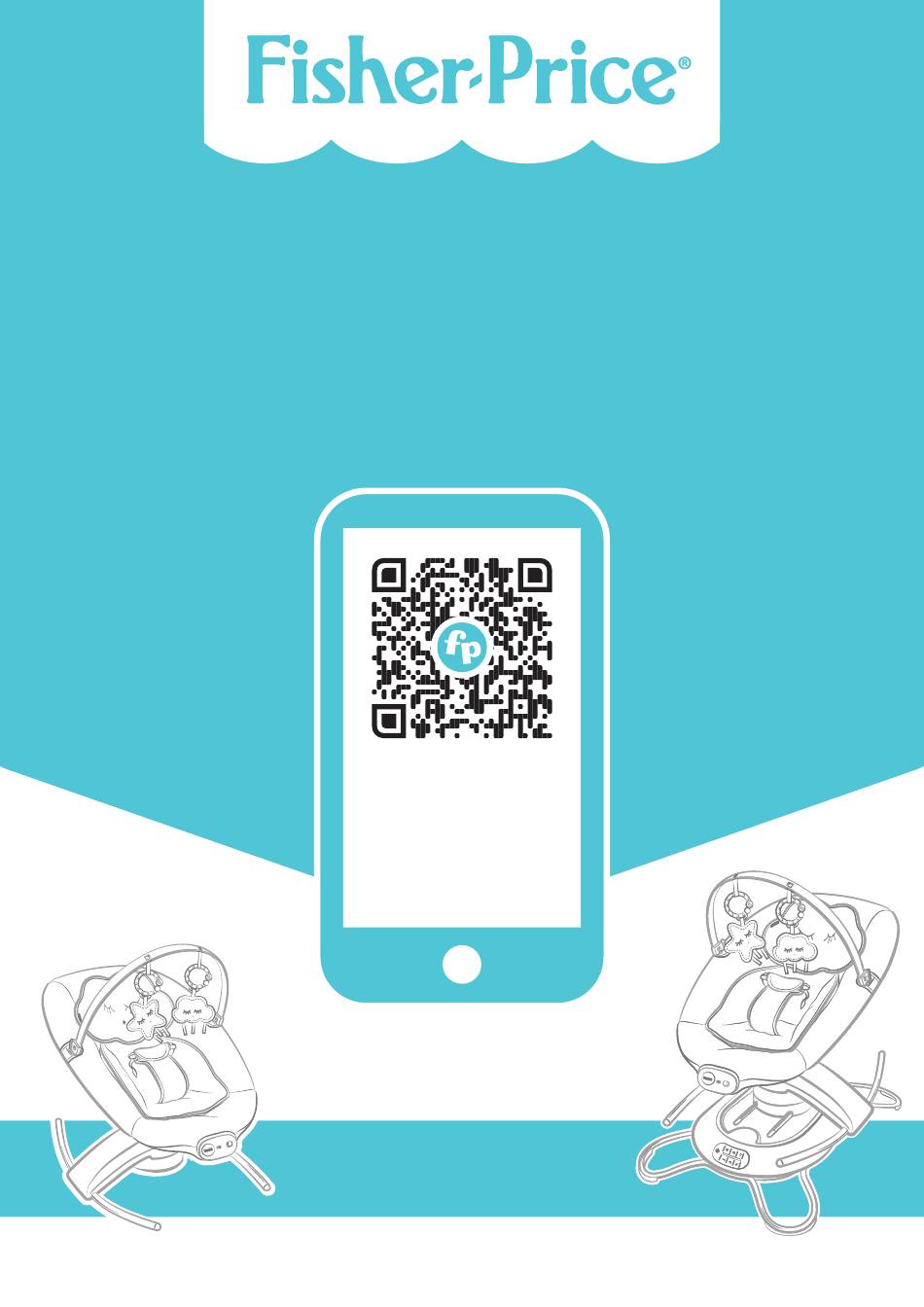

Scan it. Watch it.
Build it.
fisher-price.com/assembly/GDD39
EASY
ASSEMBLY
VIDEO
GDD39
ASSEMBLY AND USE

Advertisement

loading
Need help?

Need help?

Do you have a question about the GDD39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price GDD39

Summary of Contents for Fisher-Price GDD39

  • Page 1 Scan it. Watch it. Build it. fisher-price.com/assembly/GDD39 EASY ASSEMBLY VIDEO GDD39 ASSEMBLY AND USE...
  • Page 2 WARNING: Prevent serious injury or death: • Never leave child unattended. • This product is not intended for unsupervised or prolonged periods of sleep. • Always use the restraint system. • Never use for a child able to sit up unassisted. • Fall Hazard – Never use on any elevated surface, since child’s movement may cause the product to slide or tip over. Use only on a floor. • Suffocation Hazard – Never use on a soft surface (bed, crib, sofa, cushion) since the product can tip over and cause suffocation. • The toy bar is not a carry handle. Never use toy bar to lift or carry product. • Never use as a carrier or lift while child is seated.
  • Page 3 English is not your primary language. Select the warning label with the appropriate language for you. Some features of this product only work with the Fisher-Price® Smart Connect™ app. Download the Fisher-Price® Smart Connect™ app to control the glider from your smart device (not included).
  • Page 4 PARTS IMPORTANT! Please remove all parts from the package and identify them before assembly. Some parts may be packed in the pad. We recommend installing batteries in the soothing unit before beginning assembly.
  • Page 5 PARTS M3,5 x 15 mm Screw Note: Tighten or loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
  • Page 6 ASSEMBLY Push the base tube until it “snaps” into place. Pull on it to be sure it’s assembled to the base. Oh, no! If you snapped one end of the base tube into the base and can’t assemble the other end, you can remove the base tube.
  • Page 7 ASSEMBLY Push the other base tube until it “snaps” into place. Pull on it to be sure it’s assembled to the base. During shipping, the seat base tubes may have moved. Press the latch and make sure the ends of the tubes align on both sides.
  • Page 8 ASSEMBLY Make sure the socket is upright. Make sure the socket is upright.
  • Page 9 ASSEMBLY Turn the assembly over and fit a seat rail to the frame.
  • Page 10 ASSEMBLY...
  • Page 11 ASSEMBLY Hint: Before attaching the seat pad in the next step, you may want to install the soother battery. Go to page 13 for battery installation instructions. Turn the assembly upright to attach the seat pad. Attach the pad around the soother.
  • Page 12 ASSEMBLY Fasten the pad button holes to the pegs. Buckle the straps on the pad. Make sure you hear a “click”. Tuck the pad around the toy bar retainers.
  • Page 13 ASSEMBLY Fit the restraint belts through the slots in the body support. SOOTHER BATTERY INSTALLATION The battery compartment is located on the underside of the soother. Remove the seat pad from around the soother. Loosen the screw in the battery compartment door and lift to remove the door.
  • Page 14 ADJUST SEAT BACK The seat back can be raised or lowered for upright or recline seating when used as a rocker or glider. Press the latch on the seat frame and then push the seat back or the seat bottom into upright or recline positions.
  • Page 15 GLIDER “Snap” the seat to the base to use as a glider. Place the glider near a standard wall outlet. First plug the AC adapter into the glider base and then the wall outlet. Use the AC adapter only in a wall outlet.

  • Page 16: Pairing Your Device

    PAIRING YOUR DEVICE Before using the Smart Connect™ app for the first time, you will need to pair your device with the glider. Open the Smart Connect™ app on your device. Be sure your device is within approximately 1,8 m (6 ft) of the glider to pair. Press and hold the pairing button (power button) on the glider control panel for about 5 seconds.

  • Page 17: Smart Connect™ App

    SMART CONNECT™ APP App features and decorations shown in photographs and illustrations may vary. Touch to customize the Touch to connect or glider name. disconnect your device from the glider. Touch to start selections (gliding, sounds or music). Touch again to pause.

  • Page 18: Restraint System

    RESTRAINT SYSTEM Position the restraint pad between your child’s legs and fasten the restraint belts to each side of the restraint pad. Make sure you hear a “click” on both sides. Check to be sure the restraint system is securely attached by pulling it away from your child.
  • Page 19 GLIDER Touch the power button on the glider base to turn power ON or OFF. Touch the speed buttons to select the desired gliding speed or to turn gliding motion off. Touch for music or nature sounds. Touch the same button again and again to cycle through music or sounds or to turn music or sounds off.
  • Page 20 ROCKER SEAT Lift to remove the seat from the base to use as a rocker. SOOTHING VIBRATIONS Slide the soother power switch to turn vibrations ON or OFF. Low battery power or a static charge may cause the soother to operate erratically.
  • Page 21 WANT TO SWITCH THE MOTION? Turn the seat for head-to-toe motion. HEAD-TO-TOE Turn the seat for side-to-side motion. SIDE-TO-SIDE...
  • Page 22 CARE AC POWER USE The seat pad and body support are machine Adults Note: If you use this product with washable. Wash them separately, with the AC adapter, periodically examine the AC a mild detergent, in cold water and on the adapter for damage to the cord, housing or gentle cycle.

  • Page 23: General Information

    GENERAL INFORMATION FCC STATEMENT (UNITED STATES ONLY) Battery Safety Information In exceptional circumstances, batteries may This equipment has been tested and found leak fluids that can cause a chemical burn to comply with the limits for a Class B injury or ruin your product. To avoid battery digital device, pursuant to Part 15 of the FCC leakage: rules.
  • Page 24 UNITED STATES COLOMBIA 1-800-432-5437. Fisher-Price, Inc., Mattel Colombia, S.A., Calle 123#7-07 P.5, 636 Girard Avenue, East Aurora, NY 14052. Bogotá. Tel.: 01800-710-2069. Hearing-impaired consumers: 1-800-382-7470. PERÚ CHILE Mattel Perú, S.A., Av. Juan de Arona # 151, Mattel Chile, S.A., Avenida Américo Vespucio Centro Empresarial Juan de Arona, Torre 501-B, Quilicura, Santiago.
