hager Invicta 3 Instructions

250A Meter Pack Instructions
Invicta 3

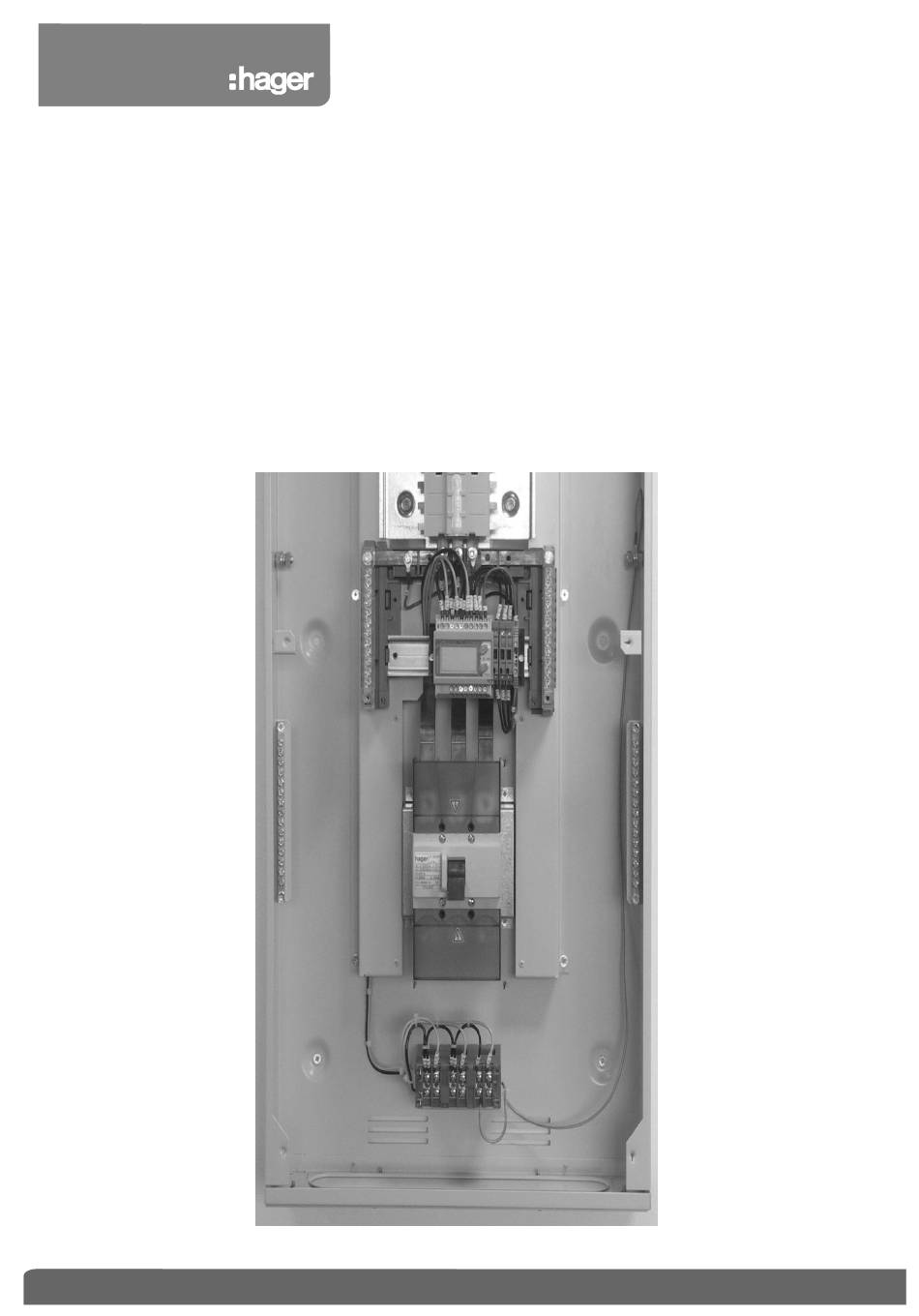

Instruction leaflet for fitting 250A Meter Pack
Fit the incoming device as normal, with the busbar
end of the connections loosely made.
Clip the pre-wired meter & fuse din-rail to the top
neutral mouldings in the lower position (A). Ensure
the cables to go behind the rail
(E)
Connect the loom leads to the incomer links at the
busbar stack (B) (L1, L2, L3 &
Ensure that all connections on incomer are tightened
to the recommended torque as listed in the incomer
instruction sheet. Ensure the connections on the
busbar links (B) are tightened to 7Nm
Fit the CT block to the pre-drilled holes (C)
Connect the earth lead to the earth stud
Fit the shroud supplied with the meter pack
(B)
(D)
(A)
(A)
(C)
(B)
(C)
N)
