Invicta 3
Pozidrive PZ2
1
JKD2***PM
GB
4.5mm
2.5
Notice d'instructions
User instructions
Bedienungsanleitung
Instrucciones de uso
Instruções
Bruksanvisning
Gebruiksaanwijzing
All product(s) must be installed by a suitably competent electrician
giving consideration to their intended use and in accordance with the
current edition of BS 7671 (IET Wiring Regulations).
The Electricity at Work regulations and the Health and Safety at Work
Act shall be complied with.
Only equipment and arrangements specified in Hager's technical
documentation / catalogue shall be used
Install in the vertical plane only.
Notice:
To prevent potential overheating from loose connections the installer
shall check connections are tightened to the torque levels stated in
these instructions prior to energising this board. This check should
include factory made connections which may have loosened in transit.
Pozidrive PZ2
ZD0788 Issue 1
Advertisement
Related Manuals for hager Invicta 3
Summary of Contents for hager Invicta 3

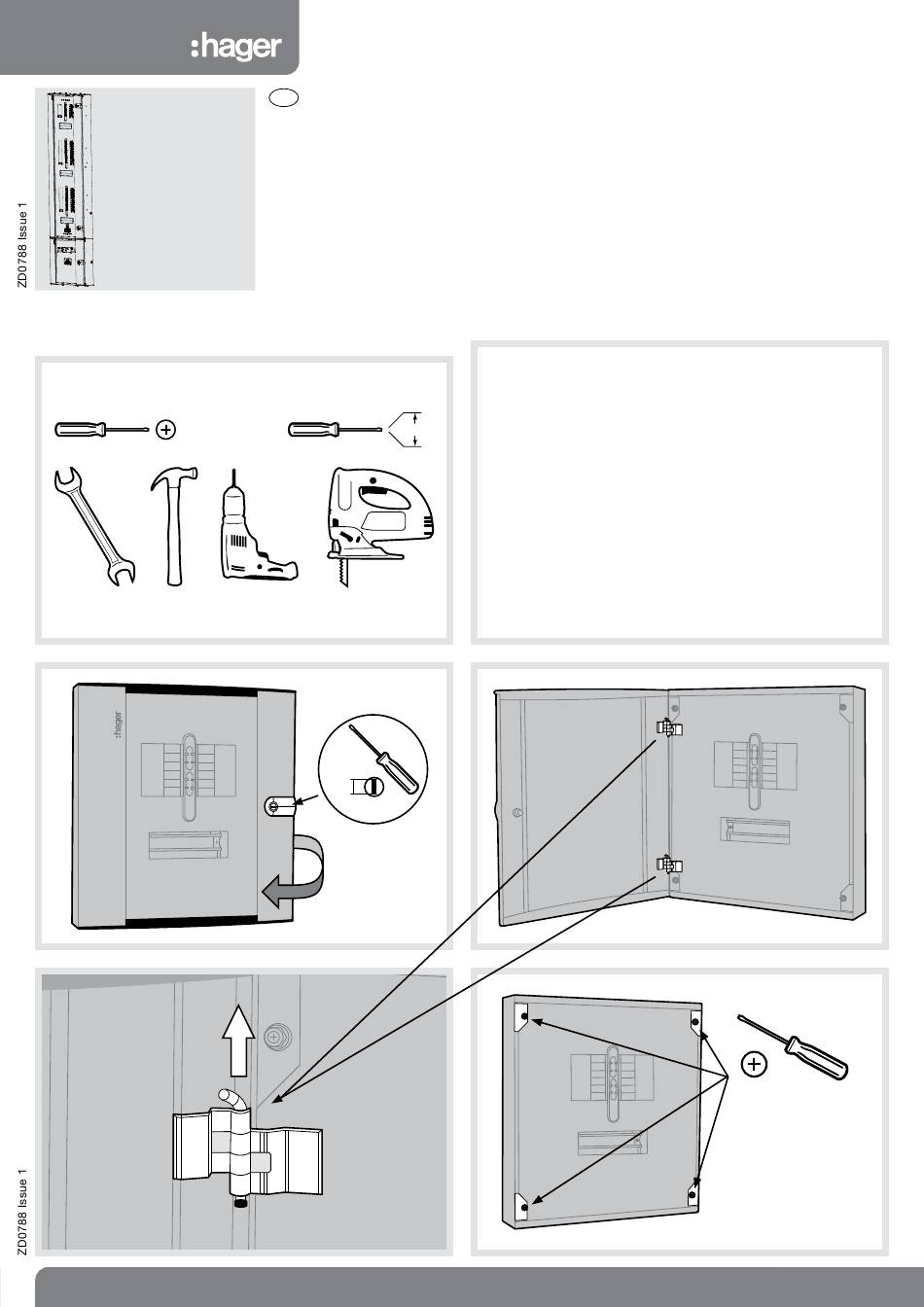

- Page 1 The Electricity at Work regulations and the Health and Safety at Work Pozidrive PZ2 4.5mm Act shall be complied with. Only equipment and arrangements specified in Hager’s technical documentation / catalogue shall be used Install in the vertical plane only. Notice:...
- Page 2 Removal of gland plate Pozidrive PZ2 Pozidrive PZ2 Points with central ‘easy fit’ fixing point Pozidrive PZ2 4.5mm Cut tabs and remove insert when using gland larger than 32mm Drill centre mark provided when fitting SWA or conduit Use product carton / packaging to reduce the swarf when removing end plate section Cable protection built into end plate...
- Page 3 Pozidrive PZ2 4.5mm When fitting to trunking, use the endplate cut-out lines as a template for the hole in the trunking Fitting MCB / RCBO Protected cable whilst drawing into board without Pozidrive PZ2 need for SRBP / Paxolin laminated sheet Min.
- Page 4 Lower Pan I n = 125A (RDF = 1) Rated conditional short-circuit current of the ASSEMBLY (I cc ) 10kA with equipment and arrangements specified in Hager’s technical documentation / catalogue. MCB/RCBO 10kA rating applied as BS EN 61439-3 is intended for use by ordinary persons.
