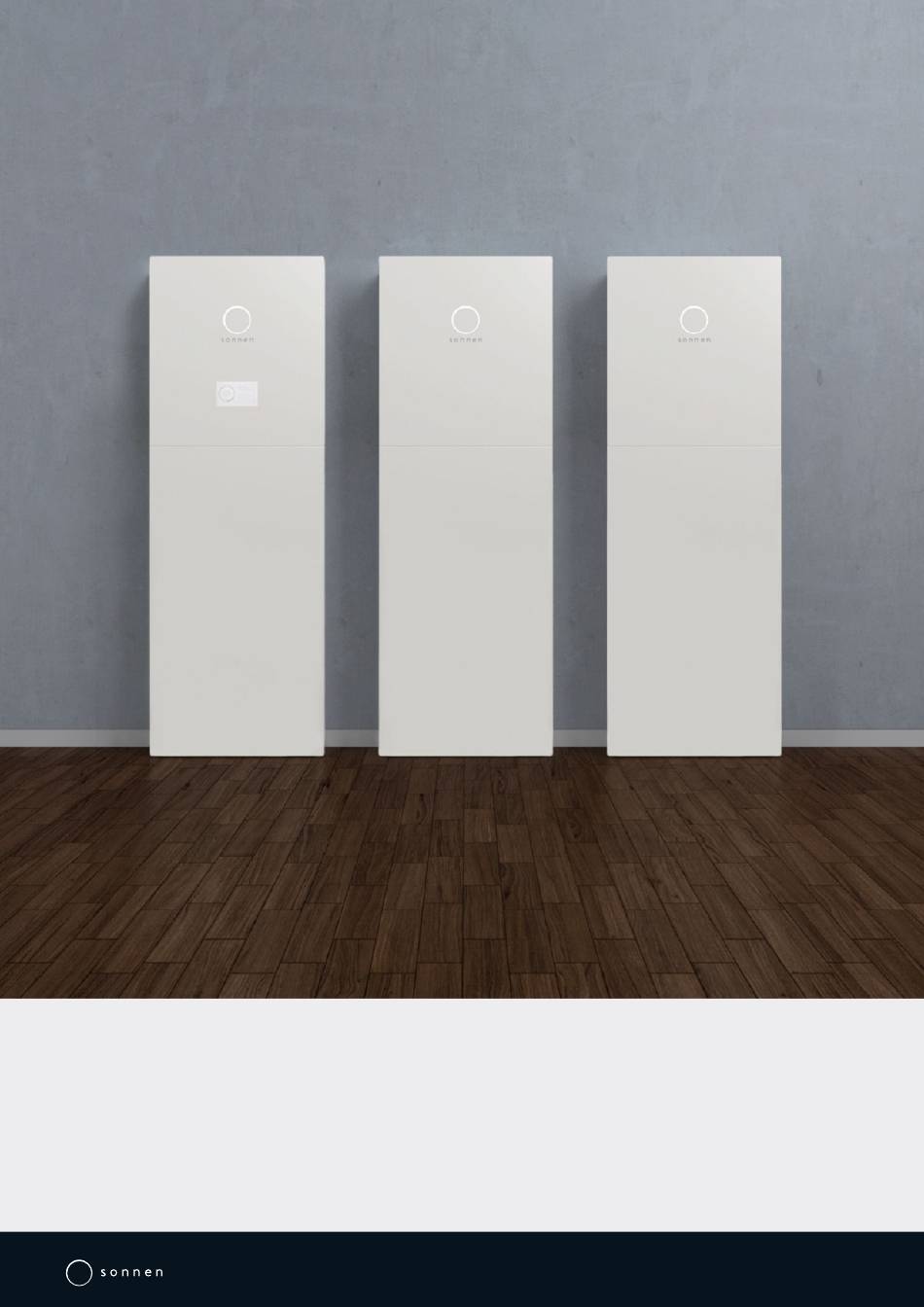

- Page 1 Instructions | for authorised electricians sonnenBatterie pro 2.0 KD-523 • Part no. 22375 • Version X00 info@sonnen.de • sonnen.de...
- Page 2 „ Read this documentation carefully before installation / operation. „ Retain this document for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number +49 8304 92933 444 Email info@sonnen.de Document Document number Part number 22375 Version Valid for Publication date 06/09/2018 Instructions sonnenBatterie pro 2.0...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Information about this document...................... 4 Using this document........................ 4 Target group of this document .................... 4 1.3 Designations in this document .................... 4 1.4 Designation of the pro 2.0...................... 4 1.5 Explanation of symbols........................ 4 2 Product description........................... 6 Technical data ............................ -
Page 4: Information About This Document
1 | Information about this document 1 Information about this document This document describes the installation of the sonnenBatterie pro 2.0. „ Read this document in its entirety. „ Keep this document in the vicinity of the sonnenBatterie. 1.1 Using this document These instructions describe the installation of the sonnenBatterie pro 2.0, which is com-... - Page 5 Information about this document | 1 Dangerous situation leading to potential death or serious injury if the safety WARNING information is not observed. Dangerous situation leading to potential injury if the safety information is not CAUTION observed. NOTICE Indicates actions that may cause material damage. Important information not associated with any risks to people or property.
-
Page 6: Product Description
Dimensions / Weight Storage system, 187/67/23 individual Dimensions pro 2.0 187/271/23 cm Weight pro 2.0 510 kg 591 kg 672 kg 753 kg 834 kg Specificiation without the outer minimum distances to be observed. 6 / 16 Instructions sonnenBatterie pro 2.0... - Page 7 Product description | 2 sonnenBatterie pro 2.0/22,5 2.0/30 2.0/37,5 2.0/45 consisting of 3 x eco 8.0/7,5 8.0/10 8.0/12,5 8.0/15 Battery data (DC) Cell technology lithium iron phosphate (LiFePO4) Usable capacity 20.25 kWh 27 kWh 33.75 kWh 40.5 kWh Nominal voltage 48 V Current 75 A...
-
Page 8: Overview Of Function And Installation
Switch (not included in scope of delivery) Ethernet line (not included in scope of delivery) Home network router (not included in scope of delivery) Master storage system (with Display) Slave 1 storage system Slave 2 storage system 8 / 16 Instructions sonnenBatterie pro 2.0... -
Page 9: Mounting
Mounting | 3 3 Mounting 3.1 Selecting the installation location The heavy floor load applied by the storage system must be taken into account when selecting the installation location. The specified weight for the entire sys- tem can be found in the section Technical data [P. 6]. Applicable building codes must be observed in each case! 3.2 Observing minimum distances 35 cm... -
Page 10: Electrical Installation
• The standard measurement concept (also referred to as the CP measurement concept or setup 1) is recommended for power measurement of a sonnenBatterie pro 2.0. This corresponds to the structure of the installation described in the following section Wiring the components [P. 11]. -
Page 11: Wiring The Components
Electrical installation | 4 4.3 Wiring the components „ Install the individual components according to the following scheme: L1 L2 L3 N PE L1 L2 L3 N PE 1 2 3 1 2 3 A1 A2 N L1 L2 L3 kWh 3~ L1 L2 L3 N PE Illustration 4: Circuit diagram overview - electrical connection of the pro 2.0... -
Page 12: Electrical Connection
„ Connect the Modbus cable as shown in figure System components [P. 8]. 4.4.4 Connecting the signal line „ Connect the signal cable to the master as described in the storage system installation instructions. 12 / 16 Instructions sonnenBatterie pro 2.0... -
Page 13: Commissioning
ü Ordered sonnenBatterie pro 2.0 kit ü Received pairing code „ If you have not received a pairing code, please contact your sales representative at sonnen. Establish a connection between the laptop/pc and the storage system master, as de- scribed in the respective installation instructions. -
Page 14: Display On The Internet Portal
• In theory it is also possible to log in using the serial number of one of the slaves, but please note that in this case not all data will be displayed after the pro 2.0 is configured, not even for the individual eco 8.0 storage system. 14 / 16 Instructions sonnenBatterie pro 2.0... - Page 16 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
