Coolix MPM3-10CRN1 Instructions For Use Manual

Mobile air-conditioner
Hide thumbs

Advertisement

Table of Contents

DE
EN
IT
FR
NL
DK
SE
NO
FI
PL

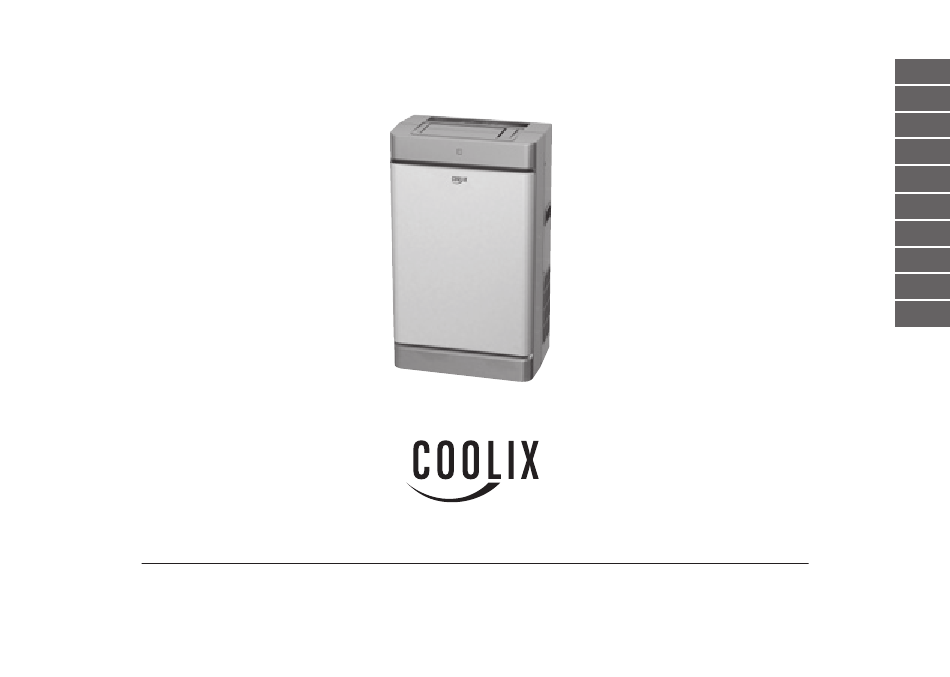

MPM3-10CRN1 / MPM3-12CRN1
MOBILES KLIMAGERÄT MOBILE AIR-CONDITIONER CONDIZIONATORE pORTATILE CLIMATISEUR MOBILE MOBIEL AIRCOTOESTEL
MOBILT KLIMAAppARAT MOBIL KLIMATANLÄGGNING MOBILT KLIMAAppARAT KANNETTAVA ILMASTOINTILAITE KLIMATYZATOR PRZENOŚNY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPM3-10CRN1 and is the answer not in the manual?

Questions and answers

Related Manuals for Coolix MPM3-10CRN1

Summary of Contents for Coolix MPM3-10CRN1

  • Page 1 MPM3-10CRN1 / MPM3-12CRN1 MOBILES KLIMAGERÄT MOBILE AIR-CONDITIONER CONDIZIONATORE pORTATILE CLIMATISEUR MOBILE MOBIEL AIRCOTOESTEL MOBILT KLIMAAppARAT MOBIL KLIMATANLÄGGNING MOBILT KLIMAAppARAT KANNETTAVA ILMASTOINTILAITE KLIMATYZATOR PRZENOŚNY...

  • Page 2: Table Of Contents

    INFORMATION SAFETY INSTRUCTIONS DESCRIPTION OF APPLIANCE ACCESSORIES CONTROL PANEL OPERATING THE APPLIANCE INSTALLATION AND START-UP OPERATING INSTRUCTIONS WATER DISCHARGE MOUNTING CLEANING, MAINTENANCE AND STORAGE TROUBLESHOOTING WEEE PURCHASE TERMS AND CONDITIONS WARRANTY INSTRUCTIONS FOR USE...

  • Page 3: Information

    CAUTION deAr CuStOMer, Thank you for buying a product that was developed and tested to meet even the highest demands. Please read the instruc- tions for use carefully before the first start up, so that you may get to know all the functions of this appliance. Keep the instructions for use nearby for reference whenever required.
  • Page 4 5. If the power cord of the appliance is damaged, it must be repaired by a repair shop authorised by the manufacturer because special tools are required. 6. Always unplug the power plug from the power outlet when the appliance is not in use, or when it is moved, touched or cleaned.

  • Page 5: Description Of Appliance

    DESCRIPTION OF APPLIANCE 1. Operation panel 2 Horizontal ventilation flap 3 Signal receiver of remote control 4 Air intake 5 Handle on both sides 6 Air intake opening 7 Power cable and power plug 8 Opening for the drainage hose 9 Air intake opening 10 Hot air outlet 11 Air intake opening...
  • Page 6 Horizontal ventilation flap In addition to the electronic movement of the ventilation flaps, you have the additional option of adjusting the ventilation flaps manually by freely selecting an angle up to 45°. 1 Pull the flaps up and bring them into the desired position.

  • Page 7: Accessories

    ACCESSORIES Figure Designation Number Exhaust cable Adapter A (for permanent cable mounting) Adapter B (for temporary cable mounting) Expansion plug Tape for fastening power cable Drainage hose Window panel set Check whether all the accessories Foam seal are included in the packaging and read the instructions for use to learn how these are to be used.

  • Page 8: Control Panel

    OPERATION PANEL Familiarise yourself with the control panel and the remote control and all the functions before operating the appliance. Follow the symbol for the desired function. The appliance can be operated from the control panel of the appliance or with the remote control.

  • Page 9: Operating The Appliance

    OPERATING THE APPLIANCE 1 Switching the appliance on/off 2 Changing the temperature Press or hold the key down till the desired temperature appears on the display. Please choose a temperature between 17°C and 30°C. If the display should show the current room temperature, see Section 4. The temperature may be displayed in degrees Fahrenheit or degrees Celsius.
  • Page 10 4 modes Press the MODE key to select the desired mode. Pressing the button again will switch the operating modes in the follow- ing sequence: auto , cool , dehumidify , fan . You can view the mode you have selected with the help of the con- trol light.
  • Page 11 6 Clean Air function (only with model MPM3-12CRN1) Press the key. This will start the Clean Air mode. It supports the removal of pollen and contamination from air and catches it in the filter. 7 Timer function Automatic start Press the key when the appliance is switched off.
  • Page 12 8 Turbo function Press the key in the mode, and the appliance will produce very cold air at maximum blower speed. The set temperature is reached in the least possible time in this way. This function is available only in the mode.

  • Page 13: Installation And Start-Up

    INSTALLATION AND START-UP 1. Read all instructions carefully before commissioning the appliance. Observe the safety instructions of this user manual in particular. 2. The appliance must be in the upright position for at least 24 hours before start up. This especially applies following transport.
  • Page 14 9. Do not use any extension cable, a multi-socket that is also used by other electrical appliances or a continuous speed regulator. This can lead to overheating, causing a fire. 10. Connect the dehumidifier only to a functioning, single-phase, earthed socket with the mains voltage specified on the rat- ings plate.
  • Page 15 INSTRUCTIONS FOR USE Cooling 1. Press the key until the control light lights up. 2. Now select the desired room temperature with the help of the keys. 3. The temperature can be set in the 17°C – 30°C/62°F – 88°F range. 4.

  • Page 16: Water Discharge

    2. Press the key. This activates the Timer Off program. The control light lights up now. 0.0 appears in the display. You can define when the appliance is to be switched off automatically by pressing the keys. The deactivation is set back by 30 minutes each time you press the key (from 10 hours to 60 minutes). For example, the display 9.5 means that the appliance will be switched off automatically after 9 hours and 30 minutes.
  • Page 17 A. FLooR DRAIN 1. Switch the appliance off and disconnect the power plug from the power socket. Move the appliance into a room or to a location where water can drain directly on the floor without damaging any furnishings. 2 Loosen the discharge hose and let it hang. Then remove the bottom rubber stop from the hole on the rear side 3.

  • Page 18: Mounting

    INSTALLATION The exhaust air hose and adapter must be installed or removed depending on the intended use. Operating mode COOL: install. Operating mode FAN, HEAT, or DEHUMDIFY: remove. 1. To ensure optimal performance of the appliance, the warm air must be guided out of the room. 2 To do this, move the exhaust air hose as illustrated in the figure, with one end over the hot air outlet.
  • Page 19 Permanent installation 1. Drill an appropriately big hole in the outer wall. It should be maximum 120 cm and minimum 30 cm from the floor. 2 Now fix Adapter A with the help of four expansion plugs and screws. 3. Fix the loose end of the exhaust hose (which you used earlier in the appliance – see above) on Adapter A. 4.

  • Page 20: Cleaning, Maintenance And Storage

    CLEANING, MAINTENANCE AND STORAGE We recommend the frequent cleaning of the appliance. Follow the instructions on cleaning, maintenance and storage of the appliance to avoid possible damage to the functioning of the appliance. Important principles: 1. Do not use petrol, thinner or other chemicals to clean the appliance. 2.

  • Page 21: Troubleshooting

    Storage 1. If you intend not to use the appliance for an extended period of time, remove the lower drainage plug on the back of the appliance and drain the water from the tank under the appliance into an external bowl (use the discharge hose if needed).
  • Page 22 Problem Possible cause Solution Inadequate cooling Temperature setting is too high. Lower the set temperature. The air filter is clogged with dust. Clean the air filter. Loud or vibrates The base is not adequately firm or flat. Place the appliance on a flat, firm base.

  • Page 23: Weee

    WEEE The appliance may not be disposed of with household waste. This appliance is marked according to European Guideline 2002/96/EG for old electric and electronic devices (waste electrical and electronic equipment - WEEE). The guideline specifies the rules for returning and recycling old equipment throughout the European Union.

  • Page 24: Warranty

    WARRANTY Please read all instructions before attempting to use this product. Please retain your proof of purchase which shows date of purchase in the unlikely event of a future warranty claim. See paragraphs 1 and 3 for exclusions. 1. This 3 year warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply damage resulting from abusive or unreasonable use or supplement damage.
  • Page 26 MIDEA EUROPE GmbH Zülpicher Str. 5 40549 Düsseldorf Germany Service-Hotline DE 01805 - 12 16 17 (14 Cent pro Minute aus dem deutschen Festnetz) Service-Hotline Europe 0049 - 1805 - 12 16 17 (german and english) www.mideaaircon.de info@mideaaircon.de...

This manual is also suitable for:

Mpm3-12crn1
