User Manual MODEL MODEL 101MF 101MP Pump 101MF Tested and Certified by NSF International NSF/ANSI Standard 58 for the Reduction Claims Specified on the Performans Data Sheet. Member, Water Quality Association...
Page 3
Osmosis Osmotic Pressure, Reverse Osmosis (RO) Process Semi-permeable mebrane and solution the basics of the asmosis event. Semi-permeable mebrane which is formed of a thin diaphragm or thin film, lets some of molecules and ions pass, but does not let some others. Cell mebranes and egg mebrane are examples of membrane.
Page 4
Pressure Reverse Osmosis After Osmosis Figure 1. Osmosis and Reverse Osmosis When semi-permeable membrane is placed in between two water column of same volume but different concentrations in a U-tube, while water molecules pass through the pores, several solid material particles having bigger size in dissolved state can not pass through those pores.

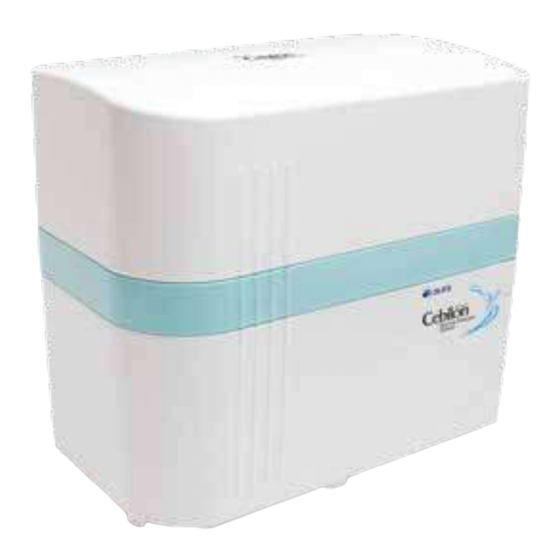

Basically, it is composed of pre-filtration, mambraine which is the main component of the system where reverse osmosis event takes place, and storage of water. Aura Cebilon Plus RO system is composed of 3 pre-filtration, membrane, pH regulating post filter, pump set and a water tank.
Functions of the Parts 5 Micron Sediment Filter (340071Z), holds the oating matters and particles in water in order to clarify water. Granular Activated Carbon Filter (GAC) (340069Z), holds free chloride organic matters and undesired odour. 1 Micron Sediment Filter (340070Z), holds the carbon dust to keep from plugging of membrane.
Page 7
Fresh Water Tank has an inner surface coated by a “food contact” plastic material appropriate to food any provides storage of fresh water in a hygienic condition. Tank Valve controls in ow and out ow of water. Mineral Post Carbon Filter (340005Z06) enriches water by adding minerals before the fresh water stored in the tank of coming directly from the membrane, ows through the tap and regulates Ph.
Aura Cebilon Plus contains critical components that are required to be replaced periodically to purify the total dissolved solid materials (TDS) e ciently. To check the e ciency of the system, water from the appliance must beperiodically tested.
Your appliance is very practical for use and the water installation can be easily installed anywhere. Installation of your appliance must be made by Aura Cebilon Plus Authorized Services. Aura Cebilon Plus RO System contains critical components that are required to be replaced periodically to purify the total dissolved solid materials (TDS).
Page 10
6- Filters are considered as supplies and areoutside the scope of warranty. City Water RO Water Waste Water 1- Aura Cebilon Plus RO System 2- Water inlet valve 3- Water inlet 4- Waste water outlet 5- RO water outlet (Fresh water)
Water Connection • Close the mains water from the apartment inlet valve. • After draining the water left in the pipes from proper places, mount the three-way adapter to the mains by ensuring the sealing. • First, mount the 1/4 ball valve to the three-way adapter by wrapping a te on tape in a position so that the valve is opened and closed easily (Figure 5.a).
Page 12
Installing a faucet Clean water faucet should be mounted carefully in terms of use and aesthetics. If the counter or kitchen sink will be drilled, drilling process should be proceeded after the dimensions are obtained so as to install the washers, nuts and unions under the counteror kitchen sink (Figure 6). Otherwise, drilling may be incorrect.
Waste Water Connection • If waste water pipe of the sink is not a throat hose but a 40 mm plastic pipe, it is mounted in a 3/8" clamp sealing sponge a xed state (Figure 7a). • The ush is drilled from the hole of the clamp in 8 mm diameter on the same axis (Figure 7b).
Page 14
(Figure 8). • The appliance must not be interfered for repair and maintenance purposes. Otherwise, it falls out of the warranty scope, these operations are carried out by Aura Cebilon Plus Authorized Service. Filter Flushing and Conditioning Procedures •...
Maintenance of your appliance must be performed by an Aura Cebilon Plus Authorized Service. The life of the lters used in Aura Cebilon Plus RO System changes depending on various factors with the amount of water used. These major factors are inlet water quality, chlorine amount, residue amount etc.
Performance Data Sheet Cebilon Plus 101MF model system conform to NSF/ANSI 58 for the specific performance claims as verified and substantiated b test data. • Do not use this system with any water that is microbiologically unsafe, that does not have adequate disinfection before or after operation or that of the quality is unknown.
Maintenance Card THIS PAGE WILL TAKEN BY SERVICE TECHNICIAN...
Page 20
Checklist Yes No S.No Considerations to be Checked Did you measure the chloride amount present in mains water? Did you measure the hardness of mains water? Did you measure the TDS value in mains water? Did you measure the pressure in mains water? Is the pressure of the tank appropriate? Did you ask customer the appropriate place for installation? Have connections of 3-way adapter been sealed?
Page 22
Complies with WEEE Regulation. This symbol on the product or packaging shows that the product should not be disposed of withnormal domestic waste and should be transmitted to the collection points for recycling theelectrical and electronic appliances. If you dispose of this product correctly, you will be contributingto the protection of the nature and human health.
Company Name ..................................................... Address ..................................................... Phone Number ..................................................... Other Information ..................................................... AURA CEBILON PLUS SALES REPRESANTATIVE’S Name Surname ..................................................... Phone Number ..................................................... Signature Warranty Conditions This product is manufactured for global distribution and sales. Since the warranty conditions and periods of this type of product varies from country to country, please contact your reginal distributor or seller for information concerning the applicable warranty and service policies.
