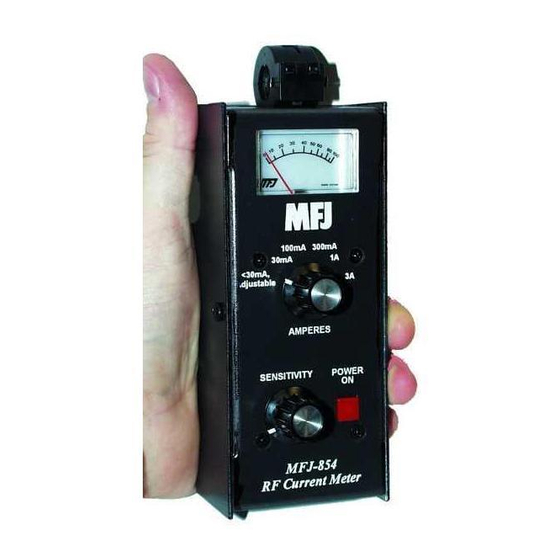

Congratulations on purchasing the MFJ-854 RF-Current Meter. The MFJ-854 is
designed for measuring current distribution on antenna elements and radials, and for
checking common-mode current levels on coaxial feedlines and grounds. It also works
well for tracking down RFI-causing current on household wiring and cables. Here are
some important features we think you'll like:
Wide Range: Measures RF current from as little as 1 mA to 3 Amps in six ranges.
Full HF Coverage: Accurate from 1 MHz to 30 MHz and beyond.
Low Interaction: Sense coil has minimal effect on circuits under test.
Large Cable Capacity: Accepts cables up to approximately 1/2" in diameter.
Accurate: Diode-compensated Op-Amp delivers improved meter linearity.
Rugged: Built to last with a sturdy all-aluminum case and G-10 pc board.
Battery Saver: Press-to-test power circuit turns unit off automatically after 15 seconds.
Long Battery Life: Meter draws 3-mA, battery's service life approaches shelf life.
Handheld Size: Weighs 11 ounces, only 2.3" x 1.6" x 6.5" (including sense coil).
Controls and Locations
1
Cable
2
100mA 300mA
3
1A
30mA
<30mA
3A
Adj
Ampres
Power
6
On
4
5
9-V
MFJ-854

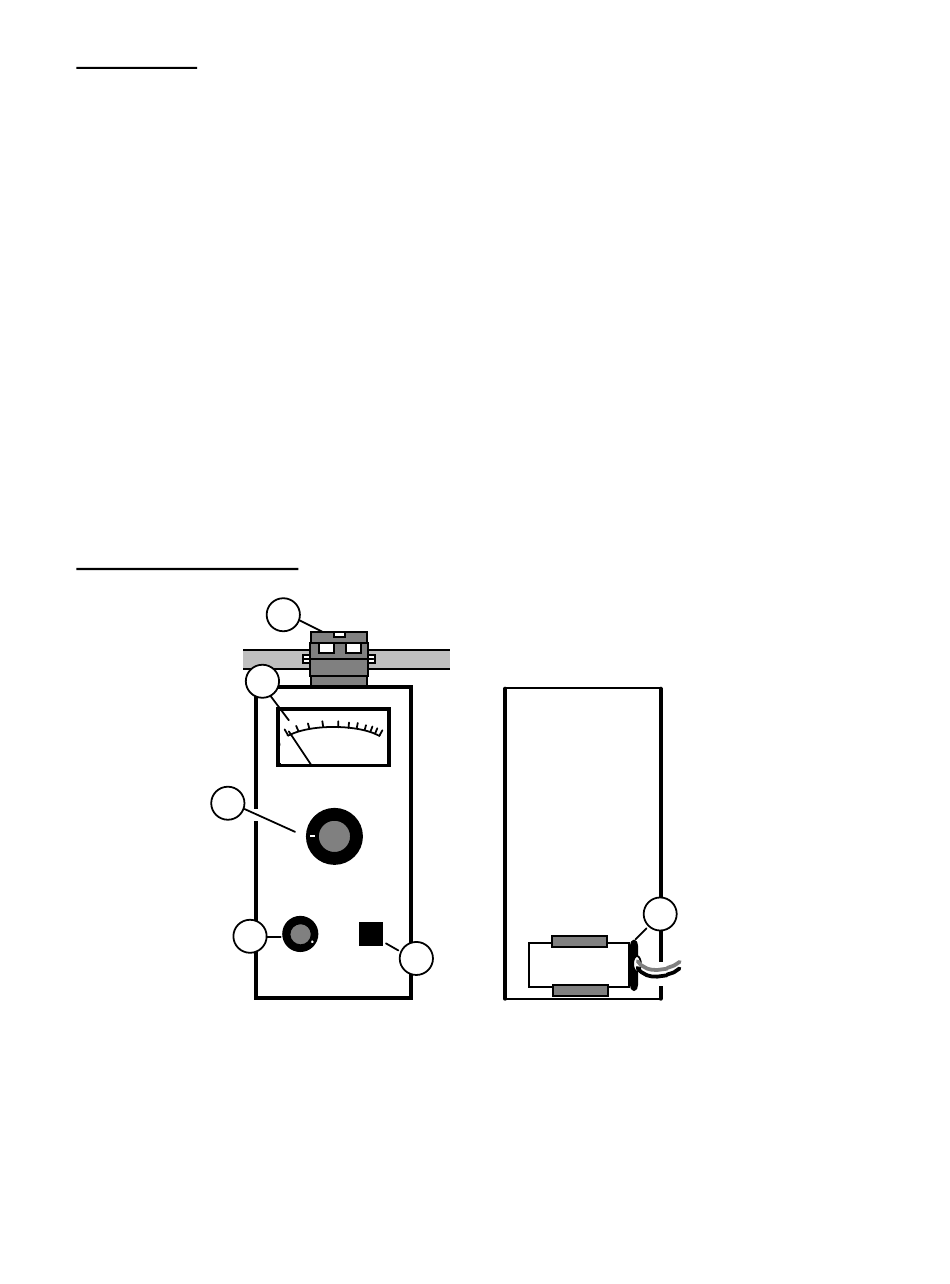

1. Sense Coil: Clamps onto conductor under test, accepts diameters to around 1/2" .
2. Meter: Calibrated scale indicates readings in mA or Amps.
3. Range: Selects from six measurement ranges.
4. Sensitivity: Works on <30 mA range, adjusts gain for low-level measurements.
5. Power On: Momentary switch applies power, activates 15-second power-off delay.
6. Battery Clip: Accepts any standard 9-V flat-pack battery.
