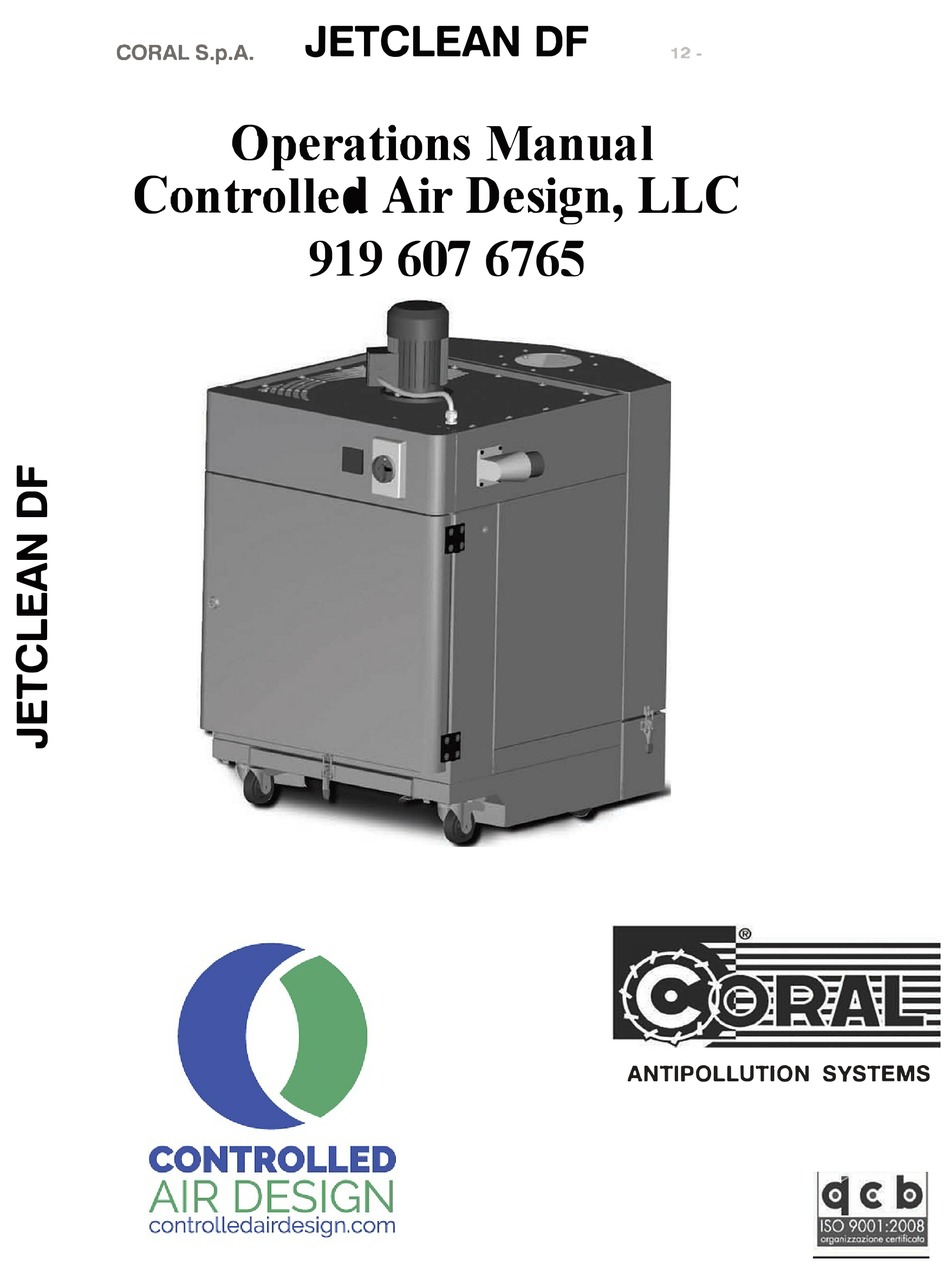

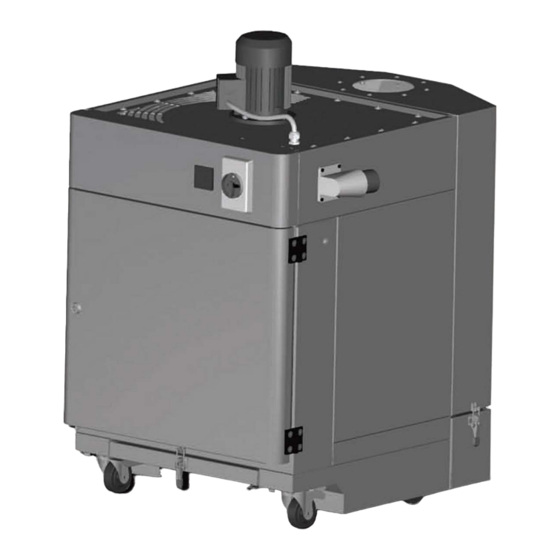

  • Page 1 JETCLEAN DF CORAL S.p.A. 12 - Operations Manual Controlled Air Design, LLC 919 607 6765 <1: ANTIPOLLUTION SYSTEMS...

  • Page 2: Table Of Contents

    JETCLEAN DF Series - edition 01/12 DESCRIPTION OF USER INSTRUCTION MANUAL ..................55 1.1. INTRODUCTION ................................55 1.2. INFORMATION ABOUT THE USOF THE MANUAL ......................55 MACHINE IDENTIFICATION ......................... 56 2.1. MODEL IDENTIFICATION DATA ............................56 2.2. EC IDENTIFICATION PLATES ............................56 2.3.

  • Page 3: Description Of User Instruction Manual

    General preliminary information • Machine controls and use • Description of user Instruction Manual • Machine identification MAINTENANCE • General preliminary information ENGINEER • Maintenance • Spare parts REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 4: Machine Identification

    01.12 This manual contains confidential information and designs owned by CORAL S.p.A Reproduction of the manual without written permission by CORAL S.p.A. is forbidden. 2.2. EC IDENTIFICATION PLATES The machine is equipped with an EC identification plate, containing specific data. Transmitting to the Manufacturer the data engraved which has the exact identification of the machine in question.

  • Page 5: Ec Declaration Of Conformity

    Dichiarazione di conformità CE (Riferimento Direttiva Macchine 2006/42/CE) La CORAL S.p.a. Corso Europa 597 Volpiano - Torino (Italia) dichiara con la presente che la macchina è confor- me alla normativa contenuta nella direttiva del consiglio 2006/42/CE integrata dalle inerenti successive direttive...

  • Page 6: General Preliminary Information

    JETCLEAN DF Series - edition 01/12 3. GENERAL PRELIMINARY INFORMATION 3.1. DIRECTIVES In the design and construction of the machine the following directives were held as reference: DIRECTIVES 2006/42/CE Machinery Directive 2004/108/CE Electromagnetic Compatibility Directive 2006/95/CE Low Voltage Directive (LVD) 3.2.

  • Page 7: Personal Protective Devicese

    • process with products different to those listed; • change the electrical connections to exclude the safety devices; • smoke while the filter is in operation. REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 8: Intended Use/ Unintended Use

    It is considered “MISUSE” if the machine is used to obtain production values different from those described herein. Any other use of the machine must be previously authorized by CORAL S.p.A In the absence of such written permission the manufacturer disclaims any liability with regard to possible damage to property or persons and deems any kind of warranty regarding the line and the equipment supplied as void.

  • Page 9: Safety Signs Used On The Machine

    • the machine must be used within the limits stated in the contract and reported in the technical and/or commercial documentation. • maintenance must be performed in the time and manner provided by the manual, using CORAL S.p.A. original spare parts and entrusting the work to qualified personnel.

  • Page 10: Machine Description

    JETCLEAN DF Series - edition 01/12 4. MACHINE DESCRIPTION 4.1. MAIN COMPONENTS The machine is made up of the following components: POS. ELEMENT CARTRIDGE FILTER COUNTER AND SWITCH PNEUMATIC PLANT CLEANING 4.1.1. CARTRIDGE FILTER The fabric filter is non-woven polyester, which is made by a spun bonded process. This manufacturing method allows no variation of air permeability, allowing better filtration efficiency and high stability.
  • Page 11 The ejected soundproof plenum (1) can be supplied optionally with the JETCLEAN DF machine. It is installed to muffle the noise tested from the engine and from the by the turbulent air movement. REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 12: Operational Description

    JETCLEAN DF Series - edition 01/12 4.2. OPERATIONAL DESCRIPTION The JETCLEAN DF filter is made with a panelled structure in painted steel sheet provided with a suction connector for the self-supporting arms UNIVERSAL NO-SMOKE or EVOLUTION NO-SMOKE or COBRA (optional).
  • Page 13 WARNING! To set the TIMER, see paragraph “5.4.2. ADJUSTMENT OF THE TIMER FOR CARTRIDGE CLEANING”. Check the dimension of the solenoid valves at paragraph “4.3. TECHNICAL SPECIFICATIONS”. REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 14: Technical Specifications

    JETCLEAN DF Series - edition 01/12 4.3. TECHNICAL SPECIFICATIONS JETCLEAN DF1 JETCLEAN DF2 MACHINE SERIAL NUMBER POWER 0,55 kW 0,75 kW 1,1 kW 2,2 kW SUPPLY VOLTAGE 230/400 V 230/400 V 230/400 V 230/400 V FREQUENCY 50 Hz 50 Hz...

  • Page 15: Overall Dimensions

    EC regulation maintenance and user Manual 4.4. OVERALL DIMENSIONS REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...
  • Page 16 JETCLEAN DF Series - edition 01/12 OVERALL DIMENSIONS INLET JETCLEAN DF1 1129 1 x D.150 JETCLEAN DF2 1380 1158 1 x D.150 JETCLEAN DF2 1420 1158 2 x D.150 vers. from 2.2 kW REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN.

  • Page 17: Safety Devices

    EC regulation maintenance and user Manual 4.5. SAFETY DEVICES The machine is equipped at origin with all the protective systems needed to work safely. Listed below are the systems adopted by CORAL S.p.A.: POS. ELEMENT DESCRIPTION The crankcase covers all the moving parts of the...
  • Page 18 JETCLEAN DF Series - edition 01/12 WARNING! We recommend considering that indicated in the figure below as a maximum range of the machine. The dark working area represents the area of possible overturning. WARNING! On the top part, the filter is equipped with a grid, for the leaking of the filtered air. Therefore, at the extern installation, it is advisable to protect the filter with a canopy, to save it from infiltrations of rainwater.

  • Page 19: Connections

    0,5 min to a maximum of 45 min. WARNING! The timer is equipped with a TEST push button, to verify proper operation of the pneumatic plant cleaning. REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 20: Machine Controls And Use

    JETCLEAN DF Series - edition 01/12 5.4.3. FACTORY PARAMETERS SET Regulator (1) set to 300 m. Regulator (2) set to 5 min. WARNING! The parameters must be varied, based on the type and quantity of the aspirated pollutant, which depends on the experience of the user.

  • Page 21: Extraordinary Maintenance

    7.2.1. CARTRIDGE REPLACEMENT To replace the cartridge, follow this procedure: STEP ACTION Undo the M8 fixing screws. Remove the cartridge by turning it anticlockwise and proceed with the replacement. REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...

  • Page 22: Troubleshooting

    JETCLEAN DF Series - edition 01/12 7.2.2. REPLACEMENT OF THE PNEUMATIC CLEANING COMPONENTS (TIMER) The order of the removal of the components is shown in figure. COIL TIMER GASKET GASKET CONNECTOR SCREW 8. TROUBLESHOOTING DEFECT CAUSE POSSIBLE SOLUTIONS The air emitted is not Check the state of cleanliness and replace Inefficient action of the filters.

  • Page 23: Electrical Panel

    1. Photocopy the form on the below page; 2. Fill in the suggested spaces. 3. Contact your local distributor or service office and CORAL S.p.A. spare parts sending a copy of the completed form in its entirety, to the e-mail address or the fax number indicated.
  • Page 24 JETCLEAN DF Series - edition 01/12 TECHNICAL AND SPARE PARTS OFFICE CORAL S.p.A.Corso Europa, 597 10088 Volpiano (TORINO) - ITALY Ph. +39 011 9822000 r.a. Fax +39 011 9822033-044 e-mail: coral@coral.eu http://www.coral.eu P .I.02695840013 Spare parts request form Goods delivery address...

  • Page 25: Spare Parts List

    EC regulation maintenance and user Manual 11.2. SPARE PARTS LIST JETCLEAN DF1 REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...
  • Page 26 JETCLEAN DF Series - edition 01/12 JETCLEAN DF2 REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...
  • Page 27 CABLEHOLDER M20 X 1.5 PLASTIC IP68 POLYAMIDE RING NUT M16 POLYAMIDE RING NUT M20 ELECT. CABLE NON-INFLAMMABLE 5FX1MMQ PLUG TRI+N+T-V380-16A-IP44-GW60409 SWITCH BOX 3ZV1923-2R PLATE DF2 COUPLING ATTACHMENT Ø 150 REPRODUCTION, EVEN IN PART, OF THE ILLUSTRATIONS AND/OR TEXT IS FORBIDDEN. www.coral.eu...
  • Page 28 CORAL S.p.A. ANTIPOLLUl10N SYSTEMS...
