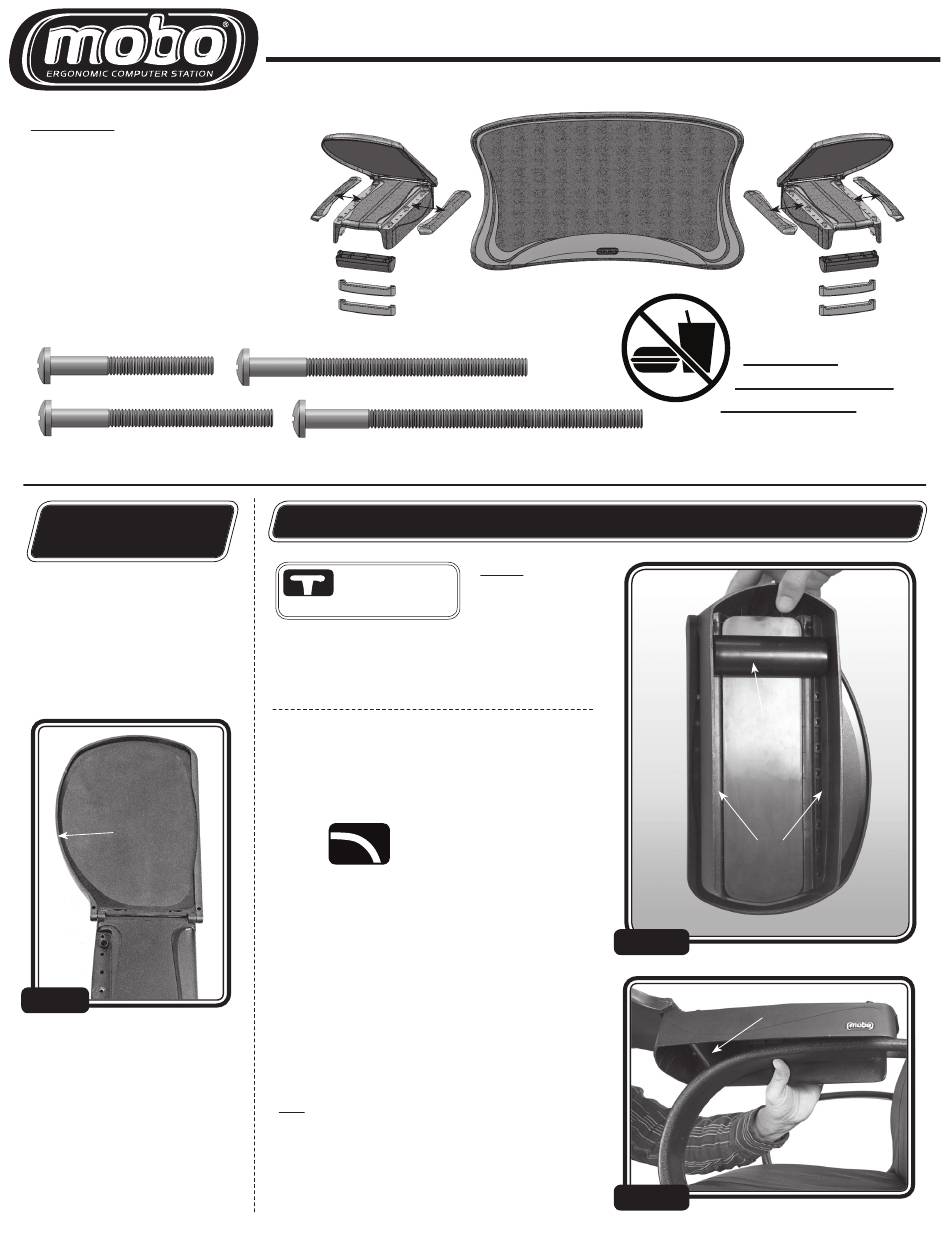

PARTS LIST:
A) LEFT BASE UNIT (1)
B) L2 - Inside CAP - straight edge (1)
C) R2 - Outside CAP - curved edge (1)
D) RIGHT BASE UNIT (1)
E) L1 - Inside CAP - straight edge (1)
F) R1 - Outside CAP - curved edge (1)
G) KEYBOARD TRAY (1)
H) CURVE ADAPTERS - For chairs with
curved armrests (2)
I) MOUNTING CLAMPS (4)
J) Hardware: Screws -
8/32 x 1.5" (8)
8/32 x 2" (8)
READ THROUGH INSTRUCTIONS BEFORE BEGINNING. DO NOT FULLY TIGHTEN SCREWS UNTIL INSTRUCTED.
IDENTIFY
CORRECT PARTS
STEP 1: IDENTIFY AND
SORT BASE UNIT PARTS
Flip open both BASE UNITS into the
mouse pad position. The curved side
of each BASE UNIT should face to the
outside when installed (FIG 1).
CURVED
EDGE TO THE
OUTSIDE
LEFT
BASE UNIT
FIG 1A
Version: 1.3 (07/13/09)

INSTALLATION INSTRUCTIONS

PATENT PENDING
A
C
B
H
I
8/32 x 2.5" (8)
8/32 x 3" (8)
INSTALL ADAPTER FOR EXTREMELY CURVED ARMRESTS
If your chair has flat
or T-shaped armrests,
skip to STEP 5.
UNITs are parallel to the chair armrest and fully
supported, you do not need the CURVE ADAPTER and
can skip this step.
STEP 2: INSTALL CURVE ADAP TER
A CURVE ADAPTER is required to provide support where
the chair armrest begins to curve, to keep the BASE UNIT
flat and level with the chair armrest.
Install Curve Adapter for
use with extremely curved
or sloping armrests.
FIG 2A: To install the CURVE ADAPTER, turn the LEFT BASE
UNIT over to view the bottom. Insert the CURVE ADAPTER
into the first set of rectangular slots that are located along
each side wall.
FIG 2B: Place the LEFT BASE UNIT over the left chair arm-
rest to check for proper ADAPTER placement. If the MOBO
BASE UNIT is angled up or down, move the ADAPTER back,
one slot at a time, until the base unit is level.
Once you have the CURVE ADAPTER in the correct position,
install the other CURVE ADAPTER into the remaining RIGHT
BASE UNIT using the same slot location.
TIP: If your chair's armrest has padding, the place-
ment of the ADAPTER should have the MOBO BASE
UNIT angled up slightly. This will allow the base unit
to become level once the clamps have been tightened
and the padding is compressed. Otherwise, the base
unit may angle downward once it is fully tightened.
G
NOTE: Not every
chair with curved
arms requires the
CURVE ADAPTER. If
the MOBO BASE
FIG 2A
FIG 2B
1
D
E
F
H
I
WARNING!
NOT FOR USE WITH
FOOD OR DRINK!
CURVE
ADAPTER
MOUNTING
SLOTS
(Along both walls)
CURVE
ADAPTER
