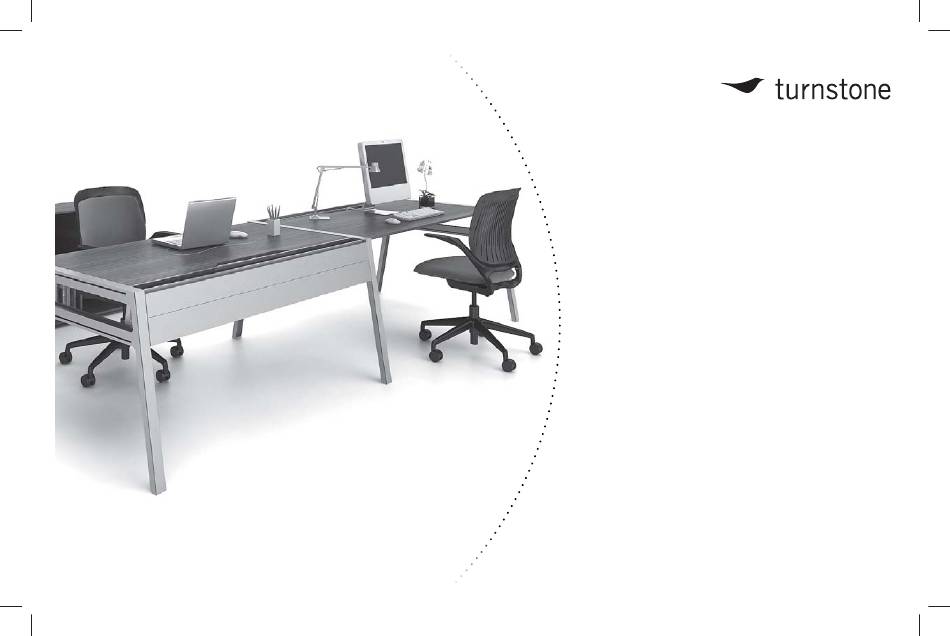

- Page 1 bivi ™ * table * table with back pocket * electrical Installation Instructions © 2011 Steelcase Inc. 939500449 Rev C Printed in U.S.A. Page 1 of 20...
- Page 2 Tools Needed Here' s what' s in the boxes (included) Assembly Video table top myturnstone.com/bivi/instructions Time Needed Assembly time: 20 Minutes Difficulty Scale really a little easy more difficult electrical trough table top with back pocket 939500449 Rev C Page 2 of 20...
- Page 3 For assembly video, go to myturnstone.com/bivi/instructions right and left brackets pocket cover trough end caps back pocket thumb screws 939500449 Rev C Page 3 of 20...
- Page 4 STEP • Pull off covers (a). • Install leg onto supports with four cap screws. Screws must be securely tightened with no gaps Assemble between the parts. Recommend tightening screws leg. to 66-72 in-lbs (b). • Install opposite leg same as previous step (c). •...
- Page 5 STEP Stage trough. • Set the trough between the two legs on a clean surface. 939500449 Rev C Page 5 of 20...
- Page 6 STEP Attach leg to trough. tips Rest one side of the trough on the floor and place lip on the other side into the bottom edge of the leg. • Stand one leg up. • Lift and place end of electrical trough up to the leg.
- Page 7 STEP Install second leg. • Remember what you did a few NOTE: If you just want an individual table, place trough to far end. Proceed with following steps. minutes ago? Do that again. 939500449 Rev C Page 7 of 20...
- Page 8 STEP Attach worksurface brackets. • Attach the brackets into the slot in the leg top and rotate (a). • Push the bracket back toward the electrical trough to complete the attachment (b). 939500449 Rev C Page 8 of 20...
- Page 9 STEP electrical. tips For more in depth resources of the electrical, visit myturnstone.com electrical section or see assembly instructions sent in electrical box. • Insert the cord of power strip #1 into the power cutout in the trough that is closest to the power outlet.
- Page 10 STEP Install knobs. View from underneath trough. • Install the knobs, two per power strip, inside the trough and onto the bottom of the power strip at each end. 939500449 Rev C Page 10 of 20...
- Page 11 STEP Feed cords into trough. • Feed the hanging cords into the View from underneath trough. underside of the trough. 939500449 Rev C Page 11 of 20...
- Page 12 STEP Connect the power strips. • Connect power strip #1 to power strip #2 (Red to Red). • Connect power strip #2 to power strip #3 (Orange to Orange). • Connect power strip #3 to power strip #4 (Green to Green). •...
- Page 13 STEP table top Attach the table tops. • Add the table top. • Put the back of the top into the opening along the back of the electrical trough. • Swing the front down onto the top brackets (back of top has the cutout).
- Page 14 STEP split table top with back pocket Add the back pockets. • Add the back pockets. • Put the back of the back pocket into the opening along the back of the trough (a) and swing down (b). 939500449 Rev C Page 14 of 20...
- Page 15 STEP table top with back pocket Attach tops. • Add the table top with back pocket. • Make sure the two tabs, on the underside of each top, go under the tray and brackets (a). • Secure the front of the tops to the brackets by hand tightening the thumb screws to the bottom of the tops (b).
- Page 16 STEP trough caps Add the trough caps. • Place in the trough caps, one on each end. 939500449 Rev C Page 16 of 20...
- Page 17 STEP pocket covers Attach pocket covers. • Place the pocket covers on top of the tray. • Put the back of the cover into the opening along the length of the trough. • Two covers to each side. 939500449 Rev C Page 17 of 20...
- Page 18 939500449 Rev C Page 18 of 20...
- Page 19 Visit myturnstone.com to see more spots. 939500449 Rev C Page 19 of 20...
- Page 20 All rights reserved. ©2011 Steelcase Inc. Printed in the U.S.A. on recycled paper. Data subject to change. Trademarks used herein are the property of Steelcase Inc. Some products and services may not be available in all countries. Your Turnstone representative can provide you with details. ad-stock ID 10-0003123.
