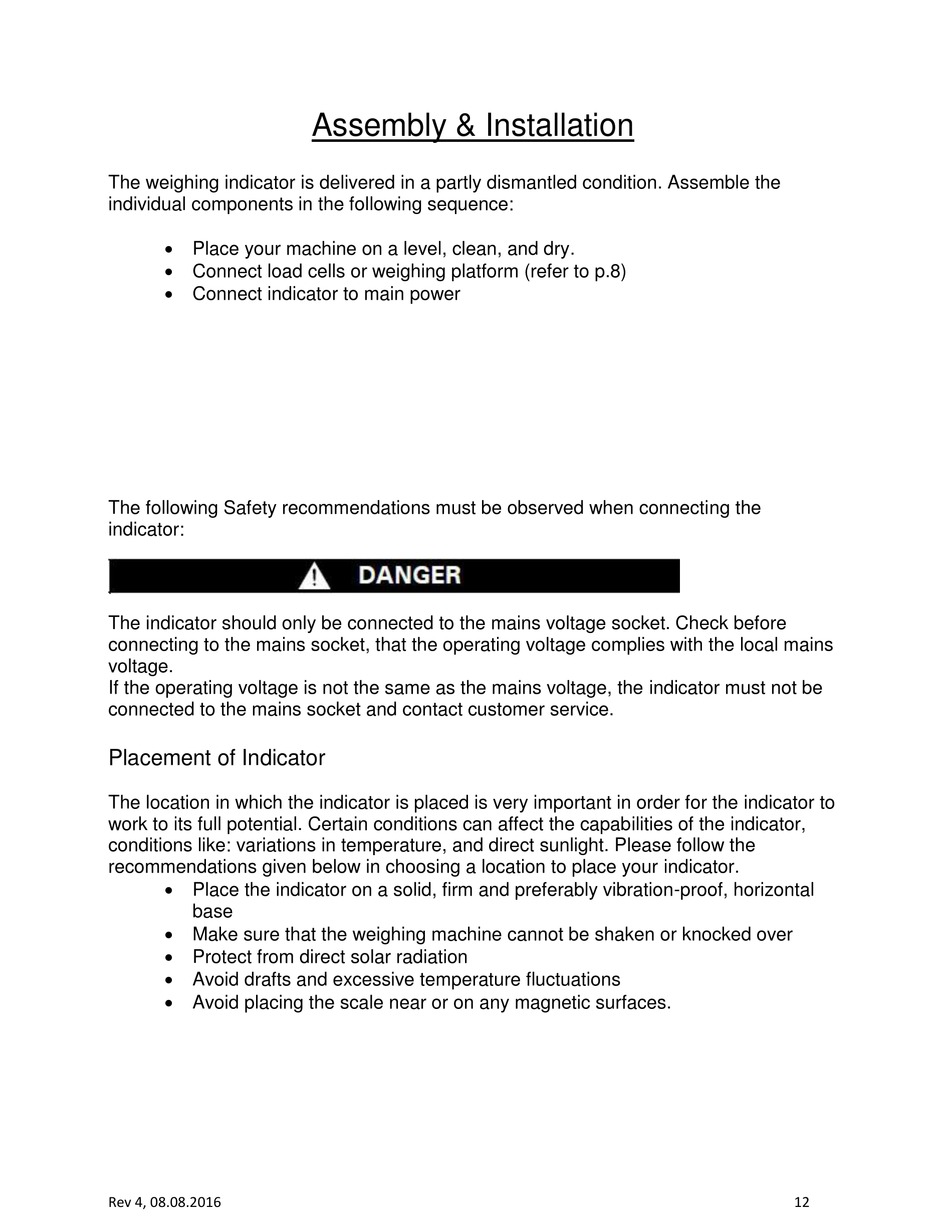

Assembly & Installation - LW MEASUREMENTS TREE TR-1-NK Operation Manual

The weighing indicator is delivered in a partly dismantled condition. Assemble the
individual components in the following sequence:
 Place your machine on a level, clean, and dry.
 Connect load cells or weighing platform (refer to p.8)
 Connect indicator to main power

The following Safety recommendations must be observed when connecting the
indicator:
The indicator should only be connected to the mains voltage socket. Check before
connecting to the mains socket, that the operating voltage complies with the local mains
voltage.
If the operating voltage is not the same as the mains voltage, the indicator must not be
connected to the mains socket and contact customer service.
Placement of Indicator
The location in which the indicator is placed is very important in order for the indicator to
work to its full potential. Certain conditions can affect the capabilities of the indicator,
conditions like: variations in temperature, and direct sunlight. Please follow the
recommendations given below in choosing a location to place your indicator.
 Place the indicator on a solid, firm and preferably vibration-proof, horizontal
base
 Make sure that the weighing machine cannot be shaken or knocked over
 Protect from direct solar radiation
 Avoid drafts and excessive temperature fluctuations
 Avoid placing the scale near or on any magnetic surfaces.
