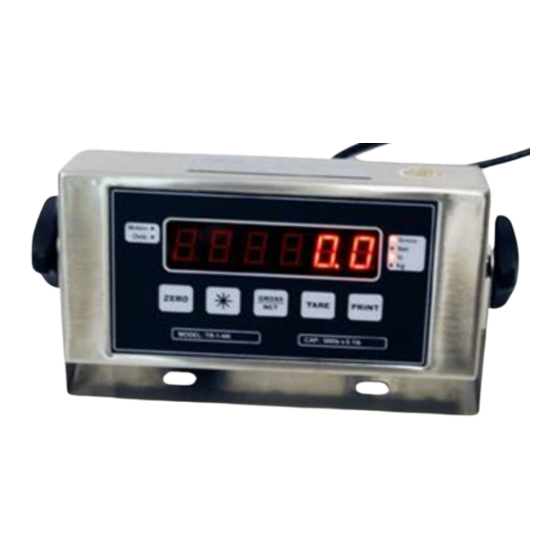

LW MEASUREMENTS TREE TR-1-NK Operation Manual

LW MEASUREMENTS TREE TR-1-NK Operation Manual

Digital weight indicator

Advertisement

Professional Weighing
Equipment
Digital Weight Indicator
TR-1-NK (WD) (2013 Version)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TREE TR-1-NK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LW MEASUREMENTS TREE TR-1-NK

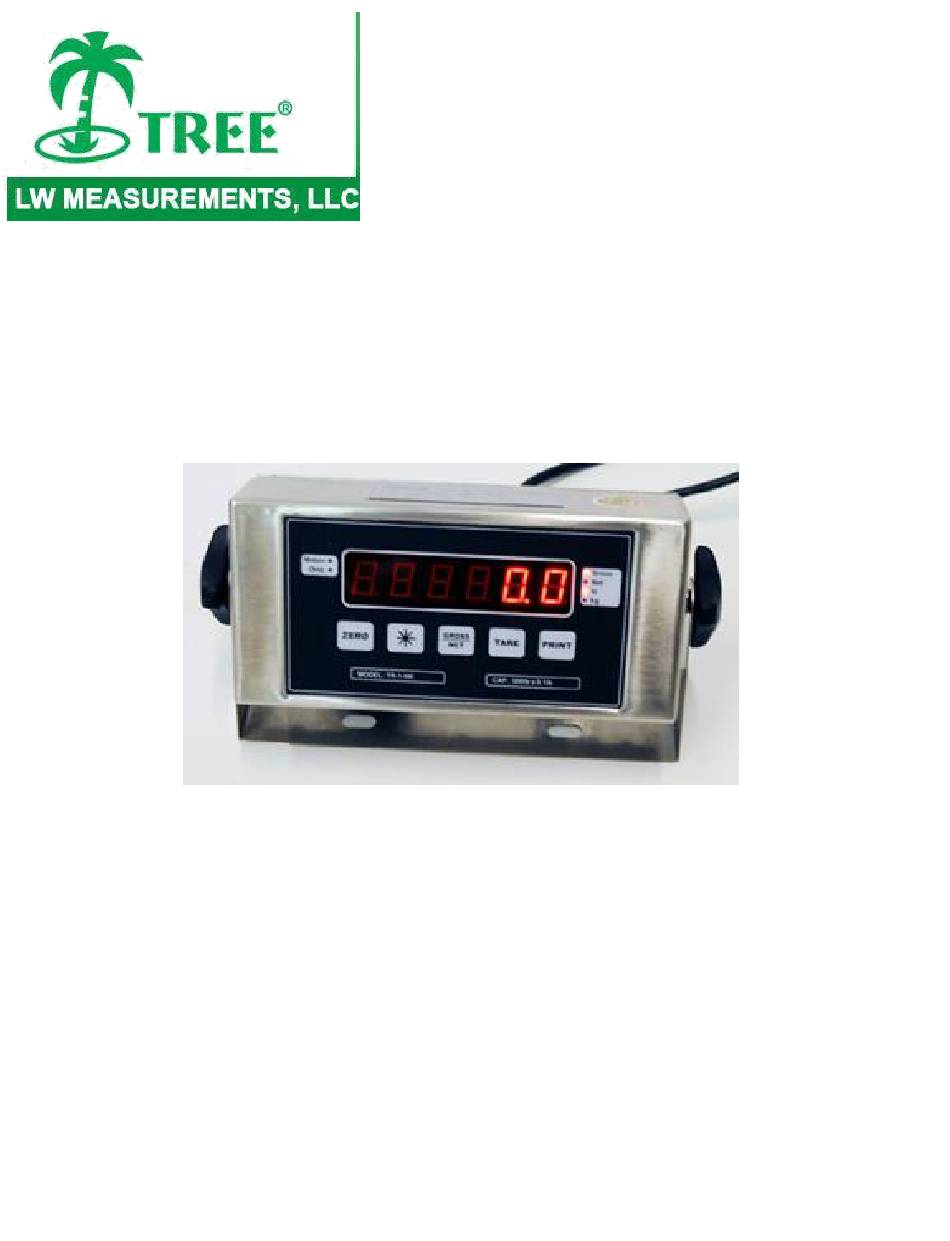

  • Page 1 Professional Weighing Equipment Digital Weight Indicator TR-1-NK (WD) (2013 Version)
  • Page 2: Table Of Contents

    Operation Manual Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Features 8 -9 Application & Conformity Getting Started Delivery Assembly & Installation Functions Weighing Options Parameter Settings 14-16 Calibration Maintenance & Service Transportation & Storage Warranty Rev 4, 08.08.2016...
  • Page 3: Declaration Of Conformity

    TR-1-NK Stainless steel Stainless TR-1-NK (WD) steel/wash-down Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 11. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev 4, 08.08.2016...
  • Page 4: Customer Service

    LW Measurements LLC 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com Rev 4, 08.08.2016...
  • Page 5: Introduction

    Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work.
  • Page 6: Safety

    Safety Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage.
  • Page 7: Weight Scale

    Weight Indicator Construction & Functions The indicator consists of the following parts;  Display panel (1)  Mounting Bracket (2)  Operating manual Figure: your scale Rev 4, 08.08.2016...
  • Page 8: Features

    Features  Pounds to Kilogram conversion  USB output   Data interface   Counting function that supports HID format (UPS World Ship Software)  Operation Manual  Figure Details of your indicator Front Panel:  0.54 in 6 digit LED display ...
  • Page 9 RS232 Transmission Agreement: Mode:Simplex Asynchronous Serial Baud rate: 9600 Data Bit:8 Parity Bit:NONE Stop Bit:1 Data Format:ASCII Transmission Information Format: 16 Byte ,blank=20H <STX><POL><7Data><kg/lb><blank ><G/N><M ><CR><LF> Note: The M character will only appear in continuous mode As set by parameter #8 Back panel diagram for TR-1-NK WD 1 2 3 4 RS232...
  • Page 10: Application & Conformity

    Application & Conformity The Following are instructions of how to correctly use the weight indicator: In using the weighing indicator in combination with other devices as well as with devices produced by other manufacturers, the appropriate regulations for the safe use of the relevant attachments and their application in accordance with instructions must be observed.
  • Page 11: Getting Started

    Getting Started The indicator is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the indicator to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time.
  • Page 12: Assembly & Installation

    Assembly & Installation The weighing indicator is delivered in a partly dismantled condition. Assemble the individual components in the following sequence:  Place your machine on a level, clean, and dry.  Connect load cells or weighing platform (refer to p.8) ...
  • Page 13: Functions

    Annunciator messages: Motion: This light is on whenever the scale is in motion. OVLD: This light is on whenever the scale is over weight limit. GROSS: Indicates that the indicator is displaying gross weight. NET: Indicates that the indicator is displaying net weight. Lb: Indicates the “lb”...
  • Page 14: Weighing Options

    Weighing Options Please see our web-site at http://lwmeasurements.com for practical demonstrations of application usage. Weighing Procedures Whenever possible, please allow the scale to warm up for several seconds after first turning the power on so that the scale will function properly and accurately. ...
  • Page 15 Setup Menu Chart: Setup Menu Description: Code Name Code/Value Description LB/KG units nn=00: Power-on unit is lb and units conversation is not available. nn=0: Power-on unit is lb and units conversation is available. nn=2: Power-on unit is kg and units conversation is available.
  • Page 16 4 Motion 00 to … Set to the muber of scale division detection that is allowed as a no motion condition 5 zero tracking 01, 02, 03, Set to number of scale divivsions range 04, 05... off of zero that the uit will auto zero in one sample update.
  • Page 17: Calibration

    Calibration Using a Calibration Weight Calibration is required when the weighing scale is initially installed or if the balance is moved to a substantial distance from the original location. NOTE: All calibration needs to be done in pounds. NOTE: When setting up a new scale, do the parameter setting first. Calibration Steps: Open the rear cover, then press <CAL>...
  • Page 18: Maintenance & Service

    Maintenance & Service The weighing scale is a precision instrument, it must be treated carefully and cleaned regularly For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party.
  • Page 19 Our warranty does not cover misuse or neglect including but not limited to battery or water damage, overloading, and chewed or cut wires. If the product is found to have been misused or damaged by the customer, LW measurements is not responsible for the cost of return.
