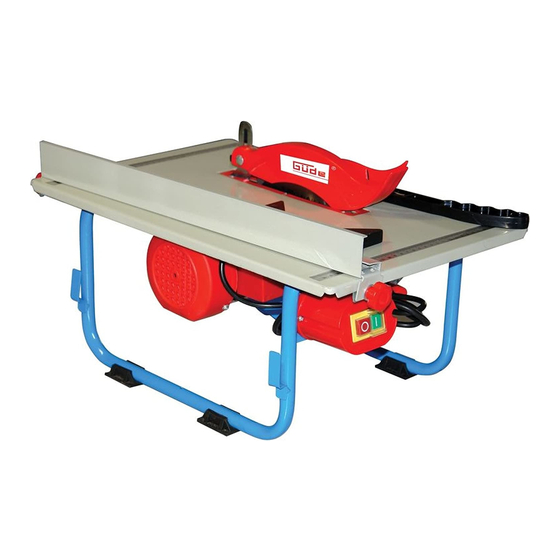

- Page 1 GTK 800 #55146 English GB Translation of original operating instructions TABLE CIRCULAR SAW © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Deutschland...
- Page 2 Introduction To enjoy your new appliance as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future. Within the continuous product development, we reserve the right to make technical changes to improve it. Translation of original operating instructions.
- Page 3 General Safety Instructions Prior to the initial use of the unit, the operating instructions should be read completely. If in doubt with regard to connection and operation of the unit, consult the manufacturer (servicing department). FOLLOW THE INSTRUCTIONS BELOW CAREFULLY IN ORDER TO SECURE A HIGH DEGREE OF SAFETY: Caution: Always operate with an RCD (faulty current protection switch)! CAUTION! •...
- Page 4 Signs on Unit Meaning of Symbols Symbols shown below are used throughout this manual and/or on the unit: Product Safety Product compliance with respective EU standards Bans: General ban (in Must not be Do not touch Do not use when combination with accessed by rotating parts...
- Page 5 Assigned Use Bench circular saw is fit to wood and soft plastics lengthwise and cross wise. Round materials (tubes, rounds etc.) are not allowed to be cut with the saw. Metal cutting is not permitted. . The machine cannot be used for works other than for which the machine has been designed and that are specified in the Operating Instructions.
- Page 6 Training Use of the unit requires adequate lesson by a professional or the use of the manual only. Special training is not required. Technical specifications Model GTK 800 Engine connection 230 V~50 Hz Engine power (P1) 800 W...
-
Page 7: Operation
Initial Operation Safety Instructions • Unplug the unit before any adjustment and maintenance. • Caution! Rotating saw disc may hurt hands and fingers! • Never work without protection on the saw disc. • Before initial use, check the electrical data on the plate to see if they correspond to the mains electrical data. •... - Page 8 Mitre Stop • Put the mitre stop (Fig. 1/pos. 7) in the respective clamp on the bench. Caution: Do not move the stop too far in the direction of the saw disc! The distance between the stop and the disc must be 20 mm at least.
- Page 9 Lengthwise Cutting • Set the parallel stop (Fig. 1/pos. 8) at the required width in relation to the saw disc. • Lay the work on the bearing surface are, the flatter/wider side should lay flat on the saw bench. • Guide the wider work with hand, the smaller one with use of a sliding guide rod (Fig.
-
Page 10: Troubleshooting
Step-by step instructions Set up the stops according to the cut required. Switch on the unit. Move the piece to be worked slowly and evenly in the disc, using an auxiliary guiding rod, so that a full cut is possible. . Switch the saw off and wait for the disc to come to standstill. -
Page 11: Eu Declaration Of Conformity
In case of alternation of the machine, not agreed upon by us, this declaration will lose its validity. Machine description: TABLE CIRCULAR SAW GTK 800 Article No.: #55146...
