SolarVenti SV14 Quick Start Manual

Roof mounting

Hide thumbs Also See for SV14:

Roof mounting

Type 2

Version

05/2014s. 01/2014

SV7, SV14,

SV20, SV30

2x c1

10x

min. 5°

SV7-14: 40 mm

SV20-30: 35 mm

SV7-14: 330 mm

SV20-30: 490 mm

SV7-14: 490 mm

SV20-30: 706 mm

SV7-14: 706 mm

SV20-30: 1006 mm

SV7-14: 35 mm

SV20-30: 40 mm

40 mm

1/2

Table of Contents

Do you have a question about the SV14 and is the answer not in the manual?

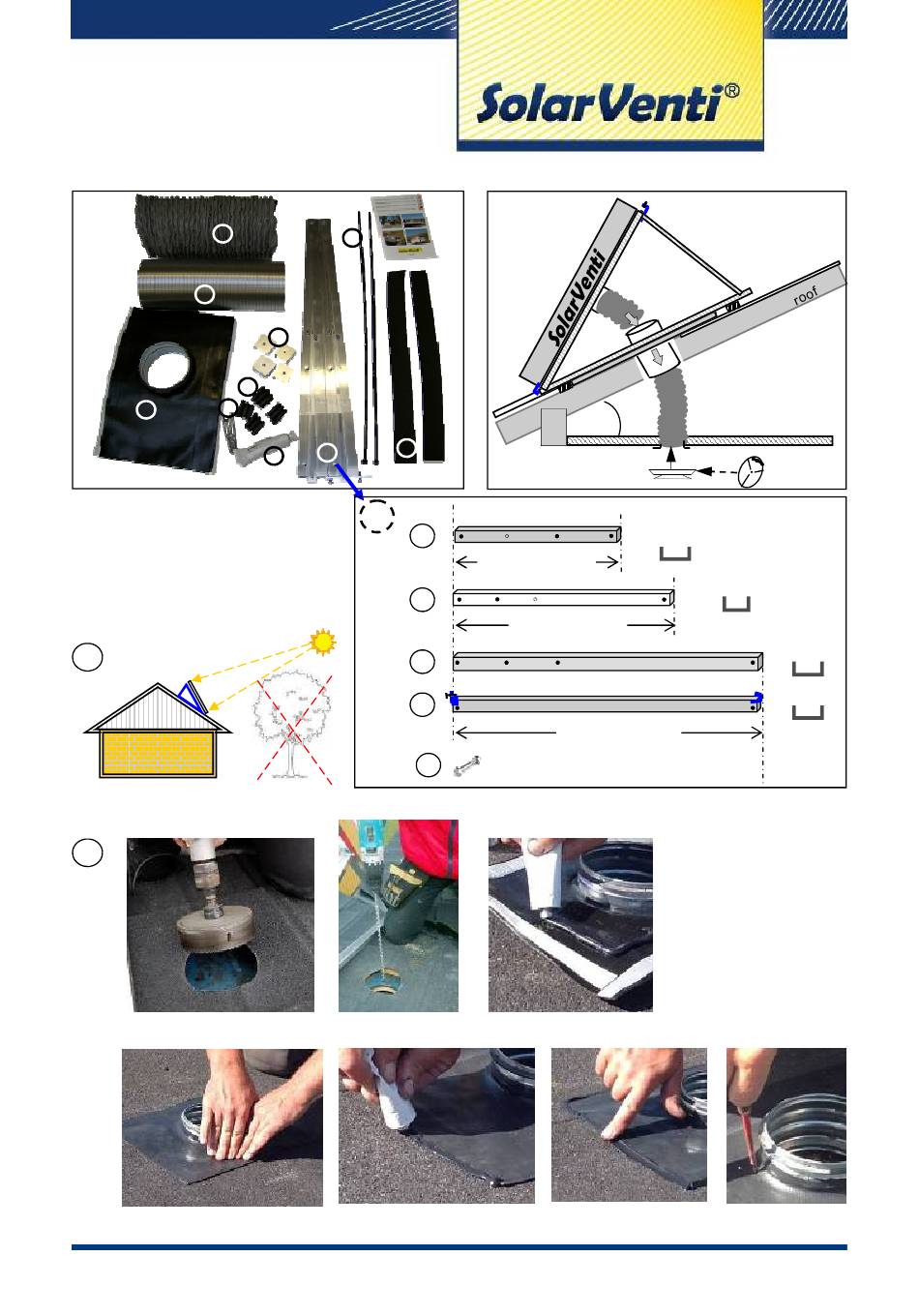

Page 1 Roof mounting SV7, SV14, SV20, SV30 Type 2 min. 5° SV7-14: 40 mm SV20-30: 35 mm 2x c1 SV7-14: 330 mm SV7-14: 35 mm SV20-30: 490 mm SV20-30: 40 mm SV7-14: 490 mm SV20-30: 706 mm 40 mm 40 mm...
Page 2 ® SolarVenti Roof mounting SV7-14-20-30 – TYPE 2 SV7-30 ° ° ° 50 - 60 SV30 SV20 35- 45° ° 15- 25 SolarVenti® | www.solarventi.dk...
Page 3 Beware of electrical installations like cords from lamps and the like. The SolarVenti air collector can be mounted either horizontally or follow the roof slope.
Page 4 5: Connection of the SolarVenti air collector Fix the SolarVenti air collector to the two stands and tighten them with the Allen screws at the top. Pull the cord through the flexible hose (D) and down through the cord hole in the roof flashing (A). Make an excess of 5-10 cm of the cord between the solar air collector and the roof flashing.

Sv7 Sv20 Sv30
