Application Guide
Three Phase Sectionalizer
Solution 7

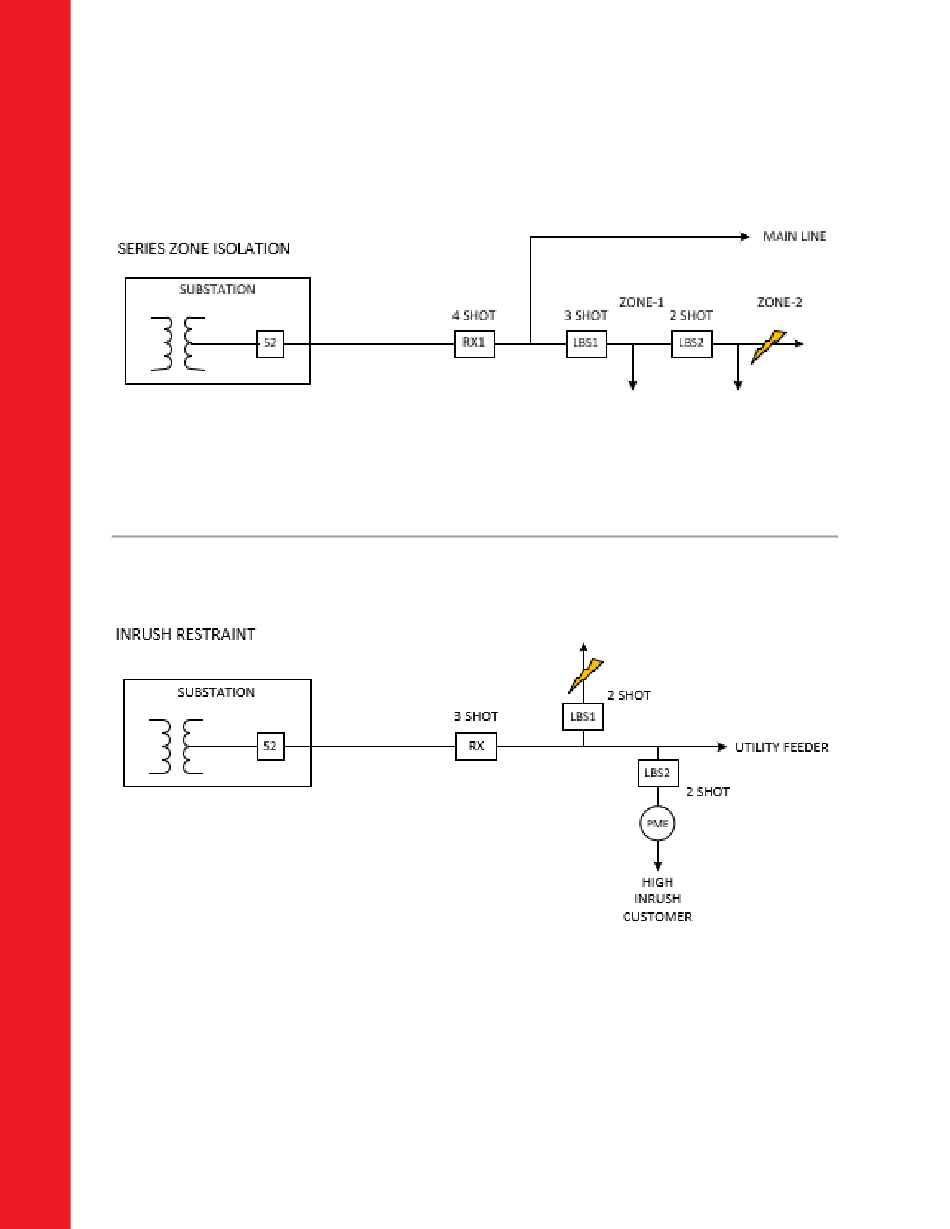

SERIES ZONE ISOLATION
Deep Fault: RX1 cycles, LBS2 locks before LBS1, Zone-2 isolated ... Zone-1 and Main Line
remain energized
Solution 8
INRUSH RESTRAINT
Fault Cleared Upstream: RX cycles and LBS1 locks out. Inrush Restraint blocks LBS2 ... Utility
Feeder and LBS2 remain energized
®
SEL
is a registered trademark of Schweitzer Engineering Laboratories, Inc. (SEL)
6
www.Entec-USA.com
