Summary of Contents for OWIM SOKL 1920 B2

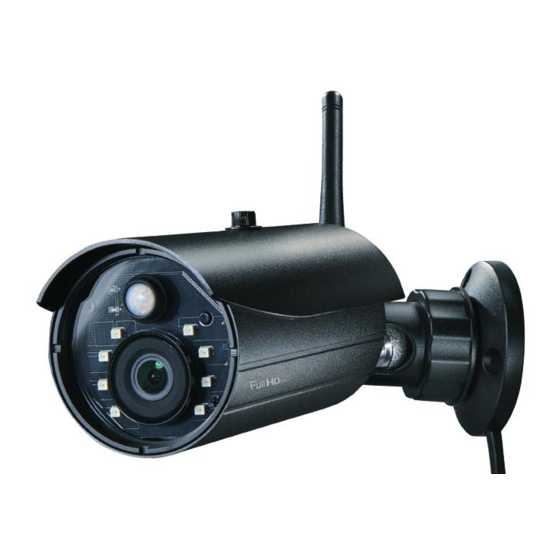

- Page 1 WI-FI SURVEILLANCE CAMERA SOKL 1920 B2 WI-FI SURVEILLANCE CAMERA Assembly, operating and safety instructions IAN 289836...
- Page 2 GB/IE/NI Assembly, operating and safety instructions Page...
- Page 3 13 12 ø6mm 1/4” ø16mm 5/8” ø6mm 1/4” ø6mm 1/4” Camera observation / Vidéo surveillance / Camerabewaking / Kameraüberwachung 2,5 m 90°...
- Page 4 Ø 6 mm, 1/4” Ø 16 mm, 5/8” Router+Ethernet RJ45...
-
Page 5: Table Of Contents
Warning remarks and symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page Introduction . -
Page 6: Warning Remarks And Symbols Used
˜ Warning remarks and WI-FI SURVEILLANCE CAMERA symbols used ˜ Introduction The following warnings are used in this manual: We congratulate you on the purchase of your DANGER! This symbol with the signal new product . You have chosen a high quality word "Danger"... -
Page 7: Scope Of Delivery
˜ Description of parts NOTE: This product is designed for monitoring objects and items, but it can not Before reading, unfold the page containing the guarantee complete protection of your home . illustrations and familiar yourself with all functions of the product . ˜... -
Page 8: Safety Information
Supported smart devices Infrared range 8 IR LEDs up to 15 m range iOS device with iOS 7 .0 or above Android device with Android 4 .4X or above Min . illumination 1-8 lux Hardware requirement: 1 .5 GHz dual core Light source environment Indoor (50 Hz) ... - Page 9 This product may be used by children aged To avoid damaging the cord, do not squeeze, 8 years and up, as well as by persons bend or chafe it on sharp edges . Keep it with reduced physical, sensory or mental away from hot surfaces and open flames as capacities, or lacking experience and / or well .
- Page 10 Use a voltage/ receiving range . metal detector. The OWIM GmbH & Co KG is not The fixing points selected must be capable of responsible for interference with radios or supporting the full weight of the product .
- Page 11 If it can be established that a person was The IP66 rating is only guaranteed when the camera is properly installed and memory card at a certain place at a certain time, there is slot cover closed . a personal identifiability . Another example: Identification via personal vehicle license DANGER! Risk of electric shock! The plates .
-
Page 12: Trademark Notices
˜ Trademark notices Avoiding false triggers (see "Sensitivity Setting" "Motion Mask" in iOS and Apple are registered trademarks of tables below) Apple Inc . in the USA and other countries . A tree, shrub or foliage that is blown ... -
Page 13: Getting Started
˜ Getting started NOTE: Install the camera at a height and position at which it cannot be reached without Before proceeding with camera installation, we aid . Proceed likewise with the splitter and Ethernet advice to establish the connection with the router cable . - Page 14 3. Connecting the cables (Fig. G) Plug the camera connection cable into its connection port on the PoE adaptor cable Connect the plug of the power adaptor the connection for the power adaptor Plug the power adaptor into an ...
- Page 15 7. UGRS Player NOTE: If the camera cannot be found, The "UGRS" Windows program is provided it may have been already added . Go to the for viewing cameras on Windows operating "Connecting an existing camera" section . Input system .
- Page 16 Step 3: Create a new folder on Step 5: Double click on the desktop of your PC . Move both "UGRSPlayer-V2 .3 .6_EN .zip" to start downloaded files into the same folder! decompressing the file . The UGRS installation software (UGRSPlayer-V2 .3 .6-2 folder) will be available when the unzipping process has ended .
- Page 17 Getting started to setup the UGRS installation Load the CD into the CD ROM drive or execute the downloaded UGRS software file . Double click "Setup-OMGuardService" to install the program . Open the program from the desktop when you ...
- Page 18 8. Android device hardware Setting up a connection with the decoding surveillance camera (via PC) This function helps to improve the video streaming quality for Full HD 1080p on Android device . Enter the camera's DID manually . The DID code is located under the QR code sticker on the main unit (near to the rating plate) .
-
Page 19: Camera Setup (Via The App)
˜ Camera setup (via the app) NOTE: The presentation differs slightly between the two operating systems, iOS and Android, in some parts . The description of the main screen is combined for both systems; the advanced setup menu is described separately for each operating system . Android GB/IE/NI... - Page 20 1. Live view to enter the live view mode . Depending on the network speed and/or connection status, it may take a while to load the live view . Tap to take a screenshot . The pictures are saved in your smart device Snapshot gallery .
- Page 21 Advanced settings for an iOS system: Admin Password The Admin Password is intended to access the advanced settings . Device Security Code PASSWORD The Device Security Code is intended to access the camera's live view SETTINGS only . NOTE: By default, both above listed passwords are the same as the password set during the initial configuration .
- Page 22 3 . Software – Select to use software detection algorithm for motion triggered recording factor . The software algorithm will track and detect all minor/major movements that cause changes of picture . Motion Detection SENSITIVITY Set the sensitivity of motion detection during day and night . SETTING Motion Mask Choose the image areas which should not detect motion .
- Page 23 SD Card Format Delete all the stored data . Overwrite SD Card Activate this function to automatically start overwriting the oldest data SD CARD when the microSD card capacity is insufficient . SETTINGS NOTE: Back up your video files before formatting the microSD card . NOTE: To prevent the microSD card from becoming corrupted, reformat the microSD card from time to time .
- Page 24 NOTE: The e-mail notification system will only send alert notices to your e-mail receiver account . Images or video will not be included in the e-mail . Base settings When receiving an alert: Go to your "SilverCrest IP CAM S-K 1920" App to load the live view of your surveillance camera's monitoring area to check if there has been an incident (e .g .
- Page 25 MicroSD card NOTE: To prevent the microSD card from becoming corrupted, reformat the settings microSD card from time to time . Device Information Displays information about the product: Version – version of the application Model – model number Device settings FW Version ...
-
Page 26: Troubleshooting
˜ Troubleshooting The application Make sure your home network supports the DHCP protocol . cannot find the Make sure the router/Wi-Fi router and the camera is on . camera Make sure the camera and your smart device are connected to the same Wi- ... -
Page 27: Glossary
˜ Glossary Simple Network Time Protocol . A protocol that allows devices Warning message in a form of an SNTP to update internal clocks using a Alert e-mail or notification sent when standard source available on a motion is detected . network . -
Page 28: Disposal
If there is dust or grease on the lens, clean the lens with clean soft cloth and isopropyl conformity alcohol . Hereby, OWIM GmbH & Co . KG, Let all parts dry afterwards . Stiftsbergstraße 1, DE-74167 Neckarsulm, ˜ Maintenance... - Page 29 OWIM GmbH & Co. KG Stiftsbergstraße 1 DE-74167 Neckarsulm GERMANY Model No.: HG03329A-BS, HG03329B-BS Version: 09/2017 IAN 289836...
