Matrix Light All Light Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

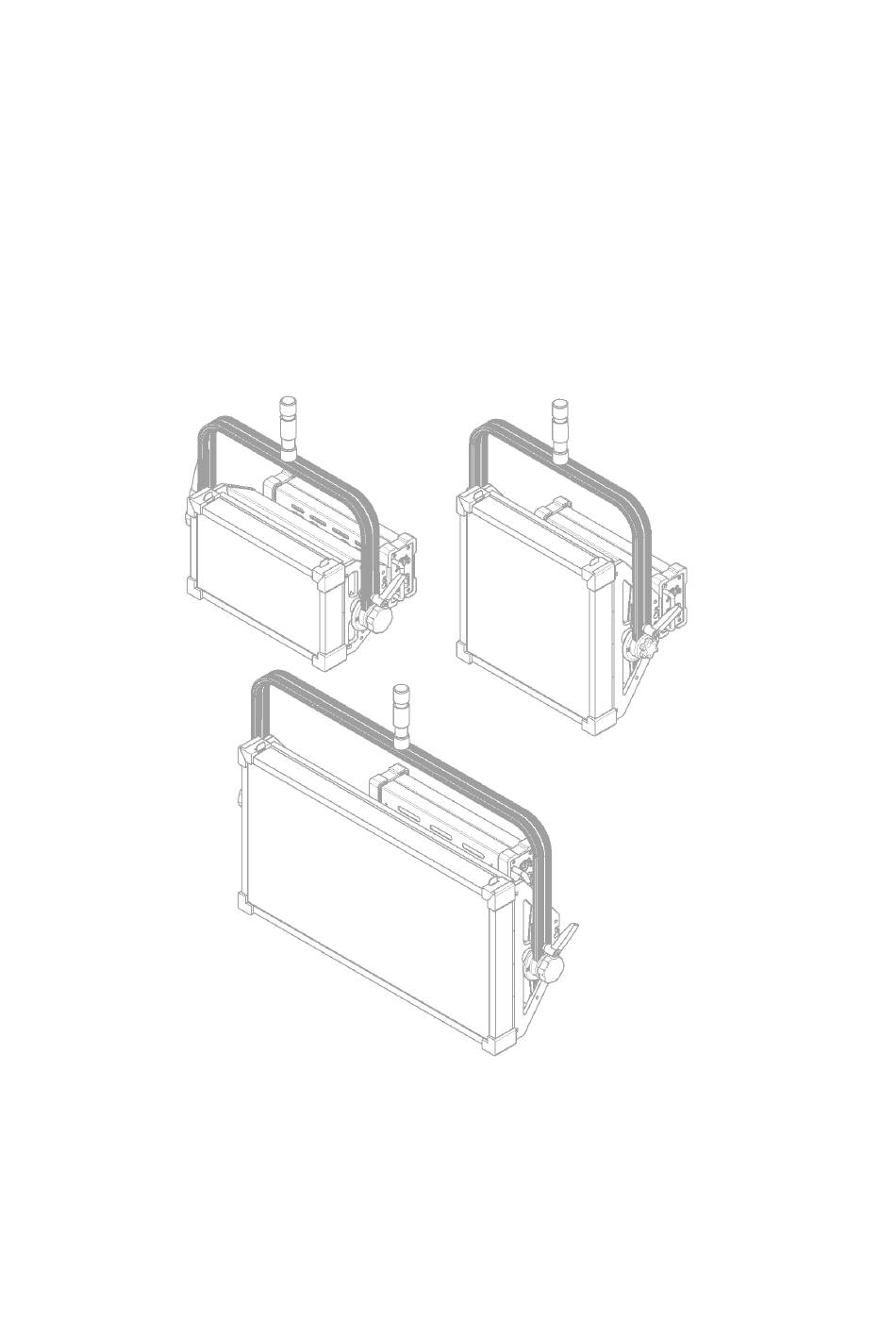

ALL LIGHT Series
USER MANUAL
Matrix Light

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All Light Series and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix Light All Light Series

Summary of Contents for Matrix Light All Light Series

  • Page 1 ALL LIGHT Series USER MANUAL Matrix Light...

  • Page 2: Table Of Contents

    ••• ALL LIGHT products may be subject to technical improvements without prior notice from Matrix Light. ••• Refer to this user manual for installation and safe use of the product. ••• This manual can be downloaded free of charge from the Matrix Light website at www.matrixlight.com...

  • Page 3: About The Product

    01. Special features ••• Matrix light ALL LIGHT Thank you for choosing the Matrix Light All Light Series. All Light 1, 2, and 4 have been designed and built with the goal of creating the ultimate lighting that professionals have wanted. The product reflects the diverse needs of the field and creates a fast and seamless user experience that enables professional users to deploy light sources as closely as possible in the real world.

  • Page 4: Important Notices

    Copyright ⓒ2019 Matrix Light All rights reserved. No part of this manual shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission from Matrix Light. - 2 -...

  • Page 5: Safety And Handling

     Do not disassemble or open the product on your own.  Never repair any part of the product on your own. Maintenance and repair work is only carried out in the Matrix Light Service Center, and if repaired on your own, the product is not eligible for after-service assurance.
  • Page 6 They contain important safety and security information.  Matrix Light recommends that all electrical components, in addition to regular visual checks, be performed by experts every 12 months.  LED light sources in All Lights cannot be replaced individually. If the light source has reached the end of its operational life, the entire LED board must be replaced.
  • Page 7 Matrix Light All Light Firmware downgrade  After updating to version 1.0.0 or later, the firmware cannot be downgraded to a version lower than 1.0.0. Maintenance of products  Do not clean the surface of the product with solvents or strong detergents.
  • Page 8  If the light falls into the water or the casing is damaged, turn off the product and unplug the power supply. Failure to do so may cause fire and electric shock. Contact the Matrix Light Service Center.  Do not arbitrarily disassemble, repair, or modify the light. If you need repairs, please contact the service center.

  • Page 9: Product Package Components

    Matrix Light All Light ••• Product knowledge 04. Product package components ••• Make sure that all necessary accessories are included in your package before using the product. Depending on the type of package you purchased, the shape of the product configuration or accessories may vary.
  • Page 10 ➑ ML-BP22A BP Battery ■ Accessories in the package or optional devices can be purchased from www.matrixlight.com ■ Revision of the user manual provided can be downloaded from the Matrix Light website at (www.matrixlight.com) ■ Only use Matrix Light accessories (such as power cables, batteries, power supplies, etc).

  • Page 11: Name And Function Of Each Part

    Matrix Light All Light ••• Name and function of each part 01. LED Light ••• [All Light 1] Power Supply Unit [All Light 2] Power Supply Unit - 9 -...
  • Page 12 Matrix Light All Light [All Light 4] Power Supply Unit - 10 -...

  • Page 13: Installation And Use Of Light

    Power Supply AC Power The Matrix Light All Light is powered by an external power supply (Power Supply Unit / PSU). The PSU is an automatic sense switch mode power supply that automatically adapts to AC power at 110 to 240 V and 50/60 Hz.
  • Page 14 Matrix Light All Light 110V or 240V voltage (see "Product Specification"). The connector cable between the external power supply and the Matrix Light All Light can be used in different lengths as an accessory. Use only connector cables for Matrix Light All Light (see "Product Specification").
  • Page 15 Battery power To operate the Matrix Light All Light using battery power, separate optional items such as ML-DPS1 / DC Power Supply Unit and ML-DPS1 exclusive BP batteries are required. If the battery is fully charged, combine the ML-DPS1 exclusive BP battery with the battery power supply (ML-DPS1 / DC Power Supply Unit) and connect the battery power supply and All Light to a dedicated power cable.
  • Page 16 Matrix Light All Light  How to use a rain cover The ML-ARC1, ML-ARC2, and ML-ARC4 rain cover are available as a separate option. Install the rain cover as shown in the figure below, rotate the two rods to fix them on the mounting screw groove for the run-in-cover rod.

  • Page 17: How To Operate The Touchscreen

    Matrix Light All Light 02. How to operate the touchscreen ••• Touchscreen menu configuration The touchscreen menu of the Matrix Light All Light consists of the following schemes: COLOR Mode CCT Mode Preset Preset 1 RGB Mode Preset 2 HSI Mode...
  • Page 18 Matrix Light All Light Touchscreen menu operation The initial menu of the touchscreen for the Matrix Light All Light consists of the following:   Home Button  Brightness  Color Mode Button    Brightness Controller Color Temp 7100 [K] ...
  • Page 19 3. Color Filter Menu The Matrix Light All Light series contains specialized color filter data. It is divided into Color Filter 1 Group and Color Filter 2 Group, and the Color Filter 1 Group provides colors similar to most color filters from LEE Filter Company and the Color Filter 2 Group from Rosco Lux Company.
  • Page 20 Matrix Light All Light All Light provides 152 Color Filter 1 and 168 Color Filter 2 filter values. See the table below for detailed color filter names, pages where they are located, and color numbers for these filters. Color Transmission...
  • Page 21 Matrix Light All Light Color Transmission Classification PAGE AllLight# Color Name Deep Golden Amber Pale Lavender Special Lavender Pale Green Primary Green Bright Blue Pale Violet Pale Navy Blue No Colour Blue Apricot Bright Rose Gold Tint Pale Gold Pale Salmon...
  • Page 22 Matrix Light All Light Color Transmission Classification PAGE AllLight# Color Name White Flame Green 1/8 C.T. Blue Color Filter 1 Fluorescent Green 1/8 C.T. Orange Color Filter 1 U.V. Super Correction L.C.T. Yellow Super White Flame H.M.I. To Tungsten C.I.D. To Tungsten C.S.I.
  • Page 23 Matrix Light All Light Color Transmission Classification PAGE AllLight# Color Name Orange Scarlet Orange Red Light Red Medium Red Light Salmon Pink Salmon Pink Medium Salmon Pink No Color Pink Flesh Pink Light Pink Medium Pink Pale Rose Pink Light Rose...
  • Page 24 Matrix Light All Light Color Transmission Classification PAGE AllLight# Color Name Pea Green Pale Yellow Green Light Green Moss Green Dark Yellow Green Primary Green Turquoise Blue Green Kelly Green Medium Blue Green Lime Light Grey Medium Grey Chocolate Red Diffusion...
  • Page 25 4. Effect Menu The Matrix Light All Light series supports a wide variety of effects, and if you need a new effect in addition to the existing one, you can create your own unique effect using the Custom Effect feature.
  • Page 26 Matrix Light All Light Apply icon () in the lower left corner of the icon. If you want to adjust the regeneration cycle of the effect, you can rotate the Encoder switch on the light body to adjust the desired length of the effect while the effect is playing.
  • Page 27 Matrix Light All Light 1) DISPLAY You can set the brightness of the touch LCD panel display. 2) COLOR OFFSET Green / Magenta points can be set to make the light more natural in the CCT mode of the LED light.

  • Page 28: Dmx Menu Configuration

    Matrix Light All Light 03. DMX Menu ••• The DMX menu of the Matrix Light All Light consists of the following. 8 bit 16 bit 1 channel per function 2 channels per function DMX mode 1 DMX mode 2 All Light DMX Settings...
  • Page 29 Matrix Light All Light All Light DMX Settings 8Bit MODE CHANNEL FUNCTION VALUE Notes 171-212 67-83 Preset # 5 213-255 84-100 Preset # 6 0-31 0-12.5 Preset Page # 1 (User, Factory Preset) 32-63 12.5-25 Preset Page # 2 (User, Factory Preset) 64-95 25-37.5...
  • Page 30 Matrix Light All Light All Light DMX Settings 8Bit MODE CHANNEL FUNCTION VALUE Notes <SPECIAL> 1.Sunrise, 2.Sunset, 3.Tunnle 4. Police, 5.Cloudy, 6.Emergency 0-85 0-33 FX Mode 86-170 33-67 Select Action Mode 1-3 171-255 67-100 FLASH 0-85 0-33 Select Effect COLOR...
  • Page 31 Matrix Light All Light All Light DMX Settings 16Bit MODE CHANNEL FUNCTION VALUE Notes Filter 171-212 67-83 Effect 213-255 84-100 H S I C+0(H) DIMMER 0-65535 0-100 Channel set 1 - 501 C+1(L) 　 C+2(H) 0-65535 0-100 C+3(L) 　 C+4(H)
  • Page 32 Matrix Light All Light All Light DMX Settings 16Bit MODE CHANNEL FUNCTION VALUE Notes 85-112 33-43 FILTER # 4 113-140 44-54 FILTER # 5 141-168 55-65 FILTER # 6 169-196 66-76 FILTER # 7 197-224 77-87 FILTER # 8 225-255...

  • Page 33: Bluetooth Connection And App Operation

    Android or iOS-based wireless devices. For the Matrix Light All Light app, download and install the Matrixlight.apk file from the Matrix Light homepage, the Google Play store, or the Apple App Store, or search for the Matrix Light or All Light and install the app on your mobile device.

  • Page 34: Troubleshooting

    Trouble Shooting 01. Check Point ••• If the light or battery doesn't work properly, check the following points first. If this does not solve the problem, please contact your local distributor or the Matrix Light service center. Symptom Check Point ■...

  • Page 35: Warranty Information

    Matrix Light All Light ••• Other information 01. Warranty ••• ● Free warranty period for products is one year after purchase. ● Faults caused by customer negligence or natural disasters are serviced for free even during the service period. ● To receive free service, please send the receipt with the purchase date to the head office or agency or visit the service center.
  • Page 36 Matrix Light All Light Lamp Head RJ45: DMX In and Through Software Interface USB-A: Software Upgrade via flash drive Housing Color Orange / Silver, Black, White Ambient Temperature Operation -20 to +45º C (-4 to +113º F) Protection Class / IP Rating...
  • Page 37 Matrix Light All Light Product Dimension All Light 1 All Light 2 - 35 -...

  • Page 38: Servicing And Repairs Guide

    Korea. ● For overseas A/S-related inquiries, visit the Matrix Light website at www.matrixlight.com or email csmatrixlight@gmail.com ● For guidance on overseas A/S-related agencies and service centers, visit the Matrix Light website at www.matrixlight.com or contact us at csmatrixlight@gmail.com ●...

This manual is also suitable for:

All light 2All light 1All light 4
