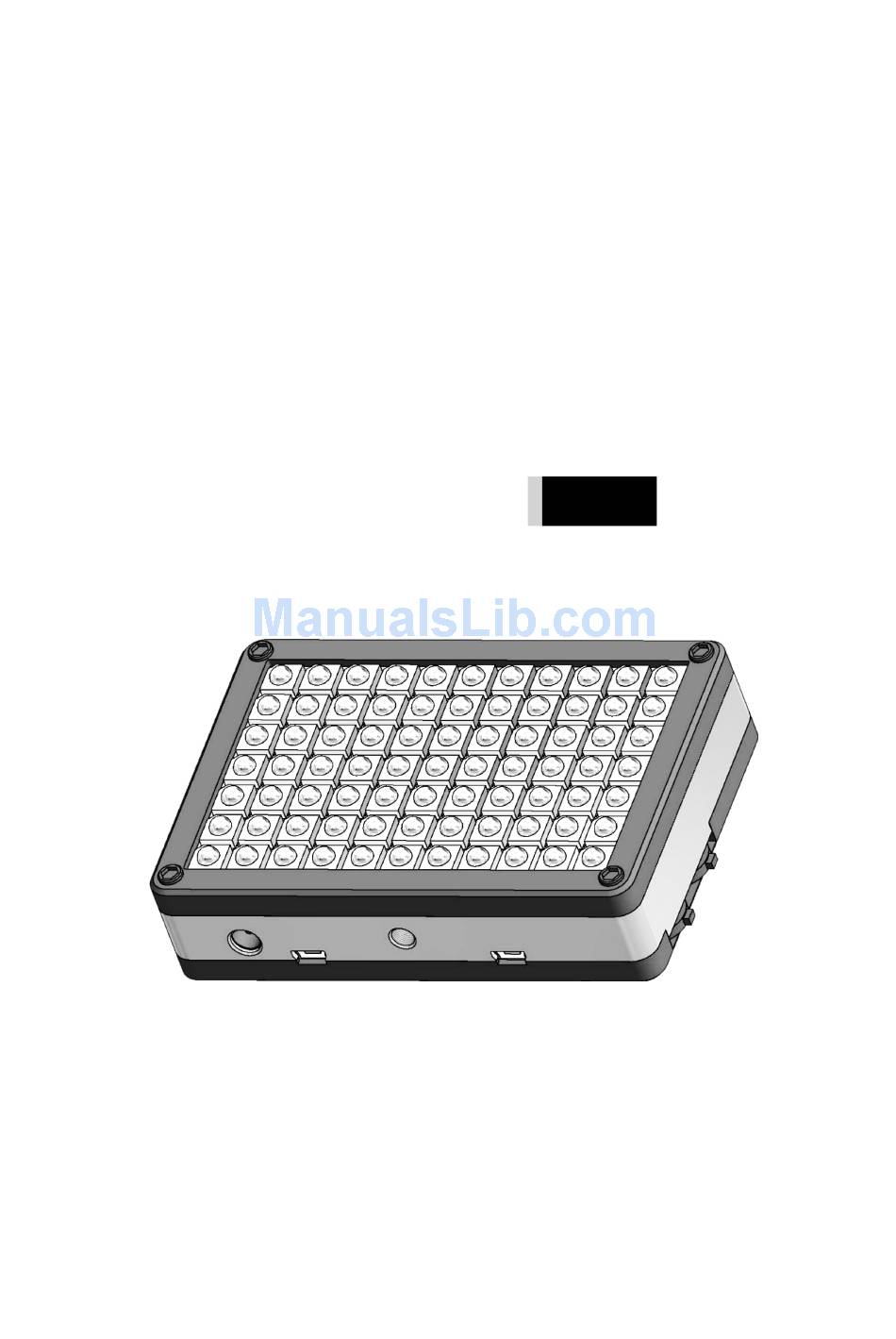

- Page 1 Matrix Light ML-9 LED Light LED Light User Manual ENGLISH...
-
Page 2: Table Of Contents
Light Installation and usage ······································· 13 Installation on an ENG Camera ·································· 17 Installation on a Camera using supplied Battery ············ 18 HOW TO USE ACCESSORIES Using the Tripod Adapter (ML-AT1) & L type Slide (ML-SL30) ··········································· 20 Matrix Light ML-9 LED Ring Light •••... - Page 3 ••• This product is subject to change without notice in advance for improved performance. ⓒ2016 Matrix Light Matrix Light, All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Matrix Light. Matrix Light ML-9 LED Ring Light •••...
-
Page 4: Advantages Of Product
ML-9 will be the ultimate light in the field. Precision light control system Precision dimming and coloring controllers on the ML-9 allows the user to achieve the ideal brightness and color temperature for every occasion. ▣ Brightness range: 150lm to 2,400lm in 240lm increments ▣... -
Page 5: Safety And Warnings
ML-9 LED Light’s aluminum body is lightweight, durable, and acts as an excellent heat sink, maximizing durability and lifetime. Also, the sophisticated micom controller promises the ML-9 LED Light to be the most advanced LED light, providing users precise light control and the best quality. - Page 6 ⚠ Do not place power cord near a heat source. Heat can damage insulation on the wires and may cause fire and electric shock. ⚠ Do not use multiple power plugs in one outlet at the same time. Doing Matrix Light ML-9 LED Ring Light •••...
- Page 7 Doing so may create a short and lead to overheating and/or explosion. ⚠ If your eyes come in contact with chemicals leaked out of the battery, wash them immediately with clean water and seek medical attention. If left Matrix Light ML-9 LED Ring Light •••...
- Page 8 2 meters away and always apply the diffuser(ML-DF2). ⚠ Do not switch on the light towards vehicle operators. Doing so may distract them and may cause an accident. Matrix Light ML-9 LED Ring Light •••...
- Page 9 ⚠ Keep small parts out of the reach of children. If they swallow any parts, please consult a doctor immediately. ⚠ Do not touch the LED Light with wet hands. Doing so can cause an electric shock. Store in a well-ventilated area after use. Matrix Light ML-9 LED Ring Light •••...
-
Page 10: Product Features
■ Revision of the manual is available for download from our website (www.matrixlight.com). ■ Please use only accessories (batteries, power supplies, etc.) designated by Matrix Light. ■ Matrix Light is not responsible for malfunction or reduced life of the light from using unauthorized accessories. -
Page 11: The Name And Function Of Each Part
➑ Memory Buttons ➒ Memory Indicators ➓ ➓ - Power On /Off indicator ➐ ⓫ - Battery Low warning indicator - Turbo Mode On/Off indicators ⓫ Auto Mode On/Off indicators ⓬ Cooling Fan vent Matrix Light ML-9 LED Ring Light •••... -
Page 12: Battery, L Type Slide And Camera-Tripod Attachment
* L Type Slide used mainly to handheld video camera. * C Type Slide used mainly to DSLR camera. [Bottom] ⓫ ➒ ➓ ➒ Camera attachment bolt ➓ Tripod adapter nut ⓫ Shoe for Wireless Microphone INSTALLATION AND USE OF LIGHT ••• Matrix Light ML-9 LED Ring Light •••... -
Page 13: Light Installation And Usage
- After setting, choose one button from the 3 memory buttons and press for 3 seconds to store the current value. When it is stored, the indicator LED beside the memory button will blink. Matrix Light ML-9 LED Ring Light •••... - Page 14 LED beside the memory button will turns on. 4. LED indicators There are indicators that display the color temperature, brightness, and the operating condition at the back of ML-9 LED Light. The features of each indicators are shown below. Brightness and color temperature indicators LEDs...
- Page 15 Repeat the procedure to switch off the Auto mode. - Power indicator LED Shows the power on/off state of the ML-9 LED Light - Turbo mode indicator LED Indicates that Turbo mode is now active.
-
Page 16: Installation On An Eng Camera
6. Cooling fan control The cooling fan on the ML-9 only comes on when the internal temperature reaches a certain point, except when Turbo Mode is activated, in which case the fan operates continuously. - Page 17 1. Mount the ML-9 light unit to the female shoe of the camera utilizing the ML-LB3 bracket. 2. If the camera is equipped with a male shoe, please use the appropriate converter (ML-MSC1) or the screw (ML-SCR1) which are sold separately.
-
Page 18: Installation On A Camera Using Supplied Battery
2. To use supplied battery, fasten the battery to the camera using the Tripod Adapter (ML-AT1) and the L-bracket Slide (ML-SL30). Start by installing the Tripod Adapter (ML-AT1) to the camera using the screw at the bottom of the adapter. Matrix Light ML-9 LED Ring Light •••... - Page 19 (ML-PC1). 4. If required, extra attachments can be used with the Tripod Adapter and the Slide in place utilizing the threaded nut at the bottom of the Adapter. Matrix Light ML-9 LED Ring Light •••...
-
Page 20: How To Use Accessories
⚠ CAUTION: When you move camera attached on the tripod with ML-AT1, please hold the tripod’s legs, not holding camera. Or the ML-AT1 may get damaged by the weight of the heavy tripod. Matrix Light ML-9 LED Ring Light •••... -
Page 21: Using And Charging The Battery
How to use and charge the battery ••• 1. Connecting ML-9 LED Light to Battery a. Connect the power cable (ML-PC1) to the battery's DC power jack. b. Connect the other end of the power cable (ML-PC1) to the LED Light's power connector. -
Page 22: Troubleshooting
Points to check ••• If the Light or battery is not working properly, check the trouble shooting points first. When the problem is not solved, contact the nearest dealer or Matrix Light service center. Matrix Light ML-9 LED Ring Light •••... - Page 23 Battery may not be fully charged. Recharge the Battery life is very short battery. If the problem persists, replace the battery with a new one. Battery's useful life is finished? Replace the battery with new one. Matrix Light ML-9 LED Ring Light •••...
-
Page 24: Warranty
Please submit the defective product with a receipt showing purchase date to an approved service center or Matrix Light for warranty repair. Storage Instructions ••• Keep in a well-ventilated and dry place. -
Page 25: Specifications
Please help us serve you better by providing us with the model number and exact mode of failure. If you have any questions or suggestions, please visit our website (www.matrixlight.com). Thank you Matrix Light ML-9 LED Ring Light •••...
