AMIGO
Emergency Telephone
(EN 81-28 compliant)
AMIGO
Installation manual
Vers. 1.2 - English
NOTE:
Leave this document close to the emergency
telephone after installation
- ETS8128CM
- ETS8128MR + ETS8128CS
93010044_E_amigo_060324-0_EN.cdr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMIGO and is the answer not in the manual?

Questions and answers

Related Manuals for DMG AMIGO

Summary of Contents for DMG AMIGO

  • Page 1 - ETS8128MR + ETS8128CS DMG SpA Via Quarto Negroni, 10 00040 CECCHINA (ROMA) • ITALIA Tel. +39 06930251 • Fax +39 0693025240 info@dmg.it • www.dmg.it Installation manual Vers. 1.2 - English NOTE: Leave this document close to the emergency telephone after installation...
  • Page 2 AMIGO AMIGO Emergency telephone Emergency telephone SYSTEM COMPONENTS Code Description NOTES: ETS8128CM Car master device ETS8128MR Machine room device ETS8128CS Lift car slave device Top/bottom of car slave device ETS8128SL CITCOC Phone receiver Feeder / battery charger ETS8128CH (optional) GSM Module...

  • Page 3: Table Of Contents

    AMIGO AMIGO Emergency telephone Emergency telephone 4. Troubleshooting INDEX Product description page 4 Technical features ..........

  • Page 4: Product Description

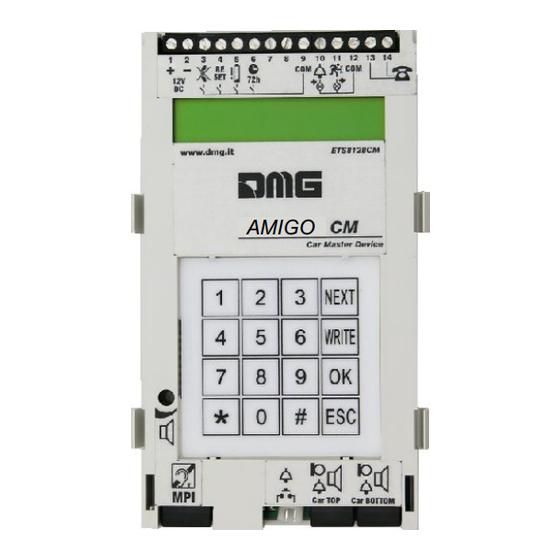

    AMIGO Emergency telephone Emergency telephone 1. - Product description AMIGO is a programmable phone dialler for lifts complying with EN 81-28 norm requirements. It is available in the following versions: • ar Master device (code ETS8128CM) - s ee §...

  • Page 5: Basic Alarm Cycle Setting For Calls Towards Standard Phone Numbers

    11) If the installation is provided with optional battery charger ETS8128CH (see § 2.6.2) record the To store LOW BATTERY CHARGE message (see § 3.11) Amigo XX vX.X 12) Make sure that the “No protocol” option is enabled (see § 3.13) No delay 13) Select the type of “Call delay”...

  • Page 6: Alarm Cycle Description For (Without Dtmfcommunication Protocol)

    3.13 - Type of communication protocol (Without DTMFcommunication protocol) AMIGO Emergency Telephone can also dialogue with external service centers (Protocols currently The alarm cycle is common to all versions of the AMIGO telephone implemented: ANEP, ADEMCO, SCANTRONICS). In such cases, site identification and/or status of...
  • Page 7 8) Set the ID number provided by the selected service center (see § 3.12) Stand by 9) Select the type of protocol to be used to communicate with the service center (see § 3.13) Id number Amigo XX vX.X 10) Select the type of “Call delay” (see § 3.14) Id number...

  • Page 8: Alarm Cycle Description For Calls Towards Service Center

    To record the “Site Identification” message, press “1”. A confirmation message (“Are you sure?”) will pop up: press “1” to start recording (”0” to stop recording), speaking close to the microphone for 20 The alarm cycle is common to all versions of the AMIGO telephone seconds max.

  • Page 9: External Calls

    ETS8128CM or the machine room device ETS8128MR to optional module ETSGSM. Play "Low battery charge"message The behavior of the AMIGO with the GSM module is identical to the fixed line case. Please refer to GSM module manual for details on installation. Messages Messages Record "Site identification”...

  • Page 10: Installation Guide

    ETS8128CM Emergency Telephone AMIGO Car Master Device code ETS8128CM to store Car TOP Car BOTTOM Amigo XX vX.X Stand by Conv. [1-9 min.] The emergency call is made by Amigo XX vX.X pressing the alarm button. Conv. [1-9 min.]...

  • Page 11: 4-Device" Configuration (En 81-28 Norm)

    Stand by). SLAVE DEVICE SHAFT FLOOR NEXT Conv. (1-9min) Stand by of car device code: ETS8128SL to store Amigo XX vX.X Car slave device code : ETS8128CS Pulse Stand by Tone Dialing options Amigo XX vX.X The emergency call is made by pressing the alarm button.

  • Page 12: Installation Instructions

    Stand by). 200 mm Flat plate or Gilda NEXT Dialing options ETSTPV Stand by Per confermare il dato S.O.S. NEXT Amigo XX vX.X WRITE ETSTPO Stand by S.O.S. Incoming calls Amigo XX vX.X...

  • Page 13: Basic Connections

    During the alarm cycle, if the operator presses the "#" key at the end of the two-way communication, the alarm cycle is interrupted. Connect the power supply Verify that the "DMG" text appears on the screen, followed by the software release number (e.g. "v.2.0") Check the phone line availability. See § 3.5 or § 3.6.
  • Page 14 SHAFT Stand by 8 POLES 10 POLES CABLES FLAT CABLES Service call no. INTERFACE Car alarm BOARDS Amigo XX vX.X button (NO) CSIT08PMS CSIT10PMS Service call no. NEXT WRITE (MAX di 16 digits) Lift car top device LINK WIRE TERMINALS...

  • Page 15: Advanced Connections (En 81-28 Norm)

    “Regular operation” service call. Press “2” to forward the call and “ ” to close it. to AMIGO Emergency Telephone. Output n.5 of the charger must be connected to input n.5 (LOW BATTERY CHARGE) of the Emergency Telephone.

  • Page 16: Service Call Number

    Emergency telephone Emergency telephone 3. - Programming 3.3 - Menu map Conversation Stand by Conv. (1-9 min.) 3.1 - Function keys time see § 3.4 Amigo XX vX.X see § 3.10 NEXT WRITE NEXT Simbol Function Description Voice Messages Access Enter ‘1 2 3 4’...
