Rugged Ultra-Lite Carrier
Connect Tech Inc.
42 Arrow Road
Guelph, Ontario
N1K 1S6
Tel:
519-836-1291
Toll:
800-426-8979 (North America only)
Fax:
519-836-4878
Email: sales@connecttech.com
support@connecttech.com
Web:
www.connecttech.com
CTIM-00121 Revision:0.11, 06/07/2016

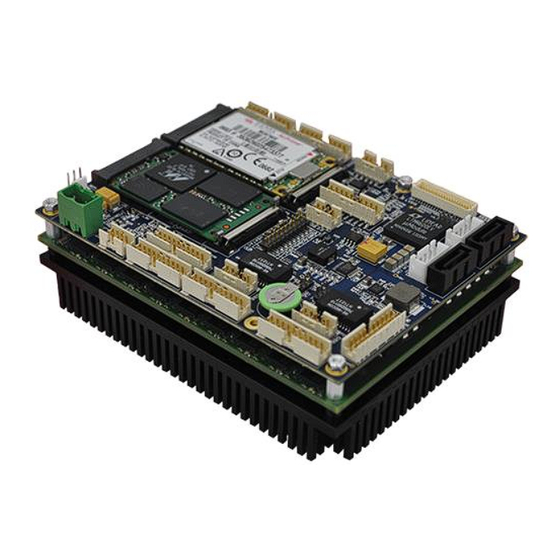

COM Express Type 6
CCG011 / CCG012
Users Guide
1
Advertisement
Table of Contents
Related Manuals for Connect Tech CCG012
Summary of Contents for Connect Tech CCG012
- Page 1 COM Express Type 6 Rugged Ultra-Lite Carrier CCG011 / CCG012 Users Guide Connect Tech Inc. 42 Arrow Road Guelph, Ontario N1K 1S6 Tel: 519-836-1291 Toll: 800-426-8979 (North America only) Fax: 519-836-4878 Email: sales@connecttech.com support@connecttech.com Web: www.connecttech.com CTIM-00121 Revision:0.11, 06/07/2016...
-
Page 2: Table Of Contents
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Table of Contents Customer Support Overview .......................... 4 Contact Information............................4 Limited Product Warranty ..........................5 Copyright Notice ............................5 Trademark Acknowledgment ......................... 5 Revision History ............................. 6 Introduction .............................. - Page 3 Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual 10/100/1000 Ethernet (GBE) [P24A, P24B] ......................29 Software Support for the Intel 82574 .......................29 Multifunction Jumper Block ........................... 30 Typical Hardware Installation for +12V power input .................. 31 Current Consumption Details ........................
-
Page 4: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you. -
Page 5: Limited Product Warranty
® Type 6 Rugged Ultra-Lite Carrier Board. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 6: Revision History
Revised Warranty Policy Introduction Connect Tech’s COM Express® Type 6 Rugged Ultra Lite Carrier Board is a compact carrier board which matches the dimensions of a COM Express® Basic module and offers the ultimate durability with locking, rugged pin headers. -
Page 7: Product Features And Specifications
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Product Features and Specifications Specifications Compatibility COM Express Type 6 Modules PICMG COM Express® COM.0 R2.0 Mini PCIe Expansion 2 x half or full length cards Both sockets have PCIe, USB and SATA signaling for mSATA... -
Page 8: Block Diagram
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Block Diagram +12V Input Audio HD Audio Codec Input / Output Cirrus Logic CS4207 DDI-1 DisplayPort++ DDI-2 DisplayPort++ 10/100/1000 Ethernet Port-0 10/100/1000 PCIe x1 GBE Controller Ethernet Port-1 Intel 82574L USB 3.0/2.0 Port-0... -
Page 9: Connector Locations
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Connector Locations CCG011 - Top View CCG012 - Top View CTIM-00121 Revision: 0.11, 06/07/2016... -
Page 10: Bottom View
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Bottom View Jumper and Connector Summary Designator Description COM Express Connector, Display Port USB 3.0 Ports 0,1 USB 3.0 Ports 2,3 Micro SD card. +12VDC Power In... -
Page 11: Detailed Feature Pinouts And Descriptions
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Detailed Feature Pinouts and Descriptions COM Express Module Connector [P1] The processor and chipset are implemented on the COM Express Type 6 CPU module, which connects to the COM Express carrier via a Tyco fine pitch stacking connector. -
Page 12: Displayport ++ Video [P2A,P2B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual DisplayPort ++ Video [P2A,P2B] The COM Express Type 6 Rugged Ultra-Lite Carrier features two DisplayPort++ connectors. This can be configured to output DisplayPort, HDMI/DVI or even VGA through the use of a dongle. -
Page 13: Ccg011 - Usb 2.0 Ports [P3A,P3B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual CCG011 - USB 2.0 Ports [P3A,P3B] The CCG011 board houses 4 x USB 2.0 ports on 20-pin headers and 2 x USB 2.0 ports on 8-pin headers. -
Page 14: Ccg012 - Usb 3.0 Ports [P3A,P3B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual CCG012 - USB 3.0 Ports [P3A,P3B] The CCG012 carrier implements four USB 3.0 connections via two 19-pin Locking Intel Motherboard style USB connectors. Over current protection, power supply filtering and ESD protection is provided. -
Page 15: Microsd Card [P4]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual MicroSD Card [P4] The COM Express Ultra-Lite carrier provides a Micro SD Card Slot at P4. This Micro SD Card slot sources the SDIO interface from the COM Express modules GPIO pins. -
Page 16: Input Power [P5]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Input Power [P5] The COM Express carrier is designed to be powered from a regulated single +12V power supply. The carrier board features a 5mm screw terminal style connector. The COM Express carrier generates all of the necessary voltages on board from this single input. -
Page 17: Asynchronous Serial Ports [P8, P10]
PCIe 4-port UART the Exar 17V358 (Connect Tech’s BlueStorm/Express Circuitry). Software Support for the Exar 17V358 Additional drivers will be needed to properly operate the 4 additional serial ports on the COM Express carrier. Drivers for this functionality can be found on Connect Tech’s download zone here: http://www.connecttech.com/asp/Support/DownloadZone_results.asp?Product=3&OperatingSystem=IS+N OT+NULL&x=16&y=13... -
Page 18: Serial Connector Rs-422/485
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Serial Connector RS-422/485 Function RS485 Serial Location Type FCI 98424-G52-20LF, 2x10 2mm Pinout Description Port A, RXD+ Port A, TXD+ Port A, TXD- Port A, RXD- Port B,RXD+... -
Page 19: Gpio And Console Serial Port [P9]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual GPIO and Console Serial Port [P9] The COM Express Ultra-Lite carrier provides additional functionality of COM Express Type-6 specification. Function Console RS-232 / GPIO Locations P9 Type... -
Page 20: Vga Video [P11]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual VGA Video [P11] Function Standard VGA Location Type FCI 98424-G52-10LF, 2x5 2mm header Cable CBG120 Pinout Description Description Green Blue SC DDC HSYNC SD DDC VSYNC CTIM-00121 Revision: 0.11, 06/07/2016... -
Page 21: Minipcie & Msata Slots [P12A, P12B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual miniPCIe & mSATA Slots [P12A, P12B] Dual Function miniPCIe mSATA Slots The COM Express Ultra-Lite has two special dual purpose functionality mini PCIe / mSATA slots. Each of these slots can accept either a mini PCIe module or a mSATA SSD module. - Page 22 Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Function mini PCIe / mSATA Slots Locations P12A, P12B Type Standard miniPCIe Slots Pinout mSATA Pinout miniPCIe Pinout Pin Number Description Pin Number Description +3.3V +3.3V +1.5V +1.5V...
-
Page 23: Lvds Video [P13]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual LVDS Video [P13] Function LVDS Video Location P11 Type Hirose DF20G-40DP-1V(56) Pinout The LVDS Panel VCC voltage is selected via the J3 jumper block. The current is limited to 1.5A... -
Page 24: External Sata Ports [P17A,P17B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual External SATA Ports [P17A,P17B] The COM Express carrier provides two SATA HDD connections as well as external power connectors for each drive. Function SATA host Locations P17A – SATA – 0 P17B –... -
Page 25: Cpu Fan [P18]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual CPU Fan [P18] Function Fan Power Location Type Molex 22-23-2031 Pinout Signal Fan Tach Miscellaneous Control [P19] This misc header can be used to connect power button, reset button, PC speaker, I2C device and monitor other power rails. -
Page 26: Sim Socket [P20]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual SIM Socket [P20] Function SIM Socket Location P20 Type Molex 0475530001 Pinout CTIM-00121 Revision: 0.11, 06/07/2016... -
Page 27: Audio Interface [P21]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Audio Interface [P21] The COM Express Type 10 Mini Carrier features HD Audio capabilities care of the Cirrus Logic CS4207 Codec device. From the codec 1 input (microphone) and 1 output (headphone) are available. -
Page 28: Usb 2.0 Ports [P22]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual USB 2.0 Ports [P22] The COM Express Type 10 Mini Carrier has 6 external USB 2.0 ports. Each of these are directly sourced from the COM Express Type 10 module and do not go through any external hubs or bridges. -
Page 29: 10/100/1000 Ethernet (Gbe) [P24A, P24B]
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual 10/100/1000 Ethernet (GBE) [P24A, P24B] The COM Express carrier features dual 10/100/1000 Ethernet Ports. GBE Port 0 is coming from an Intel 82574 PCIe PHY Controller located on the carrier. -
Page 30: Multifunction Jumper Block
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Multifunction Jumper Block The COM Express Type-6 Ultra-Lite Carrier has a multi-function jumper that provides control for various interfaces and features. The “MULTI” jumper is located at P23. -
Page 31: Typical Hardware Installation For +12V Power Input
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Typical Hardware Installation for +12V power input 1. Ensure all external system power supplies are off. 2. Install the COM Express module into P1. Be sure to follow the manufacturer’s direction for proper heatsink/heatspreader installation and any other cooling instructions from the manufacturer. -
Page 32: Current Consumption Details
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Current Consumption Details Below are the maximum ratings of the carrier. Maximums Amps Watts Theoretical absolute maximum total draw of all functionality on the 4.00 A 48 W... -
Page 33: Pci Express Allocation Details
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual PCI Express Allocation Details Below is a listing of how the PCI Express Links are allocated on the carrier board. COM Express PCI Express Link Peripheral Connection... -
Page 34: Mechanical Details
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual Mechanical Details A complete 3D STEP Model file of carrier board can be downloaded here: http://www.connecttech.com/ftp/3d_models/CCG011_3D_MODEL.zip 2D Mechanical Top Down Dimensioned Drawing All dimension are in (mm) -
Page 35: 2D Plan View Drawing
Connect Tech - COM Express Type-6 Rugged Ultra-Lite Carrier Board - User Manual 2D Plan View Drawing This drawing shows the CCG011/12 board mated with a COM Express module with a standard conductive cooled heatplate installed. All dimensions are in (mm) -
Page 36: Cables And Cable Kit Information
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual Cables and Cable Kit Information CKG020 CKG022 CKG021 CCG011 CCG012 CCG011 / CCG012 Drawing No. Part No. Description Full Kit Full Kit Starter Kit CTIC-00347 REV 0.00 CBG090... -
Page 37: Cbg104 - Dual Usb 2.0 (8-Pin Version)
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG104 – Dual USB 2.0 (8-pin version) CTIM-00121 Revision: 0.09, 03/23/2015 37/58... -
Page 38: Cbg116 - System Misc , Un-Terminated
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG116 – System Misc , Un-terminated 20-pin Signal Color MiniTek green Speaker black white +5VSB black Ext CMOS Bat yellow/silver System Reset orange/silver blue/silver Power Button brown grey/silver... -
Page 39: Cbg117 - Rj45 Ethernet
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG117 – RJ45 Ethernet CTIM-00121 Revision: 0.09, 03/23/2015 39/58... -
Page 40: Cbg118 - Audio
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG118 – Audio CTIM-00121 Revision: 0.09, 03/23/2015 40/58... -
Page 41: Cbg120 - Vga
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG120 - VGA CTIM-00121 Revision: 0.09, 03/23/2015 41/58... -
Page 42: Cbg121 - Dual Db-9 Serial
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG121 – Dual DB-9 Serial * When Connected to P9 - GPIO/COM DB9-1 Pin Signal 20-pin GPIO - IN0 GPIO - OUT3 GPIO - IN1 GPIO - OUT2... -
Page 43: Cbg113 - Display Port
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG113 – Display Port CTIM-00121 Revision: 0.09, 03/23/2015 43/58... -
Page 44: Cbg130 - Dual Usb 2.0 (20-Pin Version)
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG130 – Dual USB 2.0 (20-pin version) CTIM-00121 Revision: 0.09, 03/23/2015 44/58... -
Page 45: Cbg131 - Internal Usb.30 19-Pin Cable
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG131 – Internal USB.30 19-Pin Cable The CBG131 cable is an OEM 19-pin internal type cable, to panel mountable USB 3.0 Type-A Connector(s). Note: Cable will not ship with bracket CTIM-00121 Revision: 0.09, 03/23/2015... -
Page 46: Cbg125 - Lvds Unterminated Cable
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG125 – LVDS Unterminated Cable CTIM-00121 Revision: 0.09, 03/23/2015 46/58... -
Page 47: Cbg90 - Sata + Jst Power Cable
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual CBG90 – SATA + JST Power Cable CTIM-00121 Revision: 0.09, 03/23/2015 47/58... -
Page 48: Appendix A - Com Express Signal/Pinout Connection Details
Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual Appendix A – COM Express Signal/Pinout Connection Details The following table summarizes the COM Express Type-6 Ultra-Lite’s COM Express signal/pinout utilization. From this table you will be able to see which COM Express signals have been used and where they are connected to on the carrier. - Page 49 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual USB6- USB2.0 Port 6 (P22) USB6+ USB2.0 Port 6 (P22) USB_6_7_OC# USB2.0 Port 6 (P22) USB4- miniPCIe Slot-0 (P12A) USB4+ miniPCIe Slot-0 (P12A) GND (FIXED) USB2- USB3.0 Port-2 (P3B) USB2+ USB3.0 Port-2 (P3B)
- Page 50 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual LVDS_VDD_EN LVDS Video (P13) LVDS_A3+ LVDS Video (P13) LVDS_A3- LVDS Video (P13) GND (FIXED) LVDS_A_CK+ LVDS Video (P13) LVDS_A_CK- LVDS Video (P13) LVDS_I2C_CK LVDS Video (P13) LVDS_I2C_DAT LVDS Video (P13)
- Page 51 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual LPC_DRQ0# LPC_DRQ1# LPC_CLK GND (FIXED) PWRBTN# System Header SMB_CK System Header SMB_DAT System Header SMB_ALERT# System Header SATA1_TX+ SATA-1 (P17B) SATA1_TX- SATA-1 (P17B) SUS_STAT# SATA1_RX+ SATA-1 (P17B) SATA1_RX-...
- Page 52 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual SYS_RESET# System Header CB_RESET# Carrier Board Internal Circuitry GND (FIXED) PCIE_RX5+ PCIE_RX5- GPO1 GPIO (P9) OR SD Card (P4) PCIE_RX4+ PCIE_RX4- GPO2 GPIO (P9) OR SD Card (P4)
- Page 53 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual System Header (Ferrite Connected to VCC_5V_SBY +5V) BIOS_DIS1# VGA_RED VGA Video GND (FIXED) VGA_GRN VGA Video VGA_BLU VGA Video VGA_HSYNC VGA Video VGA_VSYNC VGA Video VGA_I2C_CK VGA Video...
- Page 54 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual RSVD PCIE_RX6+ PCIE_RX6- GND (FIXED) PCIE_RX7+ PCIE_RX7- DDI1_HPD DisplayPort++ Channel 1 (P2A) DDI1_PAIR4+ DDI1_PAIR4- RSVD RSVD DDI1_PAIR5+ DDI1_PAIR5- GND (FIXED) DDI2_CTRLCLK_AUX+ DisplayPort++ Channel 2 (P2A) DDI2_CTRLDATA_AUX- DisplayPort++ Channel 2 (P2A)
- Page 55 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual PEG_RX2- GND (FIXED) PEG_RX3+ PEG_RX3- RSVD RSVD PEG_RX4+ PEG_RX4- RSVD PEG_RX5+ PEG_RX5- GND (FIXED) PEG_RX6+ PEG_RX6- PEG_RX7+ PEG_RX7- RSVD PEG_RX8+ PEG_RX8- GND (FIXED) PEG_RX9+ PEG_RX9- RSVD PEG_RX10+ PEG_RX10-...
- Page 56 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual GND (FIXED) C100 PEG_RX15+ C101 PEG_RX15- C102 C103 VCC_12V C104 Input Power +VIN (P5) VCC_12V C105 Input Power +VIN (P5) VCC_12V C106 Input Power +VIN (P5) VCC_12V C107...
- Page 57 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual GND (FIXED) DDI1_PAIR2+ DisplayPort++ Channel 1 (P2A) DDI1_PAIR2- DisplayPort++ Channel 1 (P2A) DDI1_DDC_AUX_SEL RSVD DDI1_PAIR3+ DisplayPort++ Channel 1 (P2A) DDI1_PAIR3- DisplayPort++ Channel 1 (P2A) RSVD DDI2_PAIR0+ DisplayPort++ Channel 2 (P2A)
- Page 58 Connect Tech - COM Express Type-6 Ultra-Lite Carrier Board - User Manual PEG_TX6- PEG_TX7+ PEG_TX7- RSVD PEG_TX8+ PEG_TX8- GND (FIXED) PEG_TX9+ PEG_TX9- RSVD PEG_TX10+ PEG_TX10- PEG_TX11+ PEG_TX11- GND (FIXED) PEG_TX12+ PEG_TX12- PEG_TX13+ PEG_TX13- RSVD PEG_TX14+ PEG_TX14- GND (FIXED) D100 PEG_TX15+...
