UNI TEMP

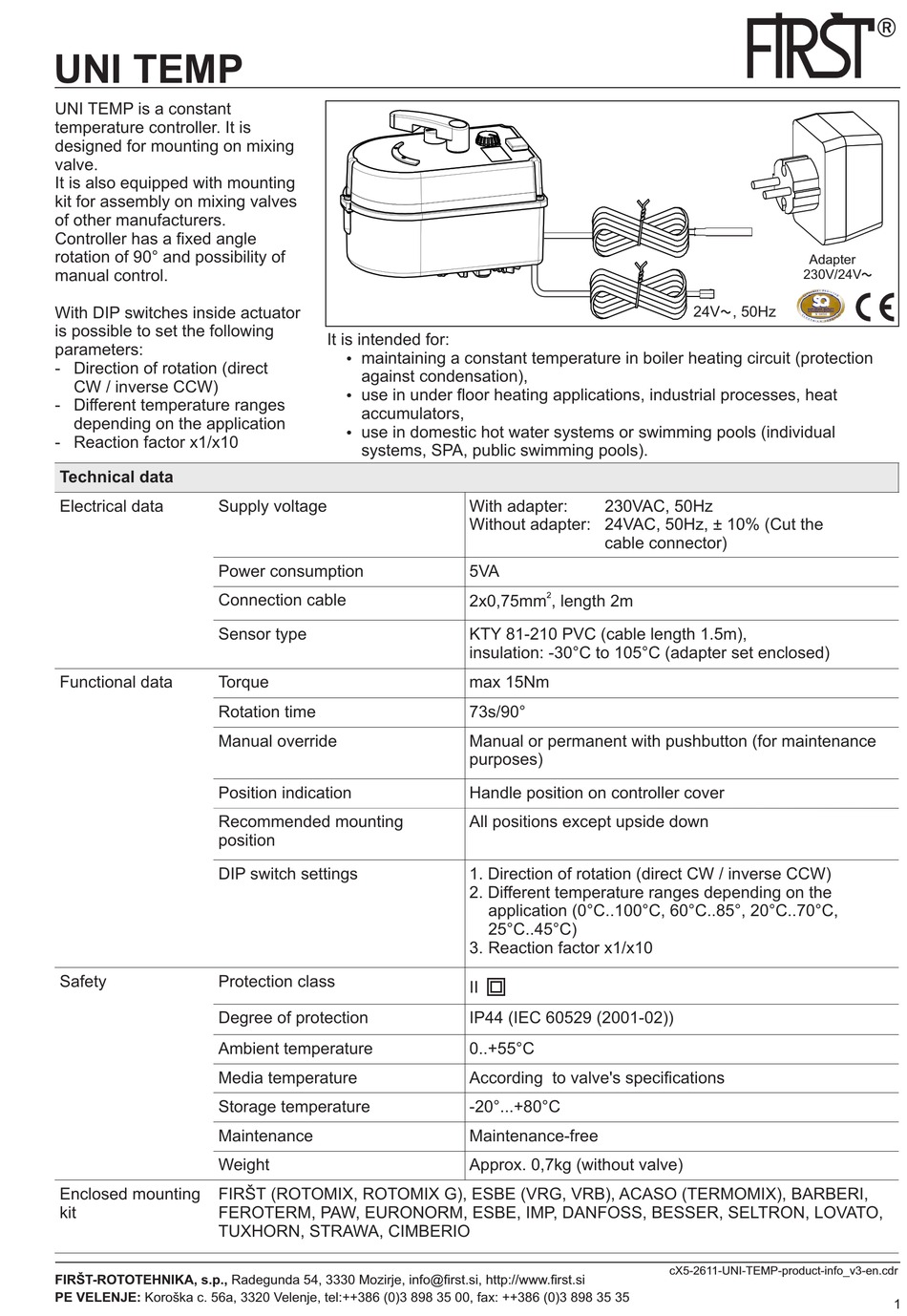

UNI TEMP is a constant
temperature controller. It is
designed for mounting on mixing
valve.
It is also equipped with mounting
kit for assembly on mixing valves
of other manufacturers.
Controller has a fixed angle
rotation of 90° and possibility of
manual control.
With DIP switches inside actuator
is possible to set the following
parameters:
- Direction of rotation (direct
CW / inverse CCW)
- Different temperature ranges
depending on the application
- Reaction factor x1/x10
Technical data
Electrical data
Supply voltage
Power consumption
Connection cable
Sensor type
Functional data
Torque
Rotation time
Manual override
Position indication
Recommended mounting
position
DIP switch settings
Safety
Protection class
Degree of protection
Ambient temperature
Media temperature
Storage temperature
Maintenance
Weight
Enclosed mounting
FIRŠT (ROTOMIX, ROTOMIX G), ESBE (VRG, VRB), ACASO (TERMOMIX), BARBERI,
kit
FEROTERM, PAW, EURONORM, ESBE, IMP, DANFOSS, BESSER, SELTRON, LOVATO,
TUXHORN, STRAWA, CIMBERIO
FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, 3330 Mozirje, info@first.si, http://www.first.si
PE VELENJE: Koroška c. 56a, 3320 Velenje, tel:++386 (0)3 898 35 00, fax: ++386 (0)3 898 35 35
It is intended for:
maintaining a constant temperature in boiler heating circuit (protection
ź
against condensation),
use in under floor heating applications, industrial processes, heat
ź
accumulators,
use in domestic hot water systems or swimming pools (individual
ź
systems, SPA, public swimming pools).
With adapter:
Without adapter: 24VAC, 50Hz, ± 10% (Cut the
5VA
2x0,75mm , length 2m
KTY 81-210 PVC (cable length 1.5m),
insulation: -30°C to 105°C (adapter set enclosed)
max 15Nm
73s/90°
Manual or permanent with pushbutton (for maintenance
purposes)
Handle position on controller cover
All positions except upside down
1. Direction of rotation (direct CW / inverse CCW)
2. Different temperature ranges depending on the
application (0°C..100°C, 60°C..85°, 20°C..70°C,
25°C..45°C)
3. Reaction factor x1/x10
II
IP44 (IEC 60529 (2001-02))
0..+55°C
According to valve's specifications
-20°...+80°C
Maintenance-free
Approx. 0,7kg (without valve)
24V , 50Hz
230VAC, 50Hz
cable connector)
2
cX5-2611-UNI-TEMP-product-info_v3-en.cdr
Adapter
230V/24V
1
Advertisement
Table of Contents
Related Manuals for First UNI TEMP Series
Summary of Contents for First UNI TEMP Series
- Page 1 UNI TEMP UNI TEMP is a constant temperature controller. It is designed for mounting on mixing valve. It is also equipped with mounting kit for assembly on mixing valves of other manufacturers. Controller has a fixed angle rotation of 90° and possibility of Adapter manual control.
- Page 2 15Nm 21136 UNI TEMP 230VAC 230VAC, 50Hz 73s/90° max. 15Nm Enclosed mounting kit for following mixing valves: FIRŠT (ROTOMIX, ROTOMIX G), ESBE (VRG, VRB), ACASO (TERMOMIX), BARBERI, FEROTERM, PAW, EURONORM, ESBE, IMP, DANFOSS, BESSER, SELTRON, LOVATO, TUXHORN, STRAWA, CIMBERIO. www.first.si...
- Page 3 SELTRON, LOVATO, TUXHORN, STRAWA, CIMBERIO. By special request 58025 SELTRON, LOVATO, PAW 58026 LAZZARI, LANDIS 58027 HONEYWELL MS 58028 SIEMENS 58029 58030 W.I.L.B 58031 CENTRA 58032 MEIBES, WITA, OVENTROP, HOLTER HORA BR80 SMD/SMV 58033 TEHNOPLANT, EXCELSIOR, KRAMER, DE PALA www.first.si...
- Page 4 Trimmer Xp is located inside controller. To open the controller it is necessary to loosen the screws on the cover (3x), and handle screw (1x). Xp parameter - a proportional control range of valve (from 10K to 100K) 1 2 3 4 www.first.si www.first.si...
- Page 5 Nearer the desired closing mixing valve. temperature (50 °C temperature (50 °C shorter pulses. shorter pulses. Manual control: Note: when the button 90° for manual operation is in <MAN> position, controller stays in temporary position irrespective of control signal. www.first.si...
- Page 6 Solid fuel boiler - Maintain a constant temperature in heating circuit TEMP UNI TEMP DTC100/2 UNI TEMP Floor heating - Maintain a Solar pool heating - Maintain a constant temperature of Maintain a constant temperature in constant temperature of heating circuit sanitary water circuit heating circuit www.first.si...
- Page 7 We reserve the right to modify the instructions and the technical data of the product without prior notice. PE VELENJE: Koroška c. 56a, 3320 Velenje tel: 03 / 898 35 00, fax: 03 / 898 35 35 FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, 3330 Mozirje info@first.si, http://www.first.si www.first.si...
