NEPTUN I
Sole cleaning unit
Art.-No.: 84-620
Assembly and
operating instructions
Please read the instruction carefully before
assembling and putting into operation.
Keep instruction for future reference.
Contents
1.
General
2.
Function
3.
Installation
4.
Water connection
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
Spare parts / service
18.
Circuit diagram
1. General
The HEUTE machine Neptun I cleans and disinfects
soles of boots, working and safety shoes.
2. Function

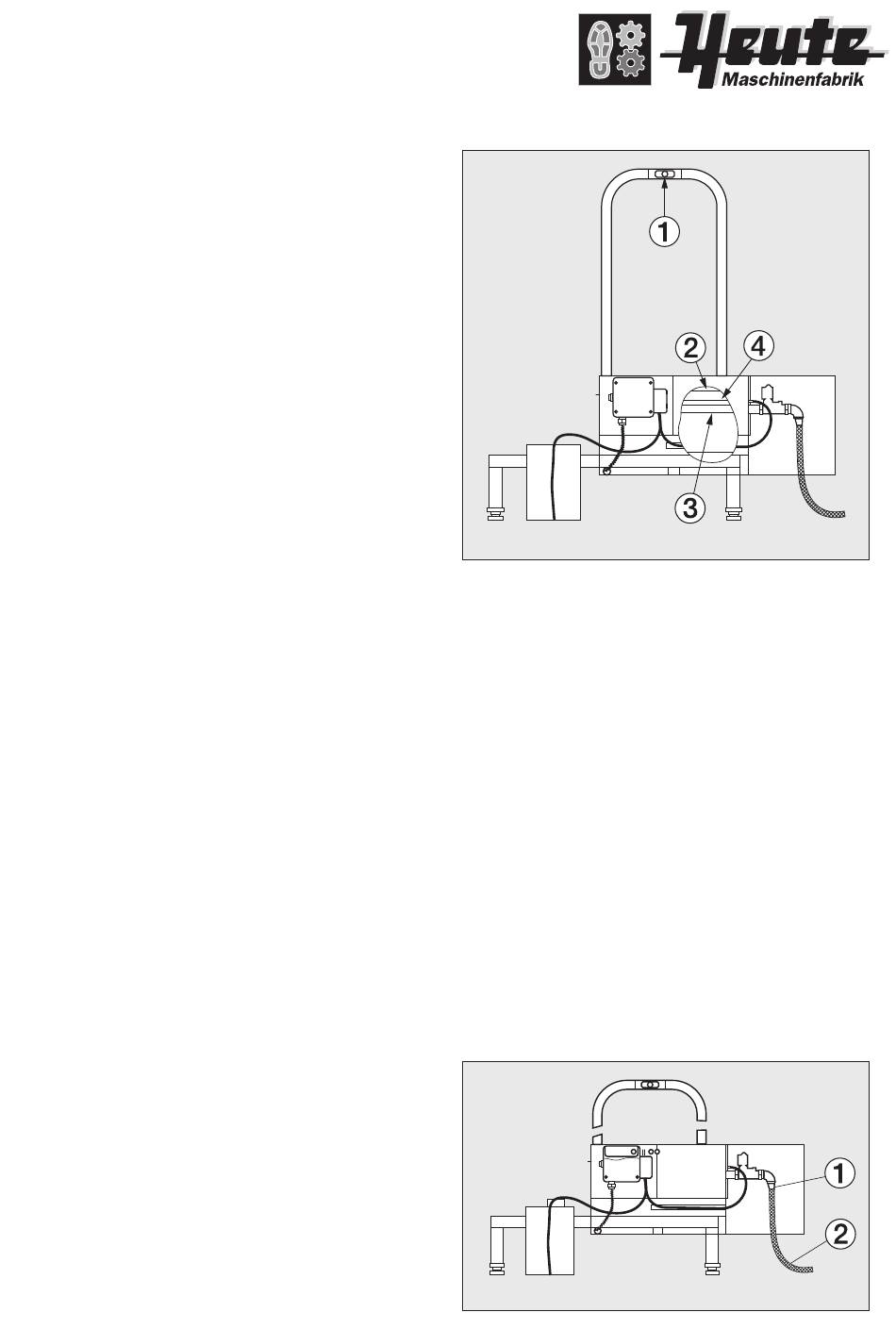

(cf. fig. 2)
Pressing the safety push button (1) starts the wheel
brush (2) while water (3) and disinfectants (4) will
be sprayed onto the rotating brush.
This way cleansing and disinfection of the soles will
take place at the same time.
3. Installation
Having placed the machine on site it needs to be
aligned horizontally.
By screwing / unscrewing the threaded base feet
up to 15 mm of ground unevenness can be compen-
sated.
4. Water connection
(cf. fig. 3)
The customer is responsible for providing water
supply as well as connecting the hose.
For wet cleaning cold or hot water (approx. 45°C)
can be used - max. pressure is 3 bar.
- Lift up protective cover.
- Connect 1/2" hose of sufficient length without
bending it and make sure to use pressure- and
temperature-resistant hose.
- Attach hose (2) to nozzle (1) of solenoid valve up
to end stop and fix with hose clamp.
Fig. 2
Fig. 3
