Summary of Contents for Hermann Bock domiflex 2

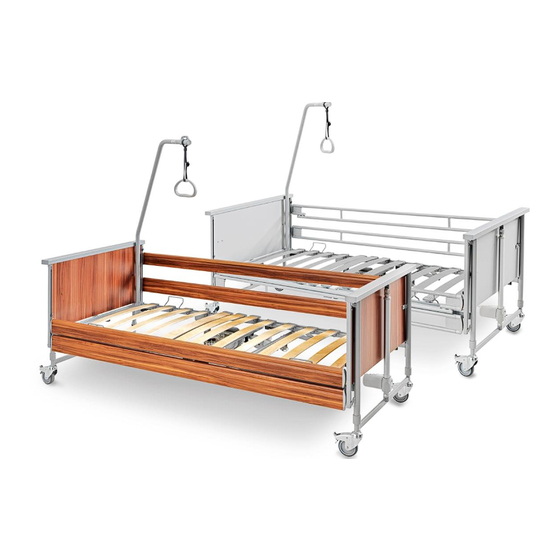

- Page 1 Installation Instruction and User Manual Nursing care beds domiflex domiflex 2 wash ...
- Page 2 Dear valued customer, with your decision to purchase a nursing care bed from Hermann Bock GmbH, you are receiving a long-lasting care product with superior function- ality at the highest safety level. Our electrically operated nursing care beds guarantee optimal lying comfort and allow professional care at the same time.
-
Page 3: Table Of Contents
The hand control ..................... 18 Hand control - lock functions ................20 4 Assembly and operation ..................21 Technical data ....................21 Model series domiflex 2 .................. 22 Transport system ..................... 26 Emergency lowering - back part (standard) ............ 28 Disassembly ..................... 29 Change of location .................. -
Page 4: Preface And General Instructions
Our beds need little maintenance with proper operation and care. Each bed from Hermann Bock must pass quality testing in a final inspection before it is shipped anywhere. The beds are manufactured according to the current standards for medically used beds and tested accordingly. -
Page 5: Definition Of Person Groups
The nursing care bed is not suitable for use in hospitals. It is also not designed to transport patients. The beds can only be moved within the patient's room - even during patient positioning - for cleaning or better access to the patient, for example. The bed is suitable for the re-use. -
Page 6: Safety Instructions
Safety instructions The intended use/operation of all moving parts is as important for the safety of the person in need of care as well as for the relatives and the caregivers/nursing staff to avoid poten- tially dangerous situations. This requires the correct installation and operation of the bed. The individual physique of the person in need of care as well as type and the extent of their disability must be taken into account by all means when operating the bed. -
Page 7: Service Life / Warranty
Requirements for the installation location The company Hermann Bock GmbH is not liable for damages which might arise from the daily usage on the floor. To avoid floor indentations, floor should correspond to the recommendations of the FEB - Fachverband der Hersteller elastischer Bodenbeläge e. - Page 8 Type plate Each nursing care bed is marked with an individual type plate. Either there is only one sticker on your nursing care bed (Fig. 1, previous nursing care bed models) or there are two separate type plates (Fig. 2, current nursing care bed models) on your nursing care bed.
- Page 9 Type plate for current nursing care bed models Model Model designation in German (DE) and English (EN) Serial number Item numbers Mains voltage, mains frequency, power input, Duty cycle (INT) Drive protection class Date of manufacture (year-month) Patient weight Safe working load Machine readable serial number Patient population Follow the instructions appropriate for mattress size and thick-...
-
Page 10: General Description Of The Functions
Construction design and function Corrosion protection The Hermann Bock GmbH nursing care beds are developed and constructed in such a way that they can function long and safely. For this reason, all materials that may corrode are protected accordingly. All metal parts are equipped with a surface protection. The steel parts are either galvanised or stove-enamelled with a PES powder coating and the alumin- ium profiles are anodised. - Page 11 The chassis The height adjustment of the bed takes place through two height-adjustable manual con- trols. The surface of the tubular steel structure is stove-enamelled with a PES-powder coating. The side rail Each nursing care bed can be equipped on both sides with two side rails at a special safety height.
- Page 12 The side rails first and foremost serve as a fall prevention. In the case of very emaciated persons in need of care, this protection is no longer sufficiently provided by the side rails and additional protective measures must be taken, e.g. by adding a sliding side rail pad- ding (accessory).
- Page 13 Fig. 1: Continuous wood / steel side protection, divided into two parts All dimensions in mm. Legend Distance between the head part and the side rail Height 1 of side rail Height 2 of side rail Width 1 of the side rail Distance between the elements within the side rail Distance between the divided side rails Distance between the lying surface and the upper edge of the side rail...
- Page 14 Hazard note by Bock Use only original Bock side rails, which are available as accessories for every nursing care beds. Use only technically flawless and non-damaged side rails with the permissible gap dimensions. Make sure that the side rails are engaged securely. Before installation of the side rail and each new use, inspect all mechanical parts on the bed frame, and all parts of the side rails, and all parts which secure the side rails, for any possible damages.
-
Page 15: Electric Parts
Electric parts The drive unit The drive unit consists of individual drives for the electrical adjustment of the back and leg rest part. The level adjustment is divided via two individual drives, which are attached to the manual controls elements. The motors and the hand control are connected to the inner control box. -
Page 16: Drives
Drives Hermann Bock GmbH equips nursing care beds with drive systems from DewertOkin GmbH. Each drive consists always of four main components. – Housing – Motor – Gear - Spindle with nut The housing principle of the individual drive guarantees the permanent function of all drive components. -
Page 17: The Control
Hazard note by Bock The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjust- ment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes. -
Page 18: The Hand Control
The hand control The hand control is equipped with a built-in locking device, which allows the caregivers to lock the hand switch via a key completely or partially for its operation. The lockable hand control, first-fault protected The basic functions can be controlled via the hand control at the touch of a finger on the eight (standard hand control) or ten (hand control with special functions) operating keys. - Page 19 Function keys Back part upwards Back part downwards Lower leg part upwards Lower leg part downwards Autocontour upwards Autocontour downwards Lying surface upwards Lying surface downwards Comfort sitting position up- wards * Head-lowering position Standard Hand control with (Trendelenburg) hand control special functions Floor lighting Press keys “Back part up-...
-
Page 20: Hand Control - Lock Functions
Hand control - lock functions The hand control comes with an integrated disabling function that can be activated and deactivated with the corresponding key. To disable the entire electri- cal function, insert the key in the key lock on the backside and turn the lock function on or off with a corresponding twist of the key. -
Page 21: Assembly And Operation
Assembly and operation Technical data domiflex 2 Technical data domiflex 2 wash 90 x 200 90x200 Lying surface dimension: cm 103 x 213 103 x 213 Outer dimension: cm safe working load: kg max. Weight of person: kg 39 - 80... -
Page 22: Model Series Domiflex 2
Lower leg rest Model series domiflex 2 Domiflex model series 2, consisting of models domiflex 2 and domiflex 2 wash were spe- cifically designed for the requirements of daily use of the product as part of home care. The above mentioned models provide high comfort to frail people, patients who need care and people with disabilities. - Page 23 Model series domiflex 2 is ready for use Remove all packaging from the bed and place the bed on a free and flat surface. Remove the side rail and the divided lying surface from the transport bracket and put aside.
- Page 24 Place the end panel with the blue marking on the motor flat on the floor. Now the lying surface head section frame is placed on the mounting latches (you can easily recognize the head section by the round holders for the lifting pole). Create a solid connection by fastening the push- and-ready handle.
- Page 25 6 eccentric clamps sufficient? If not, the lock nut possibly could use a bit more fastening! Hazard note by Bock Do not squeeze/crush the cables. Adjustment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes.
-
Page 26: Transport System
Transport system Versions: Standard = 3 nursing care beds on one pal- let. Transport system to be changed to the VAN or Wash version. To change the standard transport bracket to the VAN or Wash version, loosen the lower horizontal push-and-ready handle and pull the end pieces on both sides approx. - Page 27 wooden slats must show in the cross direc- tion to the end pieces and the head and foot support must be placed with the bended end upwards. Version: VAN or Wash Depending available height, transport the lifting pole and the side rail separately from the bed.
-
Page 28: Emergency Lowering - Back Part (Standard)
Emergency lowering - back part (standard) In case of power or drive system failure, you can lower the elevated back part manually. Must be carried out always by two people! One person lifts the back part slightly (to take pressure off) and holds it in this posi- tion. -
Page 29: Disassembly
Disassembly Pull out the mains plug before disassembly. Disassembly of domiflex 2 takes place in re- verse order of the assembly (see manual). Change of location If the bed must be moved to another location, please follow these safety instructions: Bring the lying surface to the lowest position. -
Page 30: Disposal
Disposal Each of the components made of plastic, metal and wood are recyclable and can be dis- posed/recycled in compliance with the relevant legal provisions. Please note that electric adjustable nursing care beds or nursing beds are considered commercially used electronic scrap according to the WEEE-EC directive 2012/19/EC (b2b). -
Page 31: Accessories
For body heights up from 180 cm, Hermann Bock GmbH recommends the use of a bed extension that allows an extension of the lying surface to a length of up to 220 cm. This enables even tall people to lie comfort- ably while maintaining the same level of functionality. -
Page 32: Assembly - Bed Extension
Assembly – bed extension The delivery for a lying surface extension consists of the following parts: 2 adapter unit for the left and right foot part 1 extension piece for the foot part 1 set side rails How to perform assembly in the simplest way: 1. -
Page 33: Assembly - Accessories
Assembly – accessories The following standard equipment can be combined with the bed models domiflex 2 and domiflex 2 wash: Side rail attachment for height increase Delivery includes: Fully assembled side rail attachment Open the plastic lock, attach the side rail exten- sion, position it in the middle and close the lock. - Page 34 Side rail guard pad, 1.4 kg Delivery includes: 1 piece reference, 1 piece padding Open zipper of the cover and pull the padding from the top over the side rail. Pull the foam padding from the inside of the bed into the fabric and close the zipper and/or the hook and loop fastener.
- Page 35 Mattresses In general, foam and latex mattresses are suitable for the Hermann Bock nursing care beds. A volumetric weight of at least 35 kg/m3 is required along with the dimensions of 90 x 190 cm, 100 x 190 cm, 90 x 200 cm and 100 x 200 cm.
-
Page 36: Cleaning, Maintenance And Disinfection
Cleaning, maintenance and disinfection The individual bed elements consist of high quality materials. The surface of the steel tubes is covered with a durable PES-powder coating. All surfaces of the wooden parts are surface-sealed with an ecologically coating that is low on harmful substances. All bed ele- ments are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application. -
Page 37: Avoidance Of Hazards
Cleaning in washing plants Cleaning in cleaning facilities is only possible with the model domiflex 2. A separate brochure is available for this purpose (Art. No. 890.02160). Hazard note by Bock Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stain- less steel cleaners for the cleaning is absolutely not recommended. -
Page 38: Guidance And Manufacturer's Declaration
Guidance and manufacturer's declaration Guidance and manufacturer's declaration – Electromagnetic emission The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emission test Complliance Electromagnetic environment - guidance... - Page 39 – Electromagnetic immunity The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications...
-
Page 40: Regular Inspections With Service
For support purposes, Hermann Bock GmbH will provide you with the inspection list in the assembly and operation manual for carrying out all the necessary tests. Please copy the checklist as a form for your inspection. - Page 41 Inspection list for Bock nursing care beds Page 1 of 2 Issuing date: 09.10.2018 Model designation Serial / Inventory-No.: Year of manufacture: Manufacturer: Hermann Bock GmbH Visual inspection: Description Remark General: ☐ ☐ Type plate/sticker present on bed and legible? ☐...
- Page 42 Safe grid mechanism of lower leg rest (if available) in every step, even un- ☐ ☐ der stress? Only domiflex 2 nursing care bed: Is the clamping effect of the 6 eccentric clamps ☐ ☐ sufficient? If this is not the case, the stop nut must be tightened slightly! Chassis (with scissors construction beds) / end panels (of actuator beds): ☐...
- Page 44 Hermann Bock GmbH Nickelstr. 12 D-33415 Verl, Germany Tel.: +49 52 46 92 05 - 0 Fax: +49 52 46 92 05 - 25 Internet: www.bock.net E-Mail: info@bock.net Our SALES PARTNERS Our business partners pursue the same strategy as we do: quality, innovation and above-average standards that are internationally recognized.
