Mercura VEGA LIGHTBAR CLASS 2 Series General Technical Manual

Spa handy with roof connector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1.
KIT COMPOSITION .................................................................................................................................................. 2
2.
AVAILABLE VERSIONS ........................................................................................................................................... 3
3.
DIMENSIONS ............................................................................................................................................................ 3
4.
WEIGHT DEPENDING ON VERSIONS ................................................................................................................... 3
5.
ELECTRICAL CHARACTERISTICS ......................................................................................................................... 4
6.
INSTALLATION ......................................................................................................................................................... 5
6.1.
SYNOPTIC ........................................................................................................................................................ 5
6.2.
INSTALLATION OF MOUNTINGS .................................................................................................................... 5
6.3.
18-POINT ROOF CONNECTOR ...................................................................................................................... 6
6.4.
ROOF MOUNTING ........................................................................................................................................... 6
6.5.
BASE DIMENSIONS ......................................................................................................................................... 6
6.6.
ROOF DRILLING DIAGRAM ............................................................................................................................ 7
6.7.
MOUNTING EVALUATION ............................................................................................................................... 7
6.8.
LIGHTBAR INSTALLATION ............................................................................................................................ 10
7.
GENERAL WIRING DIAGRAM (DEPENDING ON MODEL) ................................................................................. 11
7.1.
WIRING SYNOPTIC........................................................................................................................................ 11
VEHICLE'S HARNESS GENERAL WIRING DIAGRAM ................................................................................. 12
7.2.
7.3.
HANDBRAKE MODULE OPTION ................................................................................................................... 13
7.4.
DASHBOARD INTERFACE OPTION ............................................................................................................. 13
GT-0775-RAM Ind B
24/10/2018

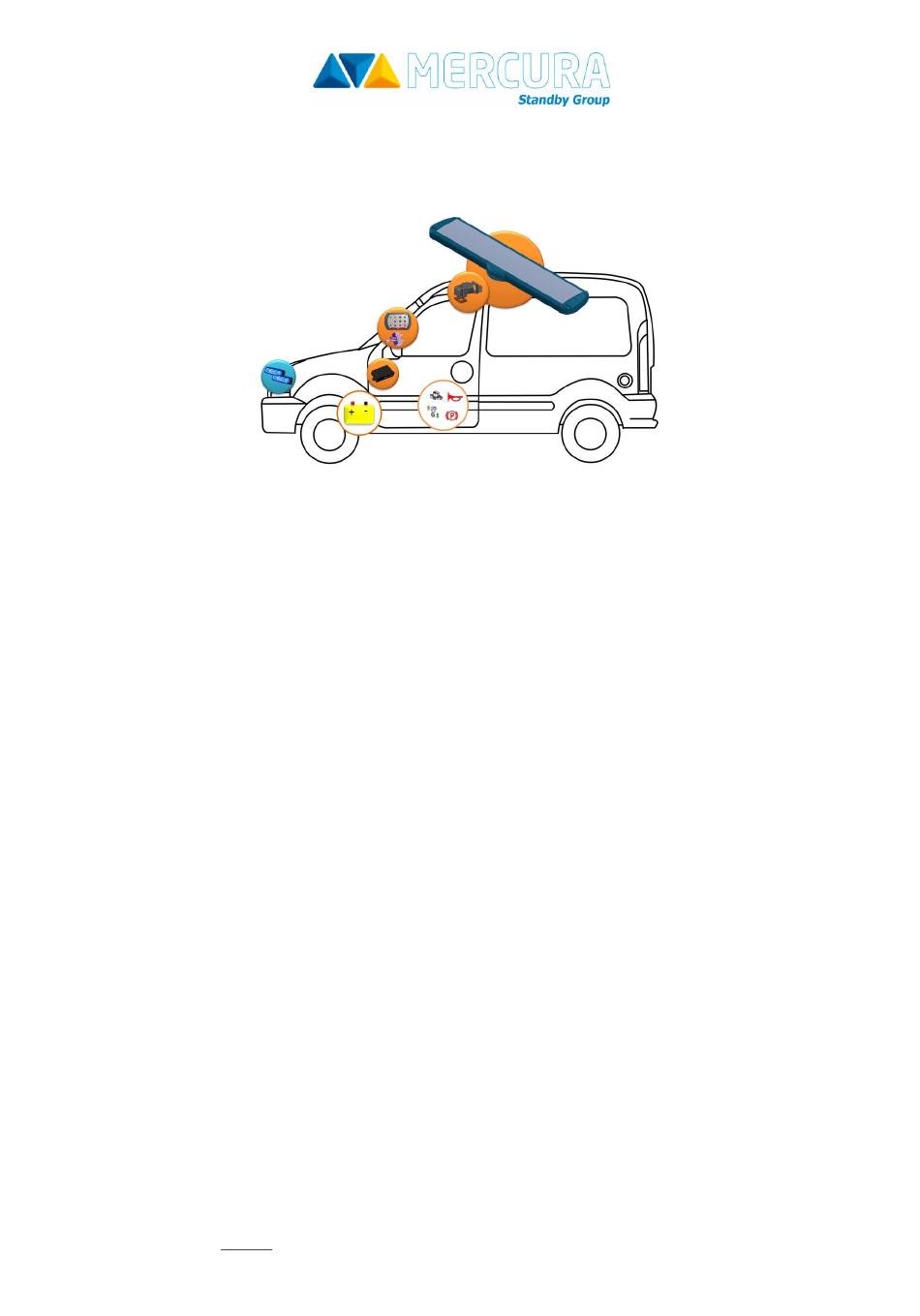

General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector
GENERAL TECHNICAL GUIDE
VEGA LIGHTBARS CLASS 2 SIREN / SPA HANDY
WITH ROOF CONNECTOR
Head Office: Zone d'Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
Tel : 02 54 57 52 52 - Fax 02 54 56 80 00
SAS with capital 102. 400 € - APE (NAF) 2790 Z - SIRET 310 999 891 00040
Page 1
31946-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA LIGHTBAR CLASS 2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mercura VEGA LIGHTBAR CLASS 2 Series

Summary of Contents for Mercura VEGA LIGHTBAR CLASS 2 Series

  • Page 1: Table Of Contents

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector GENERAL TECHNICAL GUIDE VEGA LIGHTBARS CLASS 2 SIREN / SPA HANDY WITH ROOF CONNECTOR KIT COMPOSITION ..............................2 AVAILABLE VERSIONS ............................3 DIMENSIONS ................................3 WEIGHT DEPENDING ON VERSIONS ........................3 ELECTRICAL CHARACTERISTICS .........................

  • Page 2: Kit Composition

    The installer must define the means and the material necessary for mounting of equipment in order to deliver the vehicle equipped according to the regulations. MERCURA is not responsible for failures occurring due to incorrect definition of the type of mounting system, reinforcements, drilling holes in roof panel, state and quality of mounting system, use of vehicle manufacturer anchoring points and the system power supply and protection definition in accordance with the vehicle energy source.

  • Page 3: Available Versions

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 2. AVAILABLE VERSIONS Length Side Front Rear Alley lights Reference 1200 29243 Blue Blue 1600 29245 1200 29247 Blue Blue Blue 1600 29249 1200 29251 Blue Blue Amber 1600...

  • Page 4: Electrical Characteristics

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 5. ELECTRICAL CHARACTERISTICS Operating voltage: 10.5-30 Volts CONSUMPTION (1.20 m & 1.60 m LIGHTBARS) The 1.20 m and 1.60 m lightbars of identical configurations have the same number of lights. Blue Lights Flash R65 function 6.3 A peak for 13.5 volts / 3.2 A peak for 27 volts...

  • Page 5: Installation

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 6. INSTALLATION 6.1. SYNOPTIC 6.2. INSTALLATION OF MOUNTINGS Assembly of upper and lower mountings 8 x CHC M06x12 INOX screws 16 x Ø6x14x1.2 IN A4 flat washers 8 x H M06 IN A4 locking nuts Installation of mountings on base 4 x H M06x20 IN screws...

  • Page 6: 18-Point Roof Connector

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 6.3. 18-POINT ROOF CONNECTOR A. Roof connector base B. Protective cap of the roof connector C. Roof connector gasket 6.4. ROOF MOUNTING A. Vehicle’s roof B. Vehicle’s 2 drilling points C.

  • Page 7: Roof Drilling Diagram

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 6.6. ROOF DRILLING DIAGRAM 2 fixing points A. 2 base fixing screws B. 18-point Harting base C. Roof connector gasket D. Vehicle’s roof E. Roof drilling (refer to the template) F.
  • Page 8 General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector GENERAL WARNINGS A. Vehicle’s roof B. VEGA lightbar with siren C. Adjustable mounting pad D. Rubber pad THE SPEAKER OUTPUT IS ORIENTED FORWARD Head Office: Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR GT-0775-RAM Ind B Tel : 02 54 57 52 52 –...
  • Page 9 General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector LIGHTBAR Lightbar height MOUNTING RUBBER PAD VEHICLE’S ROOF Head Office: Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR GT-0775-RAM Ind B Tel : 02 54 57 52 52 –...

  • Page 10: Lightbar Installation

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 6.8. LIGHTBAR INSTALLATION 4 x H M06x16 IN A4 screws 8 x Ø6x14x1.2 IN A4 flat washers 4 x H M06 IN A4 locking nuts Position the lightbar on the roof by inserting the neoprene wedges between the bindings and the roof.

  • Page 11: General Wiring Diagram (Depending On Model)

    General Technical Guide VEGA Lightbars Class 2 Siren / SPA Handy with Roof Connector 7. GENERAL WIRING DIAGRAM (DEPENDING ON MODEL) 7.1. WIRING SYNOPTIC A. VEGA lightbar with siren B. 18-point roof connectors C. Various variables vehicle’s control inputs depending on options. D.

  • Page 12: Vehicle's Harness General Wiring Diagram

    D. BUS-wired interface to Control Box or CCS BLL Module E. Identification of the connector tracks on the wire side F. Information input HANDBRAKE tightened from the MERCURA handbrake module: information to the ground G. KLAXON impulse input: "+ Battery" information H.

  • Page 13: Handbrake Module Option

    A. Vehicle’s HANDBRAKE contactor B. MERCURA’s HANDBRAKE module C. HAND BRAKE status information output to MERCURA system to be wired on wire n° 9 of the vehicle’s harness of the VEGA lightbar with siren. D. HANDBRAKE LED circuit of the vehicle dashboard DASHBOARD INTERFACE OPTION 7.4.
