20/02/2017
Power supply : 10 – 30 Volts
Low voltage cut off value : 8 volts
Power : 22W max.
Operating temperature :
-40°C to +85°C
References GYROLED® ISO:
Blue : 28700
Blue SB1 : 29812
Amber : 28701
Red : 28703
White : 28702
Green : 28704
Blue Flash : TB2 E2 0016105
R65 approval
Blue Rotating : TB2 E2 0016106
"E" Marking Approval R10 n° « E2 10R05 16034 »
CISPR25 (2008) : class 4 or 5 radiating
Head-quarters : Zone d'Activités « Les Gailletrous » - 4 rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR - France
GT-0657-FEUX Ind C
GYROLED® M130 ISO BASE SB1
GYROLED® M130 – Reference according to colour
1.
2.
PROTECTIVE SEAL - Reference 29637
3.
USER MANUAL - Reference 29816
4.
STAINLESS STEEL SCREW H M06x16 (x3) & FLAT WASHER (x3)
GYROLED M130 WIRING LOOM (x1) – Reference 30024
5.
MINIFIT MOLEX PINS (x4) – Reference 25530
6.
NYLON BAG – Reference 16782
7.

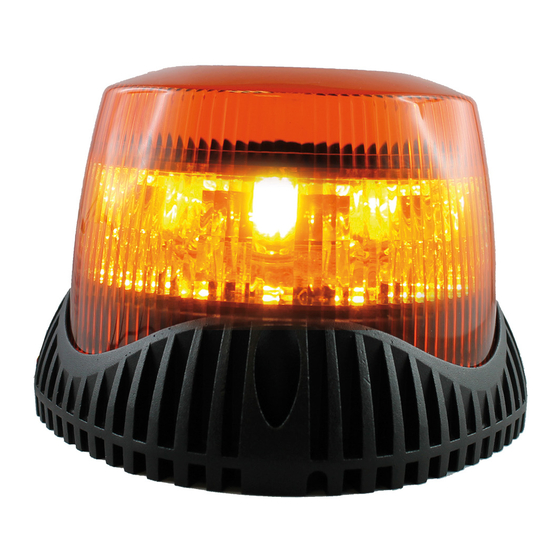

MERCURA's GYROLED® M130 SB1 is a high power CLASS 2 LED beacon. The light is
supplied with 14 integrated flash patterns.
Two fixing diameters are available: 1 x ISO type Ø130 and 1 x 3-point fixing mode Ø167.
The M130 is supplied with a 10-pin connector and a wiring loom with 4 pre-connected
wires. A pin set is also supplied to add secondary functions (Synchronisation etc...)
The M130 is also delivered with a protective rubber seal that ensures the interface with the
vehicle roof.
The GYROLED® M130 is available in the following colours:
Blue
Amber
Red
Green
White
All available Flash patterns :
1. Rotating R65
2. Double Flash R65
3. Triple Flash
4. Single Flash
5. ½ Rotating
6. ½ Double Flash
7. ½ Triple Flash
8. ½ Single Flash
9. ICAO Flash
10. ICAO Rotating
11. ½ ICAO Flash
12. ½ ICAO Rotating
13 Double Flash R65 (Day) / Rotating R65 (Night)
14. Top central LED on only
The GYROLED® M130 is R65 approved in Blue, Amber and Red colour only
Amber Flash : TA2 E2 0016107
Amber Rotating : TA2 E2 0016108
Tel : 00 33 (0) 2 54 57 52 52 – Fax 00 33 (0) 2 54 56 80 00
SAS au capital de 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
Weight : 1,274 Kg
Page 1
Red Flash : TR2 E2 0016220
Red Rotating : TR2 E2 0016221
30161-02
Advertisement
Table of Contents
Related Manuals for Mercura GYROLED M130 ISO BASE SB1
Summary of Contents for Mercura GYROLED M130 ISO BASE SB1
- Page 1 MINIFIT MOLEX PINS (x4) – Reference 25530 NYLON BAG – Reference 16782 MERCURA’s GYROLED® M130 SB1 is a high power CLASS 2 LED beacon. The light is supplied with 14 integrated flash patterns. Two fixing diameters are available: 1 x ISO type Ø130 and 1 x 3-point fixing mode Ø167.
- Page 2 GYROLED® M130 ISO BASE SB1 20/09/2017 Pin n°1 : Wire n°1 : Ground power supply GYROLED M130 Pin n°2 : Wire n°2 : NIGHT function Pin n°3 : REAR HALF FLASH function Pin n°4 : Wire n°4 : Operating mode selection Pin n°6 : Wire n°6 : «...
- Page 3 GYROLED® M130 ISO BASE SB1 20/09/2017 CONNECTING THE POWER SUPPLY, CRUISE FUNCTION, NIGHT FUNCTION GYROLED® M130 Protective seal GYROLED M130 / Roof vehicle Wire n°6 power supply GYROLED M130 Wire n°2 : Night function Wire n°3 : REAR HALF FLASH function Wire n°1 : Ground power supply GYROLED M130 M130 GYROLED®...
- Page 4 GYROLED® M130 ISO BASE SB1 20/09/2017 Head-quarters : Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR - France Tel : 00 33 (0) 2 54 57 52 52 – Fax 00 33 (0) 2 54 56 80 00 SAS au capital de 102.
