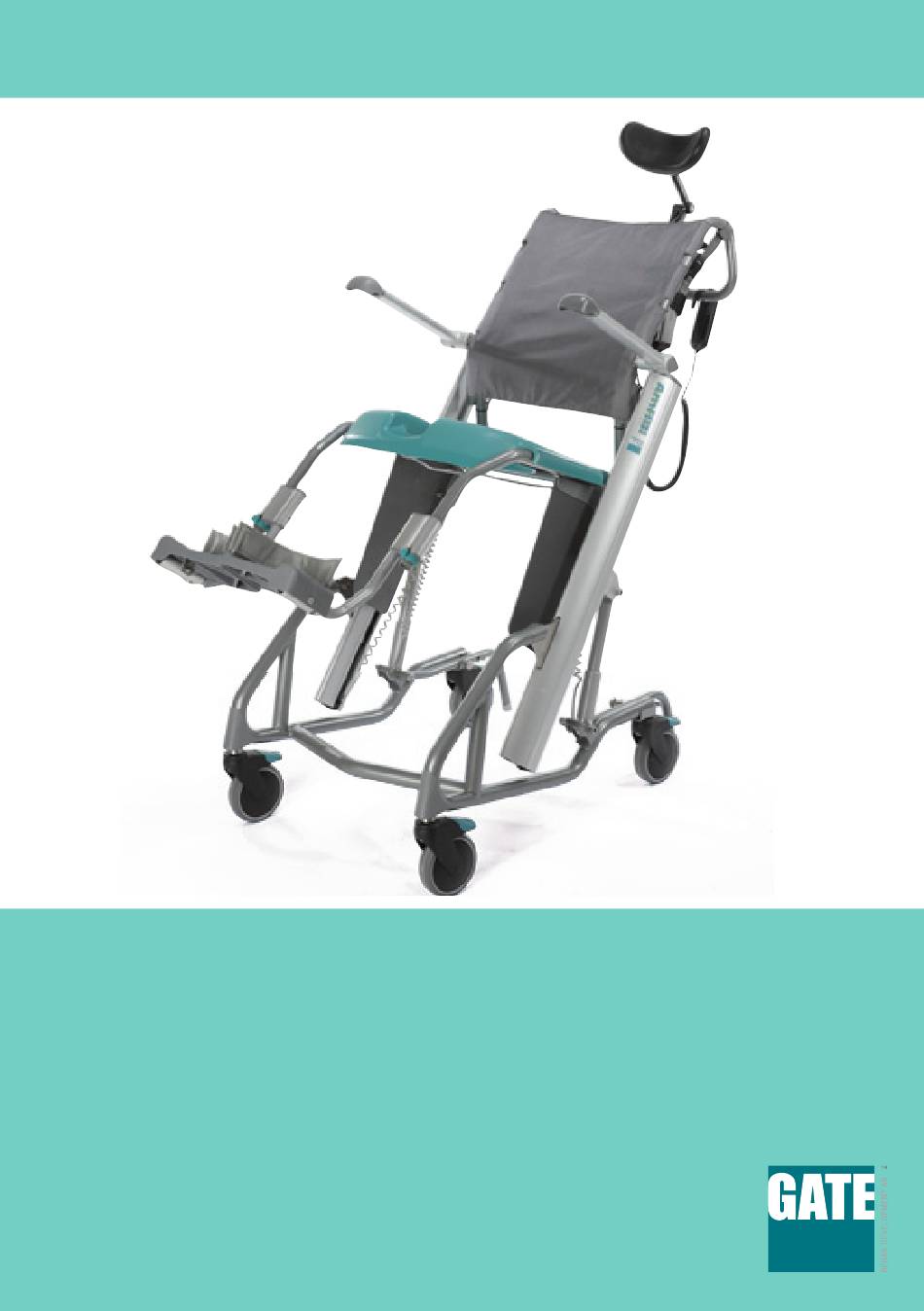

- Page 1 Instructions for Use Amfibi ™ Hygiene Chair Amfibi Double 56-203DB...
- Page 2 1. Uttag för batterikontakt 2. Uttag för stickpropp Laddning av batteri (OBS! För att IP-klassning ska gälla så ska stickpropp ALLTID vara ansluten till styrbox) Laddning av batteri ska ske då gåbordet inte 3. Uttag för fjärrkontroll används. (Batteriet kan aldrig överladdas.) 4.
- Page 3 Manoeuvring the Chair When raising and lowering the seat use the ”up” Övriga instruktioner • • • and ”down” buttons. The tilt function is controlled Kopplingsschema Styrbox Laddning Batteri by the ”forwards” and ”rearwards” buttons. Framåt Forwards Down Rear- Bakåt wards 1.
- Page 4 • • • Laddning Batteri Amfibi Double is fitted with tilt protection that must always be in position/deployed whenever the chair is reclined backwards. This ensures that the chair cannot tip backwards in unfavourable load circumstances. Laddning av batteri la så...
- Page 5 Sanitary pan Installation/adjustment of the neck support The sanitary pan is slid into position from behind between the seat and wire guides as shown in figure 7. The neck support is installed in socket (A) on the chair’s handlebar (see figure 8). Make sure the sanitary pan is slid into position above the wire guides.
- Page 6 Locking the armrests Moving the chair The armrest is locked in the We recommend using the handlebar extended position. whenever the chair (is to) be moved To lift the armrest, pull out the pin (with/without a patient). The handlebar is (1) and raise the armrest (2).
- Page 7 Battery installation/removal The battery is usually located in the control box (in a bag behind the back strap) and is held in place magnetically. Battery removal: Twist the battery 90° – pull it out. Installation: Slide the battery into the control box.
- Page 8 6. Neck support – check that the next support can be adjusted to the desired position. When necessary – tighten fasteners. Would you like to know more? Contact us at: tel +46 371 31800 Gate Rehab Development AB Isberga Säteri, S-333 91 Smålandsstenar Sweden info@gaterd.com www.gaterd.com...
