DAL-BO MaxiRoll 950 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MaxiRoll
EN
Instruction Manual
950, 1030 cm

Advertisement

Table of Contents
loading

Related Manuals for DAL-BO MaxiRoll 950

Summary of Contents for DAL-BO MaxiRoll 950

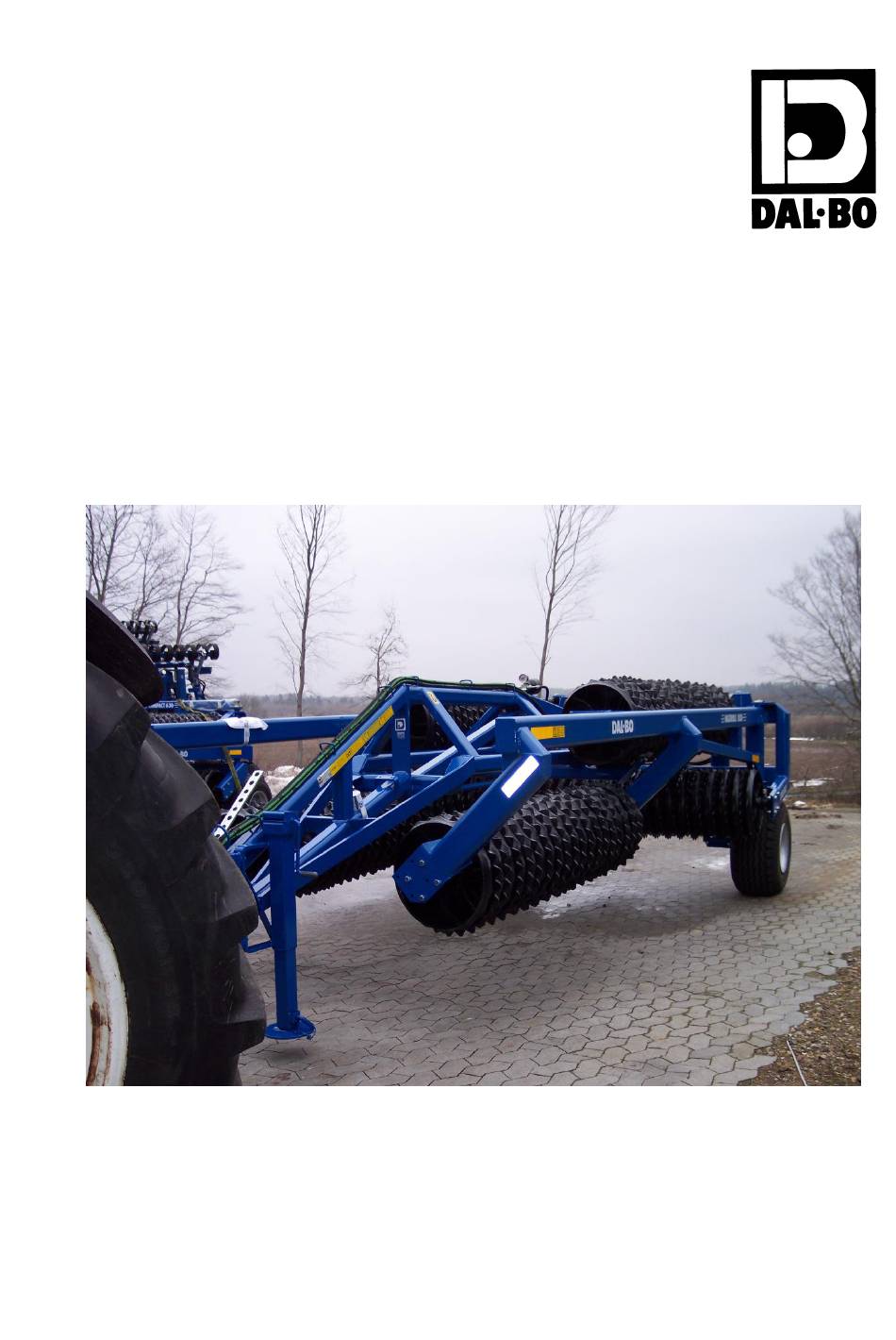

  • Page 1 MaxiRoll Instruction Manual 950, 1030 cm...
  • Page 3 Congratulations on the purchase of your new MaxiRoll. For safety reasons and to achieve optimum service from the product, please read the User Guide before use. © Copyright 2008. All rights reserved, DAL-BO A/S This product has: Type no.: Serial no.:...

  • Page 4: Table Of Contents

    Table of Contents SAFETY .......................... 6 ........................6 ENERAL ......................... 7 YDRAULICS ........................7 SSEMBLY ..................7 AINTENANCE AND REPAIR ......................7 OAD TRANSPORT ........................ 8 ORRECT USE TECHNICAL DATA ..................... 9 HOW TO USE THIS MANUAL ................10 ........................10 ELIVERY USES ..........................
  • Page 5 Locking set ......................26 MAINTENANCE ......................27 ......................27 UBRICATION ....................... 28 DJUSTMENT Adjustment of rollers ....................28 Wheels ........................28 Tips ......................... 28 ....................... 29 YDRAULICS REPLACEMENT ANDREPAIRS ................30 ....................... 30 YDRAULICS Replacing extend cylinder for retracting side sections .......... 30 Replacing gasket set for extend/retract cylinder ............

  • Page 6: Safety

    MaxiRoll Safety This symbol appears in the instruction manual each time there is a safety warning concerning your safety, the safety of others or functionality of the machine. All safety instructions must be observed and made available to all users of the machine. General ...

  • Page 7: Hydraulics

    MaxiRoll Hydraulics  Lower machine fully for any repair work on the hydraulic system. Relieve hydraulic pressure, switch engine off and remove ignition key.  Clean hydraulic connections thoroughly before reconnecting. When con- necting hydraulic hoses to tractor hydraulics, ensure they are not under pressure.

  • Page 8: Correct Use

    MaxiRoll  Check with local traffic authorities whether transport on public roads is al- lowed given the machine's dimensions.  When transporting, ensure permitted total weight for tractor is not exceed- ed and that loading on tractor front axle is not less than 20% of tractor net weight.

  • Page 9: Technical Data

    MaxiRoll Technical data MaxiRoll Size (cm) 1030 HP (recommen- 180-250 200- ded) Gross weight Cambridge 50 5100 5200 Cambridge 55 5750 5900 Crosskill 60 5750 5900 Crosskill 53 4260 4450 Sections (pcs.) Accessories Crackerboard 1125 (kg) Wheels MaxiRoll 5 part: 400/60 x 15.5 Page 9...

  • Page 10: How To Use This Manual

    MaxiRoll How to use this manual The sequence of subject matter in this manual can seem illogical. Please refer to the table of contents for page numbers for individual items. The manual is divided into 5 main sections:  Safety ...

  • Page 11: Uses

    MaxiRoll is a three-piece roller, on which the sections are independent of each other. Hydraulic weight transfer is standard on all models. MaxiRoll 950/1030 has five axles. Fig. 1 MaxiRoll 950 MaxiRoll is used prior to sowing to crush lumps and afterwards to prepare for shooting and to break down stones.

  • Page 12: Connecting And Disconnecting

    MaxiRoll Connecting and disconnecting Connecting Fig. 2 Connect roller to the tractor's fixed towbar, where drawbar (A) must fit between the towbar forks. Insert pin and raise leg.   Remember to secure towbar pin with split pin or the like.

  • Page 13: Disconnection

    MaxiRoll Disconnection The roller must be folded up (transport position) or extended before discon- nection. Lower support leg to lift roller drawbar from tractor towbar. Remove pin and disconnect hydraulic hoses. Remember to depressurise hoses before disconnecting them. Page 13...

  • Page 14: Setting Up

    MaxiRoll Setting up The machine is supplied with factory settings, but fine adjustment will always be required before use. Numerous adjustment options make the roller more flexible and ensure maximum use. Adjusting drawbar height To achieve uniform rolling, the bar (A, Fig. 3) on the mid-section must be parallel with the ground and the drawbar (B, Fig.

  • Page 15: Adjusting Mid-Section

    MaxiRoll Adjusting mid-section Fig. 5 Extend MaxiRoll fully (see ”Operation”). Check pipe (A, Fig. 3) on the mid-section is horizontal (parallel with the ground). If it is not, adjust the bolts (A, Fig. 5). Fig. 6 1. Slacken the lock bolt (A) 2.

  • Page 16: Adjusting Fold Stop

    MaxiRoll Adjusting fold stop Fig. 8 To ensure correct positioning of the side sections during transportation, the side section backstop can be adjusted Page 16...

  • Page 17: Operation

    MaxiRoll Operation Correct operation is vital for optimum use. This applies to working in the field and for safety. Always ensure you are fully familiar with all safety aspects of the machine. Extending and retracting Extending and retracting the machine must always be performed with tractor parked.
  • Page 18 MaxiRoll Relieve pressure from weight transfer to side sections (see ” Adjustment of hydraulic weight transfer”).  If there is a crackerboard fitted, check it is fully raised before starting folding (see "Accessories, Crackerboard, Operation") Fig. 11 1. Activate extend/retract cyl- inders (marked: Red) to full length, so that the outer side sections (A) are raised a lit-...

  • Page 19: Adjustment Of Hydraulic Weight Transfer

    MaxiRoll Fig. 12 2 Activate raise/lower cylinder (marked: white) to full length and the roller is lifted off the ground. Fig. 13 3. Activate the extend/retract cylinders once more, and the side sections will retract (extend/retract cylinders will now be fully retracted). 4.

  • Page 20: Excessive Pressure

    Check all the accumulators on the machine at least once a year for leaks and to ensure that the precharge pressure is set correctly. Contact an authorized Dal-Bo dealer for more information. Operating speed An operating speed of 6-10 km/h is recommended, but always operate accord- ing to conditions.

  • Page 21: Troubleshooting

    MaxiRoll Troubleshooting Fault Cause Remedy  Insufficient pres-  Activate hydraulic control handle Mid-section applying too much sure transferred for extend/retract to increase pres- pressure to side sections sure side sections (see ”Operation”).  Drawbar too high  Adjust drawbar and mid-section (see ”Adjusting drawbar height”...

  • Page 22: Accessories

    MaxiRoll Accessories MaxiRoll can be fitted with a range of accessories to suit requirements.  Crackerboard with curved wear parts.  Crackerboard with crust-breakers.  Harrow  Stone boxes  Lights Crackerboard The major benefit of the board is that the teeth can move individually, and flex when meeting local resistance.

  • Page 23: Hose Markings

    MaxiRoll Hose markings Table 4. Hose markings Cylinder name Colour Outlet Function Depth adjustment Green Double acting Adjust crackerboard depth. Adjusting angle of tines Fig. 16 Crackerboard depth is hydraulically adjustable. The angle of the teeth is adjusted manually on the spindles (A).

  • Page 24: Operation

    MaxiRoll To adjust the basic setting of the crackerboard, we recommend extending MaxiRoll on a flat surface and lowering the crackerboard until the tines are almost touching the ground. All the tines must be at the same distance from the ground. If the tines on the mid-sections do not have the same distance to the ground as the sides, adjust the draw bar at the tractor.

  • Page 25: Retrofitting

    MaxiRoll Retrofitting The crackerboard can be factory-fitted, or supplied at a later date if required. A crane or other lifting device will be required for retrofitting. Fig. 18 1 Extend MaxiRoll. 2 Mount middle section first on drawbar flanges (A). 3 Mount cylinder Fig.

  • Page 26: Locking Set

    MaxiRoll Fig. 20 7 Secure hoses in hose holders (A) and pass through holders on drawbar. 8 Tighten all fittings securely. Connect board to tractor hy- draulics. Bleed system thoroughly to avoid injury to personnel. Move depth-adjustment cylinders up and down fully several times to bleed system.

  • Page 27: Maintenance

    MaxiRoll Maintenance Good maintenance ensures long service life and optimum use. Grease nipples are fitted where wear is heaviest.  Tighten all screw connections after first working day. Check all split pins and bolts to avoid mechanical failure. Check hydrau- lic system for leaks.

  • Page 28: Adjustment

    MaxiRoll Adjustment Adjustment of rollers After the first season, the rollers will have loosened on the shaft. Play can be eliminated by moving the stop rings on the shaft. Adjustment is easiest when MaxiRoll is folded together. Fig. 23 1 Slacken bolts (A) and push rollers together 2 Tighten and slacken stop ring bolts at the same place...

  • Page 29: Hydraulics

    MaxiRoll Hydraulics Check all hydraulic hoses for wear or cracks. Check all hoses for crimping.  Lubricate exposed rams with oil or pressure-resistant grease to avoid rust forming when storing for long periods. Remember to remove before use. Page 29...

  • Page 30: Replacement Andrepairs

    MaxiRoll Replacement andrepairs  Safety is vital for all repair work on the roller. Always observe the following points, plus those under Safety First in the in- struction manual. All maintenance and repair work can only be performed when the machine is lowered to the ground or locked in transport position, tractor is braked, engine stopped and ignition key removed to prevent accidental start.

  • Page 31: Replacing Gasket Set For Extend/Retract Cylinder

    MaxiRoll Activate extend/retract cylinders after fitting until they show a little movement. Reverse cylinders until they return to start position. Move cylinders backwards and forward several times. Raise roller fully onto wheels, extend side sections fully to bleed system. Ensure no personnel are within the extension radius of the side sections.

  • Page 32: Assembly

    MaxiRoll Assembly 1. Fit new gaskets (pos. 5+6+7+8+9) in upper part and collar shoe. Remem- ber to check gaskets are facing the right way. 2. Lubricate thread in upper part (pos. 3) and cylinder tube with oil. 3. Fit upper part (pos. 3) on ram shaft. 4.

  • Page 33: Replacing Gaskets On Raise/Lower Cylinder

    MaxiRoll Replacing gaskets on raise/lower cylinder Fig. 28 1. Drain oil from cylinder by moving ram carefully backwards and forwards. 2. Extend ram to centre position. Unscrew upper part (pos. 3) from cylinder tube (pos. 1). Use special tool to remove upper part. If upper part is stuck, heat front of upper part.

  • Page 34: Replacing Crackerboard Depth-Adjustment Cylinder

    MaxiRoll Replacing crackerboard depth-adjustment cylinder Fig. 29 1. Extend roller resting on a level surface 2. Lower board, depressurise hydraulic system 3. Disconnect hoses from cy- linders 4. Remove plates and pins (B) 5. Fit new or repaired cylinder 6. Remember to replace split pins in pins Activate depth-adjustment cylinders up and down a few times after fitting and with roller extended, to bleed system.

  • Page 35: Assembly

    MaxiRoll Assembly 1 Fit new gaskets in upper part and collar shoe. 2 Lubricate thread in upper part (pos. 3) and cylinder tube (pos. 1) with grease or oil. 3 Fit upper part (pos. 3) on ram shaft. Fit collar shoe (pos. 4). Ensure that thread is absolutely clean and free of oil or other impurities before applying Loctite.

  • Page 36: Replacing Wheel Bearings

    MaxiRoll Replacing wheel bearings Fig. 31 1. Remove hub cap pos. 21. 2. Remove split pin pos. 20. 3. Remove castle nut pos. 19. 4. Tap out axle pos. 2. 5. Remove bearings pos. 17+18. 6. Remove seal ring pos. 19. Assembly 1.

  • Page 37: Fitting Axles With Roller Rings

    MaxiRoll Fig. 32 1. Slacken bolts (A) 2. Attach lifting gear to box section arm on side section. Tighten straps until bolts (A) are loose and can be re- moved. 3. Activate raise/lower cylin- der, lift roller onto wheels 4. Roll axle with roller rings from roller.

  • Page 38: Replacing Axles, Bearings Or Roller Rings

    MaxiRoll Replacing axles, bearings or roller rings Fig. 34 1. Slacken bearing screws (A) and withdraw bearings 2. Slacken stop ring bolts. Pull stop rings (B) off. 3. The roller rings can be drawn off the axle. 4. Reverse order to reassemble 5.

  • Page 39: Scrapping

    MaxiRoll Scrapping Fully extend roller. It is essential that all cylinders are re- moved. Beware of the weight of any given part when removing or disassembling. All parts must be supported or lifted to avoid danger of falling. Disconnect hydraulic hoses and cylinders and drain oil. Collect oil in contain- er to avoid pollution.

  • Page 40: Spare Parts

    MaxiRoll Spare parts Page 40...
