Delta Children 23012 Instruction Manual

Delta Children 23012 Instruction Manual

Perfect fit multi-use high chair
Hide thumbs

Advertisement

Quick Links

Download this manual

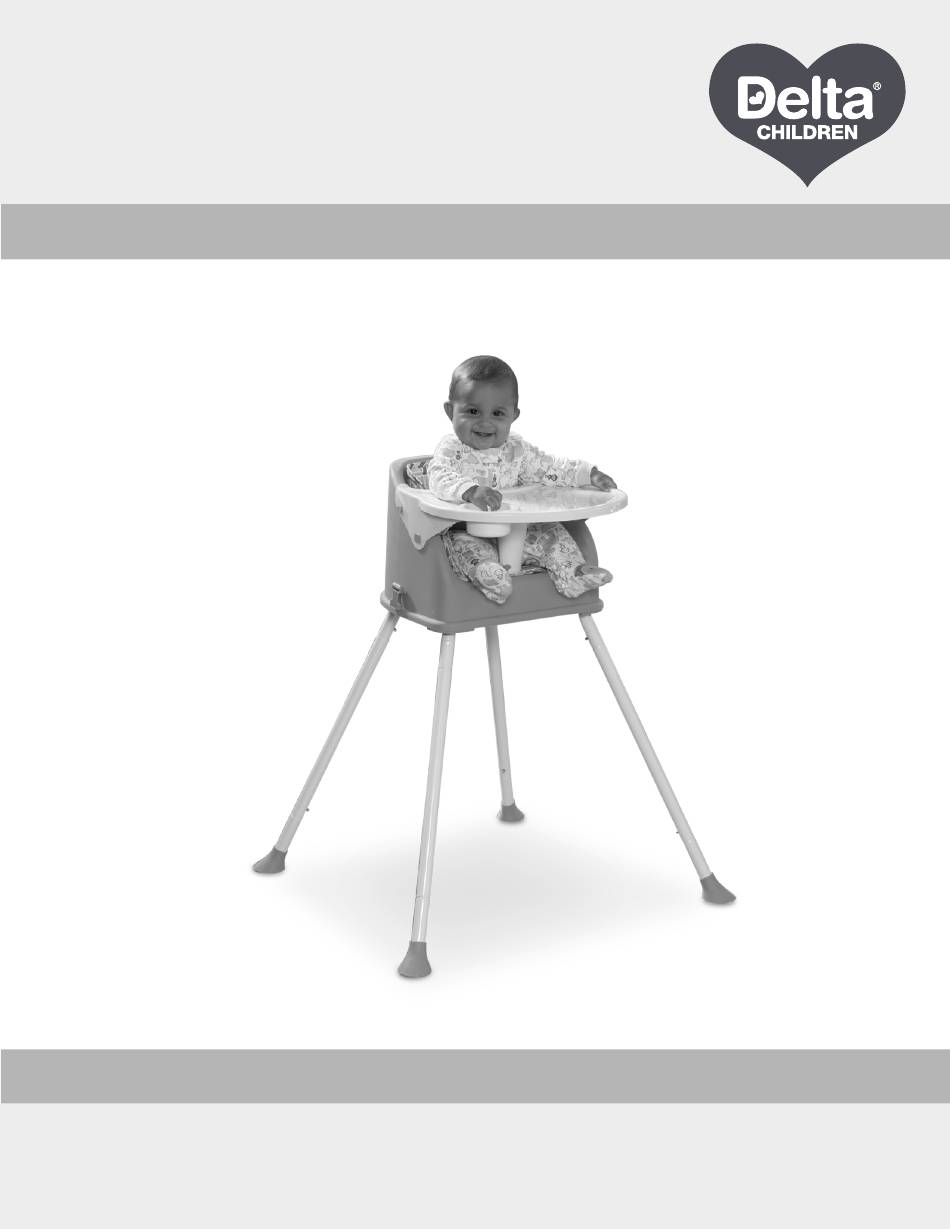

PERFECT FIT
MULTI-USE
HIGH CHAIR
ADULT ASSEMBLY REQUIRED
THIS PRODUCT CONTAINS SMALL PARTS
STYLES AND COLORS MAY VARY
23012
Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
Customer Service: 1-(800)-377-3777
INSTRUCTION MANUAL
www.DeltaChildren.com
DCPIM06072017

Advertisement

loading
Need help?

Need help?

Do you have a question about the 23012 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Children 23012

Summary of Contents for Delta Children 23012

  • Page 1 PERFECT FIT MULTI-USE HIGH CHAIR INSTRUCTION MANUAL ADULT ASSEMBLY REQUIRED THIS PRODUCT CONTAINS SMALL PARTS STYLES AND COLORS MAY VARY 23012 Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. www.DeltaChildren.com Customer Service: 1-(800)-377-3777 DCPIM06072017...
  • Page 2 4 Feet Child Tray Seat Pad Grey Part # 50275 Part # 50271 Part # 50277 Seat Red Part # 50267 Push Button Lock 4 Bent Top Leg Seat Tube Part # 50273 16" 6 1/4" 4 Center High Chair Extension 4 Bottom Infant / Toddler Straight Tube Extension Tube...
  • Page 3 WARNING: When not buckled in seat, children can escape and fall suddenly. WARNING: Always use with the restraint belt. WARNING: Only use the seat on floor or level ground surface. WARNING: Never use on raised surfaces such as tables, counters, chairs, beds, or near stairs. Even a belted baby can cause the seat to slide or move off raised surfaces.
  • Page 4 CHILD SAFETY HARNESS 3. To properly install the child safety harness, take the strap lock and insert strap and entire strap buckle into the slot on back of chair (Fig 3). Slot on back chair Fig. 3 4. Flip seat over and make sure the strap buckle lays flat and pulls against the back of the chair.
  • Page 5 WARNING: When not buckled in seat, children can escape and fall suddenly. WARNING: Always use with the restraint belt. WARNING: Only use the seat on floor or level ground surface. WARNING: Never use on raised surfaces such as tables, counters, chairs, beds, or near stairs. Even a belted baby can cause the seat to slide or move off raised surfaces.
  • Page 6 INFANT CHAIR ASSEMBLY Straight Extension Located all (4) feet. Slide each foot onto the Tube bottom of each infant / toddler straight extension tube (Fig. 7) Fig. 7 Find all (4) bottom infant / toddler straight "Click" extension tubes with feet attached and push into all (4) bent top leg seat tubes (Fig 8).

  • Page 7: Care And Maintenance

    IMPORTANT! Before assembly or each use of this high chair, inspect this high chair for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Never substitute parts. Contact Delta Children’s Products Customer Service Department at 1.800.377.3777 for replacement parts and instructions if needed.

  • Page 8: High Chair Assembly

    HIGH CHAIR ASSEMBLY NOTE: SEAT COVER IS REVERSIBLE Flip floor seat over to see bottom. (Fig 10). Fig. 10 Find the bent top leg seat tube and push all (4) tubes into all (4) tube slots (Fig 11). Make sure "Click"...
  • Page 9 HIGH CHAIR ASSEMBLY Center High Chair Extension Tube Find all (4) center high chair extension tubes and push into all (4) bent top leg seat tubes "Click" (Fig 12). Make sure the push buttons, located at the top of every tube, are securely locked “clicked”...
  • Page 10 HIGH CHAIR ASSEMBLY Flip over high chair and place on level Fig. 15a surface. All (4) feet should be flat against the floor (Fig 15c). Line up left and right child tray grooves with left and right child seat tray posts (Fig 15a).
  • Page 11 WARNING: Only use the seat on floor or level ground surface. WARNING: Never use on raised surfaces such as tables, counters, chairs, beds, or near stairs. Even a belted baby can cause the seat to slide or move off raised surfaces. WARNING: Always stay with and watch your baby during use.
  • Page 12 TODDLER CHAIR ASSEMBLY Located all (4) feet. Slide each foot onto the bottom of each infant / toddler straight extension Straight tube and place off to side (Fig. 18) Fig. 18 Extension Tube Find all (4) bottom infant / toddler straight extension tubes and push into all (4) bent top leg seat tubes (Fig 19).
  • Page 13 TODDLER CHAIR ASSEMBLY Flip over toddler chair and place on level surface. All (4) feet should be flat against the floor (Fig 20a). Child safety harness can be removed for toddler chair. Please see figures 4-5 on page 5 on how to removed child safety harness. Fig.
  • Page 14 WARNING: Prevent serious injury or death from sliding out, falls, or tipping over. WARNING: Never leave child unattended. WARNING: Never allow a child to push away from table. WARNING: Secure to adult chair per instructions. Always check security of fit before use. WARNING: Until child is able to get in and out of the booster seat without help (about 2 1/2 years old) the child should be secured in the booster seat at all times by the restraining system.
  • Page 15 BOOSTER SEAT ASSEMBLY When buckles "click", the straps are fully locked. Pull the free end of the strap to tighten on the chair. Check underneath chair to make sure buckles are fully locked (Fig 22). Fig. 22 Wrap the top straps around the back of the chair and buckle the straps (Fig 23).
  • Page 16 STORAGE Located underneath the seat is a storage bag to place unused parts. (Fig. 25) Fig. 25 Customer Service www.DeltaChildren.com Tel. (800) 377-3777...
