2hp LFO Manual

Download this manual

LFO

Morphing LFO

Need help?

Do you have a question about the LFO and is the answer not in the manual?

Page 1 Morphing LFO...
Page 2 The alternate waveforms have been designed with modulation in mind and provide an innovative voltage source to use on filters, oscillators, and everything else. If you’re looking to take your modulation to the next level, the 2hp LFO can get you there.
Page 3 Table of Contents Installation/Specifications General Functions Overview NRM Waveforms ALT Waveforms...
Page 4 12 volts. In most systems the negative 12 volt supply line is at the bottom. The power cable should be connected to the LFO with the red band facing the bottom of the module.
Page 6 Rate control of the LFO If the Rate control is far left, the rate of the LFO will be as slow as possible If the Rate control is far right, the rate of the LFO will be as fast as possible 4.

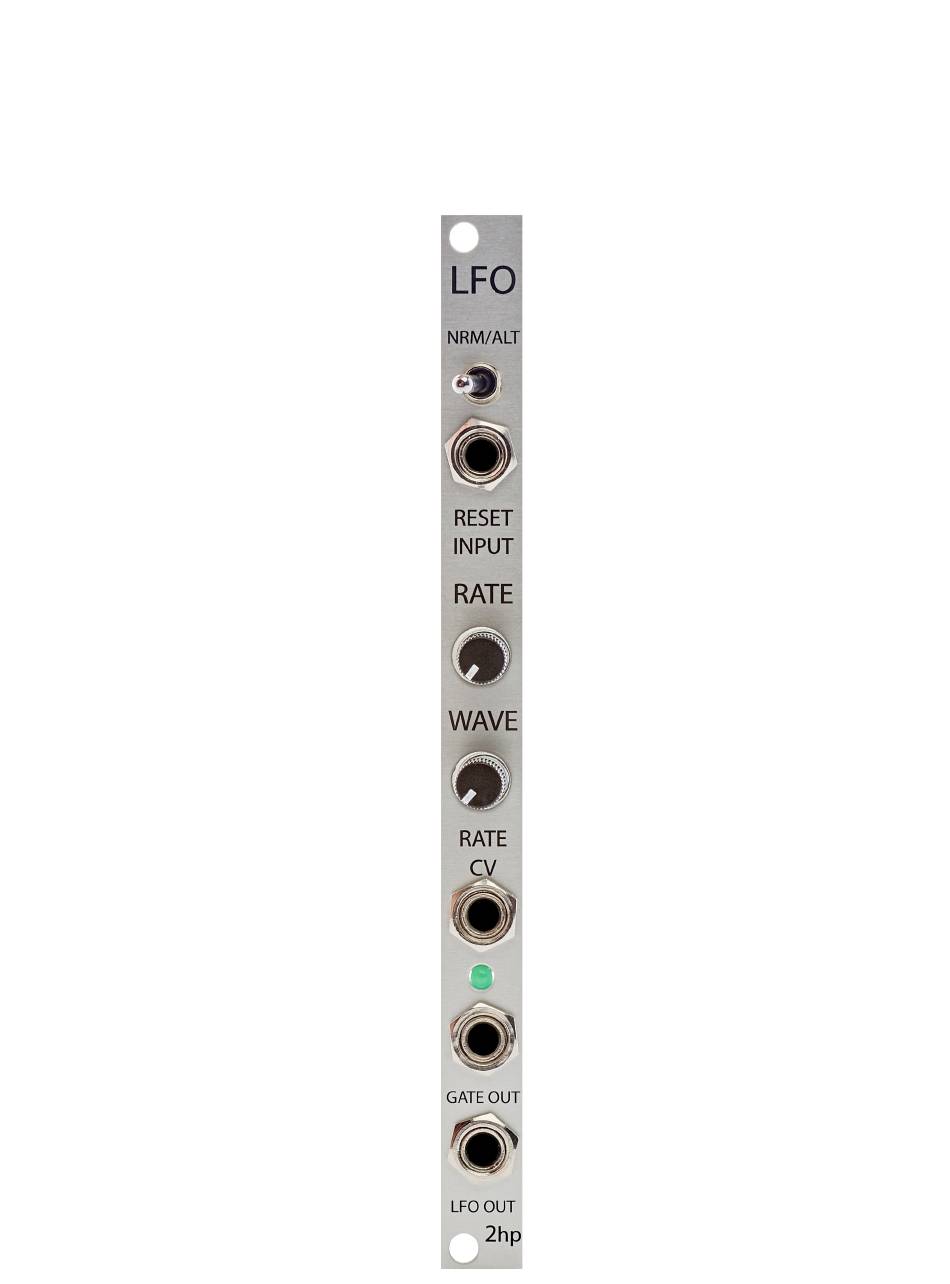

Page 7 LED that illuminates at the rate of the LFO 7. GATE OUT: Output that emits gate signals at the rate of the LFO This can also be thought of as an additional Square wave LFO output 8. LFO OUT: Output of the currently selected LFO waveform Minimum LFO rate = 0.096 Hz...
Page 8 NRM Waveforms Sine Triangle...
Page 9 Sawtooth Square...
Page 10 ALT Waveforms Phase Modulated Sines Stepped Triangle...
Page 11 Ramp Moustache...
