Summary of Contents for 2hp Nse
- Page 1 Noise Generator...
- Page 2 Description Nse is a white noise generator. The sample rate of the noise can be adjusted allowing for a wide range of sounds all the way from white noise to aliased, low frequency rumble. In addition to its normal operation, VCA mode is accessible where enveloped noise bursts are emitted upon receiving a trigger signal.
- Page 3 Table of Contents Installation/Specifications General Functions Overview...
- Page 4 12 volts. In most systems the negative 12 volt supply line is at the bottom. The power cable should be connected to the Nse with the red band facing the bottom of the module.

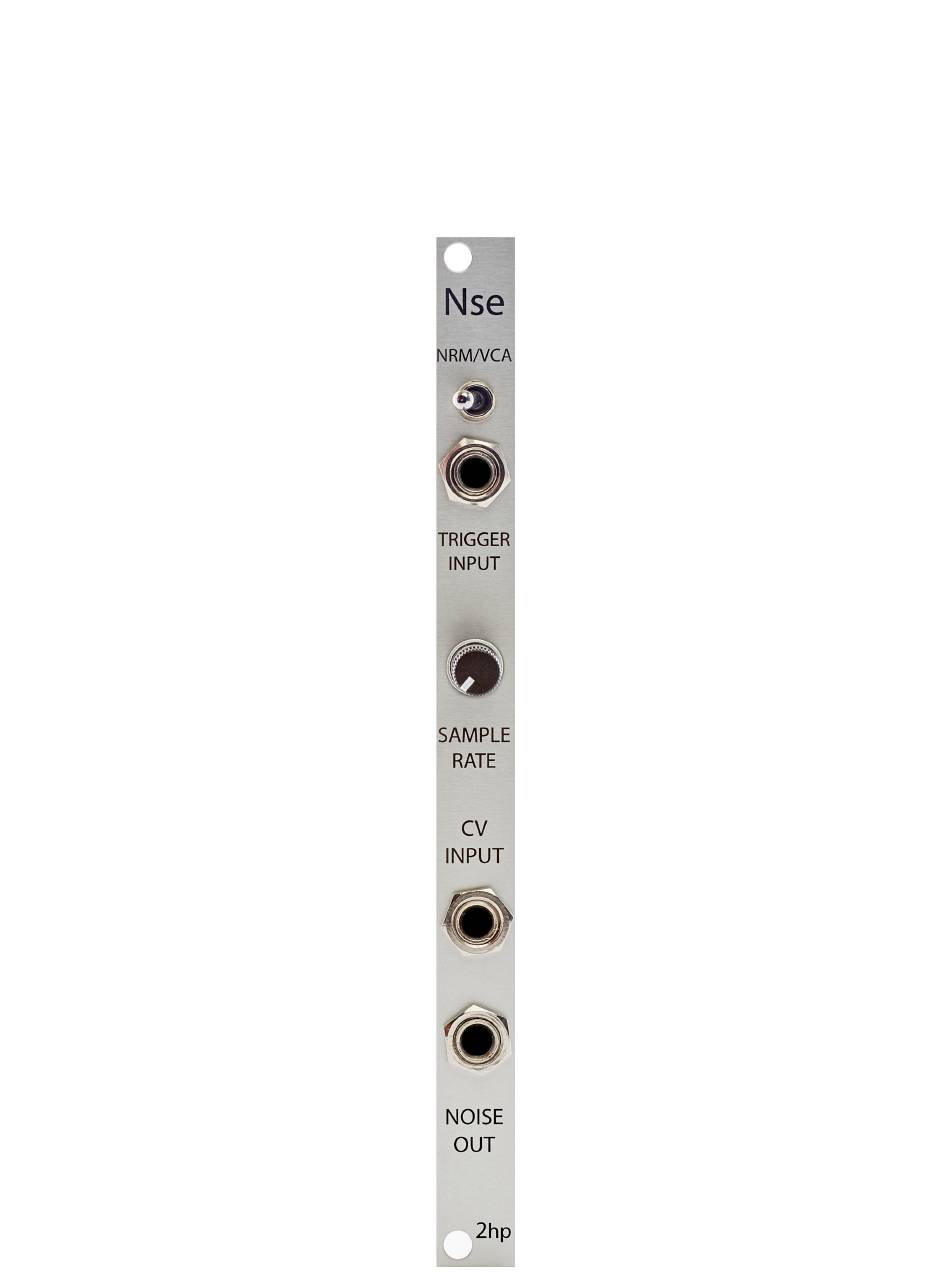

- Page 6 General Functions Overview 1. NRM/VCA: Toggle that switches between NRM and VCA mode: If the toggle is in the left position, noise will output continuously If the toggle is in the right position, enveloped noise will output when a trigger signal is received at the TRIGGER INPUT 2.
- Page 7 4. CV INPUT: Control voltage input for sample rate and envelope decay time – Range: 0V Control voltage is added to the knob position 5. NOISE OUT: Noise output for both modes...
