How To Define The Model Suffix (Ntsc Or Pal Model) - Panasonic HC-VXF990EG Service Manual

3.3.

How to Define the Model Suffix (NTSC or PAL model)

There are seven kinds of HC-VXF990/VXF999/WXF990/WXF991/WXF990M.
• a) HC-WXF990M (Japan domestic model)
• b) HC-WXF991PP
• c) HC-VXF990EB/EF/EG/EP, VXF999EG
• d) HC-VXF990EE
• e) HC-WXF990GK,WXF990MGK
• f) HC-WXF990MGN, VXF990GN
• g) HC-WXF990PU/GC/GW, WXF990MGH
What is the difference is that the "INITIAL SETTING" data which is stored in Flash ROM mounted on Main P.C.B..
3.3.1. Defining methods:

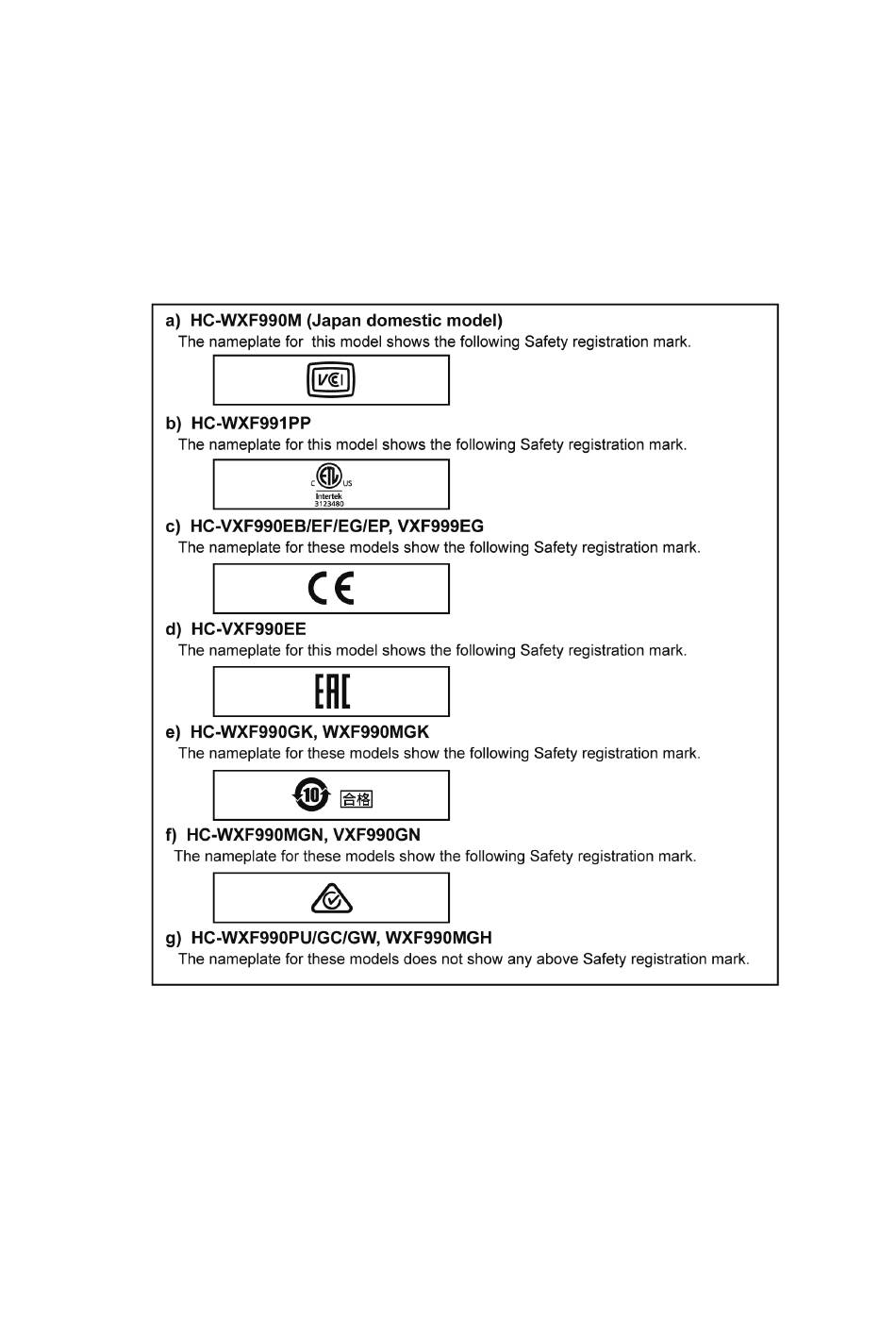

To define the model suffix to be serviced, refer to the rating label and caution label which are putted on the Unit.
NOTE:
After replacing the MAIN P.C.B., be sure to achieve adjustment.
7
