2 Initial/Setting into operation

2.1 Unpacking the unit

1. Put the carton onto a flat surface.
2. Remove the upper packaging material.
3. Lift the unit out of the packaging.
4. Check the accessories.
− Documentation
− Tubular hexagon box wrench (19 mm)
Crossbar ∅ 12 mm for tubular hexagon box wrench (19 mm)
blocking pin ∅ 6 mm with O-ring.......................................................................no. 316 E 640
− Mains supply connection cable .........................................................................no. 316 E 500
− For possible further accessories see note of delivery

2.2 Identification of the unit components

The G-F 316 E denture model grinding unit comprises the following main elements:
a) Motor milling spindle with collet chuck and conical carbide metal milling tool (other milling
tools upon request).
b) Incorporated suction and filter unit, consisting of a noise-absorbing motor-driven suction
blower, a disposable filter bag and a subsequently connected ultra-fine filter cartridge with an
automatic de-activation device for monitoring the suction unit/process.

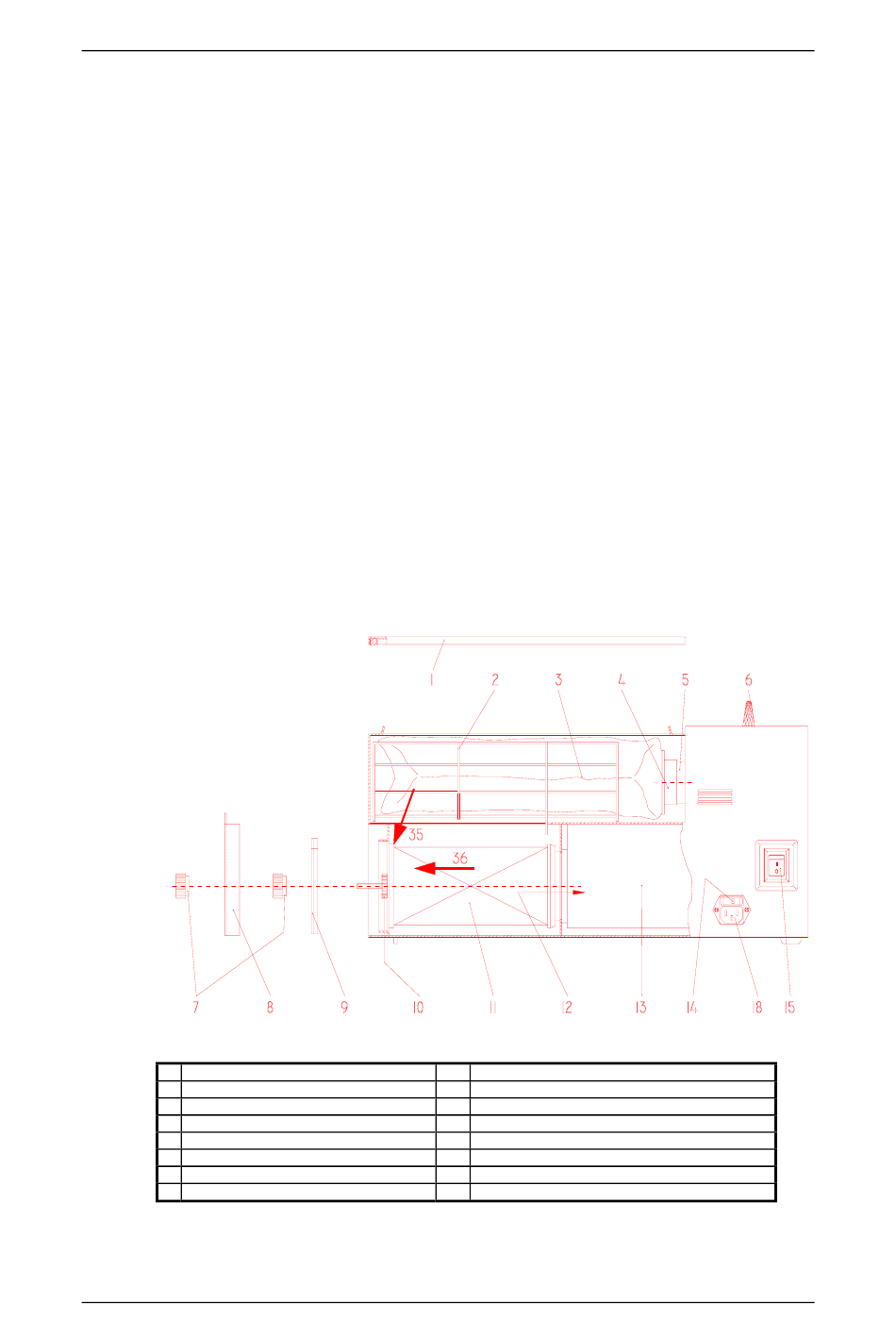

Fig. 1: Identification of the unit components
1 Lid (access filter bag)
2 Wire basket
3 Disposable filter bag
4 Plastic connection
5 Nozzle
6 Milling tool
7 Knurled nuts with copper disk
8 Lid (access ultra-fine filter)
G-F 316 E - 24.02.2002 / Vers.: 2
9 Lid (for ultra-fine filter)
10 Knurled nut
11 Ultra-fine filter cartridge
12 Opening to suction blower
13 Suction blower
14 2 fuses for feeble currents 10 A/T
15 Main switch
18 Mains connection unit plug (230 V/50 Hz)
