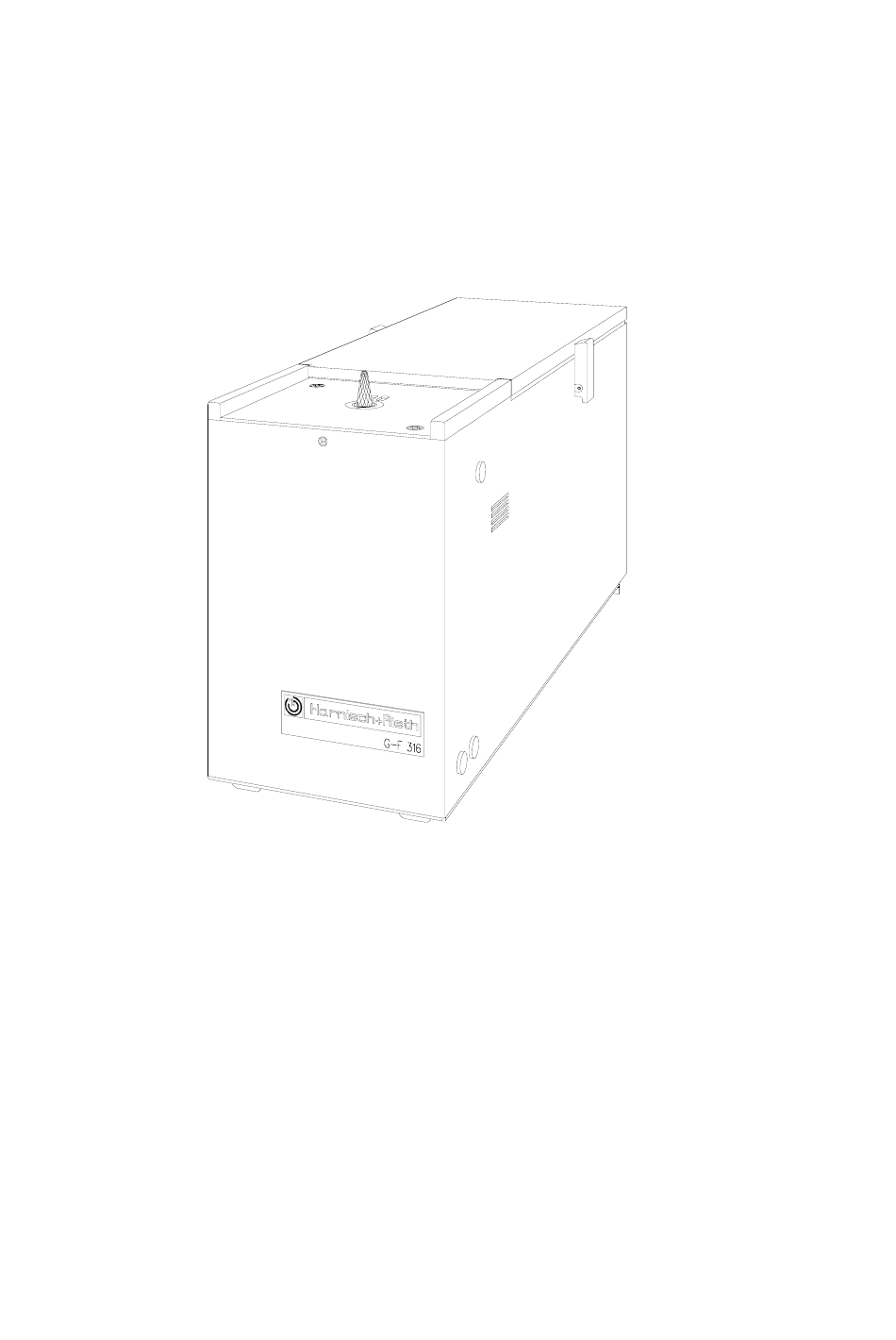

- Page 1 Operating instructions Machine designation: Denture model grinding unit with Suction and filter unit Machine type: G-F 316 E Machine no.: ........Keep for future reference!
-
Page 2: Table Of Contents
4.1 Cleaning the suction channel..................7 4.2 Maintenance ........................7 5 Electrical fuse protection ...................... 7 6 Technical data ........................8 7 Warranty conditions ......................9 8 EC declaration of conformity ....................10 G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 3: Safety
1 Safety 1.1 Intended use The G-F 316 E denture model grinding unit is intended for use in dental laboratories for spot grinding dentures. This unit is designed exclusively for milling plasters and other similar materials. The filter unit is suitable for extracting dusts of the use category C as stipulated in the BIA requirements according to ZH 1/487 (i. -
Page 4: Initial/Setting Into Operation
− For possible further accessories see note of delivery 2.2 Identification of the unit components The G-F 316 E denture model grinding unit comprises the following main elements: a) Motor milling spindle with collet chuck and conical carbide metal milling tool (other milling tools upon request). -
Page 5: Initial/Setting Into Operation Procedure
6. Wire basket (2) should be inserted as displayed! 7. Put all lids (1), (8) and (9) back on and close them. The filter unit should be inspected at least once a month by appropriately trained personnel. Caution G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 6: Operation
3. Insert new/cleaned ultra-fine filter cartridge (11) and new filter bag (3) (for details see section “2.4 Checking the filter unit“). 4. Examine suction channel (see section “4.1 Cleaning the suction channel“). G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 7: Changing The Carbide Metal Milling Tool
25 O-ring on the blocking pin 20 O-ring on the milling tool shaft 26 Crossbar Ø 12 mm 21 Suction channel 27 2 recessed countersunk head screws 22 Swivel nut (19 mm) G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 8: Cleaning/Maintenance
5 Electrical fuse protection − The unit is fuse protected with the two main fuses (14). 14 2 main fuses 10 A/T 18 Mains connection unit plug Fig. 3: Electrical fuse protection G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 9: Technical Data
: U, S, G and C Power consumption : approx. 700 watts Electrical fuse protection : 2x 10 A/T Milling speed : approx. 9000 rpm Collet chuck diameter : 8 mm Weight : 16 kg G-F 316 E - 24.02.2002 / Vers.: 2... -
Page 10: Warranty Conditions
----------------------- ----------------------- ---------------------- ---------------------- ------------------- ---- Fold here for window envelope Machine Denture model grinding unit designation: G-F 316 E Machine type: Machine no.: Copy Guarantee return form Date of purchase Dealer/store: Machinenbau Harnisch+Rieth GmbH & Co. From: Postfach 1260... -
Page 11: Ec Declaration Of Conformity
: Facility for separating health endangering dusts with re-circulation of the clean air into the work rooms. A technical documentation is available. The operation instructions belonging to the machine are also available. Director of the Quality Control Department Winterbach, 06th September, 1995 G-F 316 E - 24.02.2002 / Vers.: 2...
