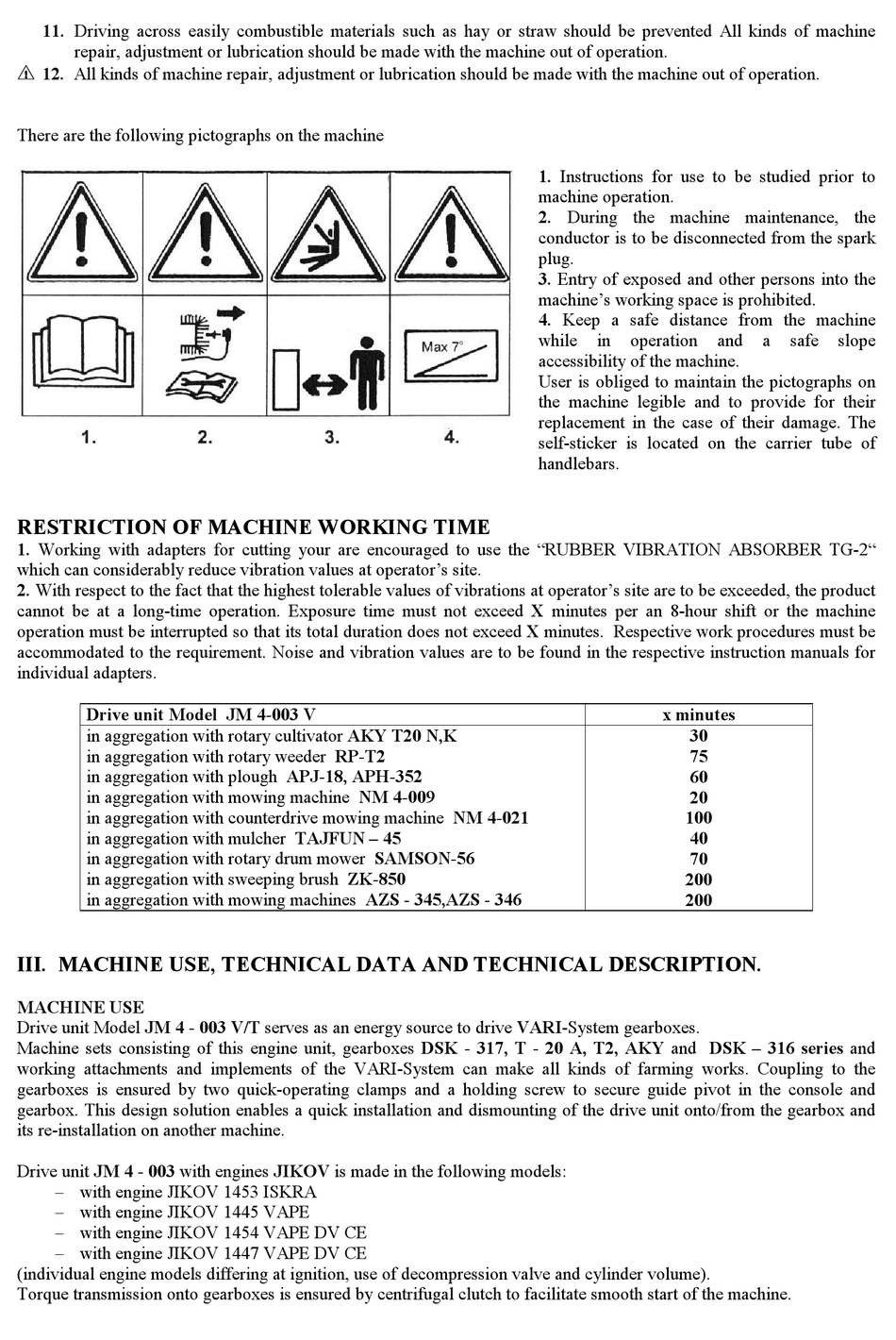

Machine Use, Technical Data And Technical Description - Vari JM 4-003 V Manual

11. Driving across easily combustible materials such as hay or straw should be prevented All kinds of machine
repair, adjustment or lubrication should be made with the machine out of operation.
        12. All kinds of machine repair, adjustment or lubrication should be made with the machine out of operation.
There are the following pictographs on the machine
RESTRICTION OF MACHINE WORKING TIME
1. Working with adapters for cutting your are encouraged to use the "RUBBER VIBRATION ABSORBER TG-2"
which can considerably reduce vibration values at operator's site.
2. With respect to the fact that the highest tolerable values of vibrations at operator's site are to be exceeded, the product
cannot be at a long-time operation. Exposure time must not exceed X minutes per an 8-hour shift or the machine
operation must be interrupted so that its total duration does not exceed X minutes. Respective work procedures must be
accommodated to the requirement. Noise and vibration values are to be found in the respective instruction manuals for
individual adapters.
Drive unit Model JM 4-003 V
in aggregation with rotary cultivator AKY T20 N,K
in aggregation with rotary weeder RP-T2
in aggregation with plough APJ-18, APH-352
in aggregation with mowing machine NM 4-009
in aggregation with counterdrive mowing machine NM 4-021
in aggregation with mulcher TAJFUN – 45
in aggregation with rotary drum mower SAMSON-56
in aggregation with sweeping brush ZK-850
in aggregation with mowing machines AZS - 345,AZS - 346
III. MACHINE USE, TECHNICAL DATA AND TECHNICAL DESCRIPTION.
MACHINE USE
Drive unit Model JM 4 - 003 V/T serves as an energy source to drive VARI-System gearboxes.
Machine sets consisting of this engine unit, gearboxes DSK - 317, T - 20 A, T2, AKY and DSK – 316 series and
working attachments and implements of the VARI-System can make all kinds of farming works. Coupling to the
gearboxes is ensured by two quick-operating clamps and a holding screw to secure guide pivot in the console and
gearbox. This design solution enables a quick installation and dismounting of the drive unit onto/from the gearbox and
its re-installation on another machine.
Drive unit JM 4 - 003 with engines JIKOV is made in the following models:
– with engine JIKOV 1453 ISKRA
– with engine JIKOV 1445 VAPE
– with engine JIKOV 1454 VAPE DV CE
– with engine JIKOV 1447 VAPE DV CE
(individual engine models differing at ignition, use of decompression valve and cylinder volume).
Torque transmission onto gearboxes is ensured by centrifugal clutch to facilitate smooth start of the machine.
1. Instructions for use to be studied prior to
machine operation.
2. During the machine maintenance, the
conductor is to be disconnected from the spark
plug.
3. Entry of exposed and other persons into the
machine's working space is prohibited.
4. Keep a safe distance from the machine
while in operation
accessibility of the machine.
User is obliged to maintain the pictographs on
the machine legible and to provide for their
replacement in the case of their damage. The
self-sticker is located on the carrier tube of
handlebars.
x minutes
30
75
60
20
100
40
70
200
200
and a safe slope
