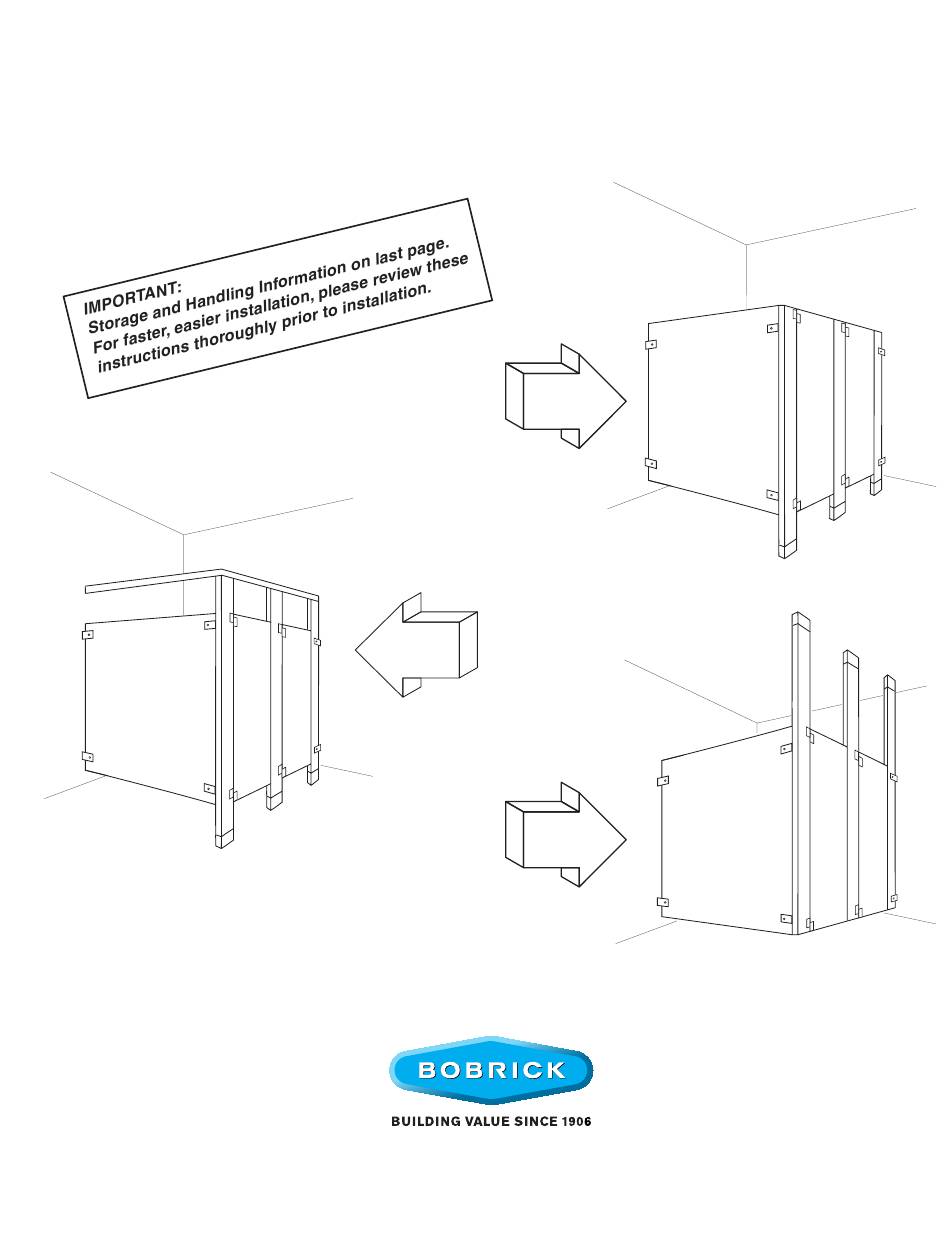

INSTALLATION INSTRUCTIONS
HIGH PRESSURE LAMINATE (HPL) TOILET PARTITIONS
1550 MetroSeries
and 1530 AccentSeries
TM
TM
FLOOR
ANCHORED
OVERHEAD
BRACED
CEILING
HUNG
Form No. 1550-69 r4/20/18
© 2018 Bobrick Washroom Equipment, Inc.
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MetroSeries 1550 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bobrick MetroSeries 1550

  • Page 1 INSTALLATION INSTRUCTIONS HIGH PRESSURE LAMINATE (HPL) TOILET PARTITIONS 1550 MetroSeries and 1530 AccentSeries FLOOR ANCHORED OVERHEAD BRACED CEILING HUNG Form No. 1550-69 r4/20/18 © 2018 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
  • Page 2: Pre-Installation

    CAUTION: Be sure to use proper safety gear. by Bobrick. Confirm that adequate backing is present Chalk Line in wall, ceiling and floors prior to installation. B. This installation booklet must be used with the Bobrick Plumb-bob layout sheets. C. You may verify hardware receipt by cross-referencing...
  • Page 3 X Dim. = Stile Edge to Centerline of Mounting Hole. Y Dim. = Centerline-to-Centerline of Mounting Hole. A. Refer to Bobrick layout sheets for component locations on your specific application. B. From back wall, measure and mark the location of the stile centerline. Stile centerline = 1/2" (13mm) + panel length + gaps specified on layout sheets.
  • Page 4 Fig. 2c: Detail of Ceiling Anchor. NOTE: Ceiling anchors are to be installed before finished ceiling is applied. All structural framing is to be furnished by others. For Bobrick recommendations, refer to Bobrick Form No. TB-32. A. Drill 7/16" (11mm) diameter hole through structural Threaded Rod beam.
  • Page 5 Qty. (3) Qty. (3) No hardware is exposed on the Y-bracket outside of stall. Qty. (3) Y-bracket Y-bracket Qty. (3) Qty. (3) Page 5 Form No. 1550-69 r4/20/18 © 2018 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
  • Page 6 (37cm) 18'' (46cm) These mounting points require wall backing. Obtain Dimension from Bobrick Layout Sheet. Floor Anchors WALL POST #1002250 A. Determine the location and hole of the 1" x 1-1/2" (25 x 40mm) stainless steel wall post being installed.
  • Page 7: Position Panels

    Bracket Placement. Placement. CAUTION: Panel centerline is not Panel Centerline always on the stile centerline. Refer Panel Centerline to Bobrick Layout Sheets for panel offsets. (15cm) 18'' (46cm) A. Measure and mark the centerlines for three (3) U- or L-brackets per 29'' stile.
  • Page 8 C. Fasten brackets to panels with #14 x 5/8" (6.4 x 16mm) screws or 1002500 for stainless steel option. D. Use level to plumb stiles. Place shims between panels and wall. E. Set door openings to be square, plumb and true per Bobrick Layout Sheets. Tighten hex nuts on stile anchoring system.
  • Page 9 INSTALL HEADRAIL (IF APPLICABLE) STEP 7 Note: Bobrick provides headrail in 84" (213cm) long G. Drill #19 (.166) x 2" (4.2 x 50mm) pilot holes in wall. sections. Headrail seams must be located over stiles. Fasten headrail L-bracket to wall using #12 x 2" (M5.5 x 50mm) screws.
  • Page 10 2 x “L” 2 x “J” Hinge Set Hinge Set Lower Hinge Door Half Right Hand Left Hand Inswing Inswing Left Hand Right Hand Outswing Outswing Page 10 Form No. 1550-69 r4/20/18 © 2018 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
  • Page 11 C. Mount robe hook 1002500 (#12 x 3/4") screws. D. Mount outswing door bumper using 1002500 (#12 x 3/4") at location that prevents door from hitting surface on the outswing. Keeper Page 11 Form No. 1550-69 r4/20/18 © 2018 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
  • Page 12 FINISH AND CLEANUP A. Remove any exposed labels from the components of toilet compartments. B. Clean surfaces as needed. CAUTION: Do not use cleaners containing acid on Bobrick toilet compartments. For example, tile cleaners containing acid may attack the stainless steel hardware.
  • Page 13 Form No. 1550-69 r4/20/18 © 2018 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
  • Page 14 In the U.S.A.: BOBRICK WASHROOM EQUIPMENT, INC. Los Angeles: 6901 Tujunga Ave., North Hollywood, CA 91605-6213: Tel: (818) 982-9600, Fax: (818) 503-1102 New York: 200 Commerce Drive, Clifton Park, NY 12065-1350; Tel: (518) 877-7444, Fax: (518) 877-5029, or e-mail: customerservice@bobrick.com...

This manual is also suitable for:

Accentseries 1530
