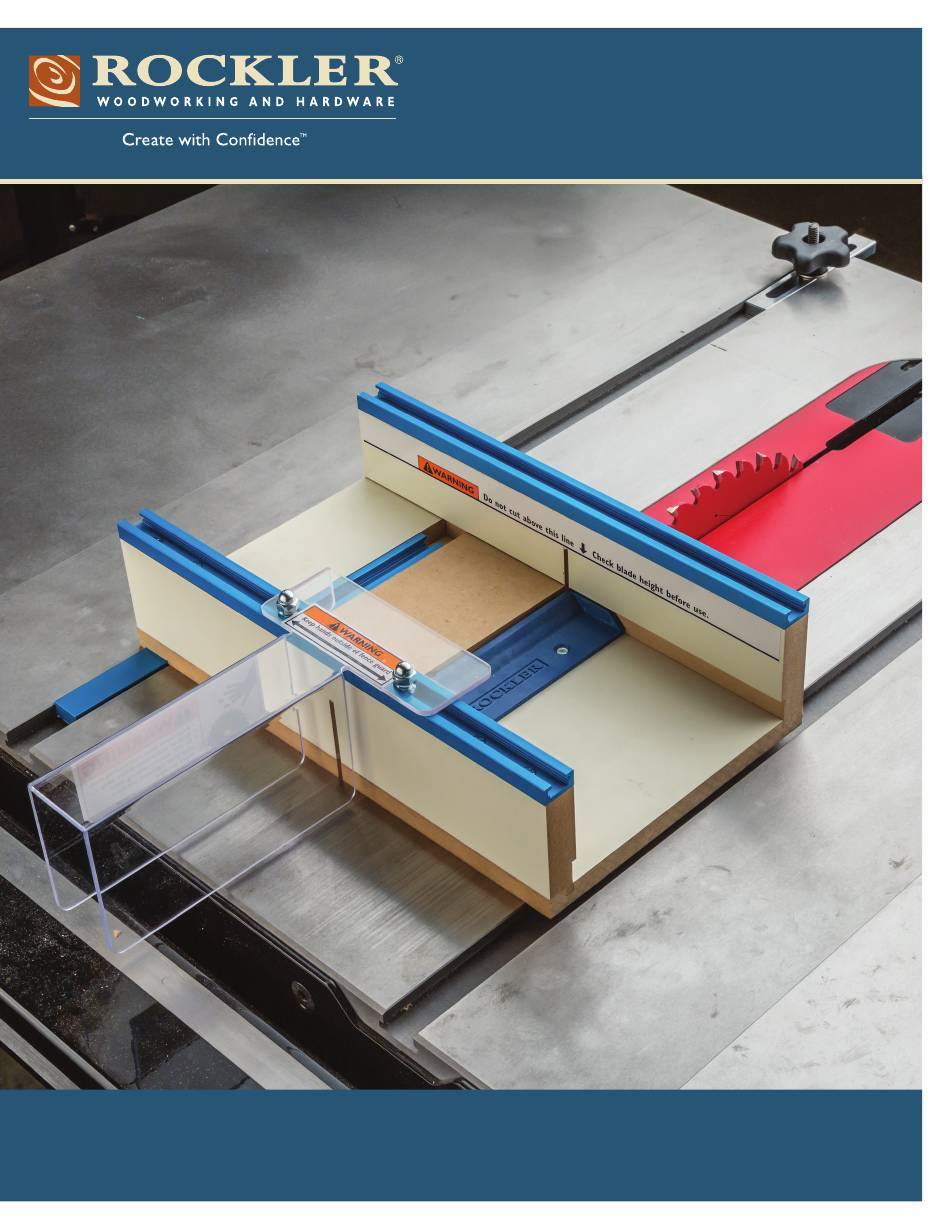

- Page 1 Table Saw Small Parts Sled Instructions For use only on table saws with a 3/4" x 3/8" miter slot! For safe and effective operation, read these instructions fully before use.
- Page 2 Rockler.com and click on the link to the Instructions. > Always wear safety glasses in compliance with ANSI > For any tool used in conjunction with this product, always...
- Page 3 Insert will be cut to size during setup Safety Miter Stop must be used or serious injury can occur. PARTS LIST Quantity 1 Sled Body 2 MDF Zero Clearance Insert 3 Drop-Off Ramp 4 8-32 x 1/2" Flat-Head Screws 5 8-32 x 1" Flat-Head Screws 6 Blade Guard 7 1/4"-20 Cap Nut 8 1/4"-20 x 1/2" Hex Bolt 9 Safety Miter Stop 10 5-Star Knob...
- Page 4 Assembly and Setup Instructions WARNING > Remove table saw blade guard and riving knife prior to use of sled and reinstall both after completing sled use. 1. Retract your saw’s blade entirely below the table surface 2. Set the Sled Body (1) on the saw table, with the miter bar in the saw’s miter slot, and slide it forward. If the sled shifts at all from side to side, turn it over and use a small slotted screwdriver to adjust the nylon set screws in the miter bar to eliminate excessive play.
- Page 5 6. Slide the Sled Body (1) backward so that it will be clear of the blade. Blade height should be set no more than 2" above the surface of the saw table to avoid saw blade from contacting aluminum T-track on the fences. 7.
- Page 6 Fig. 5 10. Position the Safety Miter Stop (9) in the table’s miter slot at the back of the table saw so that it contacts the sled. Tighten securely. Exact positioning depends on the specific dimensions of your saw; you want to position the stop so it prevents the sled from advancing so far that the blade emerges out the back of the plastic Blade Guard (6).
-
Page 7: Instructions For Use
Fig. 7 Fig. 8 edge aligned with the kerf made by the saw blade. Drill pilot holes, if desired, and secure the Drop-Off Ramp (3) in place with the two 8-32 x 1/2" Flat-Head Screws (4). Fig. 9. Instructions for Use WARNING > Do not operate sled without Safety Miter Stop (9) in place with knob tightened. See page 6, step 10 (and Fig. 5) - Page 8 Sled Body (1) from slipping out of the saw’s miter slot. 6. After using the Table Saw Small Parts Sled; reinstall the riving knife and guard on your table saw. 7. Store this instruction booklet with your Table Saw Small Shown with optional Parts Sled or in another place for easy reference.
