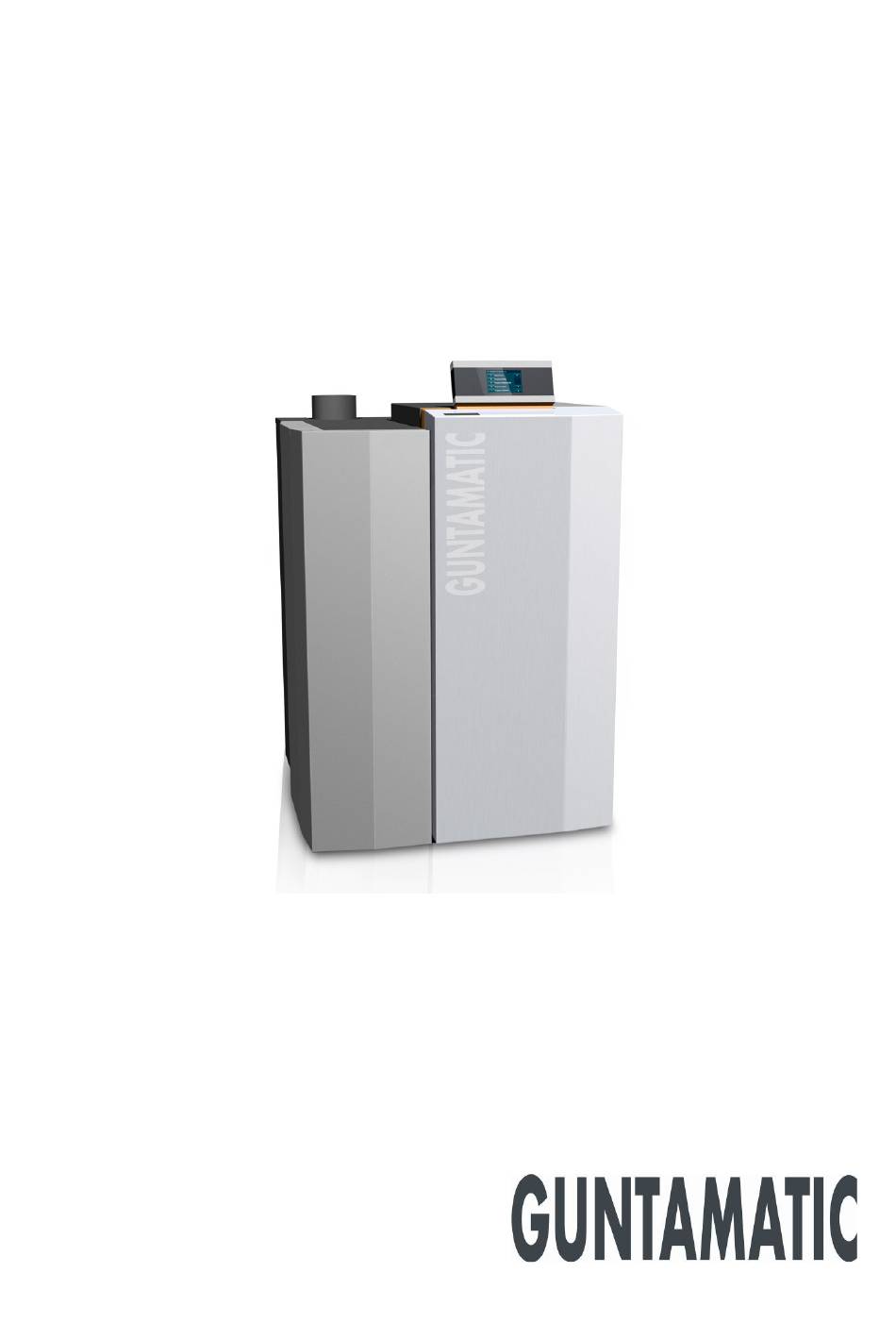

- Page 1 Wood logs for 1/2 m split logs englisch Planing und Installation BMK-02 EN-B31-004-V09-1215...
- Page 2 We are always looking to improve our products and documentation. Any ideas and suggestions you may have will be gratefully received. GUNTAMATIC Heiztechnik GmbH Bruck 7 A-4722 PEUERBACH Tel: 0043 (0) 7276 / 2441-0 Fax: 0043 (0) 7276 / 3031 Email: office@guntamatic.com...
-
Page 3: Table Of Contents
CONTENTS BMK-02 Page 1 Introduction ................4 Safety instructions Gurantee and warranty Commissioning Site requirements 2 PLANING .................5 Fire safety Minimum fire safety requirements Heatingroom Flue requirements Flue draught regulator and pressure surge compensator Heatingcirculation rule 3 CONSTRUCTION ..............13 Delivery Carrying to installation site Locate and angle the boiler Plumbing connections Filling and blending the System... -
Page 4: Introduction
GUNTAMATIC provides no guarantee of any kind for any type of site work. -
Page 5: Planing
You have to follow you specific country fire safety rules obligatory. Your country safety rules are higher then our GUNTAMATIC minimum rules. If there are no specific fire security rules in your country, you have to follow the GUNTAMATIC introductions... -
Page 6: Minimum Fire Safety Requirements
2.2 Minimum fire safety requirements Boiler room Floor of concrete construction, either bare or tiled. All materials for floor, walls and ceiling must be fire-resistant to F60 rating. The boiler room door must be a Class T30 fire door which opens in the direction of escape and is self-closing. -
Page 7: Heatingroom
2.3 HEATING ROOM BMK-02 Minimum Roomheight H 220 cm ideal H 145 cm possible at BMK 20-30 H 185 cm possible ati BMK 40-50 Minimum Room tallnes B 200 cm x T 240 cm ideal left 50 cm / right 50 cm / below 45 cm / above 100 cm B 147 cm x T 209 cm possible BMK with Ignition... - Page 8 Installation side You have to plan the furnace in the near of the chimney to avoid a long flue pipe. The heating has to be accesable from the left and the right site. The Outreach of burningroom and ashdoor must be kept free. 45 cm minimum ideal A →...
-
Page 9: Flue Requirements
2.4 Flue requirements Use heat-insulated fireclay flues that are insensitive to damp. GUNTAMATIC accepts no liability where stainless steel flues are used. The system must only be connected to the flue if the flue meets the legal requirements and the technical specifications. -
Page 10: Flue Draught Regulator And Pressure Surge Compensator
2.5 Flue draught regulator and pressure-surge compensator BS-01 Fitting an energy-saving flue draught regulator/pressure-surge compensator (Class RE) is absolutely imperative. (if possible 200 mm) The flue draught should not differ by more than +/- 3 pascals from the figure specified in the flue dimensioning data. If the flue draught cannot be reduced to the required figure, either a larger draught regulator should be fitted or an additional flue baffle fitted between the flue and the draught regulator. -
Page 11: Heatingcirculation Rule
2.6 HEATINGCIRCULATION RULE BMK-01 The heating circle rule is optional offered. You can decide between a MKR set or a wall mounted MK 261 set. per construction 3 controlled by atmospheric condition rules ● possible per construction could be actived just 1 MKR Set boiler ●... - Page 12 NOTES Sketch:...
-
Page 13: Construction
Carrying in dismantled The boiler body can be dismantled into parts for carrying in. If that is done, a person authorised by GUNTAMATIC must be consulted. To be able to undo the heat exchanger unions, all of the insulation must be removed from the boiler. -
Page 14: Locate And Angle The Boiler
3.3 LOCATE AND ANGLE THE BOILER BMK-01 Keep to the minimum wall clearances specified by the system planner and manufacturer. If important details are missing, please refer to the planning documentation or ask our Technical Support. Position the system as close as possible to the flue to avoid having a long flue connecting pipe. -
Page 15: Plumbing Connections
3.4 Plumbing connections BMK-03 A → Flow 5/4“ B → Security warm heatexchanger 3/4“ C → Emtying 1/2" D → Backrun 5/4 E → therm. drainvalve 3/4" residual operation temperaturer 95°C F → Cold water supply G → Security valve 1/2" Inlet DN15 Outlet... - Page 16 30 m (flow and return) can make reinterpreting boiler/ charge pump (KLP) necaserry. When using foreign return boost which is not correspond to these in the flow or control speed of GUNTAMATIC, any warranty is rejected. Sludge separator with magnetite Magnetite and the sludge separator in the Heatngwater could become a problem for energysaver pumps.
-
Page 17: Filling And Blending The System
° dH > 8.4 • > 500kW: if ° dH > 0.11 Water heater If a water heater is also used in addition to the GUNTAMATIC boiler, it should be filled according to the installation instructions for it. Flush the Construction •... -
Page 18: Connecting The Flue
3.6 Connecting the flue BMK-01 The boiler is connected to the flue by means of a flue connecting pipe which must be gas-tight and insulated between the heating boiler and the chimney. → The following diameters should be used: Flue connecting pipe BMK 20/30/40/50 Ø... -
Page 19: Electrical Connections
ELECTRICAL CONNECTIONS BMK-01 The electrical connections to the boiler system on site may only be made by an approved electrical installer observing all the applicable regulations. In addition, it is essential that electrical system components are protected against damage from heat radiation. All boiler system internal wiring is wired up at the factory ready for use. - Page 20 Cabeling Feeder 3 x 1,5 mm² • Sensor 2 x 1 mm² • Roomconstruction 2 x 1 mm² • CAN-Bus 2 x 2 x 0,5 mm² (paired cable / screened) • Overvoltage protection Where CAN bus cables run between different buildings, the earthing conductors of the buildings must be connected to each other for potential equalisation purposes.
-
Page 21: Connections On The Constructions
Connections on the Constructions BMK-09 Net connecting 230 VAC, 50 Hz, 13 A • Standard specifications Boiler control panel (BCE) • Boiler circuit board (230 VAC) • Safety temperature limiter (STB) • Boiler sensor (KVT 20 • Flue gas temperature sensor (thermocouple) •... -
Page 22: Final Checks
Always leave the boiler room clean. • Initial commissioning Commissioning must only be carried out by GUNTAMATIC or a qualified specialist. The precondition is that the flue technician, heating installer and electrician have cleared the system for operation. The authorised GUNTAMATIC specialist... -
Page 23: Standards / Regulatios
Standards / Regulations BS-01 The heater equates Class 3/ EN 303-5. The original certification report is deposited at the manufacture, Public Police and Fire safety rules have to be respected. • ÖNORM / DIN EN 303-5 Heaters for pillar fuel, automatic and manual sanded up to 300 KW. Terms, requirements, and checkups. - Page 24 NOTES Sketch:...
-
Page 25: Connecting Diagrams
Heatingcirculations time controlled – without atmospheric controlled rule Warmwatermemory ECO – Buffermemory PS Diagram no : BMK-01 Firing BMK as pricelist flue draft regulator with Ex-Clap RE20 H38-160 Electrical connections as per operating and installation instructions Return boost group RA50 A H39-021 Warmwatermemoryr ECO as price list... - Page 26 Heatingcirculation time controlled – with atmospheric condition loaded rule Warmwatermemory ECO – 2 buffermemory PS Diagramme Nr.: BMK-02 Firing as Price list Flue draft regulator with Ex-Klappe RE20 H38-160 Electrical connections as per operating and installation instructions Rule Set-MKR S30-031 Return boost group RA50 A H39-021 Mixer Servermotor...
- Page 27 Heatingcirculation time contolled – with atmospheric controlled rules 1 Pufferspeicher PSF incl. Freshwaterstation – 1 buffer memory PS - Solarconstruction Diagramme No.: BMK-03 Firing BMK as pricelist Flue draught regulator mit Ex-Klappe RE20 H38-160 Electrical connections as per operating and installation instructions Rule Set-MKR S30-031 Return boost group RA50 A...
- Page 28 Combination with existing oil/ gas boiler - controlled by atmospheric conditions heatingcirculationrule in the existing boiler ATTENTION: non qualified for gas thermics! Scheme No.: BMK-05 Firing BMK as pricelist Flue draft regulator with Ex-Clap RE20 H38-160 Electrical connections as per operating and installation instructions Oil / Gasboiler by client Return boost group RA50 A...
- Page 29 Combination with blocking of an Oil/ Gasconstruction by armospheric conditions heatingcirculation with BMK ATTENTION qualificated for oil or gasboiler and gas thermics for gasthermics there is an hydraulic seperation advicable Diagramme No.: BMK-16-8 Firing BMK as Pricelist Flue draft regulator with Ex-Clap RE20 H38-160 Electrical connections as per operating and installation instructions Rule Set-MKR...
- Page 30 NOTES Sketch:...
-
Page 31: Technichial Data
TECHNICHAL DATA BMK-02 Type BMK 20 BMK 30 BMK 40 BMK 50 Unity Fuel Split log Split log Split log Split log natural finish natural finish natural finish natural finish rating 40,3 (39,4*) 50 (42,5*) boiler temperature 65 – 85 65 –... - Page 32 GUNTAMATIC Heiztechnik GmbH A-4722 Peuerbach / Bruck 7 Tel: 0043-(0) 7276 / 2441-0 Fax: 0043 (0) 7276 / 3031 Email: office@guntamatic.com www.guntamatic.com Misprints and technichal Changes reserved...
