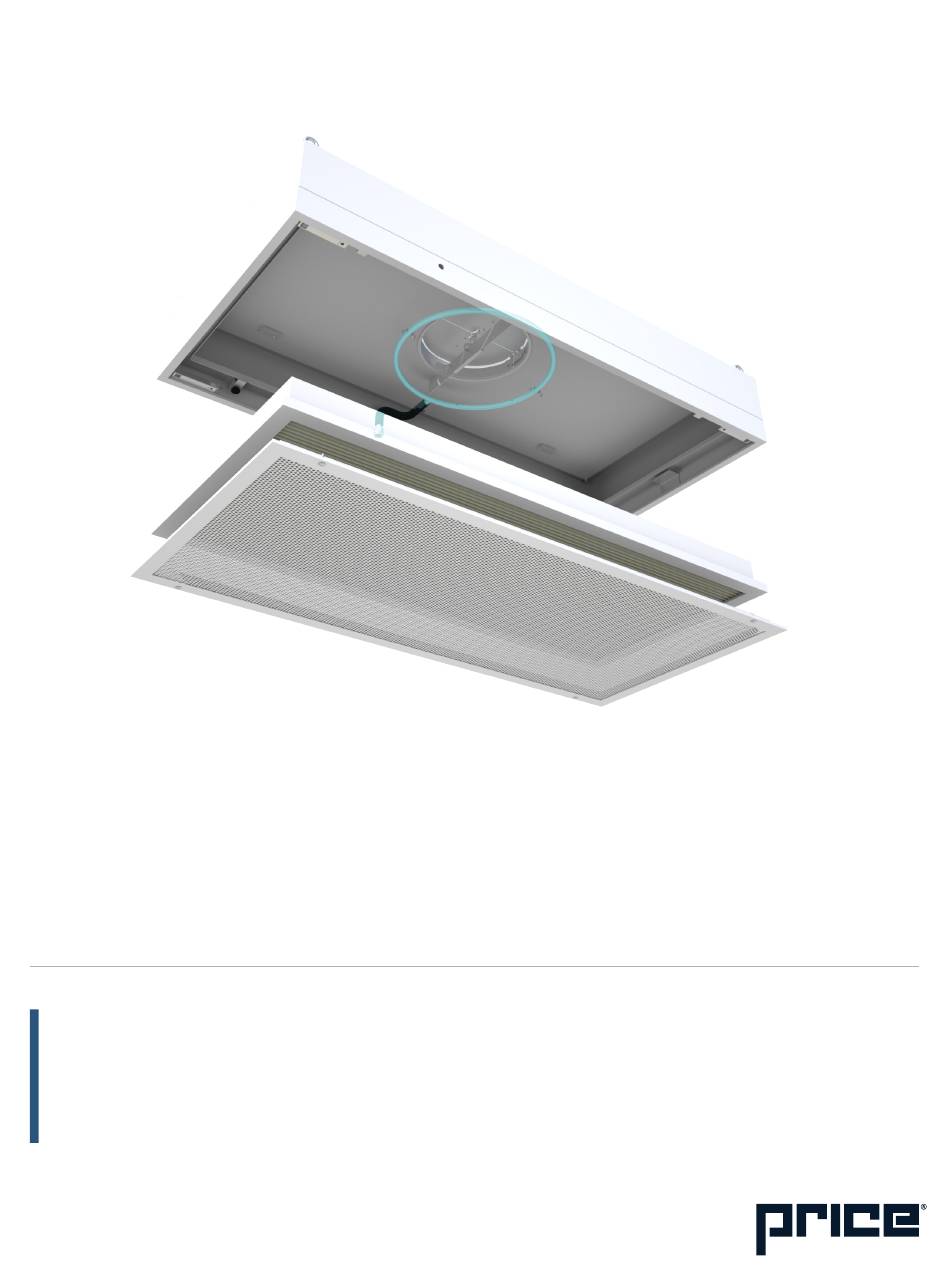

USER MANUAL

INJ Aerosol Injection Port User Manual

for Filtered Diffusers

FFU, LFDC, RFDC, FRFDC

v000 – Issue Date: 10/15/19

Table of Contents

Need help?

Do you have a question about the FFU Series and is the answer not in the manual?

Page 2 Aerosol InjectIon Port User MAnUAl for fIltered dIffUsers Always read & Understand All Installation Instructions Prior to starting This instruction applies to the use of the Aerosol Test System option for Filtered filtered laminar flow diffusers. It is intended as a guide to assist properly trained and qualified technicians.
Page 3 Aerosol InjectIon Port User MAnUAl for fIltered dIffUsers Note Airflow and aerosol challenge concentration should be kept uniform during the test. Static pressure and concentration may be sampled through the static pressure port during the test, if required, to verify flow and concentration. Recording both the flow rate and static pressure reading is recommended during initial startup, for future reference to determine remaining filter life.
Page 4 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com © 2019 Price Industries Limited. All rights reserved.
