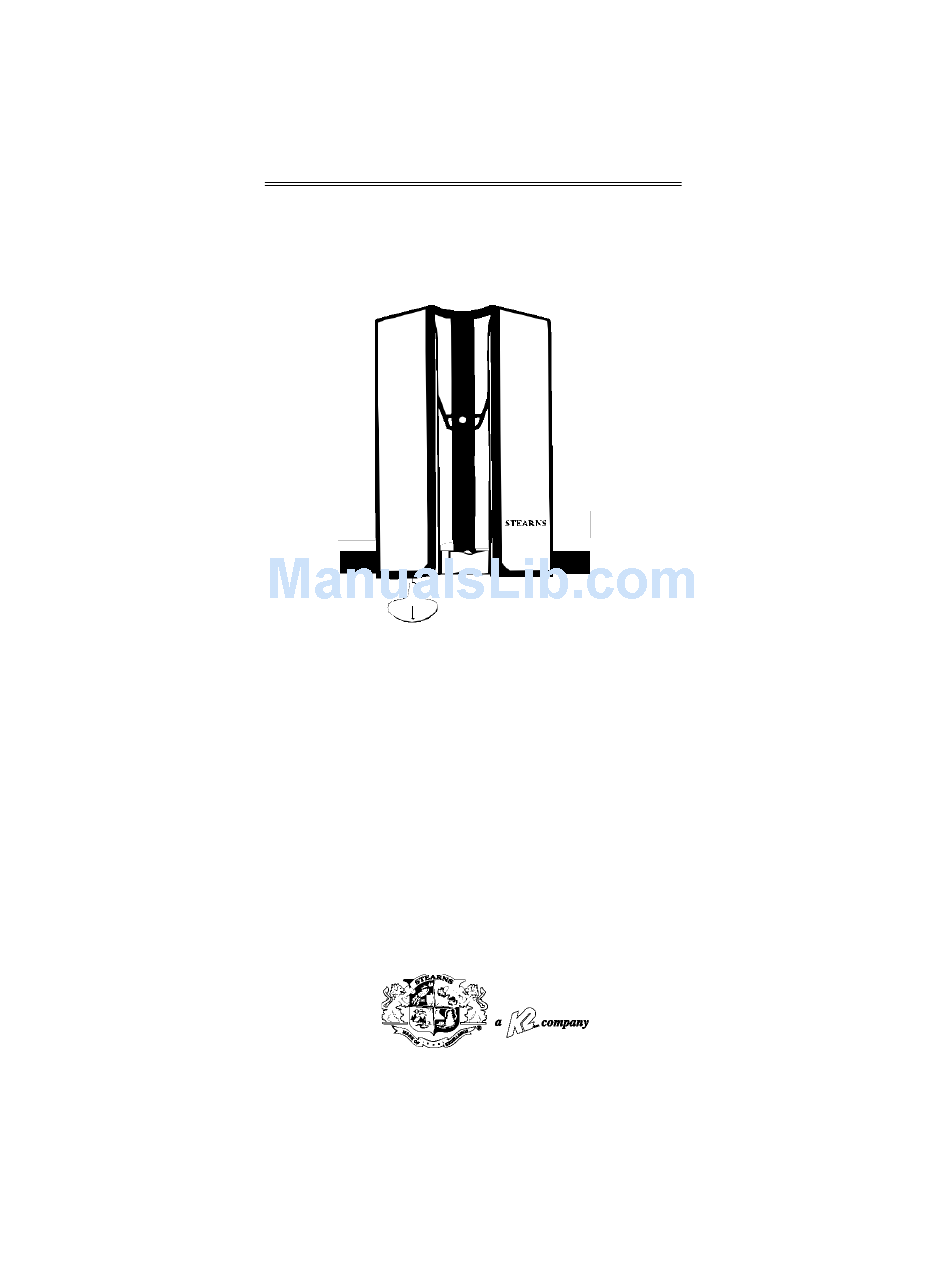

DO NOT REMOVE PRIOR TO SALE!
OWNER'S MANUAL
Model No. 1339 and 1341
I. APPROVAL CONDITIONS and CARRIAGE REGULATIONS

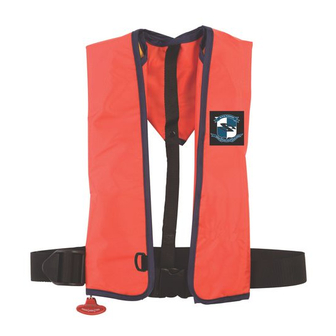

This inflatable PFD is approved by the U.S. Coast Guard for
use as a Type V Humidity Sensitive Personal Flotation Device
(PFD) with Type II performance. IT IS APPROVED ONLY
WHEN WORN. It is not approved for water skiing or other high
impact, high speed activities. This inflatable PFD was designed
to be more comfortable and less restrictive to wear than
inherently buoyant PFD's. When worn, used, and serviced
according to this owner's manual, this PFD can greatly
increase your chances of survival in the water.
Not
recommended for non-swimmers or weak swimmers. Users
of inflatable PFD's must be at least 16 years old.
See page 2 for CONDITIONS FOR THIS TYPE V APPROVAL.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stearns 1339
Summary of Contents for Stearns 1339
- Page 1 DO NOT REMOVE PRIOR TO SALE! OWNER’S MANUAL Model No. 1339 and 1341 I. APPROVAL CONDITIONS and CARRIAGE REGULATIONS This inflatable PFD is approved by the U.S. Coast Guard for use as a Type V Humidity Sensitive Personal Flotation Device (PFD) with Type II performance.
- Page 2 CONDITIONS FOR THIS TYPE V APPROVAL This manual/automatic inflatable PFD is approved for use as a substitute for a Type II PFD ONLY WHEN WORN. Conditional approvals are granted by the Coast Guard for PFDs that: 1. Do not meet all the requirements for approval under the Type I through IV categories but offer other significant safety features, or 2.
- Page 3 3. The PFD could inflate when you are in an awkward place or position. Owners of inflatable PFDs must understand the unique characteristics of these products so that they can use them safely. You must learn how to properly arm the PFD. Why: An improperly armed mechanism may not inflate the chamber.
-
Page 4: Mandatory Carriage Requirements
Why: The PFD could inflate when you are in an awkward place or position. Why: Automatic inflation after oral inflation could damage the PFD. Do not try to alter or modify the mechanism. If you are dissatisfied with the humidity resistance or other performance of this product, contact Stearns, Inc. -
Page 5: Specifications
III. INSTRUCTIONS FOR USE SPECIFICATIONS: Chest Size: 30 – 52 inches (76 - 132 cm) Weight Range: more than 90 pounds (40 kg) Age Range: 16 years of age and older Buoyancy (minimum): 33.7 Pounds (150 Newtons) when fully inflated Inflation System: Manual/Automatic Inflation Mechanism (located on your right side) Oral Tube (located on your left side) - Page 6 The indicators are located on the mechanism at points A, B and C, as shown on Rearming Instructions on the back cover of this book. The mechanism itself is located on the PFD on the wearer’s right side. Indicator A shows the status of the manual activating lever. Be sure indicator Green Pin goes through both the plastic housing and the metal activating lever.
-
Page 7: Donning Inst Ruct Ions
Addi ti ona l Note s on CO • FA IL URE t o p r op e r l y r e ar m t h e i n fl a t i on me ch a n i sm p r io r t o i n st a l l in g t h e CO p r ema t u re a c ti v a t io n o f t h e c y li n d e r. - Page 8 A f ter donning, locate the Jerk T o In fl a t e tab f or the mechanism. It s hould pr otr ude f r om the PFD as s how n on the pictogr am. Make s ure that y ou ar e c omf or table locating the Jerk T o In fl a t e tab w ith either hand.
-
Page 9: Check Instructions
5. Other Inflation Precautions • C a u t i o n : Do not fully inflate orally then manually or automatically inflate with the CO inflation after oral inflation will damage the PFD to the point that it will not hold air or float. •... -
Page 10: Freezing Temperatures
(See page 13 for repair station locations/information.) In an emergency situation, hold thumb over the valve if it will not close. Refer back inside INSTRUCTIONS. FREEZING TEMPERATURES At or below 40° F (4° C) automatic activation and inflation time with CO gas will be longer. -
Page 11: Is Your Pfd In Good And Serviceable Condition
IS YOUR PFD IN GOOD AND SERVICEABLE CONDITION? Check your PFD between outings to be sure that it is properly armed; that it is free of rips, tears or holes; that all seams are securely sewn; and that the fabric, straps and hardware are still strong. -
Page 12: Care And Cleaning Instructions
no leakage and chamber is in operational condition. chamber deflates, immediately bring to a Stearns certified Repair Facility for repair. operational condition. 3. Automatic Inflation System – This test should be performed during years when the PFD is not inspected by a certified repair facility. -
Page 13: Why Are Pfds Required Safety Equipment
DO NOT STORE PILLS (WATER SENSING ELEMENTS) • IN HIGH HUMIDITY OR HIGH TEMPERATURES (OVER 100°F) FOR AN EXTENDED TIME. • DO NOT STORE PILLS (WATER SENSING ELEMENTS) FOR MORE THAN 18 MONTHS BEFORE USE. REPAIR If you have any question about the condition or integrity of this product call 1-800-STEARNS (1-800-783-2767). -
Page 14: How And Why To Test Your Pfd
VII. HOW AND WHY TO TEST YOUR PFD? Inflate your PFD and try it out in the water to: • Make sure it floats you: Comfortably (When worn properly) Adequately for expected wave conditions (Body shapes/densities affect performance) • Make sure it works: A flow of bubbles should not appear (See Section V for leak tests) It should inflate quick and easily... -
Page 15: How Do You Test Your Pfd Using The Manual Inflator
4. See if the PFD will float you on your back or just slightly back of vertical. In a relaxed floating position, verify that your mouth is well above the water's surface. Note the effect of where you hold your legs on how you float. 5. -
Page 16: How Do You Test Your Pfd Using The Oral Inflator
4. Get into shallow water, just deep enough that you can stand with your head above the surface. 5. See if the PFD will float you on your back or just slightly back of vertical. In a relaxed floating position, verify that your mouth is well above the water’s surface. -
Page 17: Wear Your Pfd
9. Let the PFD dry thoroughly. REARM and REPACK the PFD in accordance with the manufacturer’s instructions! VIII. WEAR YOUR PFD In approximately 80 percent of all boating fatalities, the victims were not wearing a PFD. Most fatal accidents happen on calm sunny days. - Page 18 jacket style PFD or a Type V Thermal Protective PFD as they cover more of the body than the vest or belt style PFDs. Some Points to Remember About Hypothermia Protection: 1. Always wear your PFD. Even if you become incapacitated due to hypothermia, the PFD will keep you afloat and greatly improve your chances of rescue.
- Page 19 EACH OF THESE DEVICES IS INTENDED TO HELP YOU SAVE YOUR OWN LIFE For your PFD to function properly, follow these suggestions to verify that it fits, floats, and remains in good condition. 1. Check cylinder cap to be sure it has not been punctured, before each use.
-
Page 20: Additional Information
ADDITIONAL INFORMATION If you need more information about PFDs and safe recreational boating, contact your state boating authority, U.S. Coast Guard Auxiliary, U.S. Power Squadron, Red Cross, or your nearest unit of the U.S. Coast Guard; or call the Coast Guard Customer InfoLine at 1-800-368-5647 or the Free Boating Course number 1-800-336-BOAT (in VA, 1-800-245-BOAT) or s e e... - Page 21 REPACKING INSTRUCTIONS Always deflate the PFD and rearm the Inflation Mechanism --- follow REARMING Instructions prior to REPACKING! Lay device out flat with the yellow inflatable chamber Fold right inside edge over as shown, exposing velcro strip. Fold right outside edge over, securing velcro...
- Page 22 REARMING / STATUS INDICATOR INSTRUCTIONS SECUMATIC 3001S (1) Hold the mechanism as shown in the picture above. Remove used Cylinder by twisting it in a counter-clockwise direction. Throw used Cylinder in garbage. (2) Carefully lift lever marked with the CAUTION symbol until you hear it “click”.
