Summary of Contents for Cavex Alginate Mixer 3

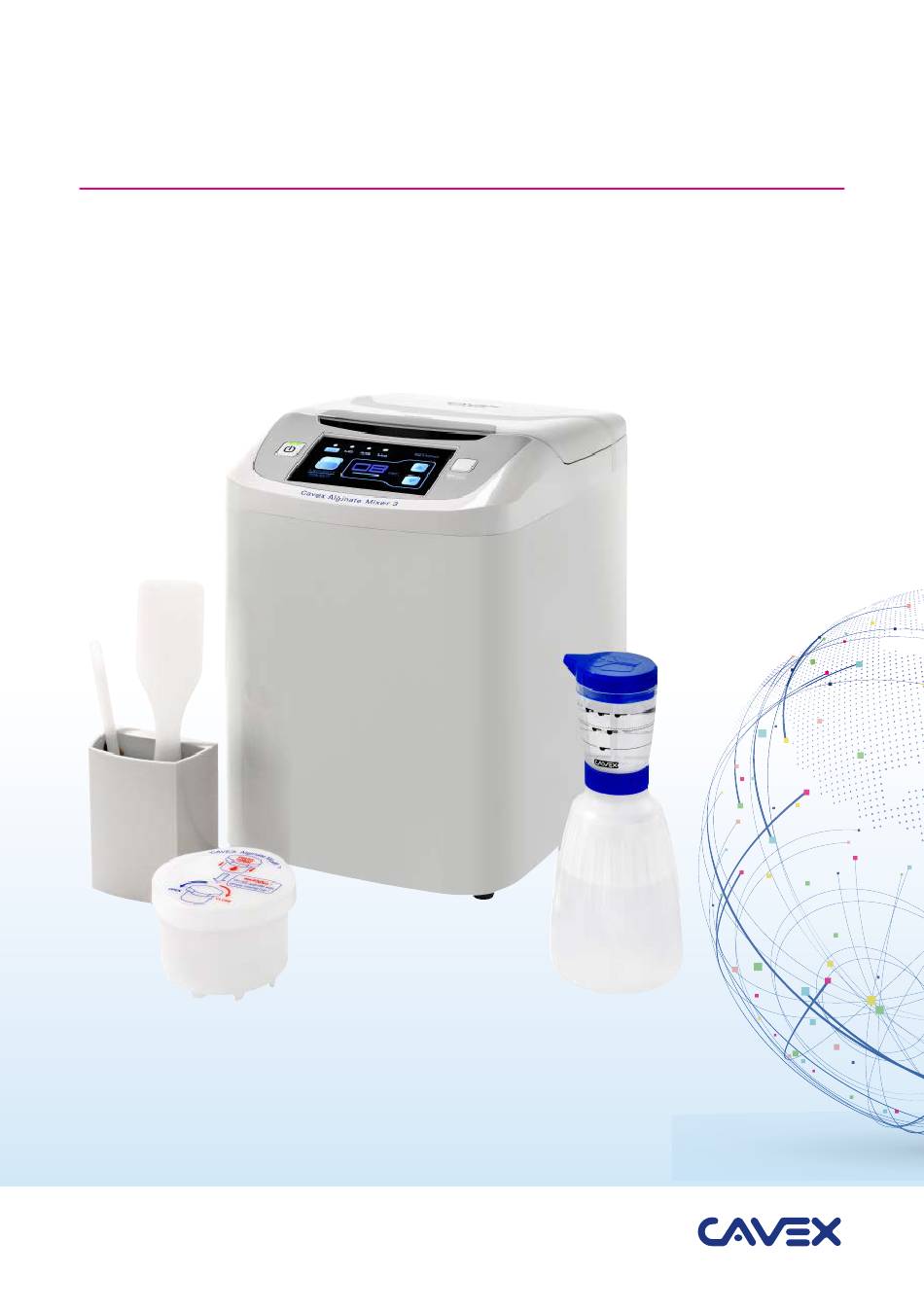

- Page 1 Cavex Alginate Mixer 3 Us er manual Installation – Operation – Troubleshooting CAVEXYOUR IMPRESSION IS OUR CONCERN www.cavex.nl...
-
Page 2: Table Of Contents
Congratulations on the purchase of your Cavex Alginate Mixer 3: an automatic mixer for alginate impression material! Please read this user manual carefully before using the Cavex Alginate Mixer 3. Its proper use will improve the quality of the mixed alginate impression material and also increase the mixer’s working life. Keep the user manual in a safe place and ensure that employees who will be using the Alginate Mixer 3 receive proper training. -
Page 3: Maintenance
IMPORTANT This message appears where improper operation may cause slight damage or defect to other objects or the device itself if instructions are not followed correctly. WARNING To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. -
Page 4: Main Unit And Accessories
Green indicator: ‘Ready for operation’ Orange indicator: ‘Power-on’ Display Start/stop button Main power switch Fuse/backup fuse Power cord port Power cord Cavex Alginate Mixer 3 Spatula 10. Powder scoop 11. Stirrer stick 12. Water dosing bottle 13. Accessory holder 14. Mixing cup IMPORTANT Do not use other power cords without authorization from the manufacturer. -
Page 5: Installation
INSTALLATION Please carefully follow the instructions below to ensure proper function of the device. System operational conditions For indoor use only, the device needs to be placed on a stable and flat surface. The operation area should be free of dust, acids, and solvent vapors. Before operation, double-check the voltage (AC 220~240V). -
Page 6: Panel Operations
Make sure the mixing cup has been securely closed. Place the prepared mixing cup firmly into the mixing cup holder. Close the lid of the Cavex Alginate Mixer 3 and check that the appropriate mixing time has been set. Press the ‘Start/stop’ button to start the mixing cycle. -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Power cord is disconnected or Plug the power cord in again and main power switch is off check the main power switch The mixer cannot be powered on The fuse is blown Inspect the fuse and change if needed Motor screws at the base of the Remove the motor fixing screws... -
Page 8: Specifications
SPECIFICATIONS Model number Cavex Alginate Mixer 3 Timer range 1 ~ 20 seconds Mixing modes Speed max. 3,600 rpm Mixing cup capacity 25 ~ 100 g / cup Dimensions 273(L) x 219(W) x 309(H) mm Net weight 16.8 kg Power input...
