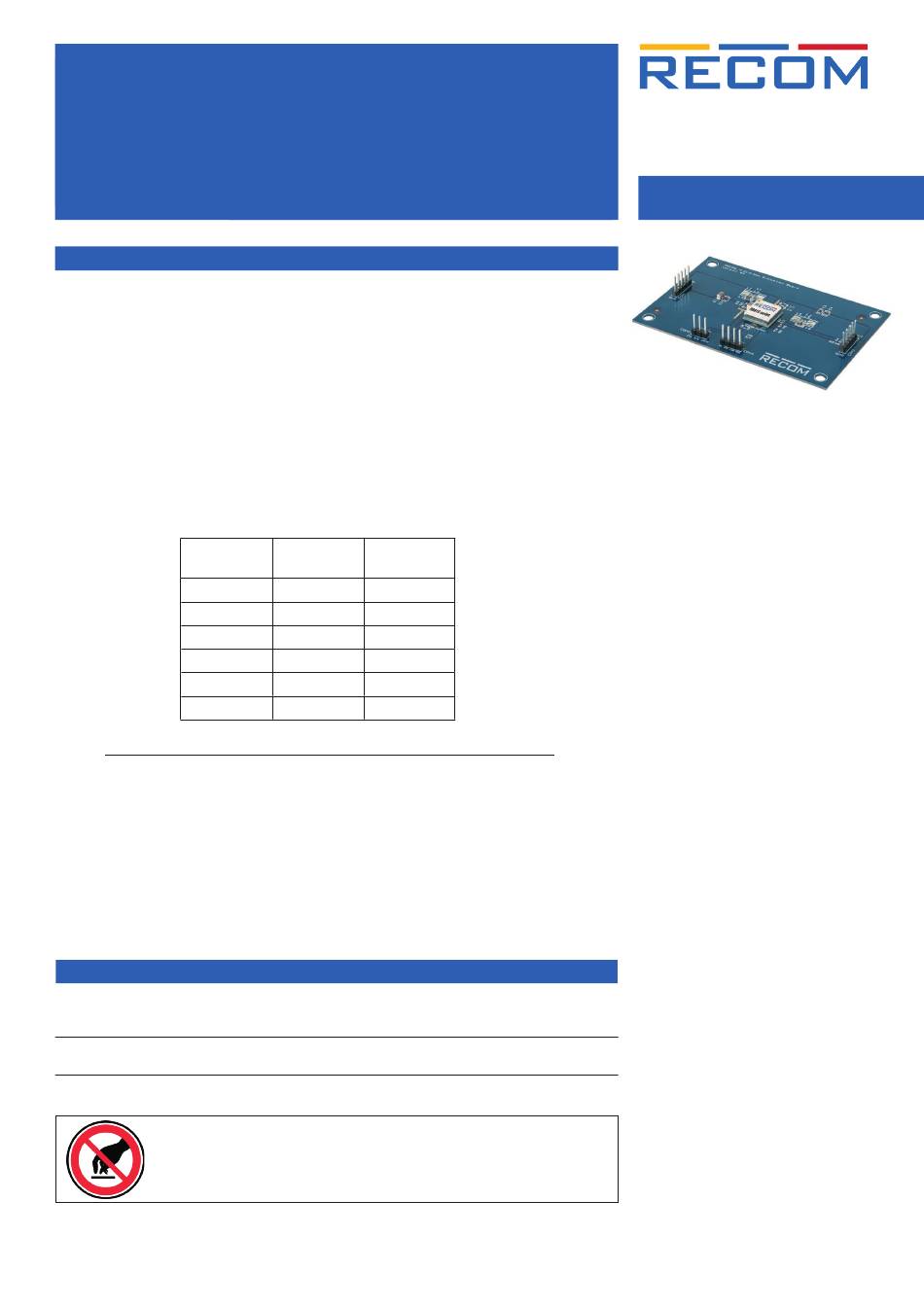

The RBB10-2.0-EVM-1 evaluation board generates a regulated output voltage with a current up to
4A from an external DC supply which can be higher, lower or the same as the set output voltage.
The output voltage is preset to 3.3V or 5V but can be adjusted between 1.0V and 5.5V using on-board
resistors. All of the functions of the RBB10-2.0 regulator such as the different operating modes, output
trim, enable, and the sense input can be easily evaluated using the break out connectors.
Typical applications that can be evaluated include:
USB voltage converter/regenerator: 3.3V or 5V output from a 3.3V (+60%/-30%) or from a
5V (+10%/-50%) supply. A stable output voltage can be regenerated even if the input voltage is outside
of the USB voltage specification.
With a regulated supply voltage, the following continuous output current limits apply:
nom. Input
Voltage
3.3V
3.3V
3.3V
5V
5V
5V
Notes:
Note1: For detail information please refer to "Safe Operating Area" graph on page P-2
Battery stabiliser: the output can be set to deliver a stable 5V or 3.3V from a nominal 3V, 3.7V or
4.2V Lithium Ion or 3V/4.5V alkaline battery pack. In standby, the board consumes only 5µA.
Supercapacitor booster: the output can be set to deliver a stable 5V or 3.3V from a single
supercapacitor (2.3V – 2.7V) or from two supercapacitors wired in series (2.3V – 5.4V).
Low voltage regulator with sense: 1V, 1.2V, 1.8V or 2.5V output with up to 4A current.
Selection Guide
Part
Number
RBB10-2.0-EVM-1
Caution:
ESD sensitive. Always follow ESD preventative procedures when
handling the product!
www.recom-power.com
• Evaluation platform for RBB10 buck/boost regulators
• Input voltage can be lower, higher or the same
as output voltage
• Class B EMC filter layout
• Built-in thermal management
• Easy evaluation of modes, trimming, enable and
sensing fufnction of the RBB10 modules
Output
Output
Voltage
Current
(1)
1.8V
4A max
3.3V
2.8A max
5V
2.2A max
1.8V
4A max
3.3V
4A max
5V
3.2A max
Input
Voltage Range
[VDC]
2.3 - 5.5
(5VDC preset)
Output
Output
Voltage
Current
[VDC]
[A]
1.0 - 5.5
2.0
(4.0 buck mode)
REV.: 1/2019
Evaluation Module
RBB10-2.0-EVM-1
P-1
